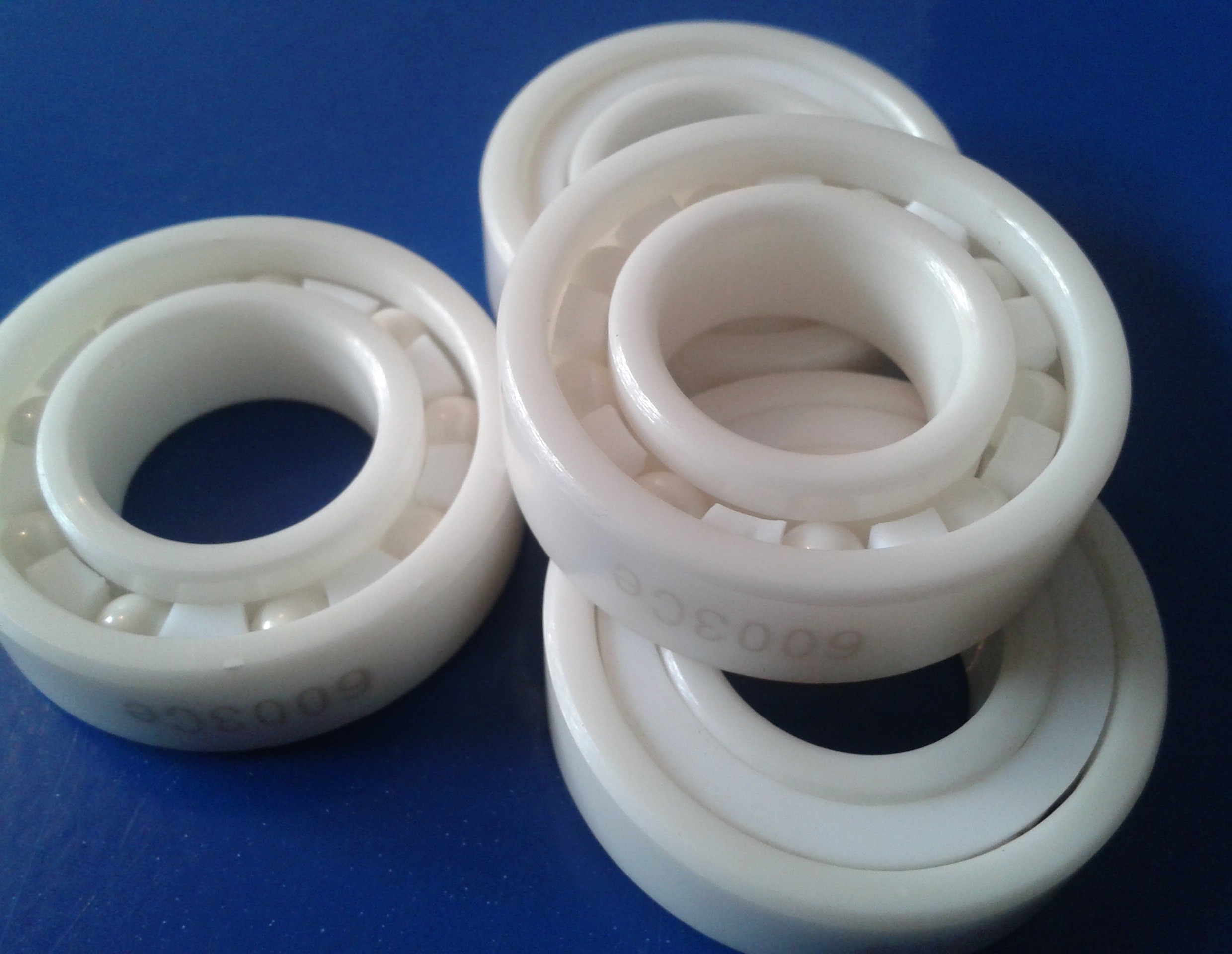

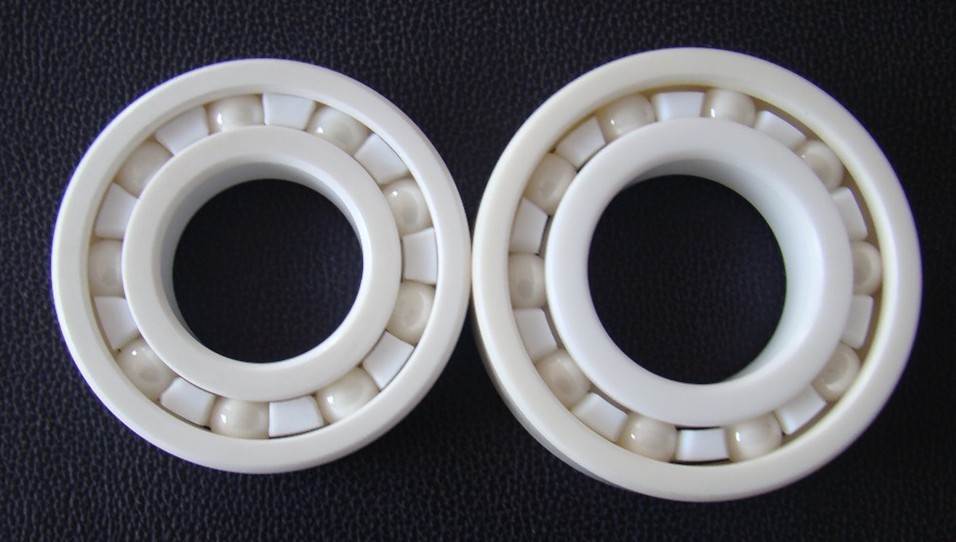

6003ce 6206ce Zro2 Full Ceramic Bearings Deep Groove Ball White High Speed
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6003CE, 6206CE |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 6 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 6 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6003, 6206 Zirconia Ceramic Bearing | Structure | Deep Groove Bearing |
|---|---|---|---|
| Material | Zirconia Rings/balls+PTFE Cage | Precision | P6/ABEC3 To P4/ABEC7 |
| Form Size | 17 X 35 X 10 Mm, 30 X 62 X 16 Mm | Ball | ZrO2 Balls Of Ø4.763mm |
| Pacage | Plastik Bag+foam+carton Box | MOQ | 50 Pieces |
| Highlight | 6003ce full ceramic bearings,high speed white full ceramic bearings,6206ce high speed ceramic bearings |
||
Product Description
6003, 6206 Zirconia Ceramic Bearing (ZrO2 Rings+ Cage) of P6/ABEC3-P4/ABEC7 Precision
Description of 6003, 6206 Zirconia Ceramic Bearing (Zirconia+) :
1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so have improved properties.
2. cage: has excellent chemical stability, corrosion resistance (is one of the best corrosion resistance materials in the world today, in addition to molten metal sodium and liquid fluorine, the ability of all other chemicals, boiling in aqua aqua can not change, Widely used in all kinds of acid and alkali resistance and organic solvent), sealing, high lubrication, non-viscosity, electrical insulation and good anti-aging endurance, excellent temperature resistance (can work in +250℃ to -180℃ temperature for a long time). So the cage in this material fitted in bearings can be used in many special working condition.
Performance advantages of 6001 Zirconia Ceramic Bearing (Zirconia+) :
A kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
Application of 6001 Zirconia Ceramic Bearing (Zirconia+) :
Because of the outstanding of zirconia and , the 6001 zirconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working condition.
