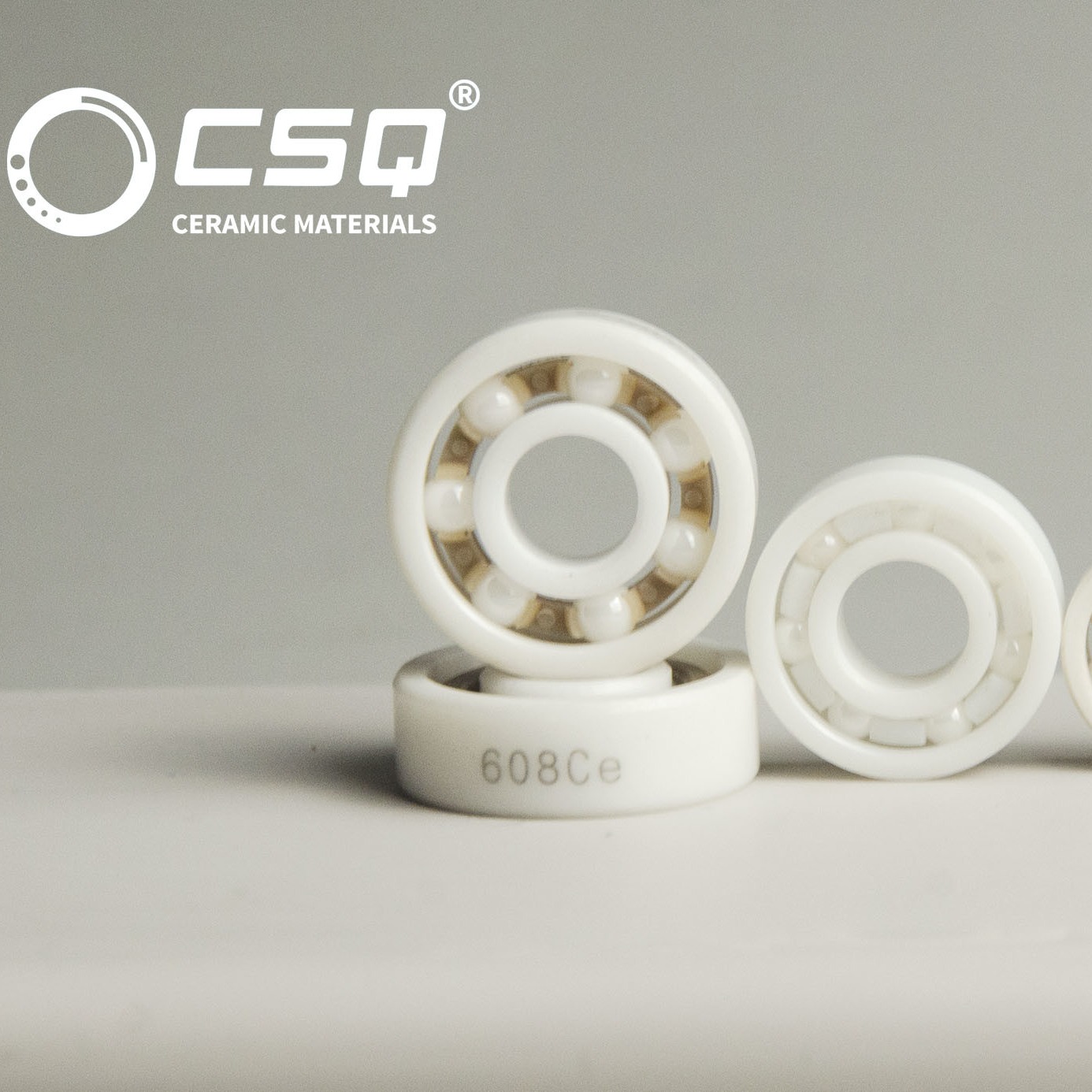

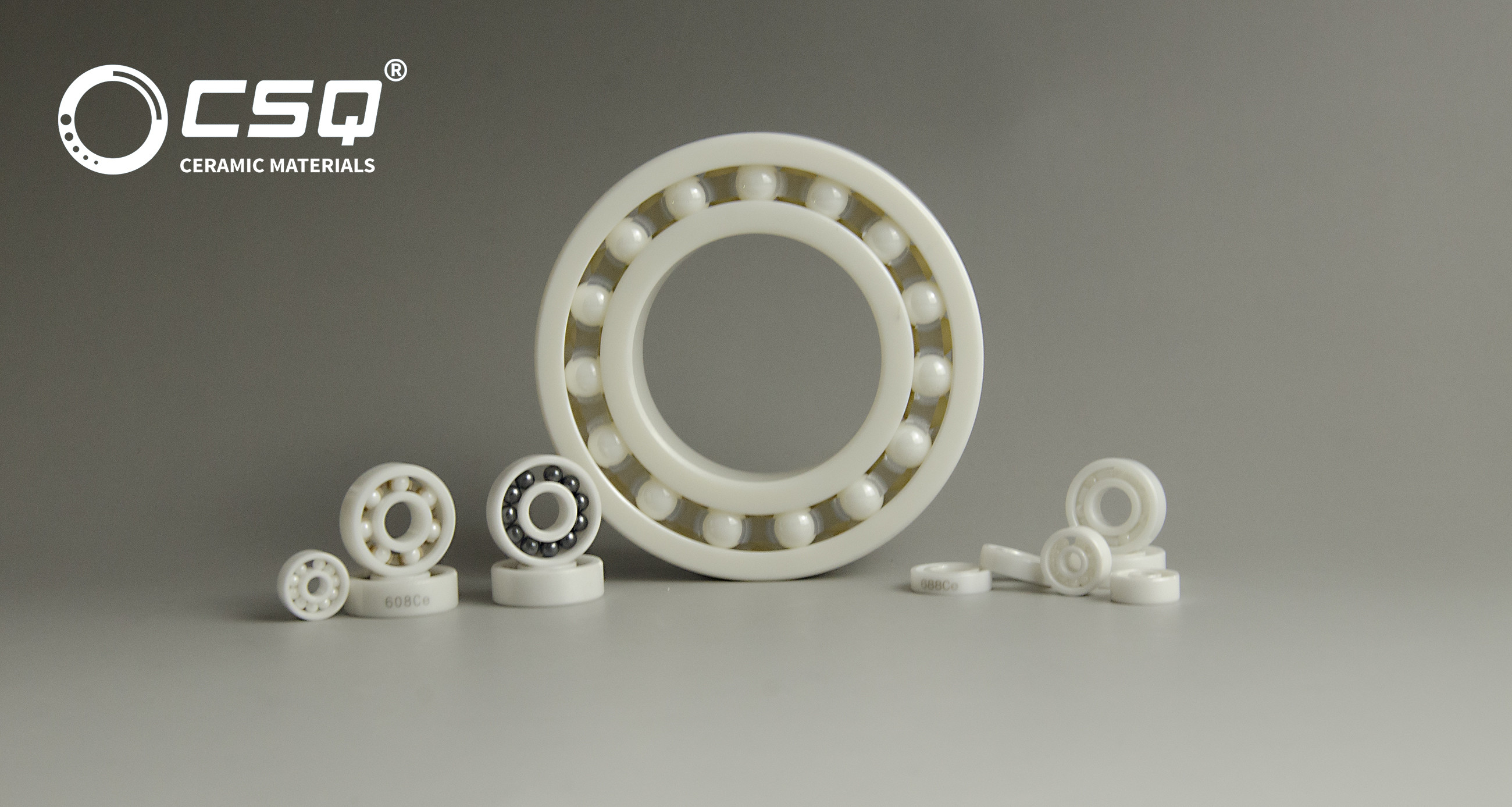

Miniature Zirconia Ceramic Bearing Deep Groove 609 620 630 680 690 699
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 600/620/630/680/690 series |
| Minimum Order Quantity | 50 pcs/ one model |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Zirconia Miniature Deep Groove Balls Bearings | Model | 600/620/630/680/690 Series |
|---|---|---|---|
| Race And Balls Material | HIP-ZrO2 (Hot Isostatic Pressure Sintered Zirconia) | Cage Material | Peek//PFA/Nylon |
| Precision | P6/ABEC3 To P4/ABEC7 | Seals Material | Peek//Rubber |
| Clearance | C0/C3 Or Customized | MOQ | 50 Pieces/one Model |
| Highlight | Miniature Zirconia Ceramic Bearing,609 ceramic bearing,699 ceramic bearing |
||
Product Description
Zirconia Miniature Deep Groove Balls Bearings With High Precision:
Material properties of HIP-ZrO2:
Zirconia bearings through full grinding and with high precision has a variety of excellent performance,such as high density and linear expansion coefficient close to that of metal steel shafts, high hardness and wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.
| Material Properties | Units | HIP-ZrO2 |
| Density | g/cm3 | 6.05-6.09 |
| Porosity | % | 0 |
| Fledural Strength | MPa | 900 |
| Elastic Modulus | GPa | 200 |
| Hardness | HV5 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 8-11 |
| Maximum Use Temperature | ℃ (℉) |
380 (716) |
Reference data of Miniature Ceramic Deep Groove Balls Bearings:
| Bearings model | Form size d (mm) |
Form size D (mm) |
Form size B (mm) |
Load Cr (N) |
Load Cor (N) |
Max.Speed Grease (rpm) |
Max. Speed Oil (rpm) |
| 684CE | 4 | 9 | 2.5 | 564 | 227 | 53000 | 63000 |
| 694CE | 4 | 11 | 4 | 842 | 350 | 48000 | 56000 |
| 604CE | 4 | 12 | 4 | 842 | 350 | 48000 | 56000 |
| 624CE | 4 | 13 | 5 | 1145 | 488 | 40000 | 48000 |
| 634CE | 4 | 16 | 5 | 1179 | 523 | 36000 | 43000 |
| 685CE | 5 | 11 | 3 | 630 | 282 | 45000 | 53000 |
| 695CE | 5 | 13 | 4 | 948 | 432 | 43000 | 50000 |
| 605CE | 5 | 14 | 5 | 1170 | 507 | 40000 | 50000 |
| 625CE | 5 | 16 | 5 | 1522 | 675 | 36000 | 43000 |
| 635CE | 5 | 19 | 6 | 2056 | 896 | 32000 | 40000 |
| 686CE | 6 | 13 | 3.5 | 952 | 442 | 40000 | 50000 |
| 696CE | 6 | 15 | 5 | 1179 | 523 | 40000 | 45000 |
| 606CE | 6 | 17 | 6 | 1991 | 846 | 38000 | 45000 |
| 626CE | 6 | 19 | 6 | 2056 | 896 | 32000 | 40000 |
| 636CE | 6 | 22 | 7 | 2930 | 1423 | 30000 | 36000 |
| 687CE | 7 | 14 | 3.5 | 1032 | 513 | 40000 | 50000 |
| 697CE | 7 | 17 | 5 | 1412 | 719 | 36000 | 43000 |
| 607CE | 7 | 19 | 6 | 2056 | 896 | 36000 | 43000 |
| 627CE | 7 | 22 | 7 | 2893 | 1379 | 30000 | 36000 |
| 637CE | 7 | 26 | 9 | 4015 | 1983 | 28000 | 34000 |
| 688CE | 8 | 16 | 4 | 1102 | 592 | 36000 | 43000 |
| 698CE | 8 | 19 | 6 | 1969 | 917 | 36000 | 43000 |
| 608CE | 8 | 22 | 7 | 2898 | 1379 | 34000 | 40000 |
| 628CE | 8 | 24 | 8 | 2930 | 1423 | 28000 | 34000 |
| 638CE | 8 | 28 | 9 | 4015 | 1983 | 28000 | 34000 |
| 689CE | 9 | 17 | 4 | 1168 | 668 | 36000 | 43000 |
| 699CE | 9 | 20 | 6 | 2171 | 1081 | 34000 | 40000 |
| 609CE | 9 | 24 | 7 | 2953 | 1444 | 32000 | 38000 |
| 629CE | 9 | 26 | 8 | 4026 | 1983 | 28000 | 34000 |
| 639CE | 9 | 30 | 10 | 4100 | 2080 | 24000 | 30000 |
