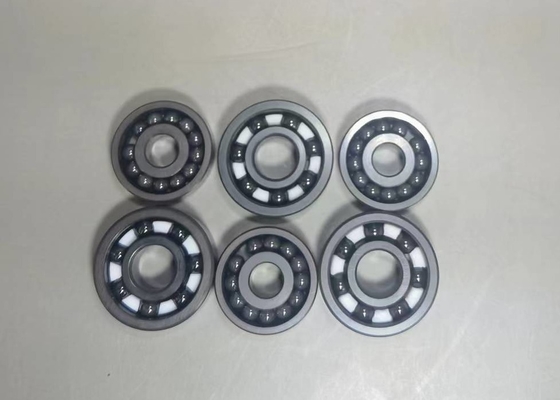

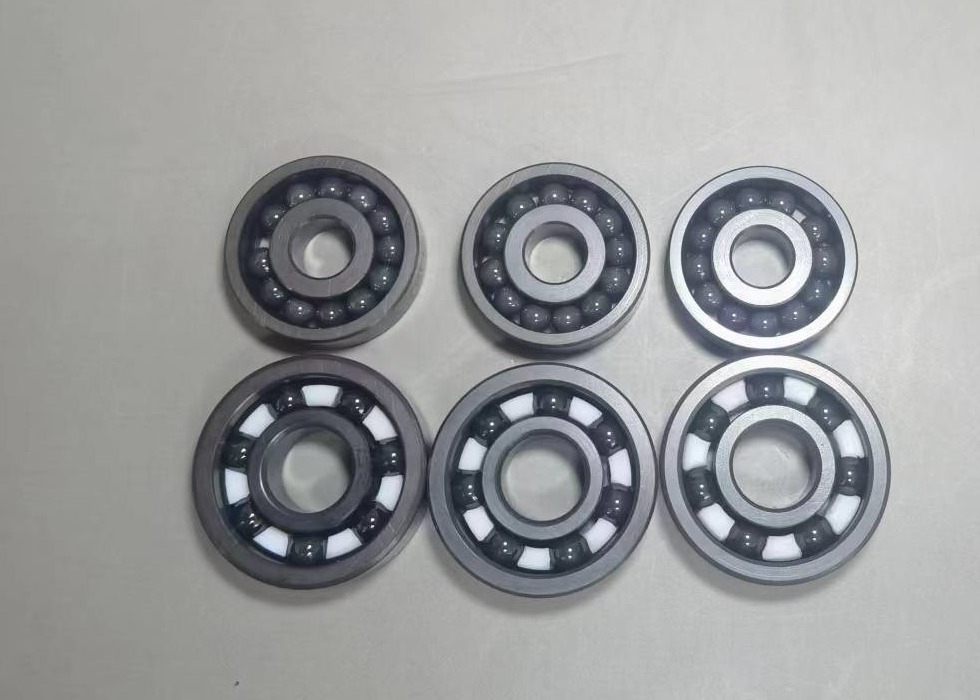

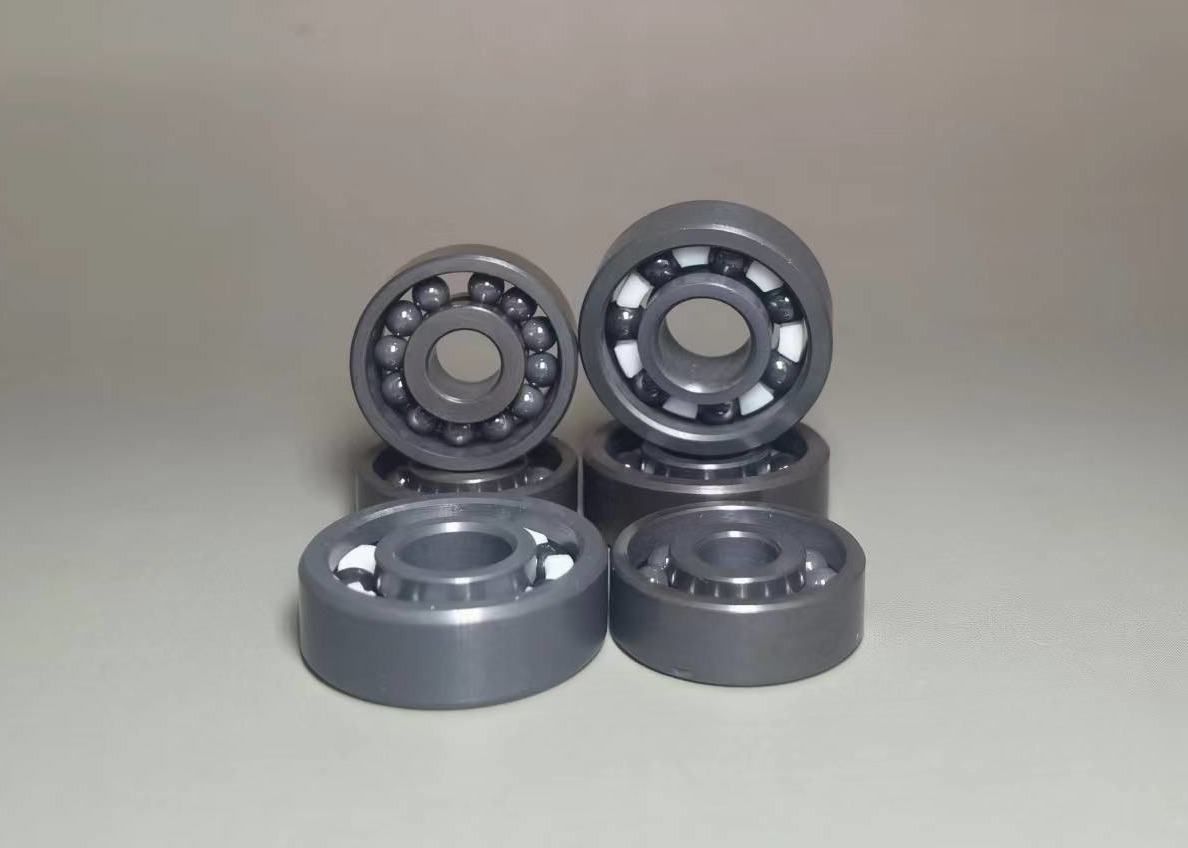

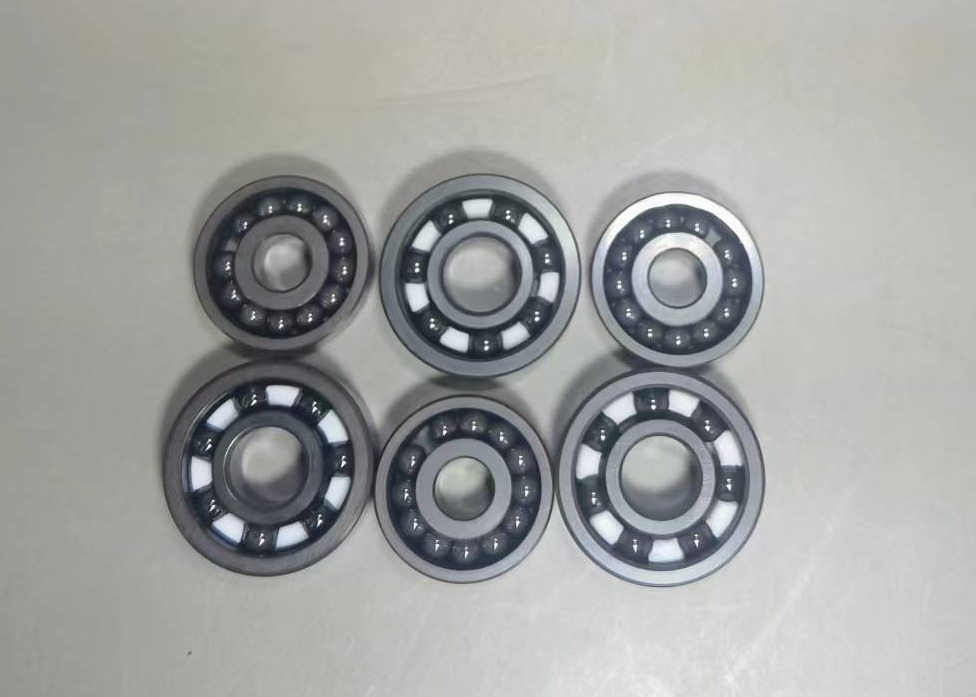

696 699 689 688 Small Ceramic Bearings Deep Groove Silicon Nitride
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 600/620/630/680/690 series |
| Minimum Order Quantity | 60 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Miniature Ceramic Deep Groove Balls Bearings | Model | 600/620/630/680/690 Series |
|---|---|---|---|
| Race Material | HIP-Si3N4 (Hot Isostatic Pressure Sintered Silicon Nitride) | Ball Material | HIP-Si3N4 (Hot Isostatic Pressure Sintered Silicon Nitride) |
| Precision | P6/ABEC3 To P4/ABEC7 | Clearance | C0/C3 Or Customized |
| Pacage | Plastik Box+carton Box | MOQ | 50 Pieces |
| Highlight | 688 ceramic bearing,689 ceramic bearing,696 ceramic bearing |
||
Product Description
Miniature ceramic deep groove balls bearings of Silicon Nitride
Description of Si3N4 Miniature Ceramic Deep Groove Balls Bearings:
Si3N4 races and balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed after HIP (Hot Isostatic Pressure) sintering technology. So the porosity, wear resistance, crushing value and fatigue contact life have been greatly improved.Silicon nitride bearings are suitable for high-speed, alternating load environment, so are usually use as high-speed spindle, electric spindle, CNC machine tool and motorized spindle bearings.
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
Why choose us:
Our company, as one of the most professional ceramic bearing manufacturer in China, can produce many kinds of ceramic bearings. Now we are mostly speciallizing in the automatic production of 608 ceramic bearings. Welcome your inquiry.
Reference data of Miniature Ceramic Deep Groove Balls Bearings:
| Bearings model | Form size d (mm) |
Form size D (mm) |
Form size B (mm) |
Load Cr (N) |
Load Cor (N) |
Max.Speed Grease (rpm) |
Max. Speed Oil (rpm) |
| 684CE | 4 | 9 | 2.5 | 564 | 227 | 53000 | 63000 |
| 694CE | 4 | 11 | 4 | 842 | 350 | 48000 | 56000 |
| 604CE | 4 | 12 | 4 | 842 | 350 | 48000 | 56000 |
| 624CE | 4 | 13 | 5 | 1145 | 488 | 40000 | 48000 |
| 634CE | 4 | 16 | 5 | 1179 | 523 | 36000 | 43000 |
| 685CE | 5 | 11 | 3 | 630 | 282 | 45000 | 53000 |
| 695CE | 5 | 13 | 4 | 948 | 432 | 43000 | 50000 |
| 605CE | 5 | 14 | 5 | 1170 | 507 | 40000 | 50000 |
| 625CE | 5 | 16 | 5 | 1522 | 675 | 36000 | 43000 |
| 635CE | 5 | 19 | 6 | 2056 | 896 | 32000 | 40000 |
| 686CE | 6 | 13 | 3.5 | 952 | 442 | 40000 | 50000 |
| 696CE | 6 | 15 | 5 | 1179 | 523 | 40000 | 45000 |
| 606CE | 6 | 17 | 6 | 1991 | 846 | 38000 | 45000 |
| 626CE | 6 | 19 | 6 | 2056 | 896 | 32000 | 40000 |
| 636CE | 6 | 22 | 7 | 2930 | 1423 | 30000 | 36000 |
| 687CE | 7 | 14 | 3.5 | 1032 | 513 | 40000 | 50000 |
| 697CE | 7 | 17 | 5 | 1412 | 719 | 36000 | 43000 |
| 607CE | 7 | 19 | 6 | 2056 | 896 | 36000 | 43000 |
| 627CE | 7 | 22 | 7 | 2893 | 1379 | 30000 | 36000 |
| 637CE | 7 | 26 | 9 | 4015 | 1983 | 28000 | 34000 |
| 688CE | 8 | 16 | 4 | 1102 | 592 | 36000 | 43000 |
| 698CE | 8 | 19 | 6 | 1969 | 917 | 36000 | 43000 |
| 608CE | 8 | 22 | 7 | 2898 | 1379 | 34000 | 40000 |
| 628CE | 8 | 24 | 8 | 2930 | 1423 | 28000 | 34000 |
| 638CE | 8 | 28 | 9 | 4015 | 1983 | 28000 | 34000 |
| 689CE | 9 | 17 | 4 | 1168 | 668 | 36000 | 43000 |
| 699CE | 9 | 20 | 6 | 2171 | 1081 | 34000 | 40000 |
| 609CE | 9 | 24 | 7 | 2953 | 1444 | 32000 | 38000 |
| 629CE | 9 | 26 | 8 | 4026 | 1983 | 28000 | 34000 |
| 639CE | 9 | 30 | 10 | 4100 | 2080 | 24000 | 30000 |
