6902rs 6902 Ceramic Bearing Si3N4 ABEC 3 15x28x7mm

  • 6902rs 6902 Ceramic Bearing Si3N4 ABEC 3 15x28x7mm
  • 6902rs 6902 Ceramic Bearing Si3N4 ABEC 3 15x28x7mm
  • 6902rs 6902 Ceramic Bearing Si3N4 ABEC 3 15x28x7mm
Place of Origin China
Brand Name CSQ
Model Number 6902(61902CE)
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik bag+foam+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 6902 Ceramic Bearing Material Si3N4 Races And Balls+ Cage
Precision P6/ABEC3 Size 6902: 15×28×7mm
Use High Speed Spindle Bearing MOQ 50 Pieces
Delivery Time 30-40 Work Days Pacage Plastik Bag+foam+carton Box
Highlight

6902rs ceramic bearing

,

bearing 6902 ceramic

,

6902 Ceramic Bearing 15x28x7mm
Leave a Message
Product Description

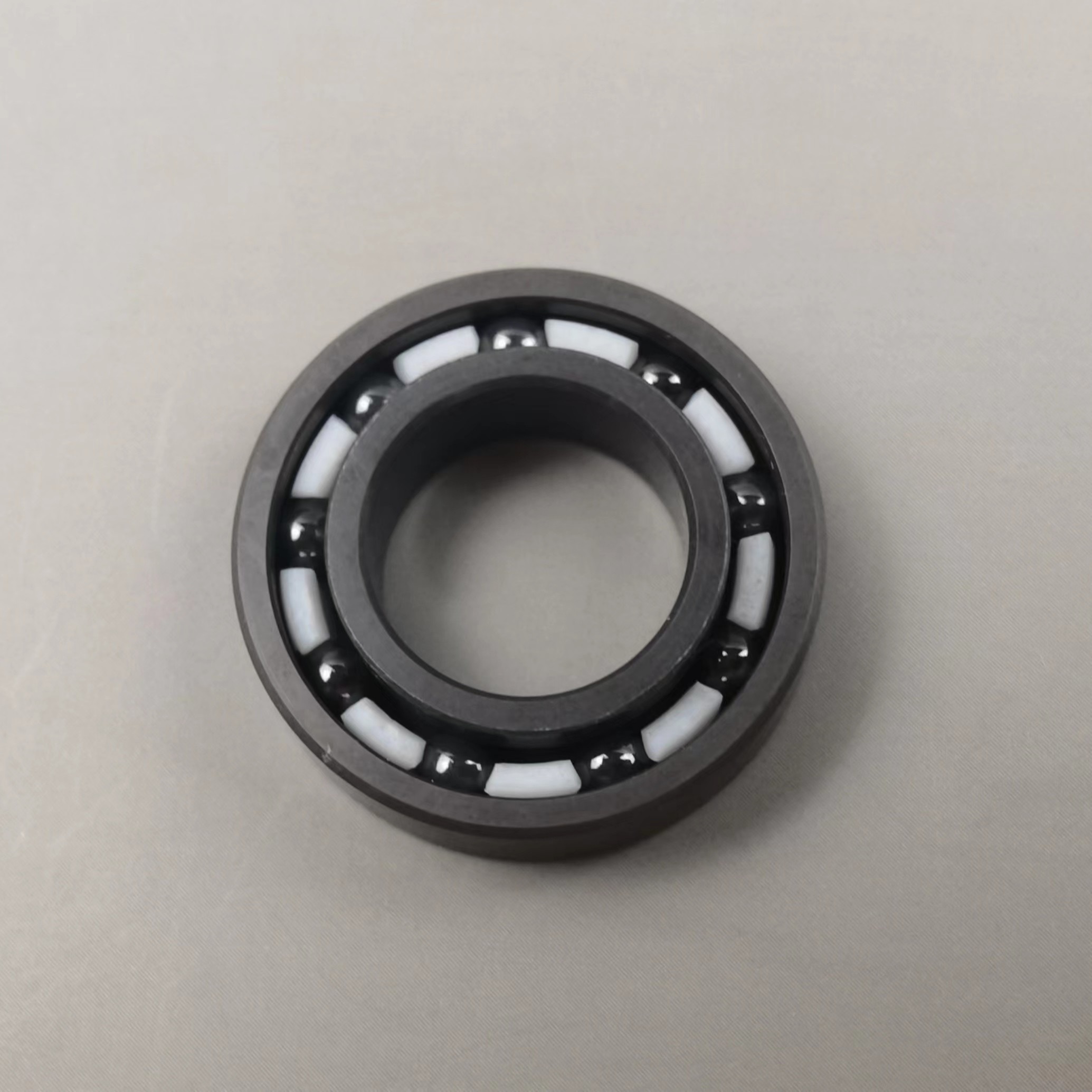

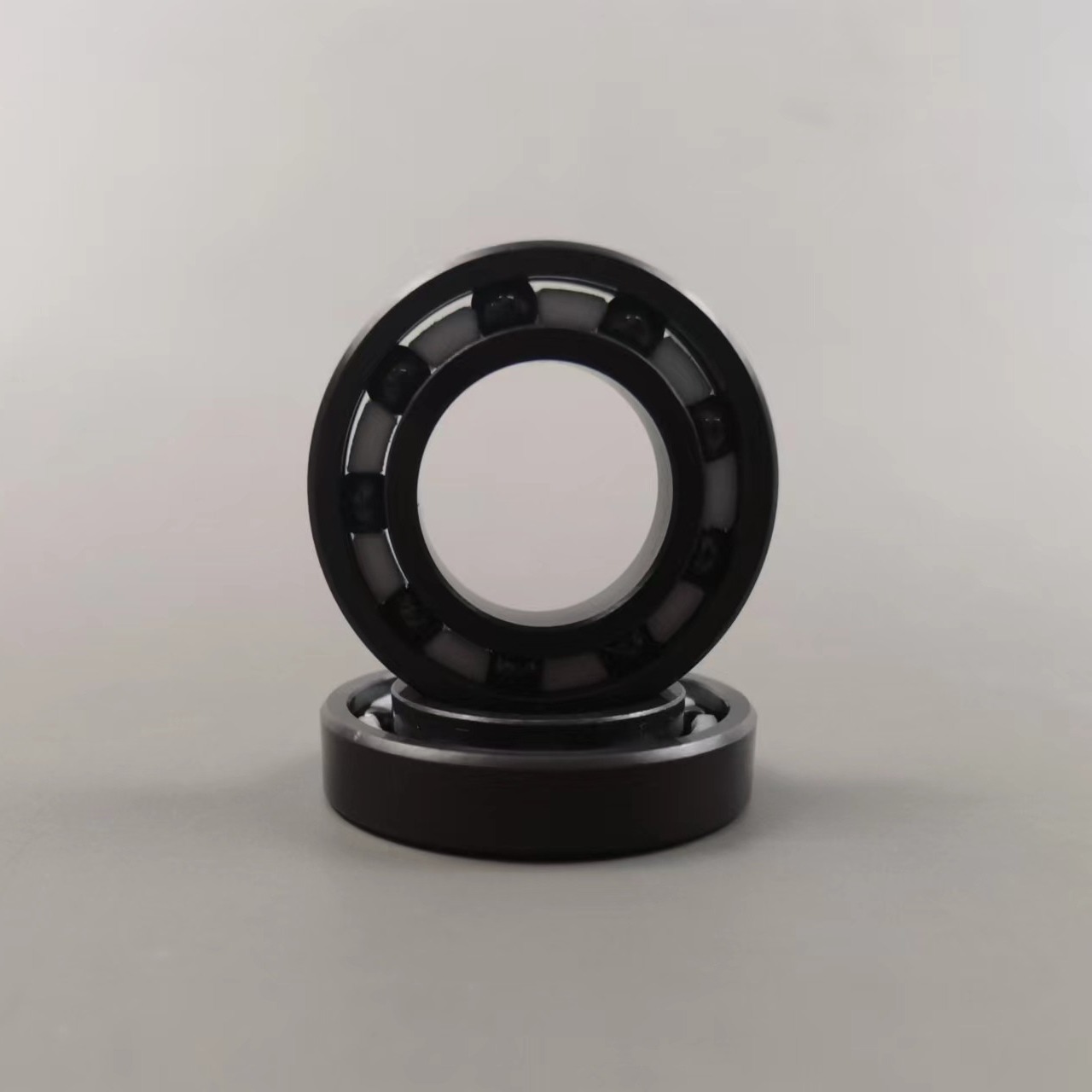

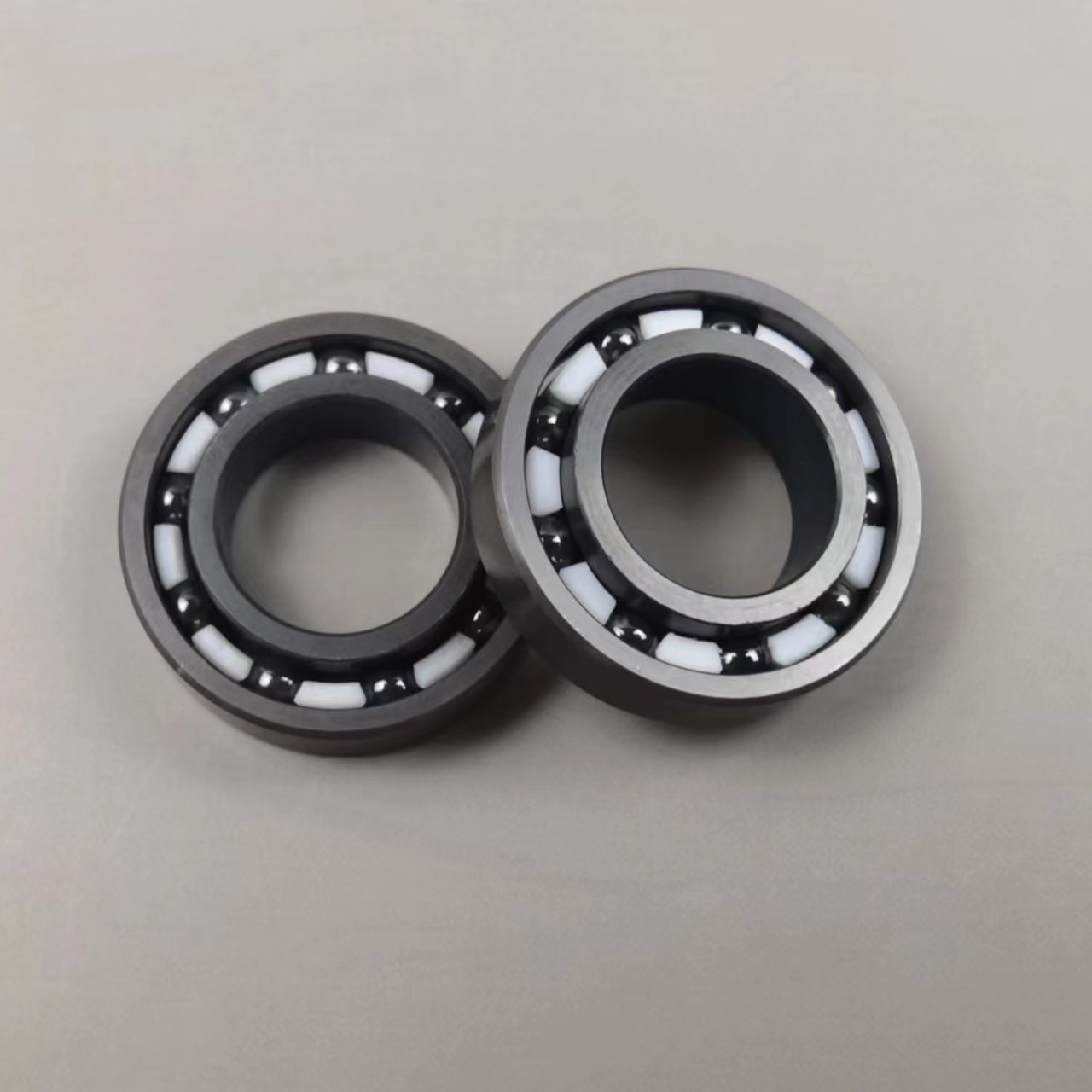

6902 Ceramic Bearing Of Si3N4 races and balls + cage With P6/ABEC3 Precision



Description of 6902 Ceramic Bearing:



1. Si3N4 races and balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed after HIP (Hot Isostatic Pressure) sintering technology. So the porosity, wear resistance, crushing value and fatigue contact life have been greatly improved.



2. cage: has resistance to many kinds of acid and alkali and high temperature resistance.



Performance advantages of 6902 Ceramic Bearing:



Ceamic bearing 6902 in material of silicon nitride  possesses light weight structure have good resistance to dry friction, low coefficient of linear expansion(3.3 10 -6/℃), self-lubrication, high fatigue life. They have high hardness (1580 HV5), high electrical and magnetic insulation and are wear-resistant, resistant to a variety of strong acid, strong alkali, salt corrosion (in addition to hydrofluoric acid, nitric acid). Its max work temperature can reach to about 1000 ℃, its service life is far beyond the same metal bearings several times to dozens of times, etc.



Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
61902CE 3225 2250 26000 34100



Application of 6902 Ceramic Bearing:



Silicon nitride bearings are suitable for high-speed, alternating load environment, so are usually use ashigh-speed spindle, electric spindle, CNC machine tool and motorized spindle bearings.
