6805rs 2rs 6805 Ceramic Bearing silicon nitride bearings

  • 6805rs 2rs 6805 Ceramic Bearing silicon nitride bearings
  • 6805rs 2rs 6805 Ceramic Bearing silicon nitride bearings
  • 6805rs 2rs 6805 Ceramic Bearing silicon nitride bearings
Place of Origin China
Brand Name CSQ
Model Number 6805(61805CE)
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik bag+foam+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Bearing 6805 Category Ceramic Thin-wall Bearing
Model 6805(61805CE) Material Si3N4 Races And Balls+ Cage
Precision P6/ABEC3 Form Size 25×37×7mm
Pacage Plastik Bag+foam+carton Box MOQ 50 Pieces
Highlight

bearing 6805 ceramic

,

6805rs ceramic bearings

,

6805 2rs ceramic bearings
Leave a Message
Product Description



Ceramic Bearing 6805 Of Si3N4 Races And Balls + Cage With P6/ABEC3 Precision



Description of Ceramic Bearing 6805:



Si3N4 races and balls: Are made of highly purified, submicron silicon nitride powder and is processed after HIP (Hot Isostatic Pressure) sintering technology. So the porosity, wear resistance, crushing value and fatigue contact life have been greatly improved.



cage: has resistance to many kinds of acid and alkali and high temperature resistance, Electrical insulation and good resistance to aging. So it's a ideal material for cages of ceramic bearings.



Performance advantages of Ceramic Bearing 6805:



Ceamic bearing in material of silicon nitride has a small volume density, light weight structure, resistance to dry friction, low coefficient of linear expansion, self-lubrication, high fatigue life. They have high hardness, wear-resistance, resistance to a variety of strong acid, strong alkali, salt corrosion (in addition to hydrofluoric acid, nitric acid), non-magnetic, non-conductive, high insulation, high temperature resistance to about 1000 ℃ and etcs.



Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
61805CE 3225 2940 18000 24200



Application of Ceramic Bearing 6805:



Because of the excellent properties of silicon nitride, All-Si3N4 bearings are suitable for high-speed, alternating load environment, so they are widely used as high-speed spindle, electric spindle, CNC machine tool and motorized spindle bearings.



► Key properties of hot isostatic sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation

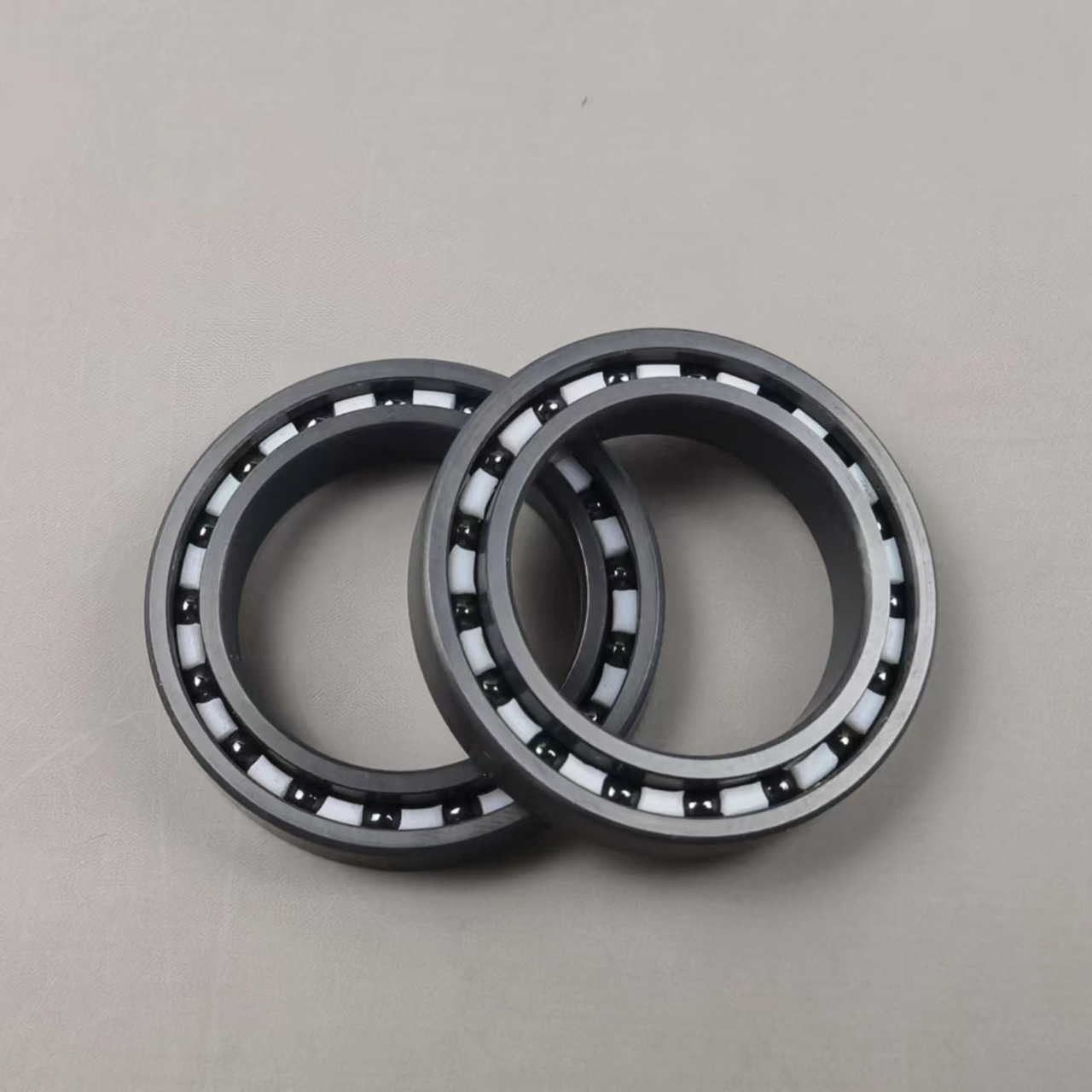

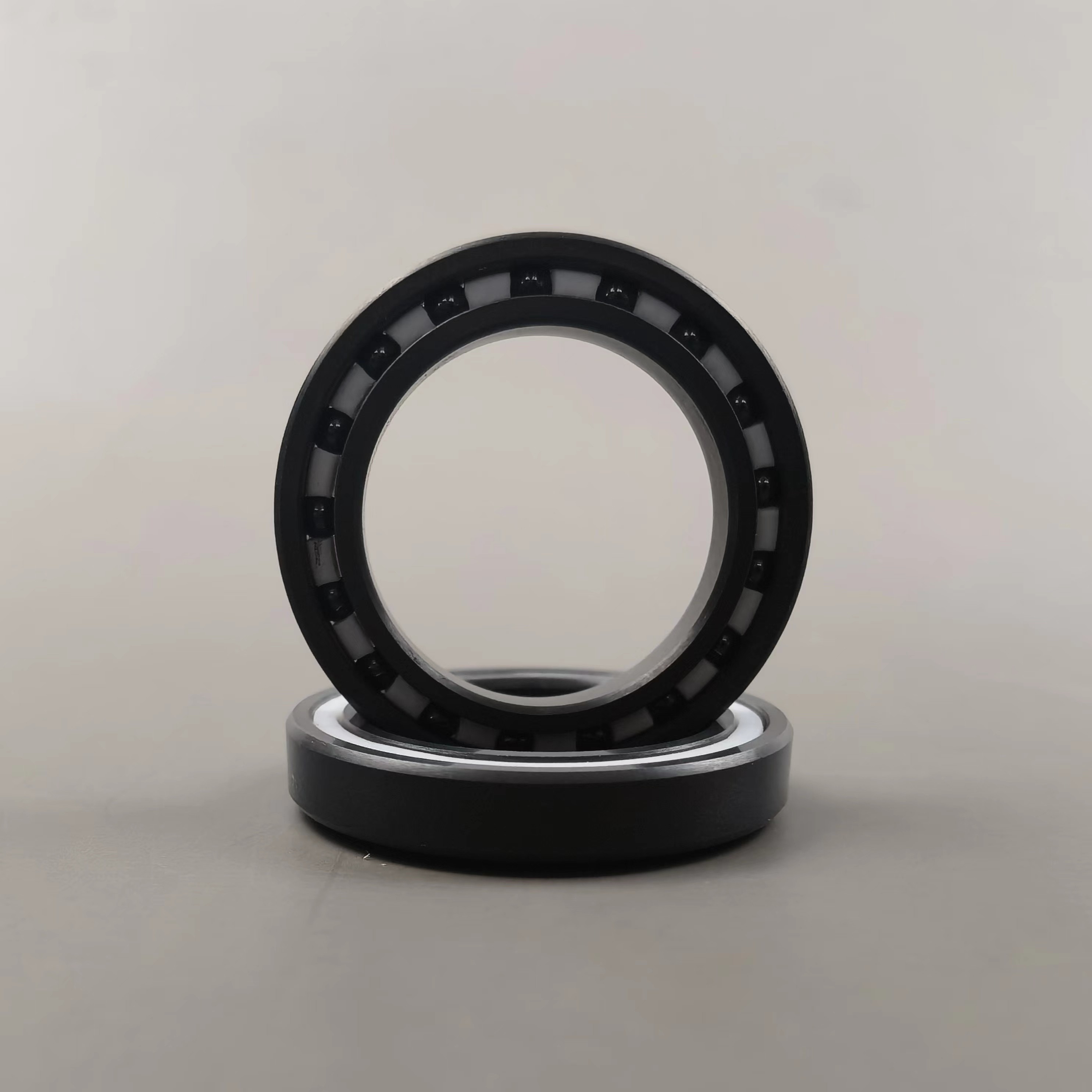

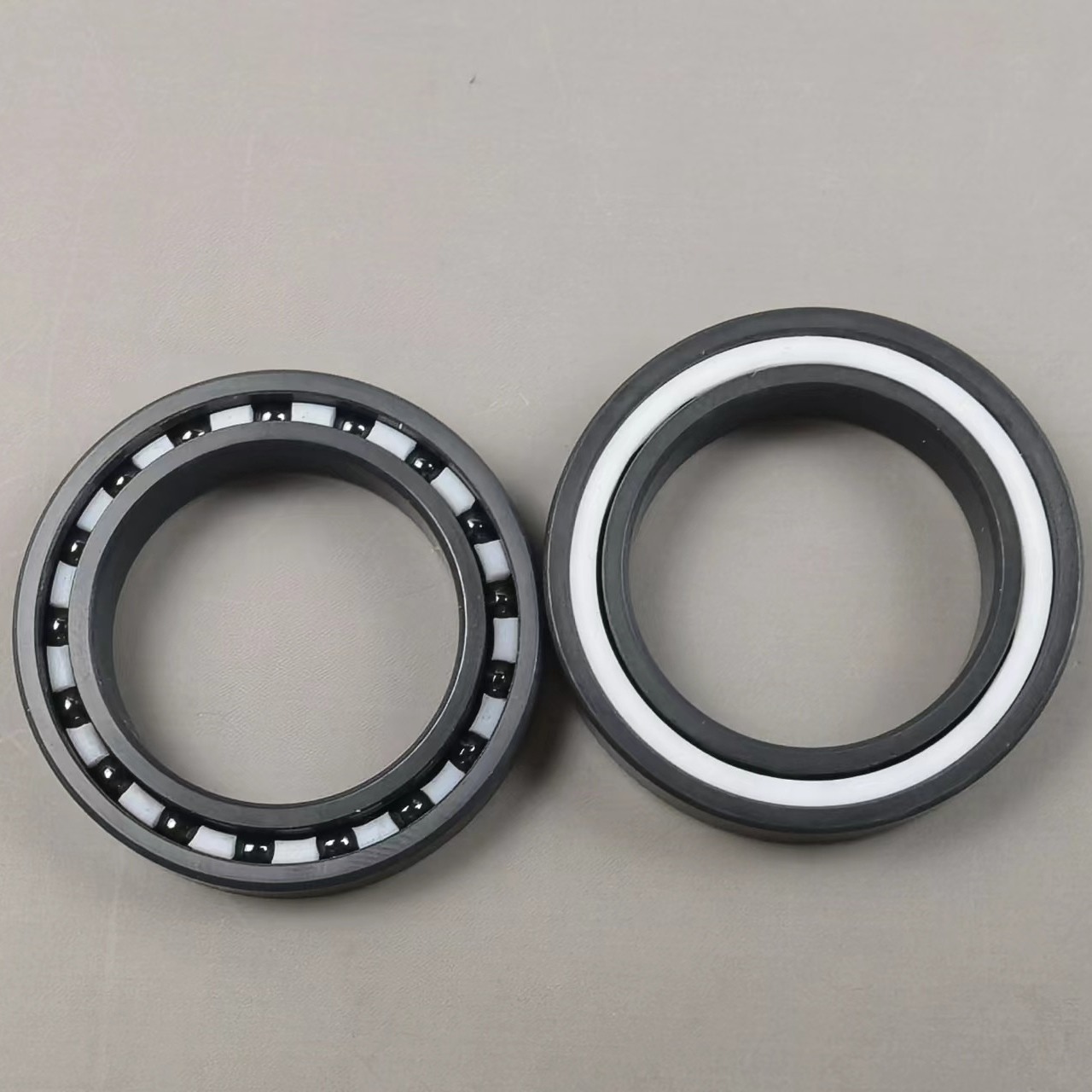

6805rs 2rs 6805 Ceramic Bearing silicon nitride bearings 06805rs 2rs 6805 Ceramic Bearing silicon nitride bearings 1
