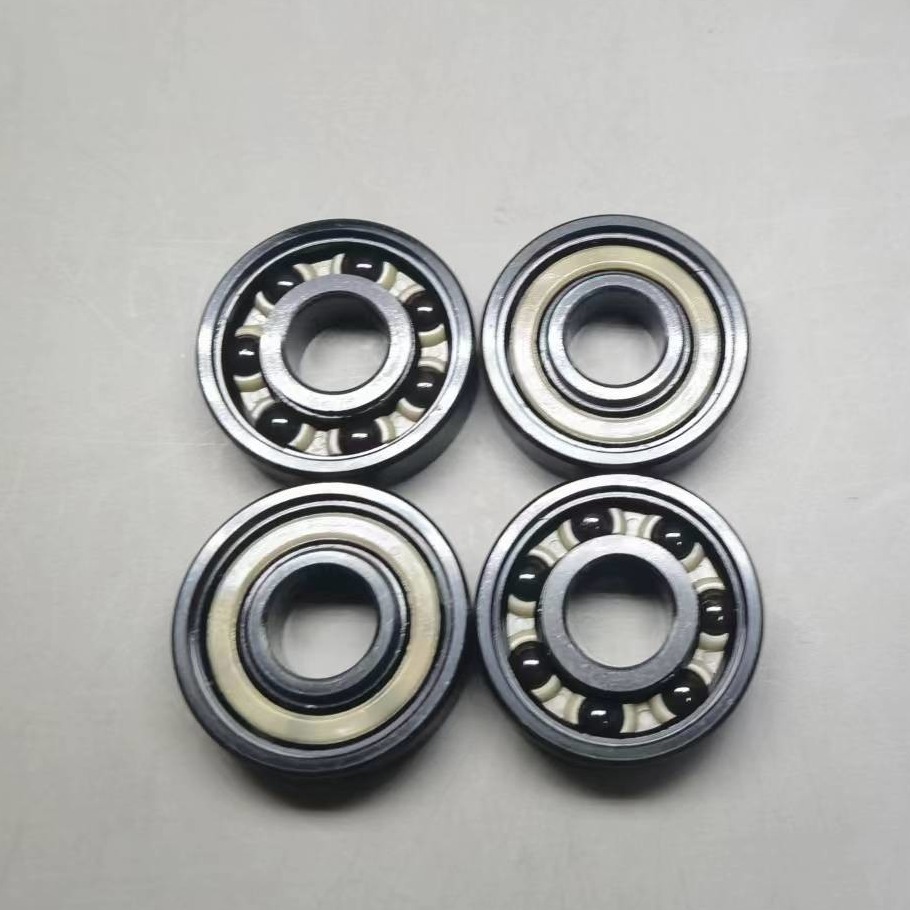

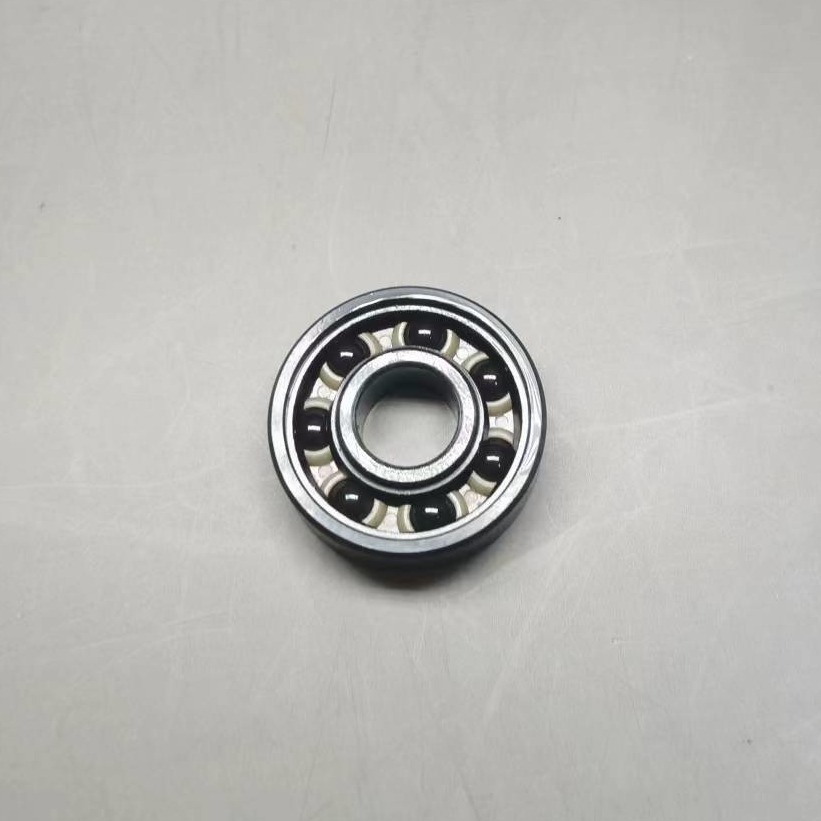

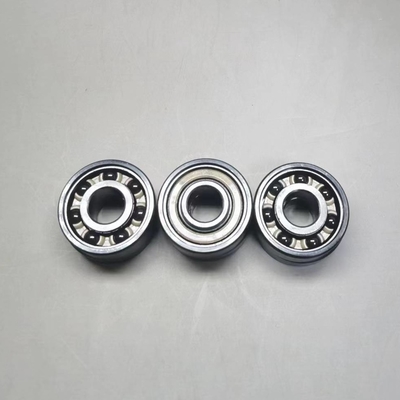

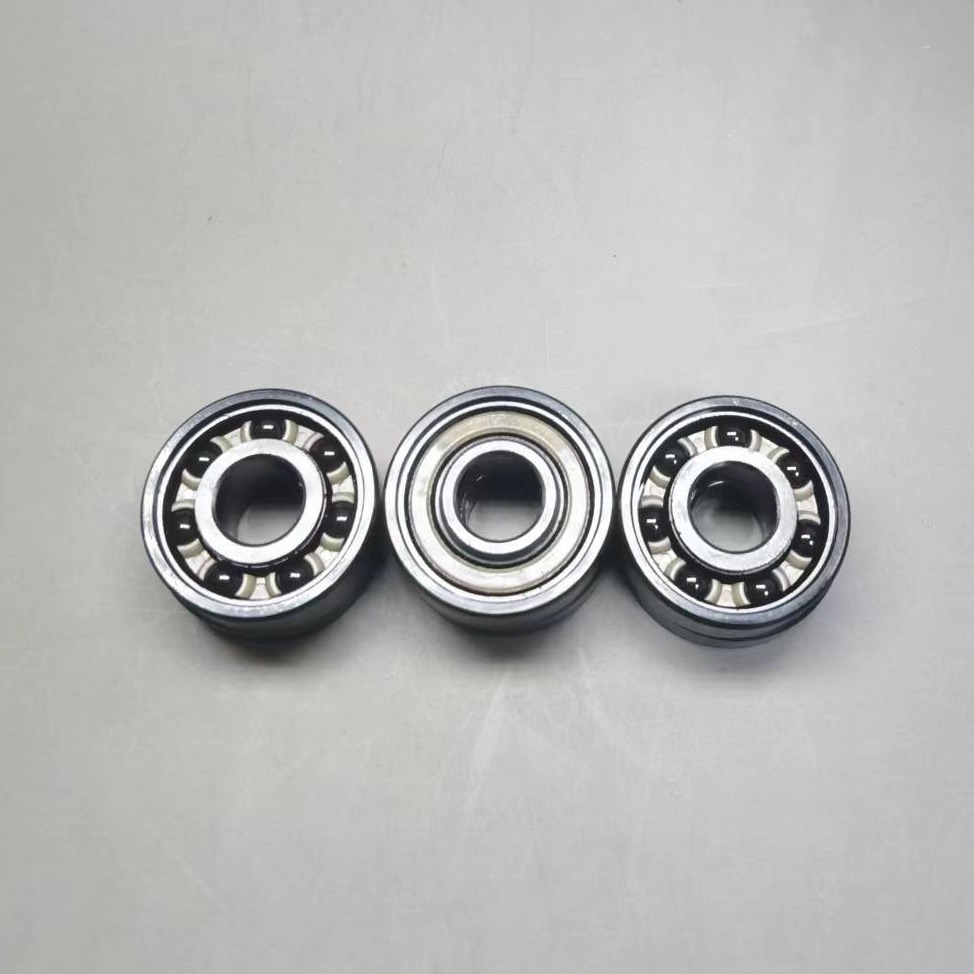

608 Full Ceramic Bearing Silicon Nitride Ceramic Ball Bearings 8x22x7mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 20 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 20 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | HIP-Si3N4 Ceramic Bearing 608 | Category | Miniature Ceramic Deep Groove Balls Bearings |
|---|---|---|---|
| Model | 608: 8×22×7mm | Material | HIP-Si3N4 Races And Balls+peek Cage |
| Precision | P6/ABEC3 | Ball | Hot Isostatic Silicon Nitride Ball Of 3.969 Mm |
| Clearance | C0/C2/C3 Or Customized | Pacage | Plastik Box+carton Box |
| Highlight | 608 full ceramic bearing 8x22x7mm,ceramic ball bearings 8x22x7mm,silicon nitride ceramic bearings |
||
Product Description
HIP-Si3N4 Ceramic Bearing 608 Fitted With Peek Cage Of High Precision
Description of HIP-Si3N4 Ceramic Bearing 608:
1. HIP-Si3N4 Races and Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by HIP (Hot Isostatic Pressure) sintering technology. Compared with GPS sintered silicon nitride material, the porosity, wear resistance, crushing value and fatigue contact life of after HIP sintered sinlicon nitride have been greatly improved, which is the preferred material for ultra-high speed and high precision ceramic bearings.
2. PEEK cage: PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.
Performance advantages of HIP-Si3N4 Ceramic Bearing 608:
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
