ZrO2 Silicon Nitride Ball Bearing Si3N4 Balls PTFE Cage 6001 12mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6001 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 10 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 10 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6001 Ceramic Bearing | Model | Deep Groove Bearing: 6001 |
|---|---|---|---|
| Material | Zirconia Races+Silicon Nitride Balls+PTFE Cage | Precision | P6/ABEC3 To P4/ABEC7 |
| Diamater | 6001: 12×28×8mm | Ball | Si3N4 Ball Of 4.763mm/8 Pieces |
| Pacage | Plastik Box+carton Box | MOQ | 50 Pieces |
| Highlight | ZrO2 Silicon Nitride Ball Bearing,Silicon Nitride Ball Bearing 12mm,6001 ball bearing |
||
Product Description

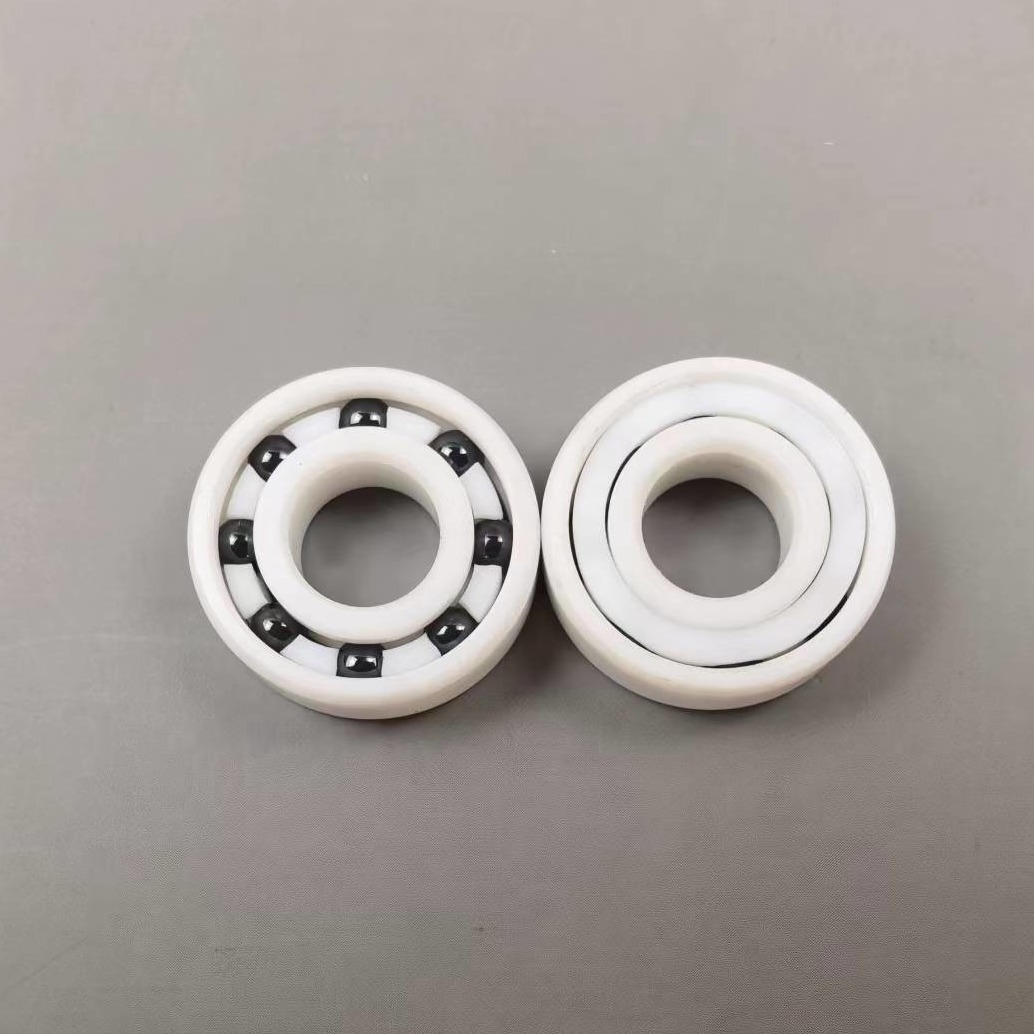

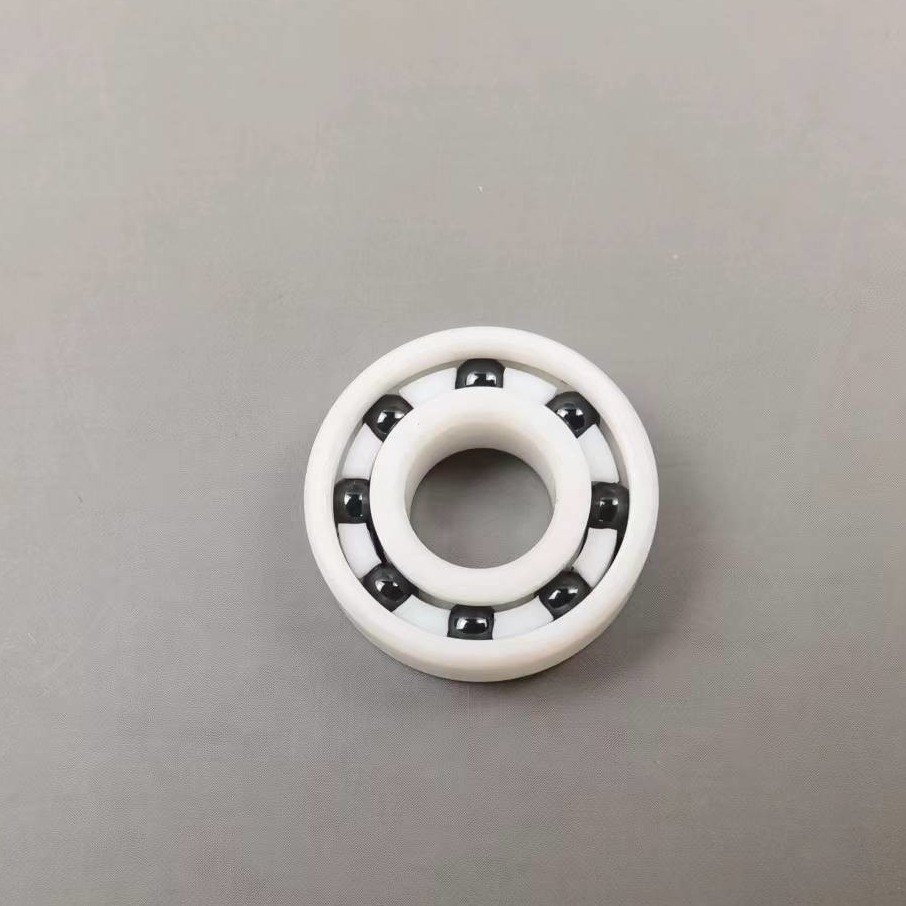

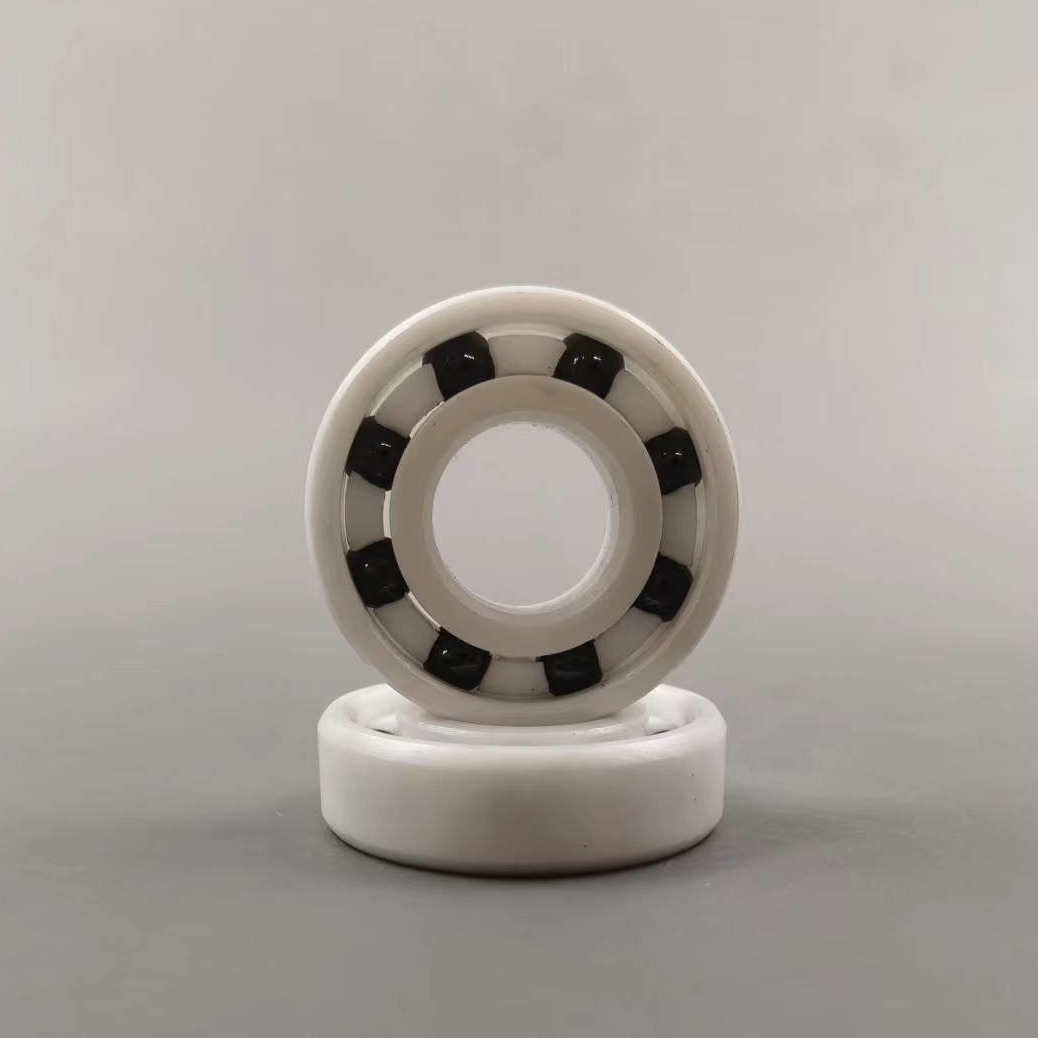

6001 Ceramic Bearing In Material Of ZrO2 Races+Si3N4 Balls+PTFE Cage
Description of 6001 Ceramic Bearing (ZrO2 Races+Si3N4 Balls+PTFE Cage):
1. ZrO2 races: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.
2. Si3N4 Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.
3. PTFE cage: has excellent chemical stability, can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent,can work in +250℃ to -180℃ temperature for a long time.
Performance advantage of 6001 Ceramic Bearing (ZrO2 Races+Si3N4 Balls+PTFE Cage):
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density |
| ♦ Low thermal conductivity |
| ♦ Chemical inertness |
| ♦ Resistance to molten metals |
| ♦ Lonic electrical conduction |
| ♦ Wear resistance |
| ♦ High fracture toughness |
| ♦ High hardness:1300 HV5 |
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 6001CE | 4590 | 2390 | 33800 | 39000 |
Main application of 6001 Ceramic Bearing (ZrO2 Races+Si3N4 Balls+PTFE Cage):
Because of the outstanding porperties, the zirconia bearings with silicon nitride balls are suitable for chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
