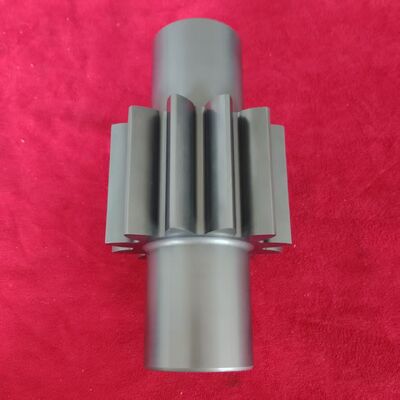

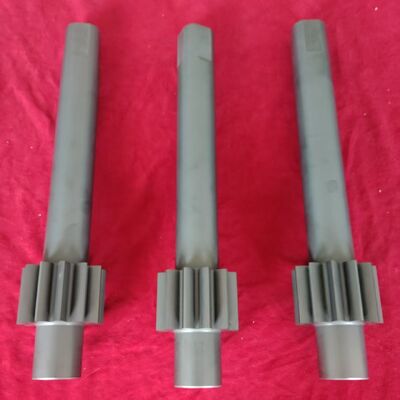

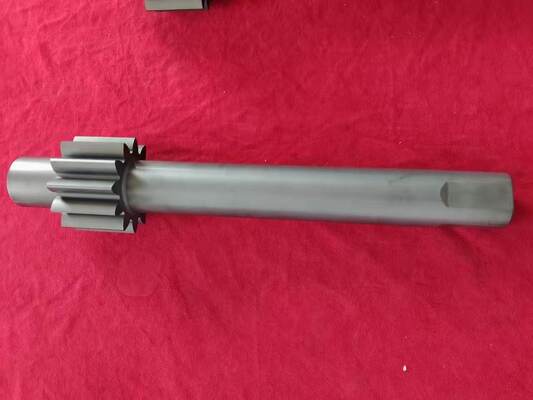

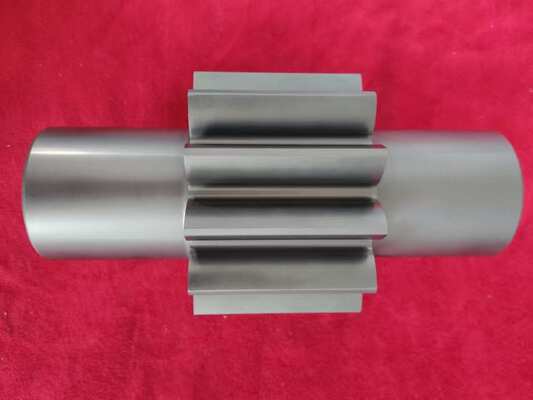

Customizable High Corrosion and Wear Resistant Ceramic Gear Shaft for Gear Pumps
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | Customized |
| Minimum Order Quantity | 20-50 pcs (negotiable) |
| Price | Negotiable |
| Packaging Details | Foam+carton |
| Delivery Time | About 30-45 work days |
| Payment Terms | T/T,Paypal |
| Supply Ability | 2000pcs per month |
Product Details
| Product Name | Ceramic Gear Shaft | Material | Ceramic SSIC Si3N4 Al2O3 ZrO2 |
|---|---|---|---|
| Corrosion Resistance | High | Application | Gear Pump |
| Model | Customization | Abrasion Resistance | High |
| Wear Resistance | High | Density | High |
Product Description
Customized Ceramic Gear Shaft Used For Gear Pump
Product Overview
The Silicon Carbide Gear Shaft is an advanced ceramic component manufactured from high-performance Silicon Carbide. This monolithic design integrates a gear with a shaft, combining the exceptional properties of SiC—including extreme wear resistance, corrosion resistance, high rigidity, and lightweight characteristics—to address the challenges of wear, corrosion, and lubrication faced by traditional metal gear shafts in harsh operating environments.
Working Principle
As a core component in drive systems, the SiC gear shaft transmits torque and motion efficiently through its precision-machined teeth meshing with a mating gear. Its superior performance stems from the material's intrinsic properties:
- Superior Hardness & Wear Resistance: Significantly extends service life in abrasive conditions
- Low Friction Coefficient: Ensures smooth operation with various counter materials, approaching self-lubrication in certain applications
- High Stiffness: Minimal deformation under load guarantees transmission accuracy and stability
- Thermal Stability: Maintains excellent dimensional stability and mechanical strength at high temperatures
Technical Specifications
| Max Temperature | up to 1650℃ |
| Low density | 3.15-3.18 g/cm³ |
| Low thermal expansion | 4.0 (10⁻⁶/℃) |
| High thermal conductivity | 120 W/m°K |
| High hardness | 2800 HV5 |
| High elastic modulus | 410 GPa |
| Chemical stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
| Abrasion Resistance | High |
| Features | Corrosion-resistance, Low Friction, Wear-resistance, Hardness, Longer Life |
Applications
Our Advanced Structural Ceramics (brand CSQ) are customized products certified by FDA, REACH, ROHS, ISO9001, ISO14001, and ISO45001. These high-performance ceramics are widely used in aerospace, automotive, electronics, medical, and other demanding applications due to their superior abrasion and corrosion resistance.
Customization Options
We offer fully customized Advanced Structural Ceramics made from high-efficiency materials including silicon carbide and zirconia. Our products feature excellent chemical resistance, high density, and exceptional durability for various applications including ceramic structures, shafts, and bearings.
Why Choose Our Advanced Structural Ceramics
Professional Team
With our brands ZXSQ and CSQ, we hold eleven invention patents for utility models. Our professional team of dozens of members provides high-quality customized bearing solutions. Since 1982, we've accumulated over 40 years of experience in ceramic bearing material research and development, becoming a leading enterprise in China's ceramic bearing and material products market.
Manufacturing Strength
Our facility features a fully automatic grinding and assembling production line with an annual output of 3 million sets. We specialize in producing various rolling bearings and ceramic components with P5 and P4 precision levels. Equipped with industry-leading firing technology including a hot isostatic sintering furnace (HIP) from ABB Sweden, our production capabilities reach temperatures exceeding 2000℃.
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China with over 40 years of experience in ceramic bearing production, maintaining cooperative relationships with numerous domestic and international companies.
Q: How do we guarantee quality?
A: We produce samples before mass production, strictly follow customer requirements, conduct precise inspections, and use foam+carton double packaging to ensure product quality.
Q: What products do we offer?
A: We provide ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic ball bearings, linear bearings, and various ceramic balls.
Q: Why choose us over other suppliers?
A: As an integrated industry and trade company with three factories, we offer superior production capabilities, better delivery dates, and higher product quality.
Q: What services do we provide?
A: We offer high-quality products, full customization according to user needs, and sample provision for customer confirmation.
We prioritize customer needs and strive to provide quality products and after-sales service. Welcome to discuss potential cooperation!
