Zirconia Ceramic Rotor Shaft For Impeller Pump Silicon Carbide Rod Bar

  • Zirconia Ceramic Rotor Shaft For Impeller Pump Silicon Carbide Rod Bar
  • Zirconia Ceramic Rotor Shaft For Impeller Pump Silicon Carbide Rod Bar
Place of Origin China
Brand Name CSQ
Model Number Customized
Minimum Order Quantity 5 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 40-60 work days
Payment Terms T/T
Supply Ability 5 pcs in 40-60 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Rotor Shaft Category Advanced Structural Ceramic
Material Silicon Carbide Or Zirconia Size Customized, According To The Drawings
Use Cam Rotor Pump Pacage Foam+cartom Box
Highlight

ceramic shaft for impeller

,

silicon carbon rod

,

silicon carbide bar
Leave a Message
Product Description

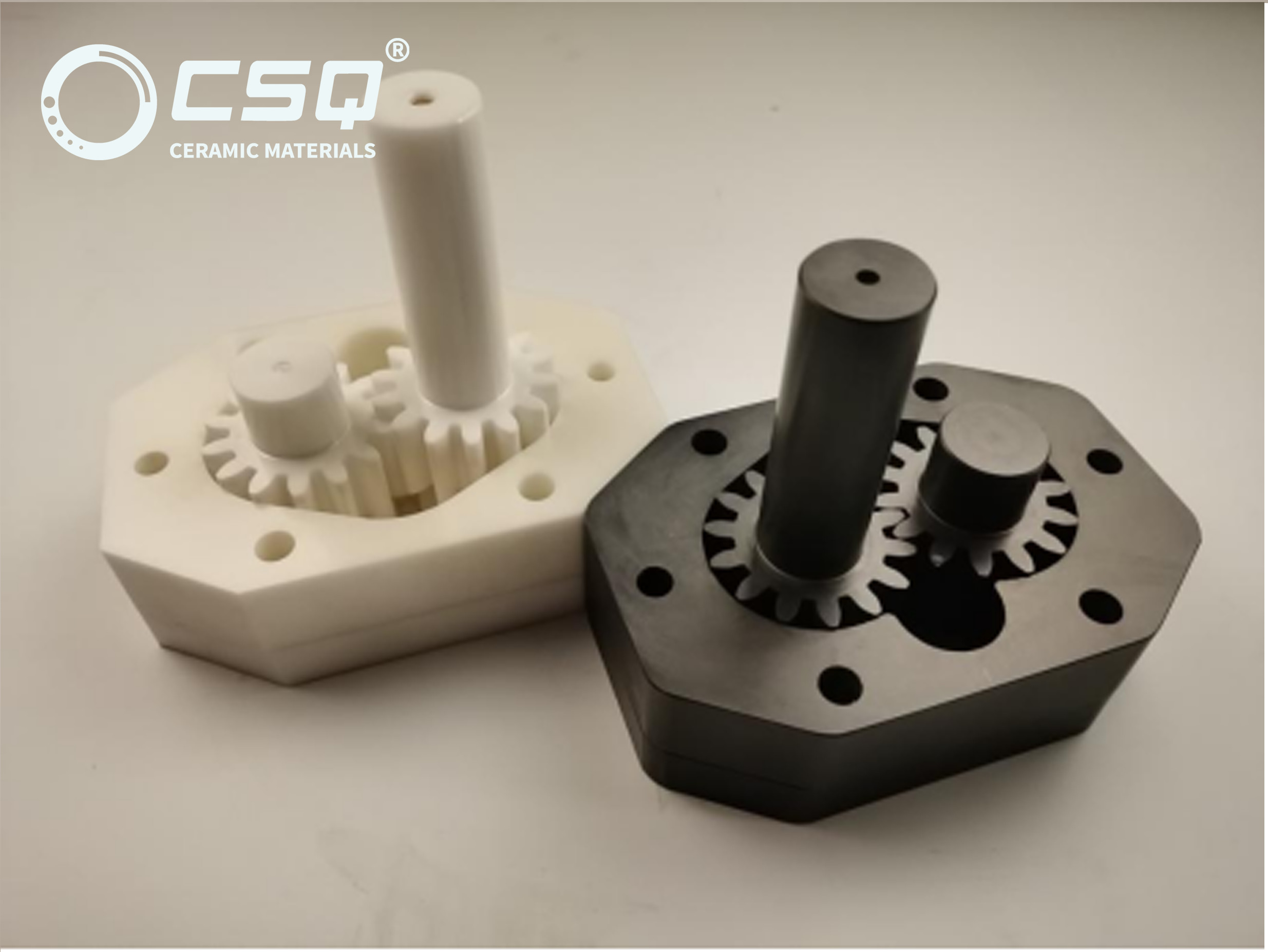

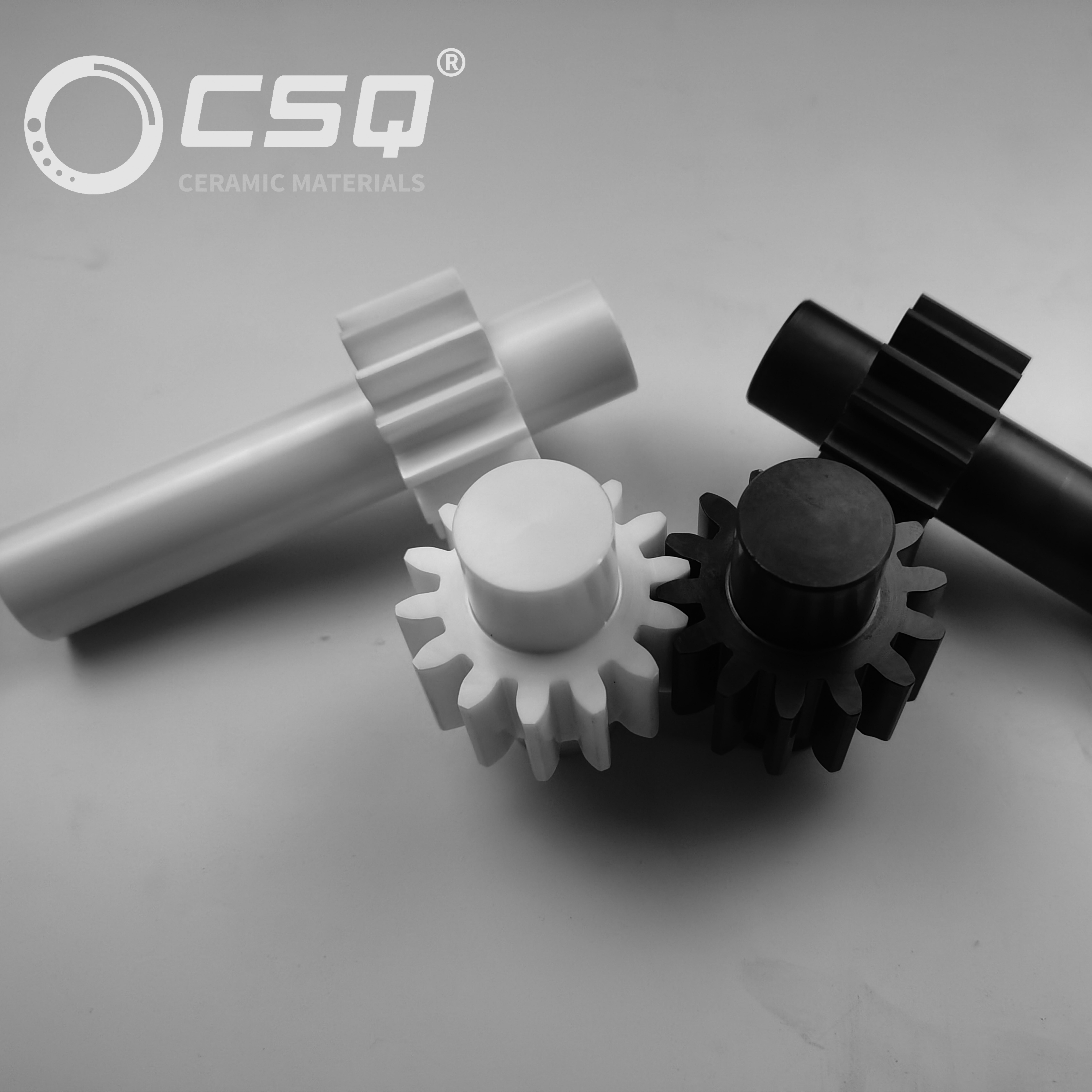

Ceramic Rotor Shaft For Cam Rotor Pump Of Silicon Carbide Or Zirconia



Description of ceramic rotor shaft/ Ceramic CAM rotor pump:



We can manufacture SSiC or ZrO2 ceramic rotor shaft or all SSiC or ZrO2 can rotor pump according to your need. CAM rotor pump is one of the advanced fluid equipment in the world, wear resistance is strong, rotor and shell with high precision clearance, has a strong self-suction and high lift force, the pump is reliable, solid, energy saving, can transport a variety of viscous or containing particles of the medium. High efficiency, energy saving, time saving, no need for drainage, irrigation pump, can be applied to a variety of complex fluid media. Dry installation, online maintenance and low-cost maintenance, smooth operation, self-priming, wear resistance and not easy to plug. Because of the outstanding properties of silicon carbide and zirconia, the cam rotor pump and rotor shaft can work better in corrosive situation.



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
























►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























Zirconia Ceramic Rotor Shaft For Impeller Pump Silicon Carbide Rod Bar 0

Zirconia Ceramic Rotor Shaft For Impeller Pump Silicon Carbide Rod Bar 1
