ZrO2 Ceramic Insert Ball Bearing 8x16x5mm with Adapting Thread
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | UC200 |
| Minimum Order Quantity | 50 PCS (negotiable) |
| Price | According to the material and amount. |
| Packaging Details | Foam+carton box |
| Delivery Time | 30-45 works day |
| Payment Terms | T/T or Paypal |
| Supply Ability | 10,000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High-Speed, Solid, Light Weight, Flexibility | Name | Ceramic Insert Ball Bearing With Adapting Thread |
|---|---|---|---|
| Cage Material | Peek/ Nylon/ PTFE | Material | ZrO2 (Zirconia) / Si3N4 (Silicon Nitride)/ SSiC (Silicon Carbide) |
| Precision Grades | P6(ABEC3), P5(ABEC5), P4(ABEC7) | Category | Ceramic Ball Bearing |
| Use | Electric Handpieces For Dental | Size | 8 X 16 X 5 Mm |
| Highlight | ZrO2 UC200 Ball Bearing,ZrO2 Conveyor Systems Ball Bearing,ZrO2 Ceramic Insert Ball Bearing |
||
Product Description

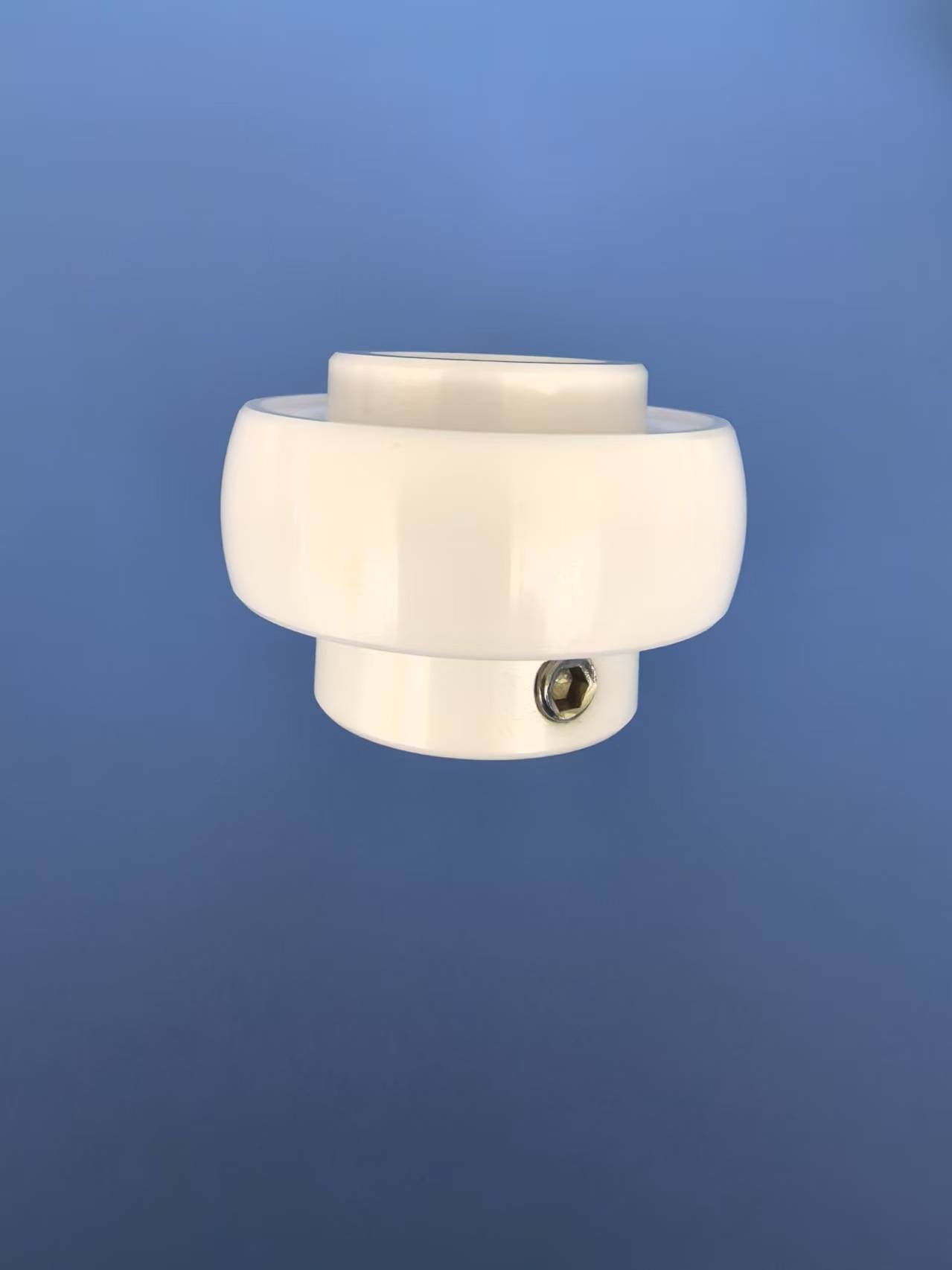

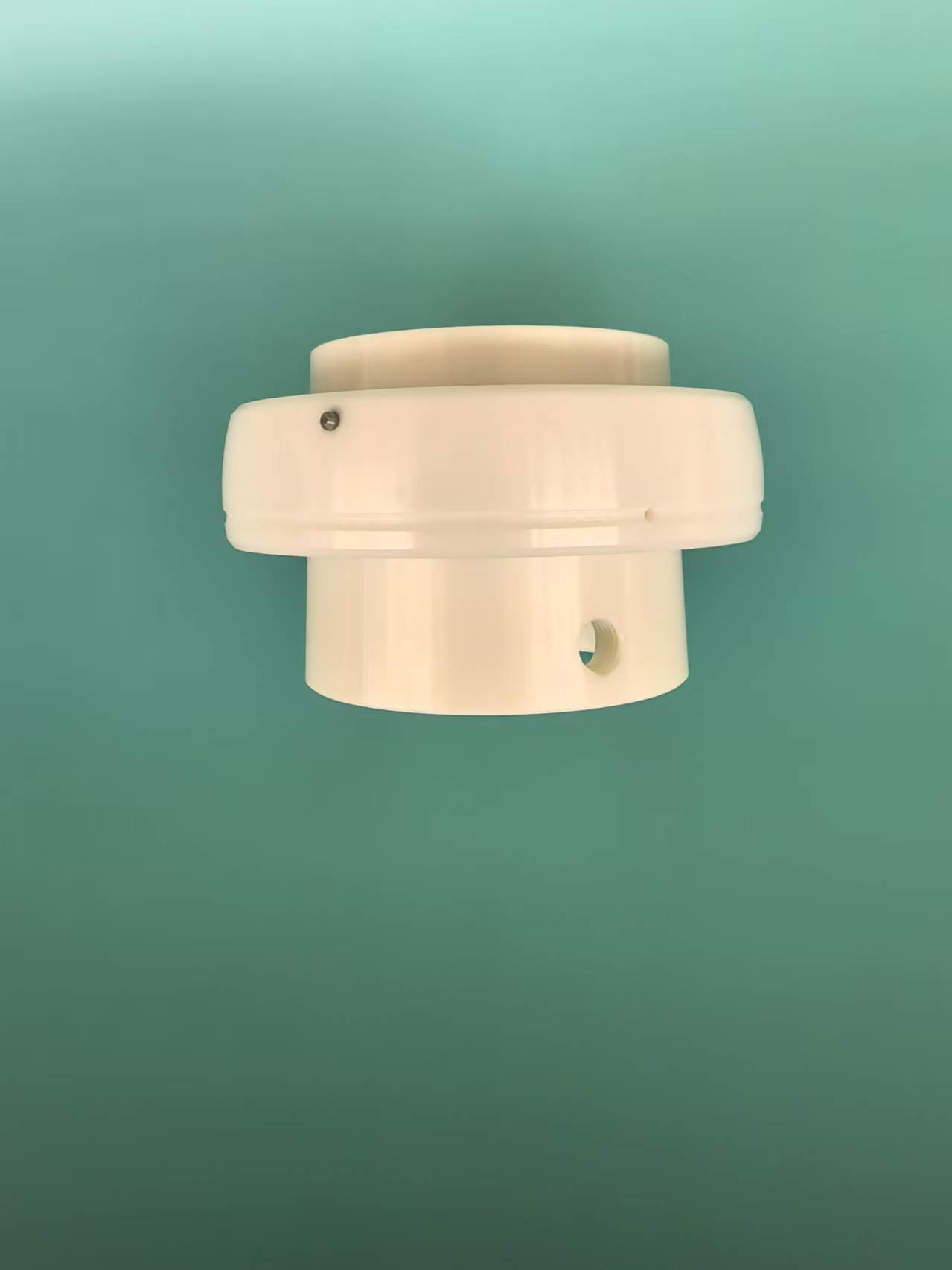

ZrO2 UC200 Series Ceramic Insert Ball Bearing With Adapting Thread In Conveyor Systems
Product Overview
Ceramic Insert Ball Bearings with adapting thread are specialized bearing units designed with a spherical outer ring, allowing for self-alignment and easy mounting in various mechanical systems. They are widely used in applications requiring misalignment compensation, durability in harsh environments, and simplified installation.
Technical Parameters
| Technical Parameter | Value |
|---|---|
| Name | Ceramic Insert Ball Bearing |
| Category | Ceramic Ball Bearing |
| Features | High-Speed, Solid, Light Weight, Flexibility |
| Precision Grades | P6(ABEC3), P5(ABEC5), P4(ABEC7) |
| Application | Pump |
| Cage Material | Peek/ PFA/ PTFE |
| Ring Material | ZrO2 (Zirconia) / Si3N4 (Silicon Nitride)/ SSiC (Silicon Carbide) |
| Balls | ZrO2 (Zirconia) / Si3N4 (Silicon Nitride)/ SSiC (Silicon Carbide) |
Material Properties
| Material Properties | Units | SSiC | HIP-ZrO2 |
|---|---|---|---|
| Density | g/cm3 | 3.15-3.18 | 6.05-6.09 |
| Porosity | % | 0 | 0 |
| Fledural Strength | MPa | 550 | 900 |
| Elastic Modulus | GPa | 410 | 200 |
| Hardness | HV5 | 2800 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 4.6 | 8-11 |
| Maximum Use Temperature | ℃ (℉) | 1650 (3000) | 380 (716) |
Reference Data of Ceramic Insert Bearings with Adapting Thread
| Bearings Model | Form Size d (mm) | Form Size D (mm) | Form Size B (mm) | Load Cr (N) | Load Cor (N) | Max.Speed Grease (rpm) | Max. Speed Oil (rpm) |
|---|---|---|---|---|---|---|---|
| UC201CE | 12 | 29 | 47 | 12.7 | 18.3 | 4.5 | M6*0.75 |
| UC202CE | 15 | 29 | 47 | 12.7 | 18.3 | 4.5 | M6*0.75 |
| UC203CE | 17 | 29 | 47 | 12.7 | 18.3 | 4.5 | M6*0.75 |
| UC204CE | 20 | 29 | 47 | 12.7 | 18.3 | 4.5 | M6*0.75 |
| UC205CE | 25 | 34 | 52 | 14.3 | 19.7 | 5 | M6*0.75 |
| UC206CE | 30 | 40.5 | 62 | 15.9 | 22. | 5 | M6*0.75 |
| UC207CE | 35 | 48 | 72 | 17.5 | 25.4 | 6 | M8*1.0 |
| UC208CE | 40 | 53 | 80 | 19 | 30.2 | 8 | M8*1.0 |
| UC209CE | 45 | 57.3 | 85 | 19 | 30.2 | 8 | M8*1.0 |
| UC210CE | 50 | 63 | 90 | 19 | 32.6 | 9 | M10*1.25 |
| UC211CE | 55 | 70 | 100 | 22.2 | 33.4 | 9 | M10*1.25 |
| UC212CE | 60 | 77 | 110 | 25.4 | 39.7 | 10 | M10*1.25 |
| UC213CE | 65 | 82.1 | 120 | 25.4 | 39.7 | 10 | M10*1.25 |
| UC214CE | 70 | 87 | 125 | 30.2 | 44.4 | 12 | M12*1.5 |
| UC215CE | 75 | 91.5 | 130 | 33.3 | 44.5 | 14 | M12*1.5 |
Applications
- Electroplating equipment (resistant to chromic acid/cyanides)
- Food acid-washing lines (citric/acetic acid environments)
- Semiconductor wet etchers (HF vapor resistance)
- Ideal for use in dental handpieces
Support and Services
Our Ceramic Ball Bearings are engineered to provide superior performance and reliability in high-speed and high-temperature applications. Our technical support team is available to assist with any questions or issues you may encounter with our product.
We also offer a range of services to ensure the optimal performance of our Ceramic Ball Bearings including installation support, maintenance services, and training programs for your staff. Contact us to learn more about how we can support your business needs.
Packing and Shipping
Product Packaging: Our Ceramic Ball Bearings are carefully packaged to ensure their safe delivery. Each bearing is individually wrapped and placed in a sturdy, protective box to prevent any damage during shipping. The box is then sealed and labeled with the product details and shipping information.
Shipping: We offer worldwide shipping for our Ceramic Ball Bearings. All orders are processed within 1-2 business days and shipped via a reliable courier service. The estimated delivery time varies depending on your location and can range from 3-14 business days. Once your order is shipped, you will receive a tracking number to monitor the progress of your delivery.
FAQ
Q1: What is the brand name of these ceramic ball bearings?
A1: The brand name of these ceramic ball bearings is CSQ.
Q2: What is the model number of these ceramic ball bearings?
A2: The model number of these ceramic ball bearings is 688 CE.
Q3: Where are these ceramic ball bearings manufactured?
A3: These ceramic ball bearings are manufactured in China.
Q4: What certifications do these ceramic ball bearings have?
A4: These ceramic ball bearings have FDA, REACH, ROHS, ISO9001, ISO14001, and ISO45001 certifications.
Q5: What is the minimum order quantity for these ceramic ball bearings?
A5: The minimum order quantity for these ceramic ball bearings is 50 PCS, but it is negotiable.
Q6: What is the price of these ceramic ball bearings?
A6: The price of these ceramic ball bearings varies according to the material and amount ordered.
Q7: What are the packaging details for these ceramic ball bearings?
A7: The packaging details for these ceramic ball bearings include foam and carton box.
Q8: What is the delivery time for these ceramic ball bearings?
A8: The delivery time for these ceramic ball bearings is between 30 to 45 working days.
Q9: What are the payment terms for these ceramic ball bearings?
A9: The payment terms for these ceramic ball bearings include T/T or Paypal.
Q10: What is the supply ability of these ceramic ball bearings?
A10: The supply ability of these ceramic ball bearings is 10,000 pcs per month.
