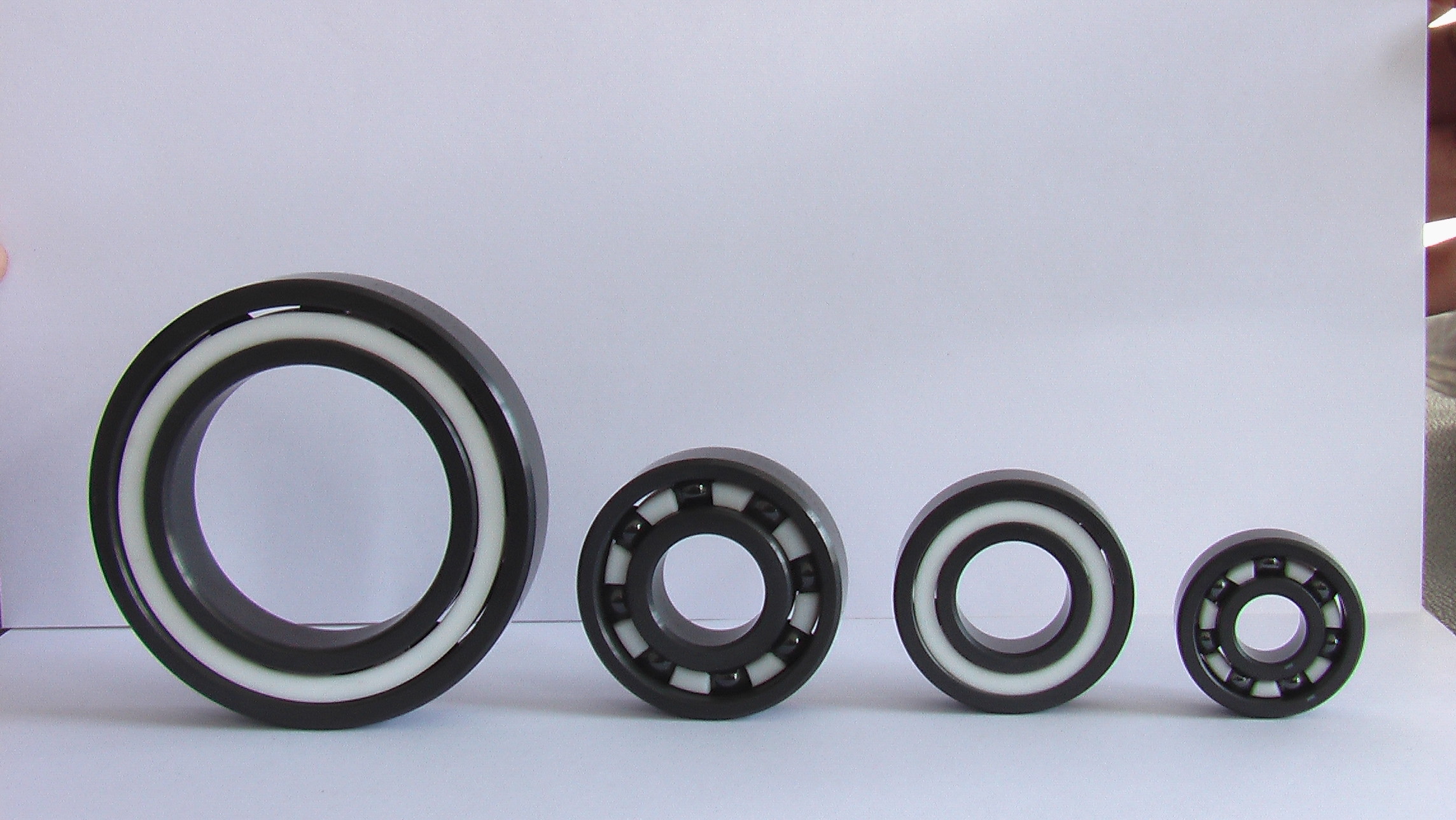

Deep Groove P4 Ceramic Ball Bearing Peek Cage

  • Deep Groove P4 Ceramic Ball Bearing Peek Cage
  • Deep Groove P4 Ceramic Ball Bearing Peek Cage
Place of Origin China
Brand Name CSQ
Certification FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Minimum Order Quantity 50pcs (Negotiable)
Price Negotiable
Packaging Details Foam+carton box
Delivery Time 25-40 works day
Payment Terms T/T
Supply Ability 2000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Deep Groove Balls Bearing Race And Balls Material Silicon Nitride Or Silicon Carbide Or Zirconia
Cage Material Peek//Brass/Stainless Steel Seals Material Open/Stainless Steel/rubber//Peek
Precision P4/P5/P6 Clearance C0/C3 Or Customized
Highlight

deep groove ceramic ball bearing

,

p4 ceramic ball bearing

,

peek cage ceramic bearing
Leave a Message
Product Description

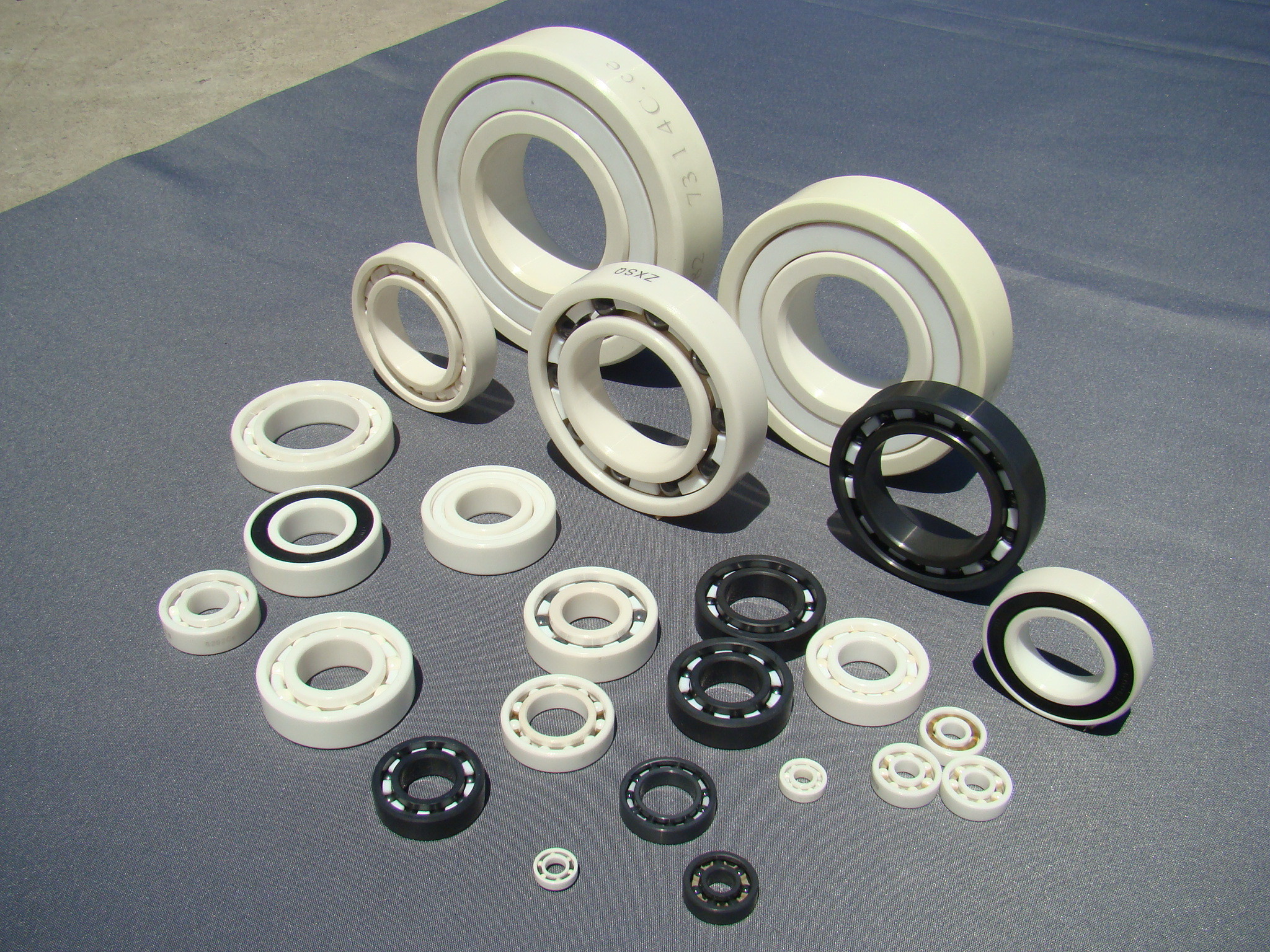

Ceramic Deep Groove Balls Bearings In Material Of Si3N4/SSiC/ZrO2



Description of Ceramic Deep Groove Bearings:



Our company can according to the different needs of users, custom-make all ceramic bearings and hybrid ceramic bearings of 6000 seires, customized size range can be: inner diameter from 5 to 120mm, outer diameter from 10 to 200mm, including. We can volume produce 6000 series deep groove balls bearings in material of Silicon nitride or Silicon carbide or Zirconium oxide.





Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

1000
(1830)

1000
(1830)

380
(716)


Reference data of Ceramic Deep Groove Bearings:



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
6000CE 10 26 8 4100 1960 37700 44200
6001CE 12 28 8 4590 2390 33800 39000
6002CE 15 32 9 5040 2840 28600 33800
6003CE 17 35 10 6120 3350 26000 31200
6004CE 20 42 12 8460 5050 23400 27300
6005CE 25 47 12 9090 5850 19500 23400
6006CE 30 55 13 11880 8300 16900 19500
6007CE 35 62 14 14400 10300 15600 18200
6008CE 40 68 15 15120 11500 13000 15600
6009CE 45 75 16 18900 15100 11960 14300
6010CE 50 80 16 19620 16600 10920 12740
6011CE 55 90 18 25470 21200 10010 11700
6012CE 60 95 18 26550 23200 9100 10790
6013CE 65 100 18 27450 25200 8450 10010
6014CE 70 110 20 34200 31000 7930 9230
6015CE 75 115 20 35550 33500 7410 8710
6016CE 80 125 20 42750 40000 6890 8060
6017CE 85 130 22 44550 43000 6500 7670
6018CE 90 145 24 52200 49500 6115 7280
6019CE 95 150 24 54450 54000 5850 6890
6020CE 100 160 26 54000 54000 5460 6500



Deep Groove P4 Ceramic Ball Bearing Peek Cage 0



About us



Beijing Zhong Xing shi Qiang Ceramic Bearing Co. Ltd.(ZXSQ) is the first high-tech enterprise of its kind in China, which is specialized in research, development and production of rare-earth ceramic.



Our company was first set up in Harbin in the year of 1999 and then moved to Beijing in 2003 with its present premises at Beijing Weishanzhuang Industrial Zone No. 38, Daxing District, Beijing, China. More than 20 years before its establishment, the company founder started the painstaking research work, and, as a result, was granded with the Chinese National Original Development Patents. Now we have got 8 invention patents.



We have three factories specialising in the production of ceramic bearings for more than 20 years. With excellent product quality and after-sales service, we have established cooperative relations with many companies at abroad. Our factory uses high-quality equipmentsuch as our Hot Isostatic sintering furnace (HIP) equipment imported from ABB Sweden. So please trust us to better provide high- quality products and services.
