Ssic Silicon Carbide Mechanical Seals For Rotating Machinery
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | Customized |
| Minimum Order Quantity | 20-50 pcs (negotiable) |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Silicon Carbide Mechanical Seals | Category | Advanced Structural Ceramic |
|---|---|---|---|
| Material | SSiC (Pressureless Sintered Silicon Carbide) | Size | Customized, According To The Drawings |
| Use | Rotating Machinery | Pacage | Foam+carton Box |
| Highlight | ssic silicon carbide mechanical seals,rotating machinery silicon carbide mechanical seals,rotating machinery silicon carbide seal |
||
Product Description

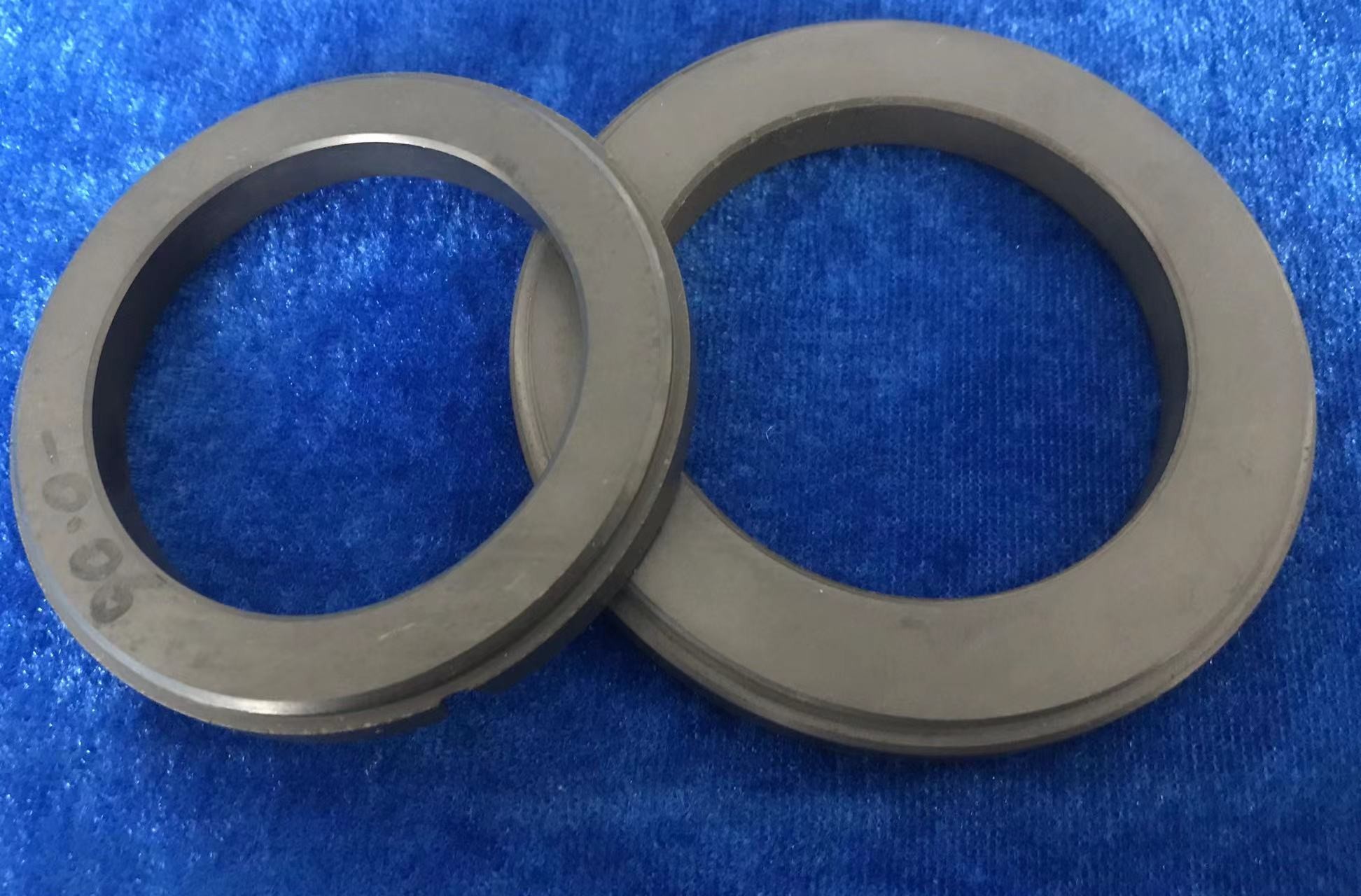

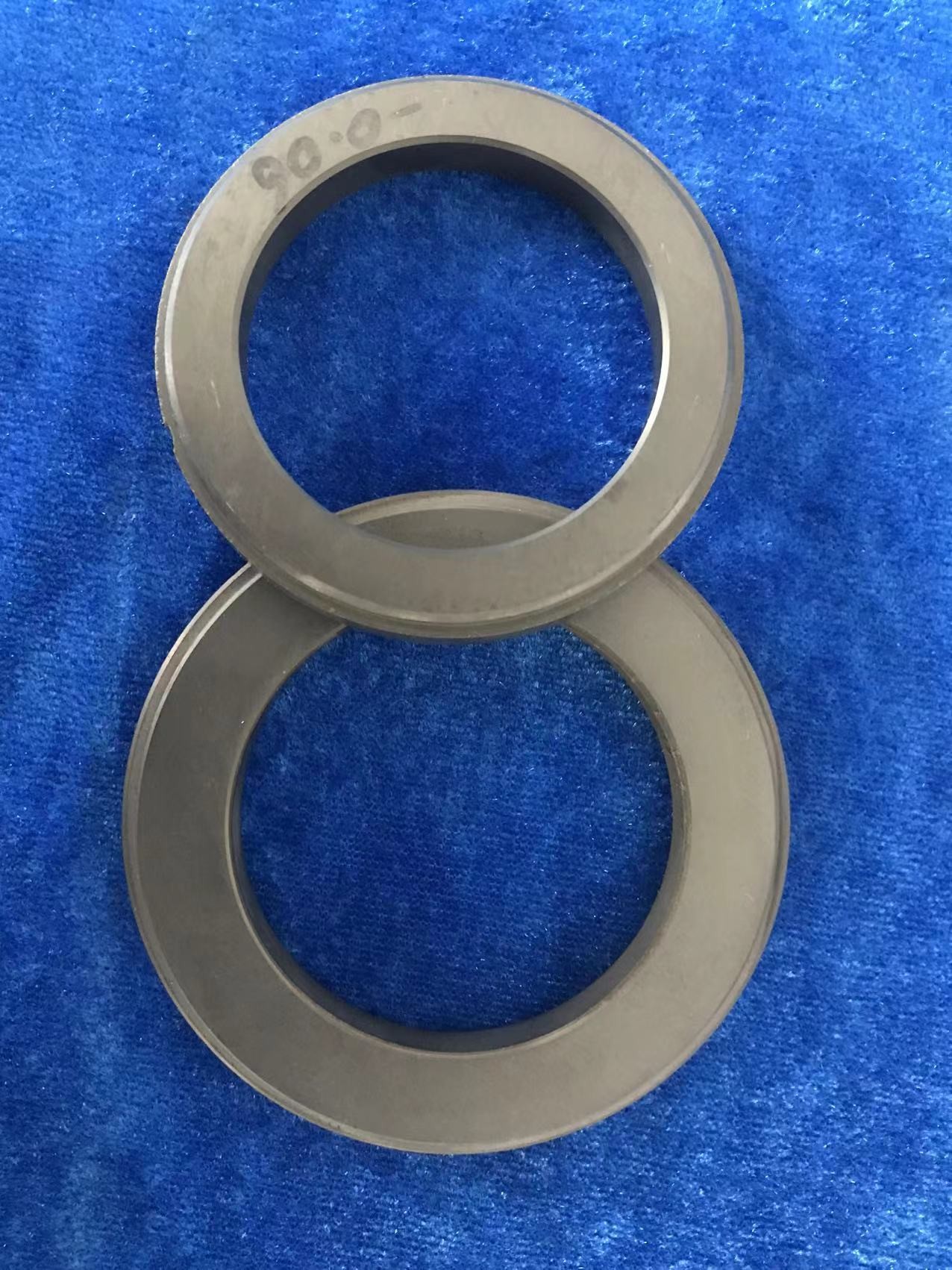

Silicon Carbide Mechanical Seals For Rotating Machinery
Description of Customized SSiC Mechanical Seals:
Mechanical seal is a kind of shaft sealing device rotating the michanery, it is formed by at least a pair of end face perpendicular to the rotation axis, and under the force of fluid pressure and compensation institution elastic force (stone force) and with the cooperation of the auxiliary seal, the faces keep seat and the relativ sliding, to prevent the fluid leakage.
The rotating ring and static ring is generally formed by the group of pure SSiC rings, or one SSiC and the othe is SSiC+C material.
Rotating and static ring: a pair of pure SSiC rings, applicable for strong corrosive medium.
Rotating and static ring: a SSiC ring, and a SiC+C, applicable for the medium easy to vaporized.
Performance advantages of SSiC (Pressureless sintered silicon carbide):
| ♦ High strength |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
Why choose us:
Our pressureless sintered silicon carbide products has high density and high hardness, we can volume produce many kinds of and many shapes of complicated mechanical seals in material of SSiC.
The advantages of our company:
We have three factories in China, can meet the needs for different customers, and also we have advanced pressing, sintering and processing machines. Our company has specialized production of high-precision ceramic ball production line, as well as ceramic bearing grinder, automatic assembly production line. In addition, our HIP sintering furnace from Sweden ABB company, so we are confident that you will be satisfied with our products.
