1210ce Zirconia Ball Bearings Self Aligning With Cylindrical Bore
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | 1210CE and other series |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 25-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Zirconia Self-Aligning Ball Bearings With Cylindrical Bore | Cage | PFA |
|---|---|---|---|
| Race And Ball Material | ZrO2 (Zirconium Oxide) | Precision | P6/ABEC3 To P4/ABEC7 |
| Highlight | 1210ce zirconia ball bearings,self aligning zirconia ball bearings,cylindrical bore zirconia ceramic bearings |
||
Product Description

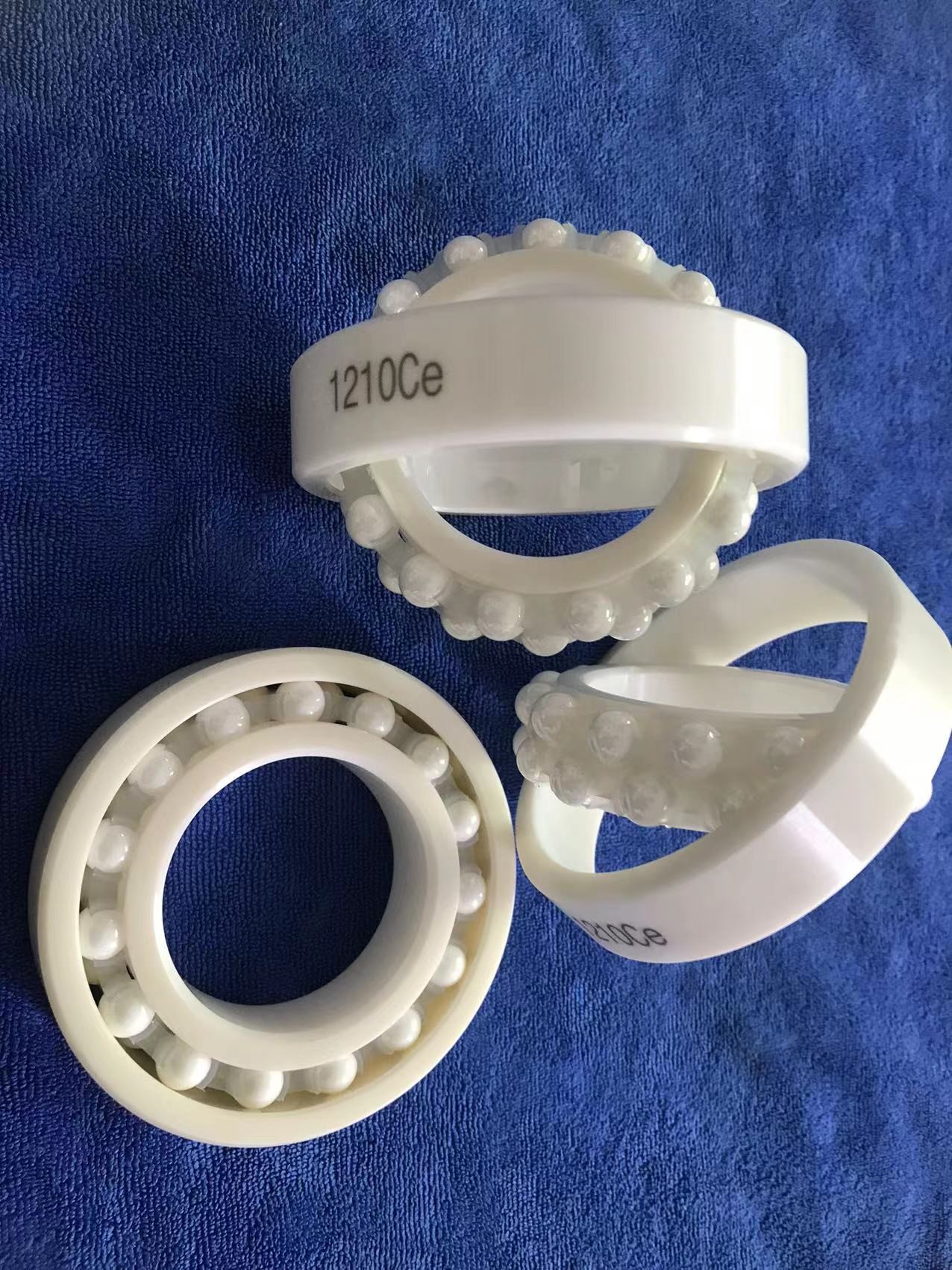

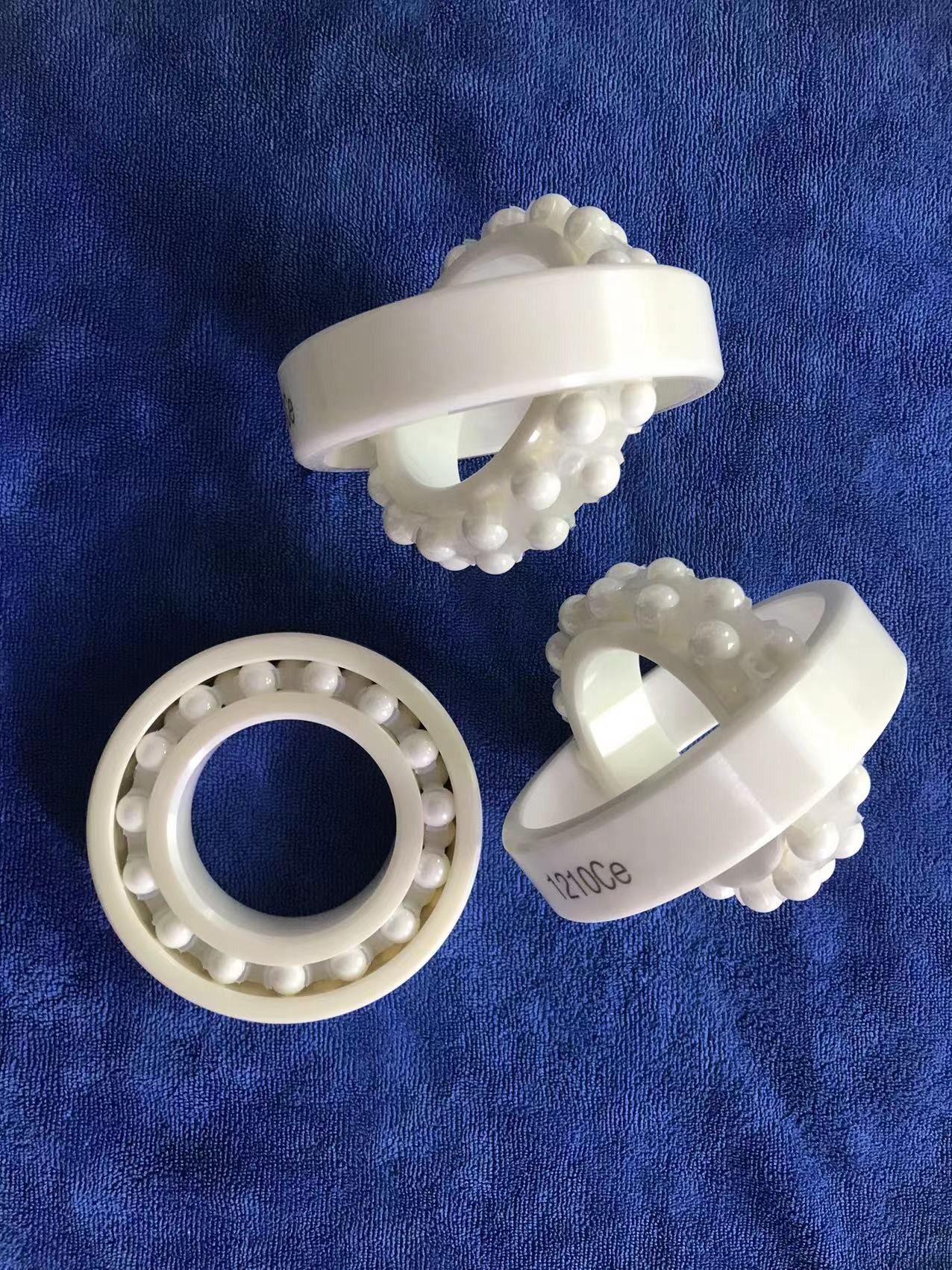

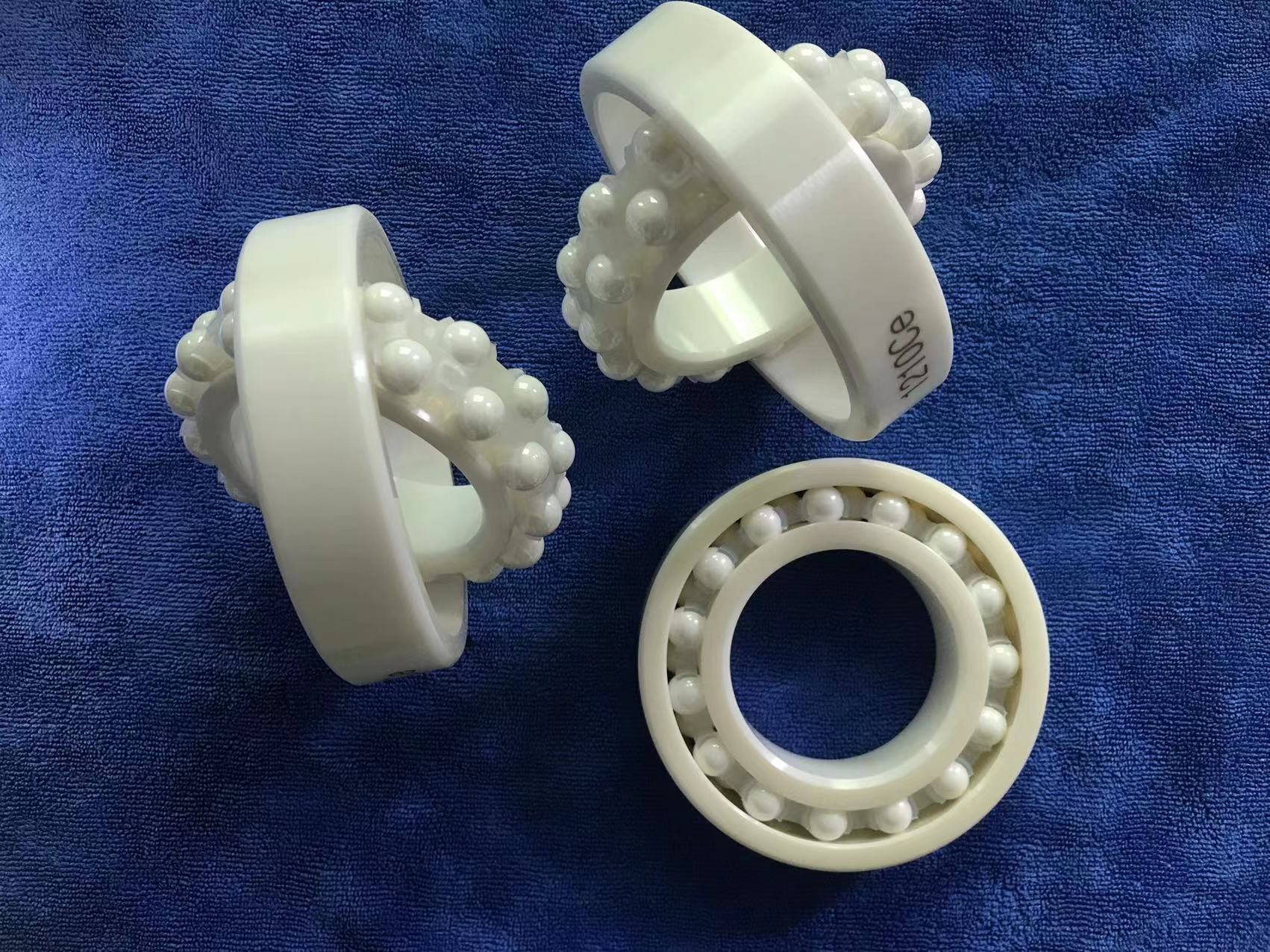

Zirconia Self-Aligning Ball Bearings With Cylindrical Bore
Description of ZrO2 material:
Our zirconia material are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved, to which is the ordinary zirconia bearings incomparable.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
Reference data of Ceramic Double-row Self-aligning Balls Bearings:
| Bearings model |
Form size |
Form size |
Form size |
Load |
Load |
Max.Speed |
Max. Speed |
| 1200CE | 10 | 30 | 9 | 4950 | 1190 | 27300 | 31200 |
| 1300CE | 10 | 35 | 11 | 6530 | 1620 | 23400 | 27300 |
| 1201CE | 12 | 32 | 10 | 5040 | 1270 | 23400 | 28600 |
| 1301CE | 12 | 37 | 12 | 8510 | 2160 | 20800 | 23400 |
| 1202CE | 15 | 35 | 11 | 6710 | 1750 | 20800 | 24700 |
| 1302CE | 15 | 42 | 13 | 8600 | 2300 | 16900 | 20800 |
| 1203CE | 17 | 40 | 12 | 7110 | 2010 | 18200 | 22100 |
| 1303CE | 17 | 47 | 14 | 11250 | 3200 | 15600 | 18200 |
| 1204CE | 20 | 47 | 14 | 8910 | 2610 | 16900 | 19500 |
| 1304CE | 20 | 52 | 15 | 11160 | 3350 | 14300 | 16900 |
| 1205CE | 25 | 52 | 15 | 10890 | 3300 | 14300 | 16900 |
| 1305CE | 25 | 62 | 17 | 16200 | 5000 | 11830 | 14300 |
| 1206CE | 30 | 62 | 16 | 14040 | 4650 | 11960 | 14300 |
| 1306CE | 30 | 72 | 19 | 19170 | 6300 | 10010 | 11830 |
| 1207CE | 35 | 72 | 17 | 14220 | 5100 | 10400 | 12220 |
| 1307CE | 35 | 80 | 21 | 22590 | 7850 | 8840 | 10400 |
| 1208CE | 40 | 80 | 18 | 17370 | 6550 | 9230 | 10920 |
| 1308CE | 40 | 90 | 23 | 26640 | 9700 | 7800 | 9100 |
| 1209CE | 45 | 85 | 19 | 19710 | 7350 | 8320 | 9750 |
| 1309CE | 45 | 100 | 25 | 34200 | 12700 | 7020 | 8190 |
| 1210CE | 50 | 90 | 20 | 20430 | 8100 | 7540 | 8840 |
| 1310CE | 50 | 110 | 27 | 39150 | 14100 | 6370 | 7540 |
| 1211CE | 55 | 100 | 21 | 24120 | 10000 | 6890 | 8060 |
| 1311CE | 55 | 120 | 29 | 46350 | 17900 | 5850 | 6760 |
| 1212CE | 60 | 110 | 22 | 27000 | 11500 | 6370 | 7540 |
| 1312CE | 60 | 130 | 31 | 51300 | 20800 | 5330 | 6240 |
| 1213CE | 65 | 120 | 23 | 27900 | 12500 | 5850 | 6890 |
| 1313CE | 65 | 140 | 33 | 55800 | 22900 | 4940 | 5850 |
| 1214CE | 70 | 125 | 24 | 31050 | 13800 | 8460 | 6370 |
| 1314CE | 70 | 150 | 35 | 67050 | 27700 | 4550 | 5460 |
| 1215CE | 75 | 130 | 25 | 35100 | 15700 | 5070 | 5980 |
Our factory and processing machine:
We have three factories in China, can meet the needs for different customers, and also we have advanced pressing, sintering and processing machines. Besides, our company has specialized production of high-precision ceramic ball production line, as well as ceramic bearing grinder, automatic assembly production line. In addition, our HIP sintering furnace is from ABB Sweden, so we are confident that you will be satisfied with our products.
