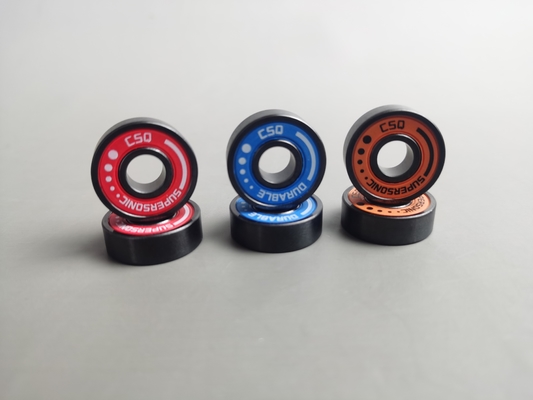

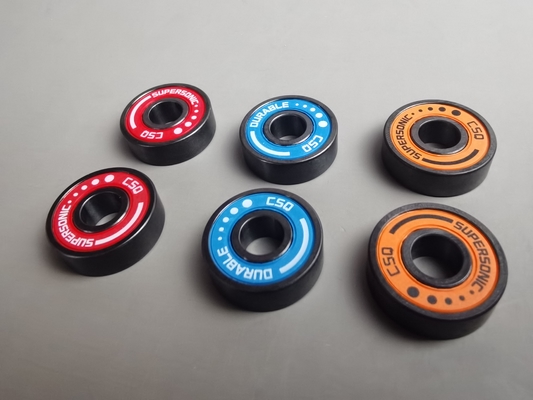

608-2rs Ceramic Ball Bearings With Rubber Seal Or Ptfe Seal Peek Or Nylon Cage

608-2RS Ceramic Ball Bearings With Rubber Seals or PTFE Seals

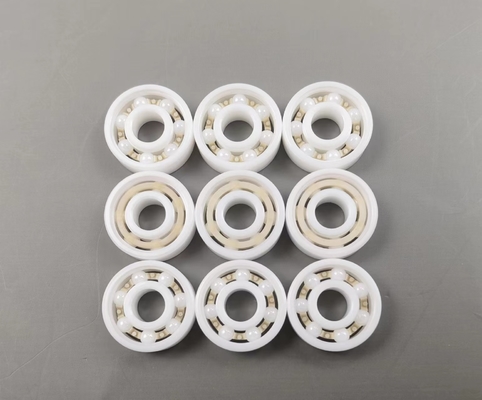

Description of 608 All Zirconia Bearings (Zirconia+PEEK):

1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved, to which is the ordinary zirconia bearings incomparable.

2. PEEK cage: The crown structure cages are adopted British Victrex PEEK material and injection molded at high temperature, so have high strength, light body, and will be fitted to the bearings using our unique design of press-fit double-sided construction. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.

Performance advantages of 608 All Zirconia Bearings (Zirconia+PEEK):

A kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings

Application of 608 All Zirconia Bearings (Zirconia+PEEK):

Because of the properties of zirconia material and the designation, 608 all zirconia bearing with peek cage can be used in many situations:

—Insulated motors, high-speed or ultra-high-speed motors, servo motors, low-noise motors, power tools, household air-conditioning units, household hoovers, etc.;

—High-grade competitive skates, sports skateboards, fingertip gyroscopes, and etc.;

—Machine tools, machinery and equipment, pharmaceutical, food and beverage machinery;

—Production lines, conveyor belts of petroleum and fine chemicals field —Automobile air-conditioning units, high-grade furnitures and toys, high-grade fishing reels

Why choose us:

Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. has a production line for automatic grinding and assembly of 608 ceramic bearings, and designs an annual output of 3 million sets of 608 ceramic bearings. We are specializing in the automatic production of 608 all ceramic bearings.
