6004 Ceramic Ball Bearings In Material Of Ssic / Si3n4 / Zro2
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6004 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Ceramic Ball Bearing 6004 | Structure | Ceramic Deep Groove Ball Bearing |
|---|---|---|---|
| Material | SSiC/Si3N4/ZrO2 | Cage | PEEK//PFA/Nylon |
| Precision | P6/ABEC3 To P4/ABEC7 | Pacage | Plastik Bag+foam+carton Box |
| Highlight | 6004 ceramic ball bearings,ssic ceramic ball bearings,si3n4 6004 ceramic bearings |
||
Product Description

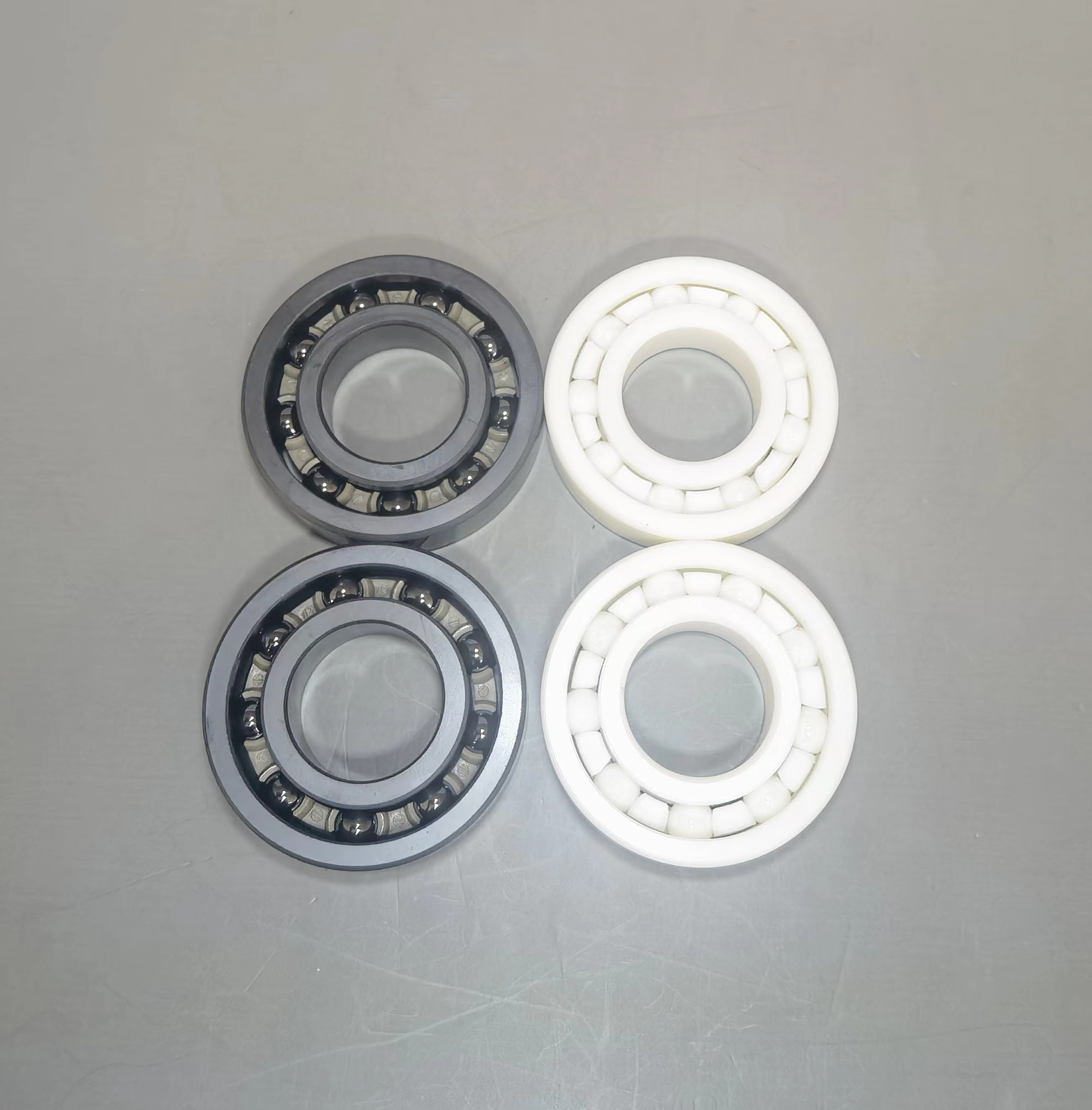

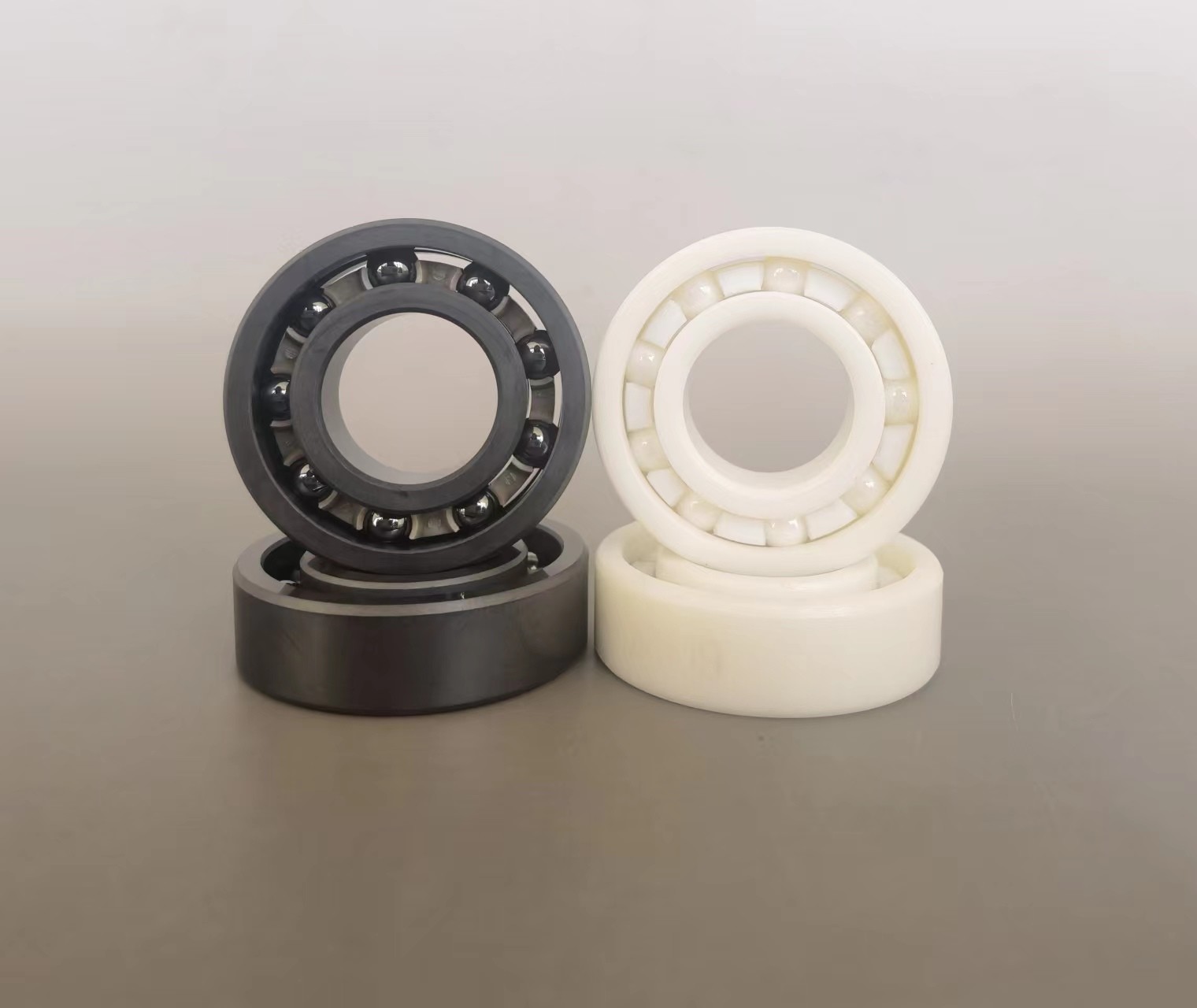

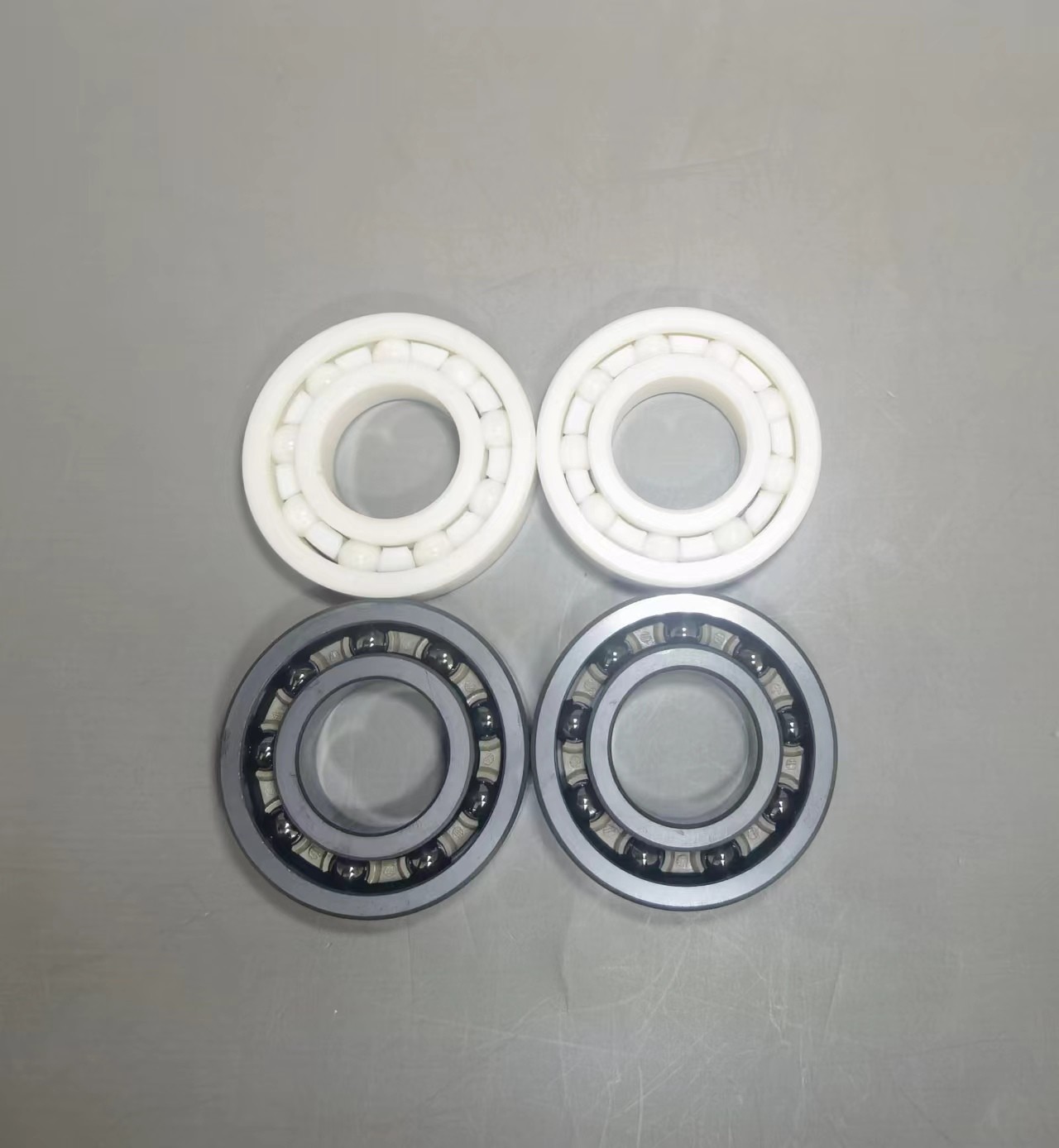

Ceramic Ball Bearing 6004 In Material Of SSiC/Si3N4/ZrO2
Description of Ceramic Bearing 6802:
1. SSiC races and balls are made of highly purified, sub-micron silicon carbide material. We sintered the silicon caibide with pressureless sintering method, so SSiC material have well corrosion resistance, high strengthm high hardness.
2. Si3N4 races and balls are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by HIP (Hot Isostatic Pressure) sintering technology, which is the preferred material for ultra-high speed and high precision ceramic bearings.
3. ZrO2 races and balls are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material, are processed by HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved.
Material properties of our ceramic material:
| Material Properties | Units | SSiC | HIP-Si3N4 | GPS-Si3N4 | HIP-ZrO2 |
| Density | g/cm3 | 3.15-3.18 | 3.27-3.29 | 3.22-3.27 | 6.05-6.09 |
| Porosity | % | 0 | 0 | 0 | 0 |
| Fledural Strength | MPa | 550 | 830 | 689 | 900 |
| Elastic Modulus | GPa | 410 | 310 | 310 | 200 |
| Hardness | HV5 | 2800 | 1580 | 1450 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 4.6 | 6.1 | 5.7 | 8-11 |
| Maximum Use Temperature | ℃ (℉) |
1650 (3000) |
1000 (1830) |
1000 (1830) |
380 (716) |
Performance reference data of 6902:
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 6004CE | 8460 | 5050 | 23400 | 27300 |
