6000 Silicon Carbide Ball Bearings Fitted With PEEK Cage CSQ
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6000 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+carton box |
| Delivery Time | 30 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Silicon Carbide Balls Bearing 6000 | Category | SSiC Deep Groove Balls Bearing |
|---|---|---|---|
| Precision | P6/ABEC3 | Material | SSiC Races And Balls +PEEK Cage |
| Designation | 6000: Ø10× Ø26×8mm | Ball | SSiC Balls Of Ø4.763mm |
| MOQ | 50 Pieces | Pacage | Plastik Bag+foam+carton Box |
| Highlight | 6000 Silicon Carbide Ball Bearing CSQ,Silicon Carbide Ball Bearing CSQ,Silicon Carbide Bearing CSQ |
||
Product Description

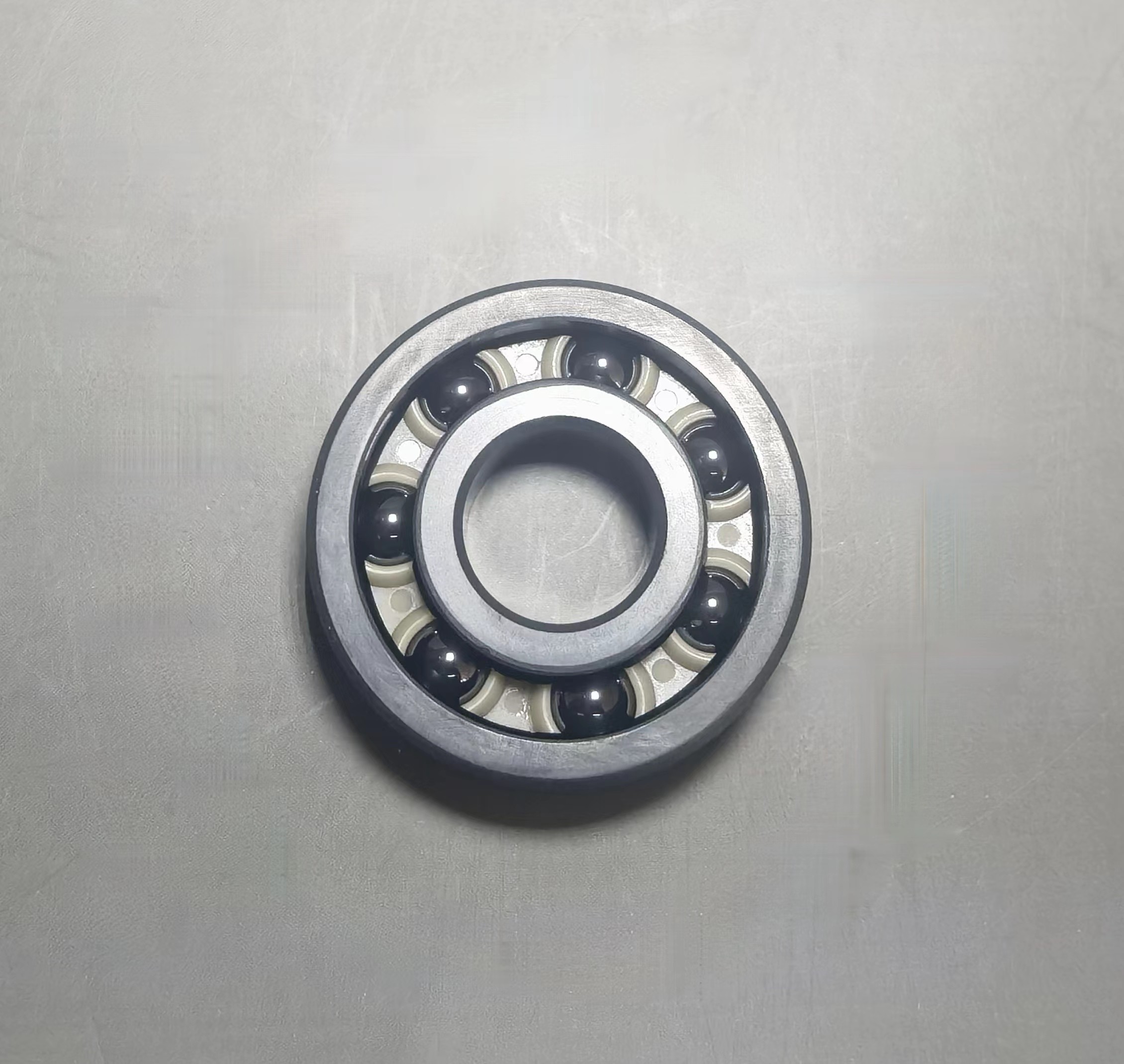

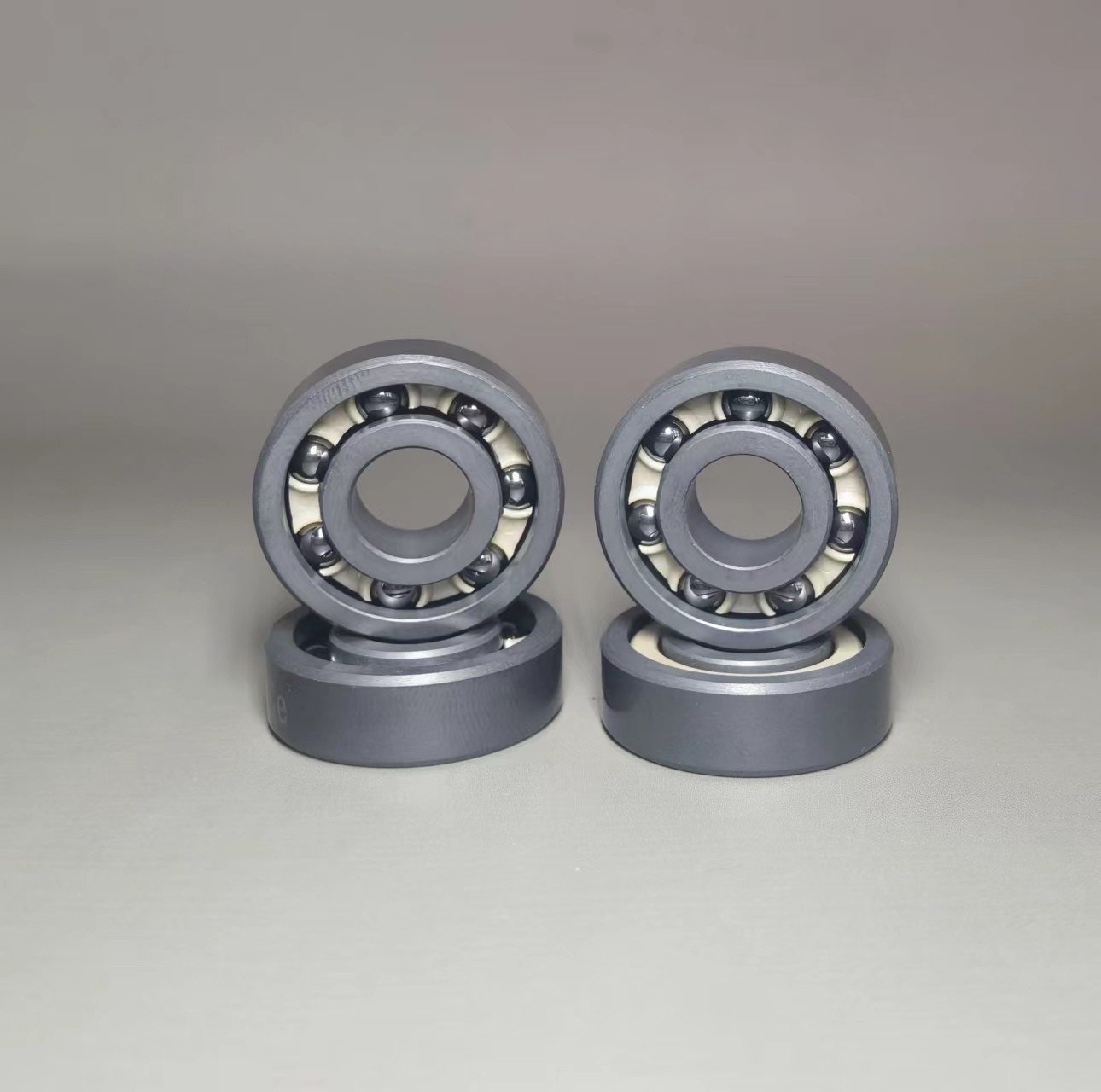

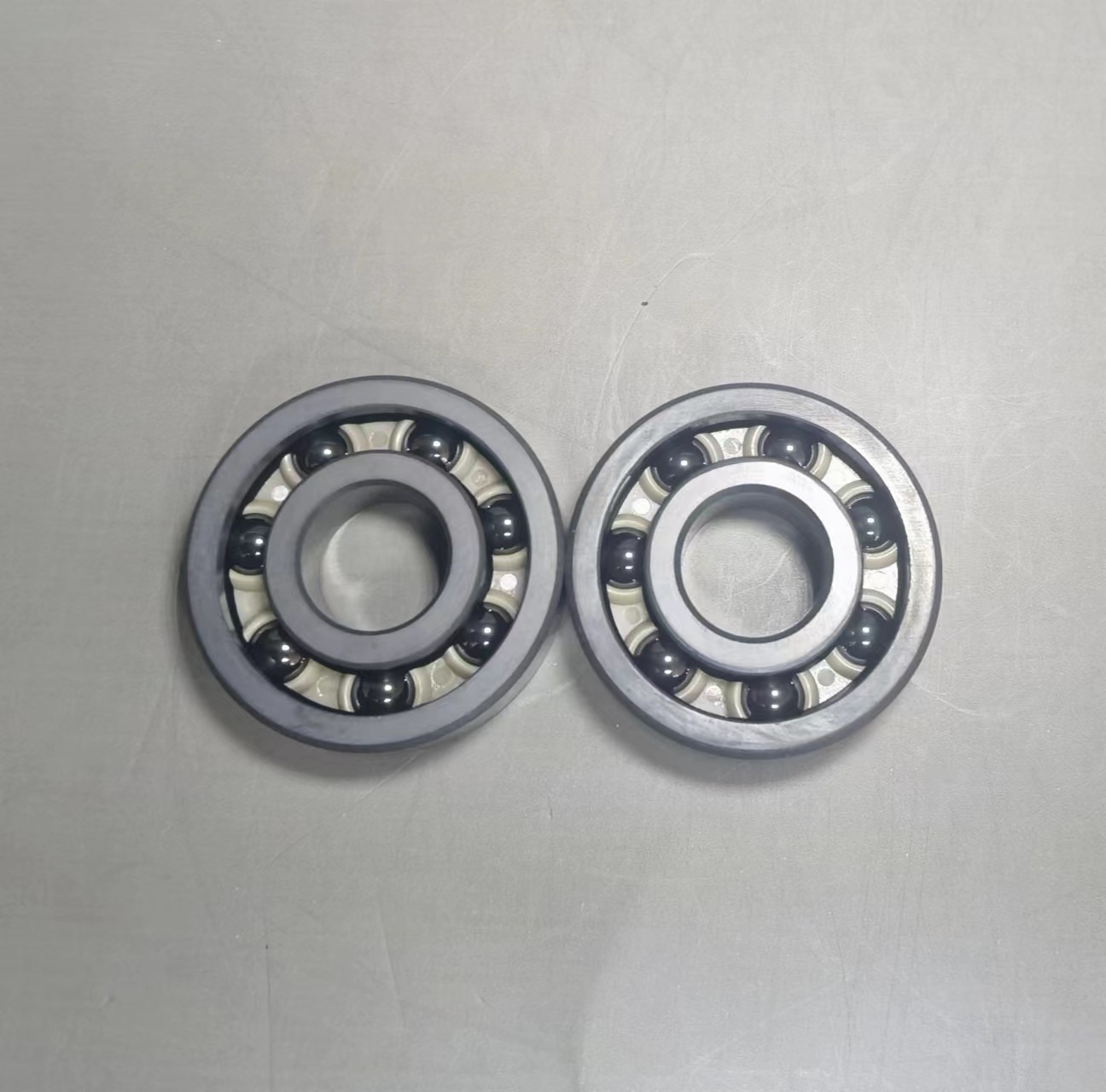

Silicon Carbide Balls Bearing 6000 Fitted With PEEK Cage
Description of Silicon Carbide Balls Bearing 6000:
1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.
2. PEEK cage: Our company adopted PEEK material for the crown structure cage, which have light body and high strength. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.
Material advantages of SSiC (Pressureless sintered silicon carbide):
With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance.
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
Refenrence data of Silicon Carbide Balls Bearing 6000:
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 6000CE | 4100 | 1960 | 37700 | 44200 |
