61803 61804 61903 Ceramic Deep Groove Ball Bearings Silicon Carbide Extra Thin

  • 61803 61804 61903 Ceramic Deep Groove Ball Bearings Silicon Carbide Extra Thin
  • 61803 61804 61903 Ceramic Deep Groove Ball Bearings Silicon Carbide Extra Thin
Place of Origin China
Brand Name CSQ
Model Number 61800/61900 series
Minimum Order Quantity 50 pcs/ one model
Price Negotiable
Packaging Details Plastik bag+foam+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Extra Thin Type Si3N4 Deep Groove Balls Bearing Material SSiC ( Pressureless Sintered Silicon Carbide )
Model 61800/61900 Series Precision P6/ABEC3 To P4/ABEC7
Pacage Plastik Bag+foam+carton Box MOQ 50 Pieces/one Model
Highlight

61804 ceramic bearing

,

61903 ceramic bearings

,

61803 ceramic bearings
Leave a Message
Product Description



Extra Thin Type Ceramic Deep Groove Balls Bearing In Material Of Silicon Carbide



Description of Silicon carbide ball bearing:



SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.



Key properties of SSiC (Pressureless sintered silicon caride)



♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)























Refence data of extra thin type Si3N4 deep groove balls bearing:



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

 Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
61800CE 10 19 5 1590 985 37000 48400
61900CE 10 22 6 1868 1130 33000 41800
61801CE 12 21 5 1440 1040 32000 42900
61901CE 12 24 6 2025 1320 30000 39600
61802CE 15 24 5 1560 1260 28000 37400
61902CE 15 28 7 3225 2250 26000 34100
61803CE 17 26 5 1973 1570 26000 33000
61903CE 17 30 7 3450 2550 24000 31900
61804CE 20 32 7 3000 2640 22000 28600
61904CE 20 37 9 4763 3700 19000 25300
61805CE 25 37 7 3225 2940 18000 24200
61905CE 25 42 9 5250 4500 16000 22000
61806CE 30 42 7 4013 3800 15000 19800
61906CE 30 47 9 5438 5000 14000 18700
61807CE 35 47 7 3563 3800 14000 17600
61907CE 35 55 10 7800 7150 12000 16500
61808CE 40 52 7 4463 4900 12000 15400
61908CE 40 62 12 10275 9950 11000 14300
61809CE 45 58 7 4013 4900 11000 14300
61909CE 45 68 12 10575 10900 10000 13200
61810CE 50 65 7 4800 5800 10000 13200
61910CE 50 72 12 10875 11700 9500 12100
61811CE 55 72 9 6600 8100 8700 11000
61911CE 55 80 13 12000 13200 8200 10560
61812CE 60 78 10 8625 10600 8000 10450
61912CE 60 85 13 11400 13500 7600 9900
61813CE 65 85 10 8925 11500 7500 9570
61913CE 65 90 13 13050 16000 7100 9350
61814CE 70 90 10 9075 11900 7000 8910
61914CE 70 100 16 17775 21100 6500 8470
61815CE 75 95 10 9375 12800 6500 8360
61915CE 75 105 16 15600 19700 6200 7920
61816CE 80 100 10 9525 13300 6000 7810
61916CE 80 110 16 20700 25300 5700 7370
61817CE 85 110 13 14025 19000 5700 7370
61917CE 85 120 18 24000 29600 5400 6930
61818CE 90 115 13 14250 19700 5400 6930
61918CE 90 125 18 24750 31500 5100 6600
61819CE 95 120 13 14475 20500 5000 6600
61919CE 95 130 18 25125 33500 4800 6270
61820CE 100 125 13 14700 21200 4800 6160
61920CE 100 140 20 31875 36500 4500 5830
61821CE 105 130 13 14925 21900 4800 6160
61921CE 105 145 20 31875 42000 4300 5830
61822CE 110 140 16 20475 29400 4300 5830
61922CE 110 150 20 28500 38500 4300 5500
61824CE 120 150 16 21225 31500 4000 5280

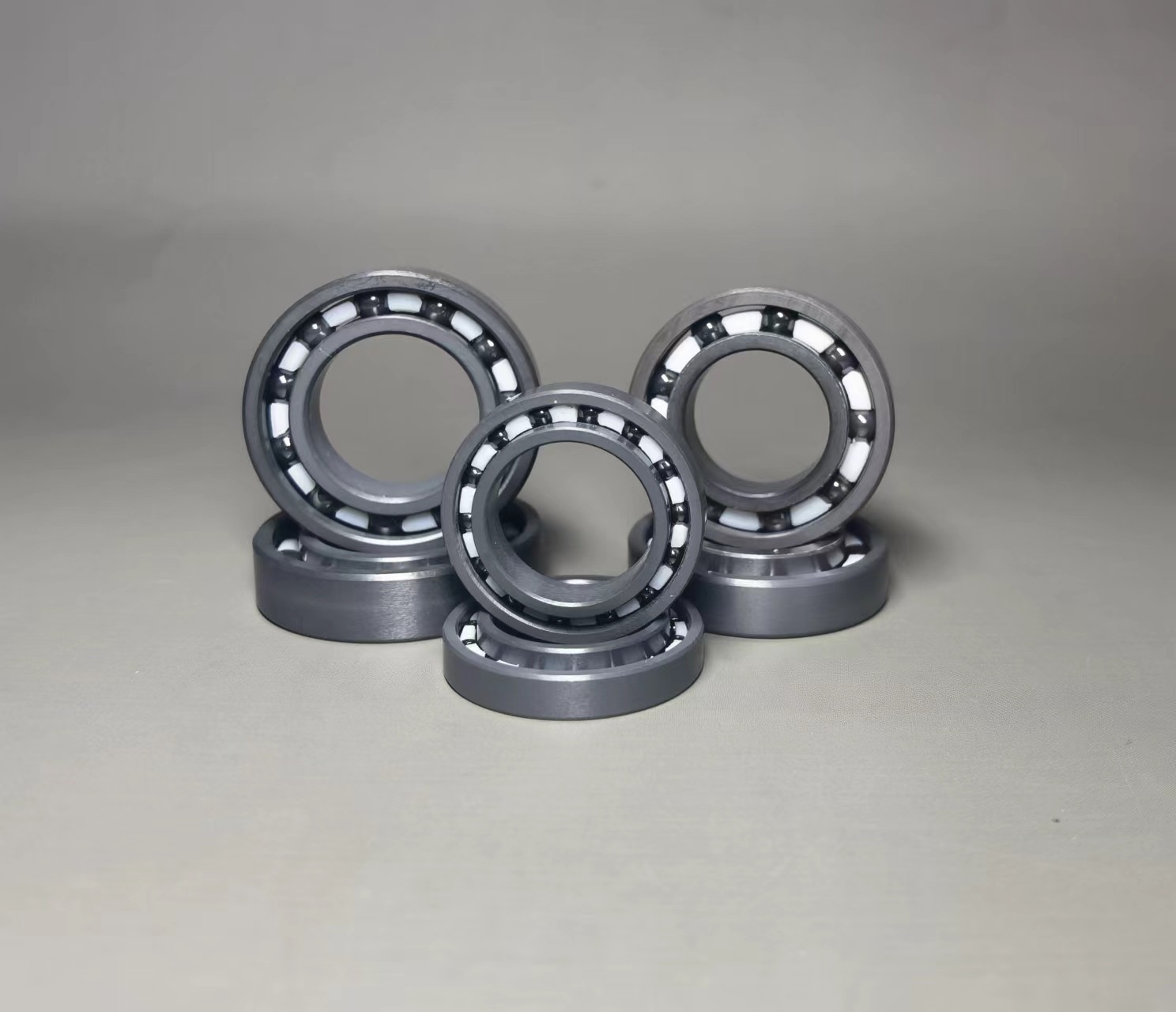

61803 61804 61903 Ceramic Deep Groove Ball Bearings Silicon Carbide Extra Thin 0

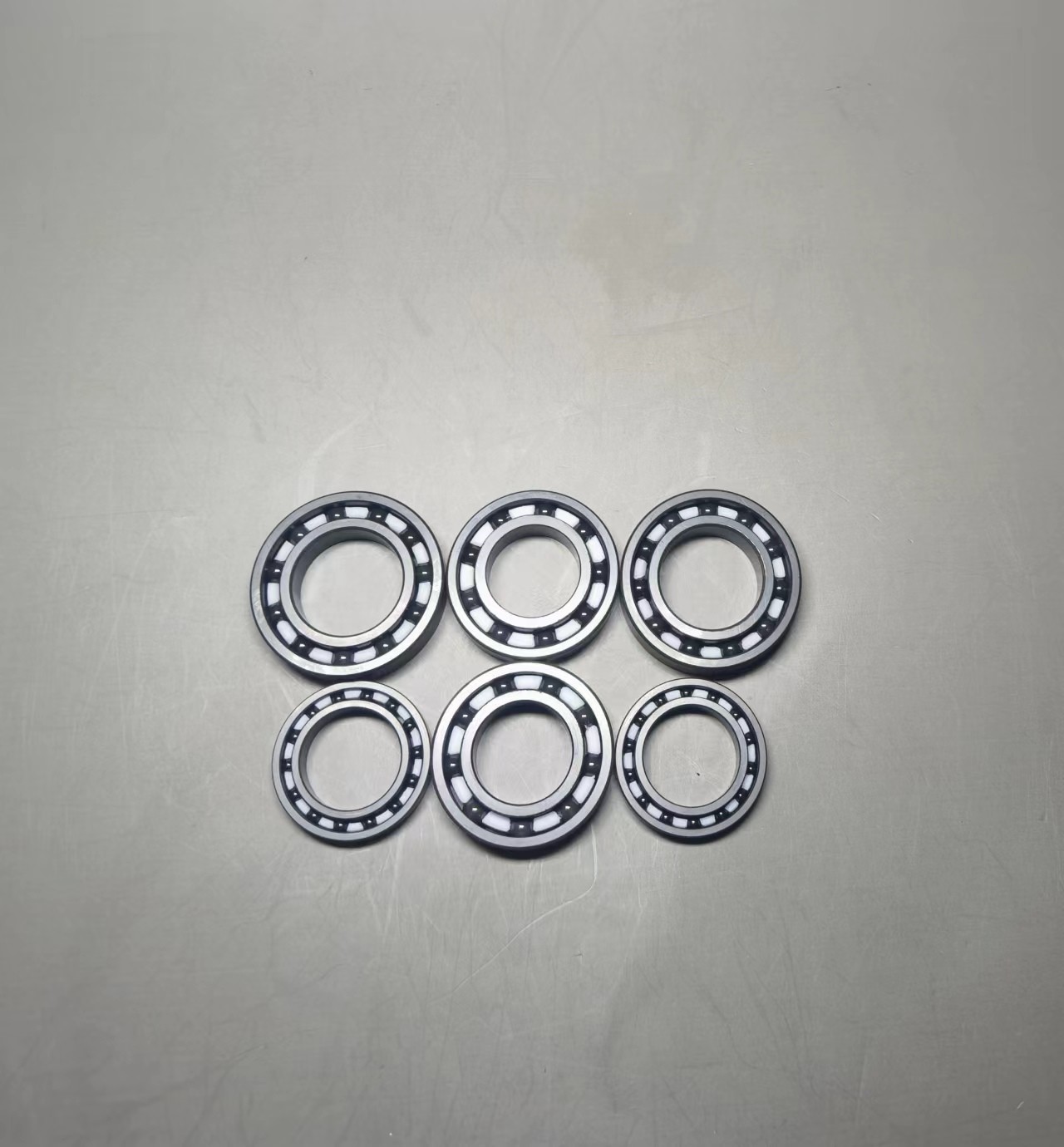

61803 61804 61903 Ceramic Deep Groove Ball Bearings Silicon Carbide Extra Thin 1
