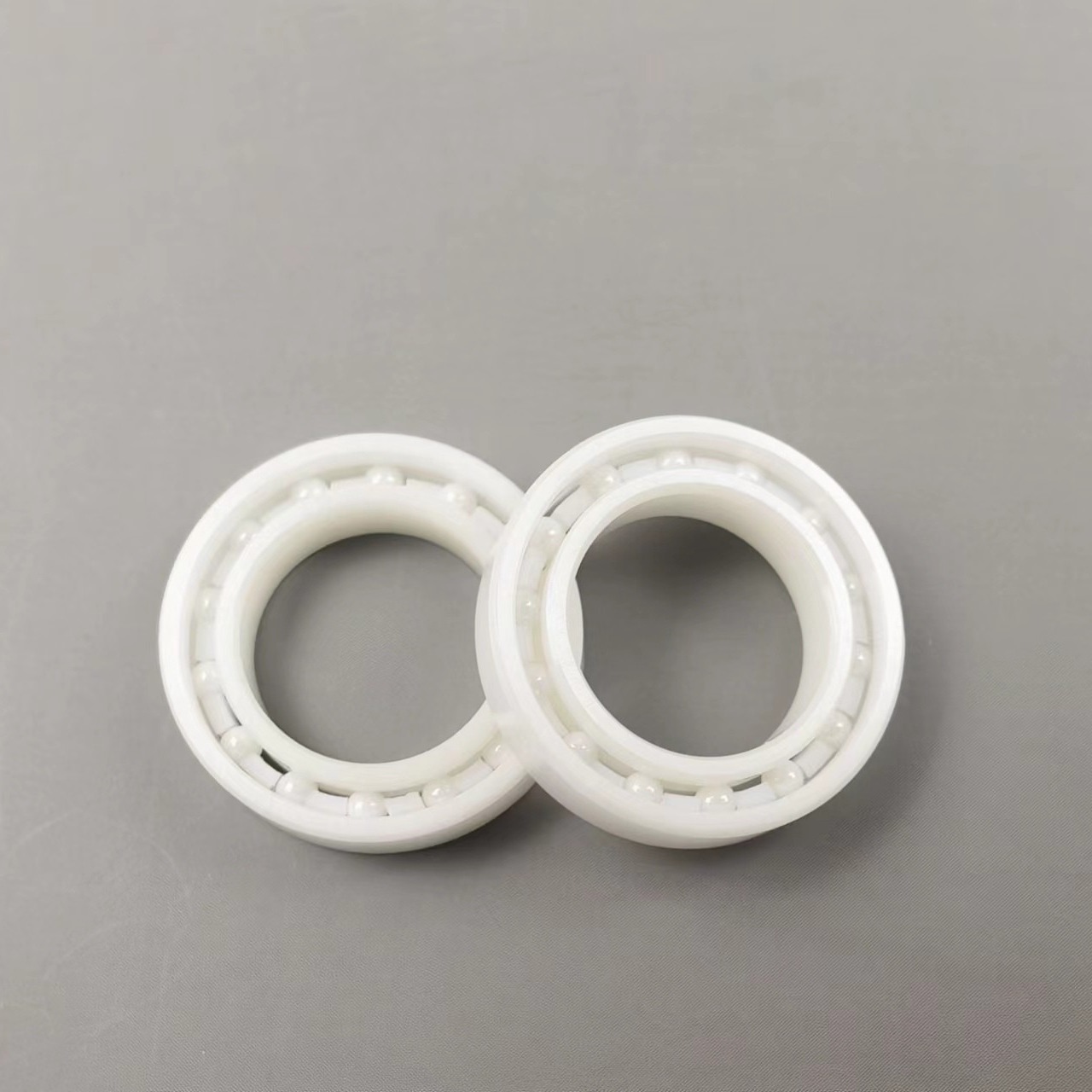

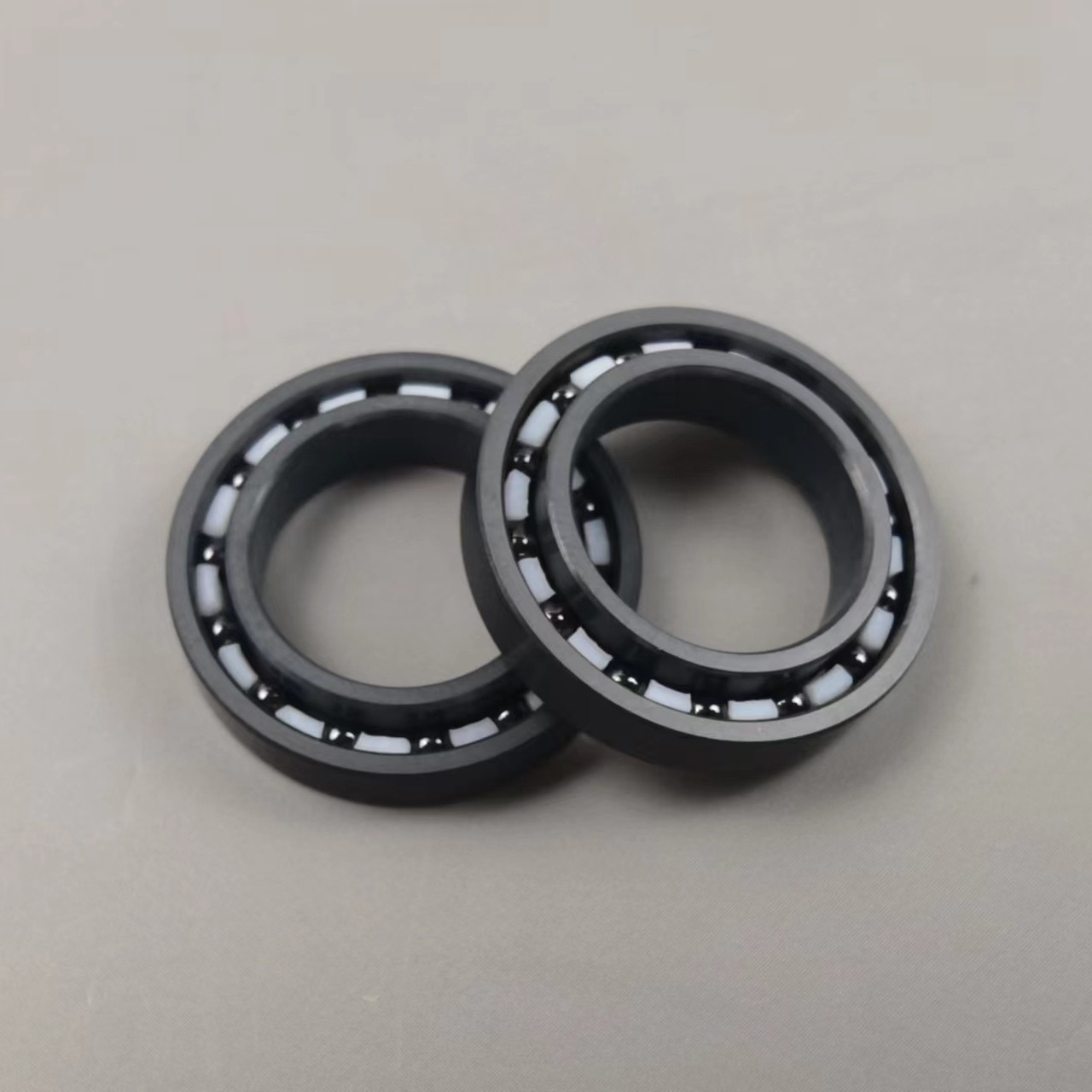

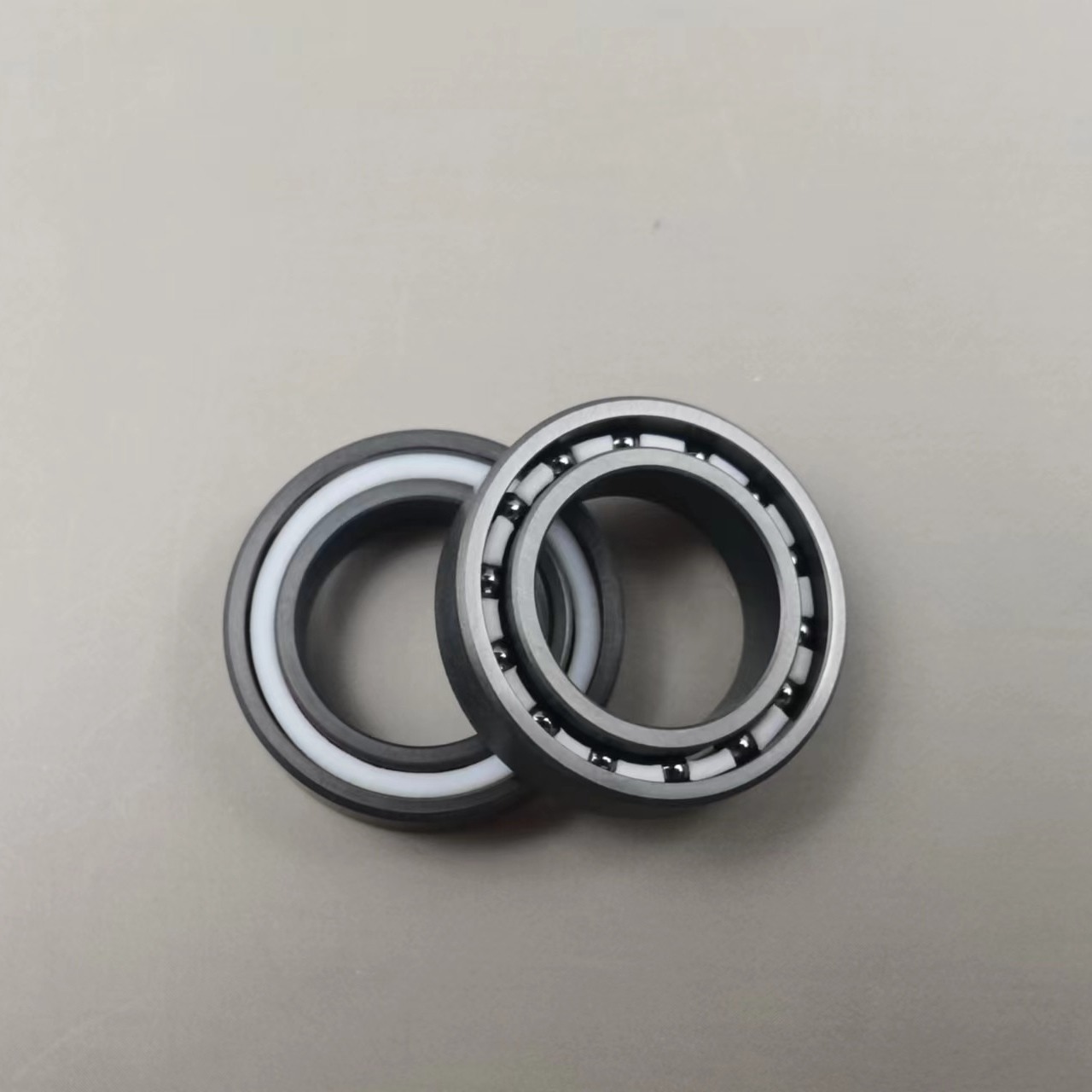

6802 Ssic / Si3n4 / Zro2 Ceramic Ball Bearings High Speed

  • 6802 Ssic / Si3n4 / Zro2 Ceramic Ball Bearings High Speed
  • 6802 Ssic / Si3n4 / Zro2 Ceramic Ball Bearings High Speed
  • 6802 Ssic / Si3n4 / Zro2 Ceramic Ball Bearings High Speed
Place of Origin China
Brand Name CSQ
Model Number 6802(61802CE)
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik bag+foam+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Ball Bearing 6802 Structure Extra Thin Type Ceramic Deep Groove Ball Bearing
Model 6802(61802CE) Material SSiC/Si3N4/ZrO2
Precision P6/ABEC3 To P4/ABEC7 Pacage Plastik Bag+foam+carton Box
MOQ 50 Pieces Delivery Time Negotiable
Highlight

6802 ceramic ball bearings

,

zro2 ceramic ball bearings

,

6802 high speed ceramic bearings
Leave a Message
Product Description



Ceramic Ball Bearing 6802 In Material Of SSiC/Si3N4/ZrO2



Description of Ceramic Bearing 6802:



1. SSiC races and balls are made of highly purified, sub-micron silicon carbide material. We sintered the silicon caibide with pressureless sintering method, so SSiC material have well corrosion resistance, high strengthm high hardness, wear resistance and small friction coefficient, antioxidant, small creep high temperature and good heat stability. So it's the ideal material for the ceramic bearings which are used in special conditions.



2. Si3N4 races and balls are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



3. ZrO2 races and balls are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved



4. The material of cages can be chosen among Peek, , PFA and other material you required.



Material properties of our ceramic material:



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)



Performance advantages of Ceramic Bearing 6802:



With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance.



Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
61802CE 1560 1260 28000 37400
