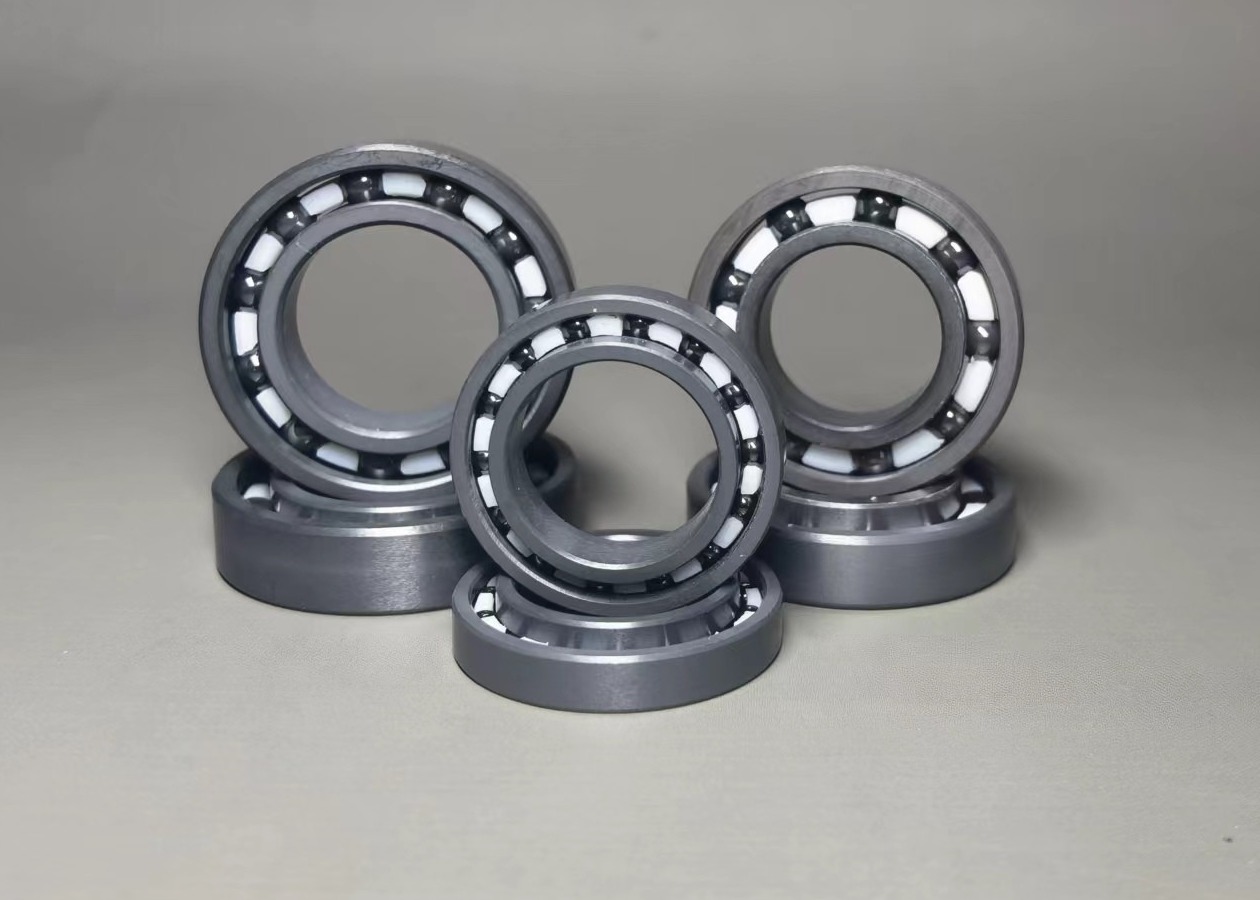

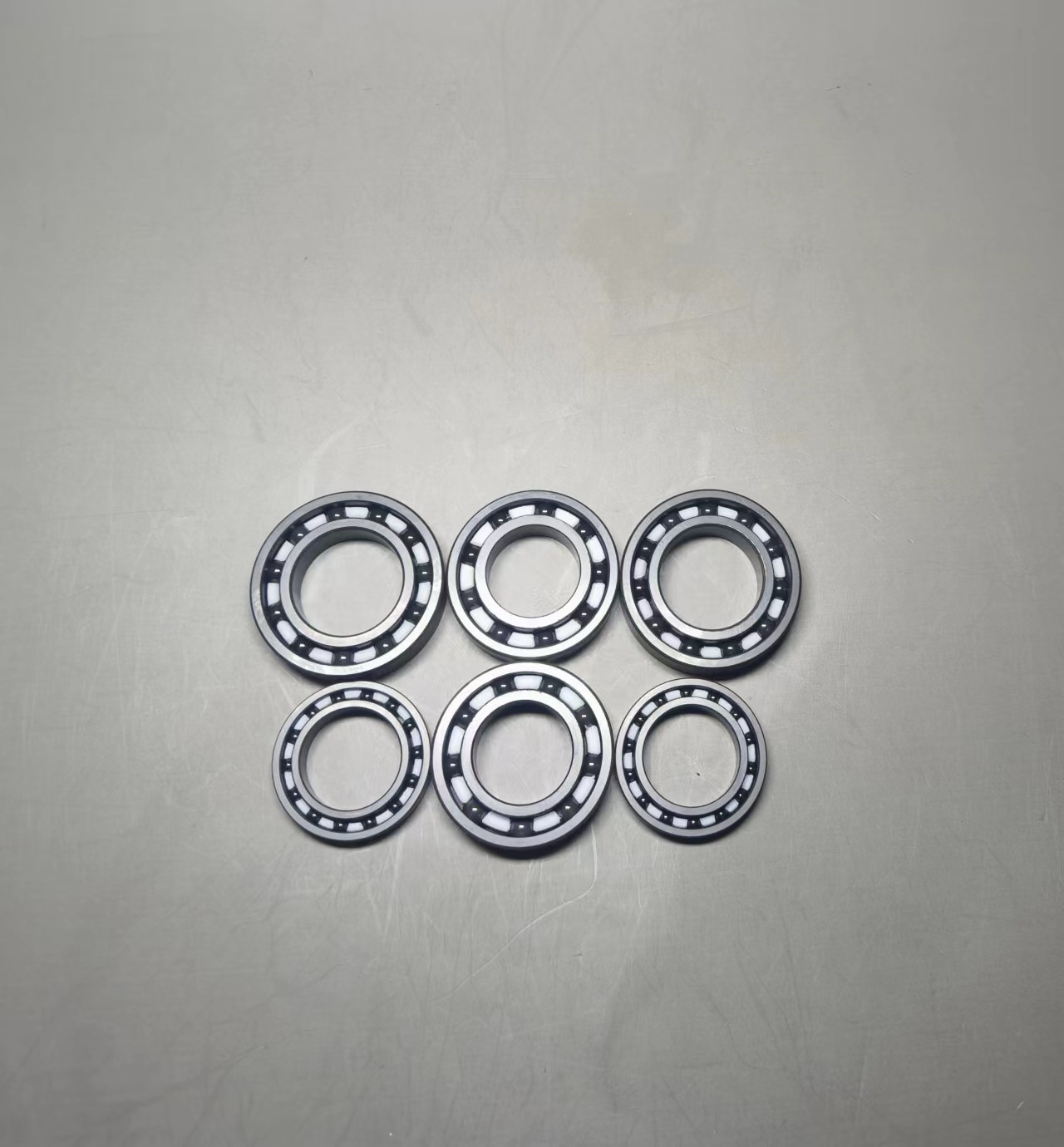

61800 61900 Silicon Nitride Ceramic Bearings Deep Groove ABEC7
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 61800/61900 series |
| Minimum Order Quantity | 50 pcs/ one model |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Extra Thin Type Si3N4 Deep Groove Balls Bearing | Material | HIP Silicon Nitride Races And Balls |
|---|---|---|---|
| Model | 61800/61900 Series | Precision | P6/ABEC3 To P4/ABEC7 |
| Use | High Speed Spindle Bearing | Pacage | Plastik Bag+foam+carton Box |
| MOQ | 50 Pieces/one Model | Delivery Time | 30-40 Work Days |
| Highlight | 61800 bearing CSQ,61900 bearing CSQ,61900 silicon nitride ceramic bearing |
||
Product Description
Extra Thin Type Ceramic Deep Groove Balls Bearing In Material Of Silicon Nitride
Description of Silicon nitride ball bearing:
Si3N4 races and balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed after HIP (Hot Isostatic Pressure) sintering technology. So the porosity, wear resistance, crushing value and fatigue contact life have been greatly improved.
Silicon nitride bearings are suitable for high-speed, alternating load environment, so are usually use as high-speed spindle, electric spindle, CNC machine tool and motorized spindle bearings.
Key properties of HIP-Si3N4 (hot isostatic sintered silicon nitride)
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
Refence data of extra thin type Si3N4 deep groove balls bearing:
| Bearings model |
Form size d (mm) |
Form size D (mm) |
Form size B (mm) |
Load Cr (N) |
Load Cor (N) |
Max.Speed Grease (rpm) |
Max. Speed Oil (rpm) |
| 61800CE | 10 | 19 | 5 | 1590 | 985 | 37000 | 48400 |
| 61900CE | 10 | 22 | 6 | 1868 | 1130 | 33000 | 41800 |
| 61801CE | 12 | 21 | 5 | 1440 | 1040 | 32000 | 42900 |
| 61901CE | 12 | 24 | 6 | 2025 | 1320 | 30000 | 39600 |
| 61802CE | 15 | 24 | 5 | 1560 | 1260 | 28000 | 37400 |
| 61902CE | 15 | 28 | 7 | 3225 | 2250 | 26000 | 34100 |
| 61803CE | 17 | 26 | 5 | 1973 | 1570 | 26000 | 33000 |
| 61903CE | 17 | 30 | 7 | 3450 | 2550 | 24000 | 31900 |
| 61804CE | 20 | 32 | 7 | 3000 | 2640 | 22000 | 28600 |
| 61904CE | 20 | 37 | 9 | 4763 | 3700 | 19000 | 25300 |
| 61805CE | 25 | 37 | 7 | 3225 | 2940 | 18000 | 24200 |
| 61905CE | 25 | 42 | 9 | 5250 | 4500 | 16000 | 22000 |
| 61806CE | 30 | 42 | 7 | 4013 | 3800 | 15000 | 19800 |
| 61906CE | 30 | 47 | 9 | 5438 | 5000 | 14000 | 18700 |
| 61807CE | 35 | 47 | 7 | 3563 | 3800 | 14000 | 17600 |
| 61907CE | 35 | 55 | 10 | 7800 | 7150 | 12000 | 16500 |
| 61808CE | 40 | 52 | 7 | 4463 | 4900 | 12000 | 15400 |
| 61908CE | 40 | 62 | 12 | 10275 | 9950 | 11000 | 14300 |
| 61809CE | 45 | 58 | 7 | 4013 | 4900 | 11000 | 14300 |
| 61909CE | 45 | 68 | 12 | 10575 | 10900 | 10000 | 13200 |
| 61810CE | 50 | 65 | 7 | 4800 | 5800 | 10000 | 13200 |
| 61910CE | 50 | 72 | 12 | 10875 | 11700 | 9500 | 12100 |
| 61811CE | 55 | 72 | 9 | 6600 | 8100 | 8700 | 11000 |
| 61911CE | 55 | 80 | 13 | 12000 | 13200 | 8200 | 10560 |
| 61812CE | 60 | 78 | 10 | 8625 | 10600 | 8000 | 10450 |
| 61912CE | 60 | 85 | 13 | 11400 | 13500 | 7600 | 9900 |
| 61813CE | 65 | 85 | 10 | 8925 | 11500 | 7500 | 9570 |
| 61913CE | 65 | 90 | 13 | 13050 | 16000 | 7100 | 9350 |
| 61814CE | 70 | 90 | 10 | 9075 | 11900 | 7000 | 8910 |
| 61914CE | 70 | 100 | 16 | 17775 | 21100 | 6500 | 8470 |
| 61815CE | 75 | 95 | 10 | 9375 | 12800 | 6500 | 8360 |
| 61915CE | 75 | 105 | 16 | 15600 | 19700 | 6200 | 7920 |
| 61816CE | 80 | 100 | 10 | 9525 | 13300 | 6000 | 7810 |
| 61916CE | 80 | 110 | 16 | 20700 | 25300 | 5700 | 7370 |
| 61817CE | 85 | 110 | 13 | 14025 | 19000 | 5700 | 7370 |
| 61917CE | 85 | 120 | 18 | 24000 | 29600 | 5400 | 6930 |
| 61818CE | 90 | 115 | 13 | 14250 | 19700 | 5400 | 6930 |
| 61918CE | 90 | 125 | 18 | 24750 | 31500 | 5100 | 6600 |
| 61819CE | 95 | 120 | 13 | 14475 | 20500 | 5000 | 6600 |
| 61919CE | 95 | 130 | 18 | 25125 | 33500 | 4800 | 6270 |
| 61820CE | 100 | 125 | 13 | 14700 | 21200 | 4800 | 6160 |
| 61920CE | 100 | 140 | 20 | 31875 | 36500 | 4500 | 5830 |
| 61821CE | 105 | 130 | 13 | 14925 | 21900 | 4800 | 6160 |
| 61921CE | 105 | 145 | 20 | 31875 | 42000 | 4300 | 5830 |
| 61822CE | 110 | 140 | 16 | 20475 | 29400 | 4300 | 5830 |
| 61922CE | 110 | 150 | 20 | 28500 | 38500 | 4300 | 5500 |
| 61824CE | 120 | 150 | 16 | 21225 | 31500 | 4000 | 5280 |
