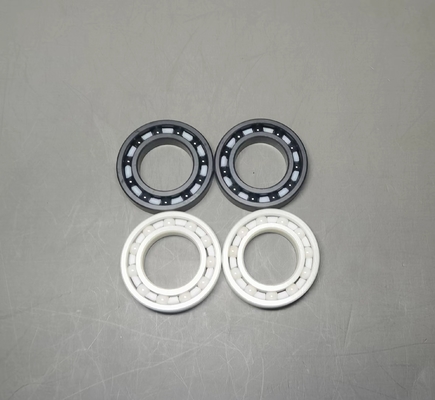

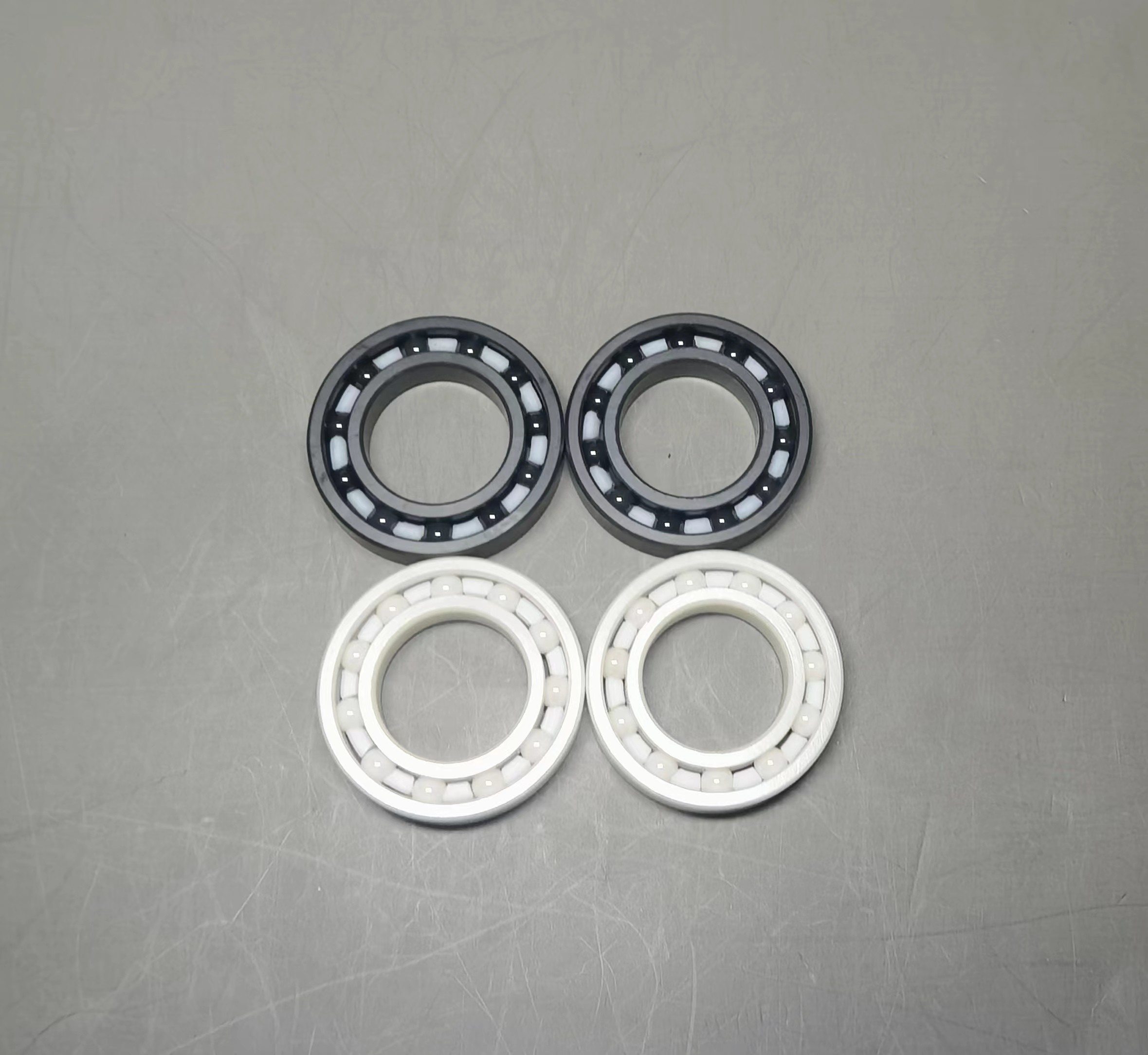

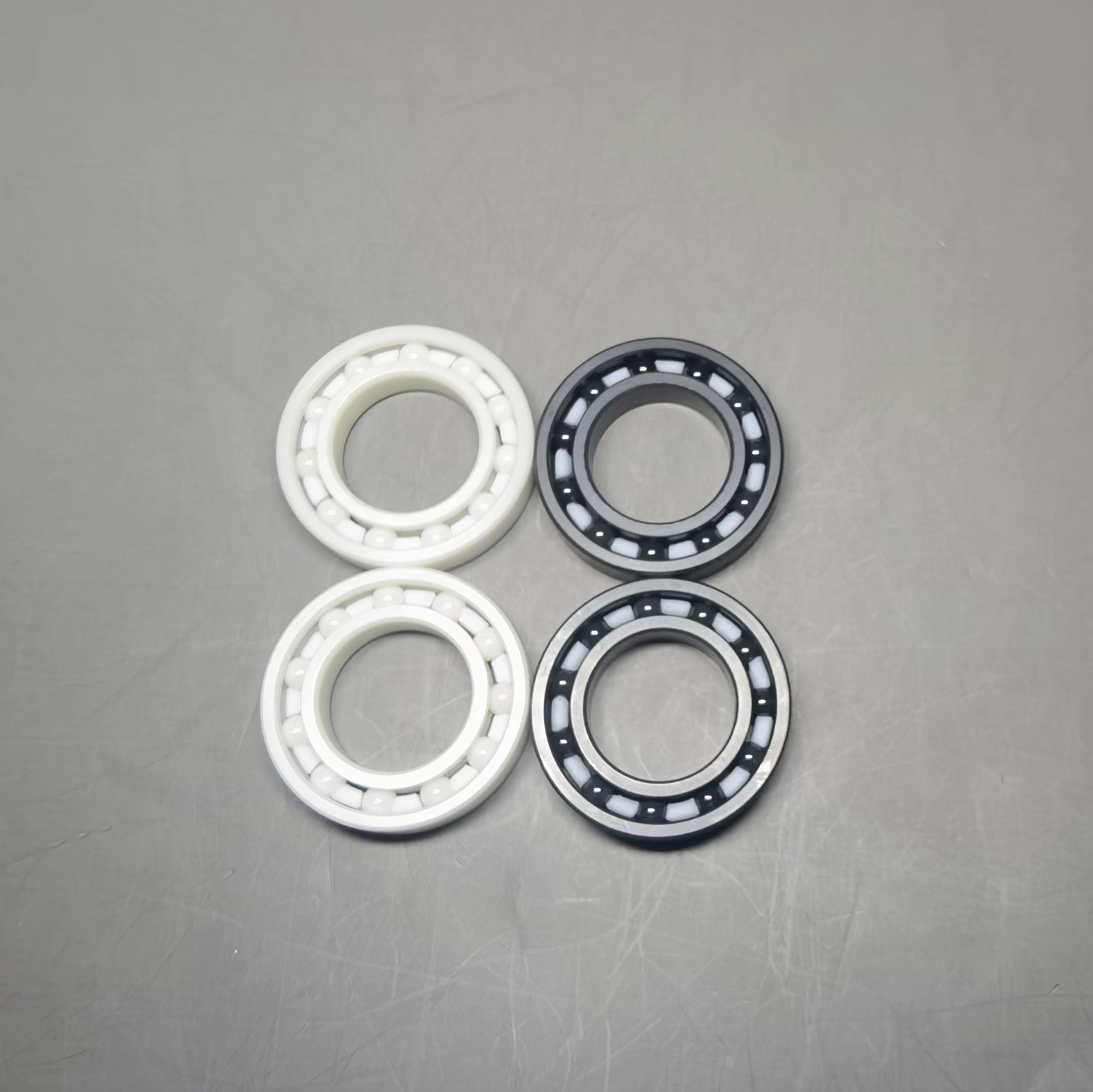

3/32" 3/16" 1/4" Hybrid Ceramic Ball Bearings Design Diy 6903

  • 3/32" 3/16" 1/4" Hybrid Ceramic Ball Bearings Design Diy 6903
  • 3/32" 3/16" 1/4" Hybrid Ceramic Ball Bearings Design Diy 6903
Place of Origin China
Brand Name CSQ
Model Number 6903(61903CE)
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name All Ceramic Ball Bearing 6000 Structure Extra Thin Type Ceramic Deep Groove Balls Bearings
Model 6903(61903CE) Material ZrO2 Or Si3N4 Or SSiC
Precision P6/ABEC3 Or Other Precision You Need Diamater 17×30×7mm
MOQ 50 Pieces Pacage Plastik Box+carton Box
Highlight

1/4 ceramic ball bearings

,

3/16 ceramic ball bearings

,

3/32 ceramic ball bearings
Leave a Message
Product Description



6903 All Ceramic Ball Bearings In Material Of ZrO2 or Si3N4 or SSiC



Description of 6903 All Ceramic Ball Bearing:



1. HIP-ZrO2 races and balls are made by highly purified, sub-micron powder material and are processed by  HIP (Hot Isostatic Pressure) sintering technology, which can decline the porosity of blanks.



2. HIP-Si3N4 races and balls are made of highly purified, submicron silicon nitride powder and are processed  HIP (Hot Isostatic Pressure) sintering technology too. which can decline the porosity of blanks.Silicon nitride bearings have high hardness, are wear-resistant, resistant to a variety of strong acid, strong alkali, salt corrosion (in addition to hydrofluoric acid, nitric acid), non-magnetic, non-conductive, high insulation.



3. SSiC races and balls are made of highly purified, sub-micron silicon carbide material, silicon carbide can resist corrosion by hydrofluoric acid,  .Silicon carbide bearings have a density and coefficient of linear expansion close to that of silicon nitride ceramic materials.



4. Cage and seals: The material of cage can be chosen among PEEK,, Nylon and PFA, the material of seals can be chosen among PEEK, , Rubbers and stainless steel.



Material properties data sheet of our ceramic material:



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)
