SSiC Ceramic ball bearings 6003 6001 6010 ZrO2 Si3N4 SSiC

  • SSiC Ceramic ball bearings 6003 6001 6010 ZrO2 Si3N4 SSiC
  • SSiC Ceramic ball bearings 6003 6001 6010 ZrO2 Si3N4 SSiC
Place of Origin China
Brand Name CSQ
Model Number 6001
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name All Ceramic Ball Bearing 6000 Material ZrO2 Or Si3N4 Or SSiC
Precision P6/ABEC3 Or Other Precision You Need Diamater 12×28×8mm With 8 Pieces 4.763mm Balls
MOQ 50 Pieces Pacage Plastik Box+carton Box
Highlight

SSiC Ceramic Ball Bearings

,

Ceramic Ball Bearings 6003

,

Ceramic Ball Bearings 6001
Leave a Message
Product Description

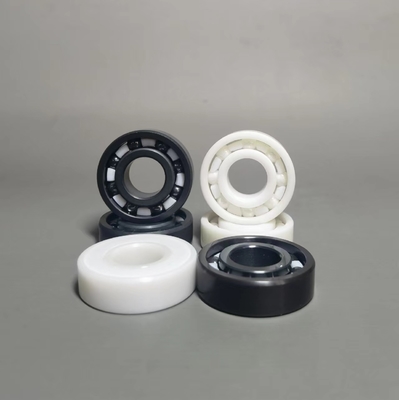

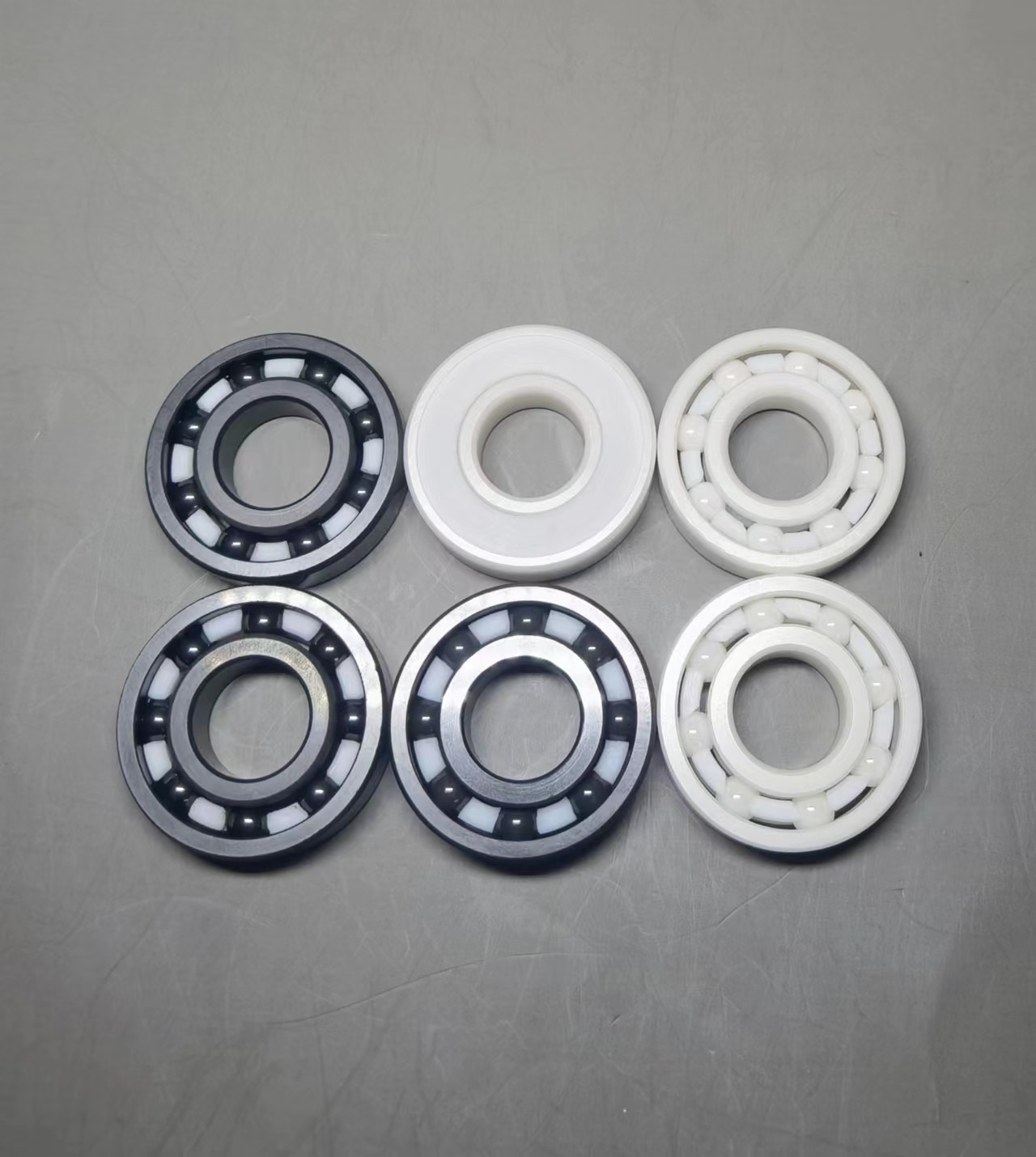

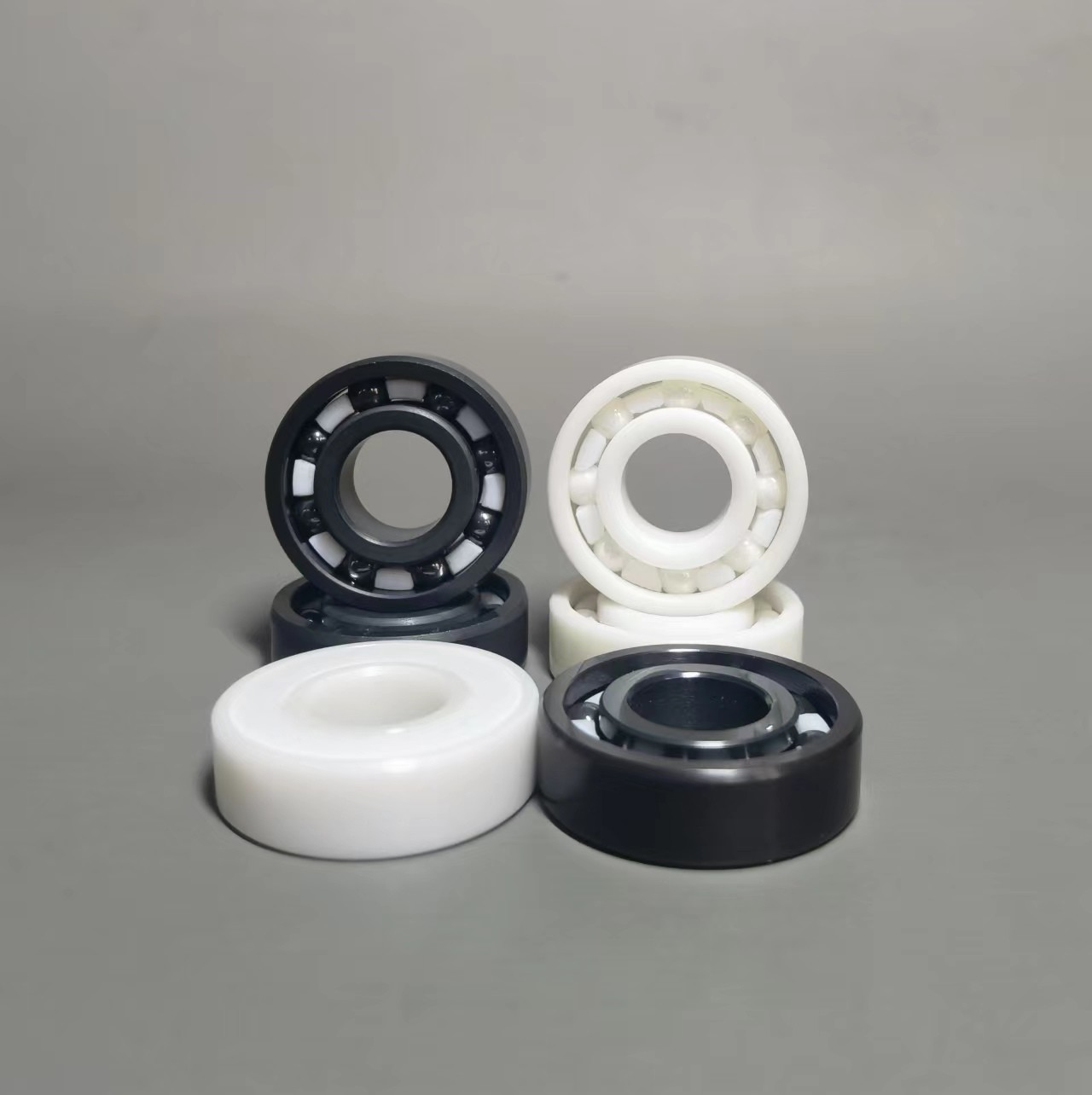

6001 All Ceramic Ball Bearings In Material Of ZrO2 or Si3N4 or SSiC



Description of 6001 All Ceramic Ball Bearing:



1. HIP-ZrO2 races and balls are made by highly purified, sub-micron powder material and are processed by  HIP (Hot Isostatic Pressure) sintering technology, which can highly improve the properties of material and decline the porosity of blanks. Zirconia bearing has a density and linear expansion coefficient close to that of metal steel shafts, high hardness and high wear resistance.



2. HIP-Si3N4 races and balls are made of highly purified, submicron silicon nitride powder and are processed  HIP (Hot Isostatic Pressure) sintering technology too. which can highly improve the properties of material and decline the porosity of blanks.Silicon nitride bearings have high hardness, are wear-resistant, resistant to a variety of strong acid, strong alkali, salt corrosion (in addition to hydrofluoric acid, nitric acid), non-magnetic, non-conductive, high insulation.



3. SSiC races and balls are made of highly purified, sub-micron silicon carbide material, silicon carbide can resist corrosion by hydrofluoric acid,  is the most excellent ceramic material with the best corrosion resistance among the known materials.Silicon carbide bearings have a density and coefficient of linear expansion close to that of silicon nitride ceramic materials.



4. Cage and seals: The material of cage can be chosen among PEEK, and Nylon, the material of seals can be chosen among PEEK, , Rubbers and stainless steel. PEEK and material has similar corrosion resistance to ceramic materials, and has a good resistance to many kinds of acid and alkali corrosion.



Material properties data sheet of our ceramic material:



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)



Why choose us:



Zhongxing Shiqiang Technology (Tianjin) Co., Ltd is branch company of Beijing Zhongxing Shiqiang Ceramic Bearing Co., Ltd., we have professional design and material advantages and mature production ability of ceramic rolling bearings. Welcome your inquiry.
