Silicon Nitride Ceramic Ball Bearings 6002 6003 6004 6005 6006
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6000 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | All Ceramic Ball Bearing 6000 | Material | ZrO2 Or Si3N4 Or SSiC |
|---|---|---|---|
| Precision | P6/ABEC3 | Diamater | 10×26×8mm With 7 Pieces 4.763mm Balls |
| MOQ | 50 Pieces | Pacage | Plastik Box+carton Box |
| Highlight | ball bearing 6003,ball bearing 6004,ball bearing 6005 |
||
Product Description

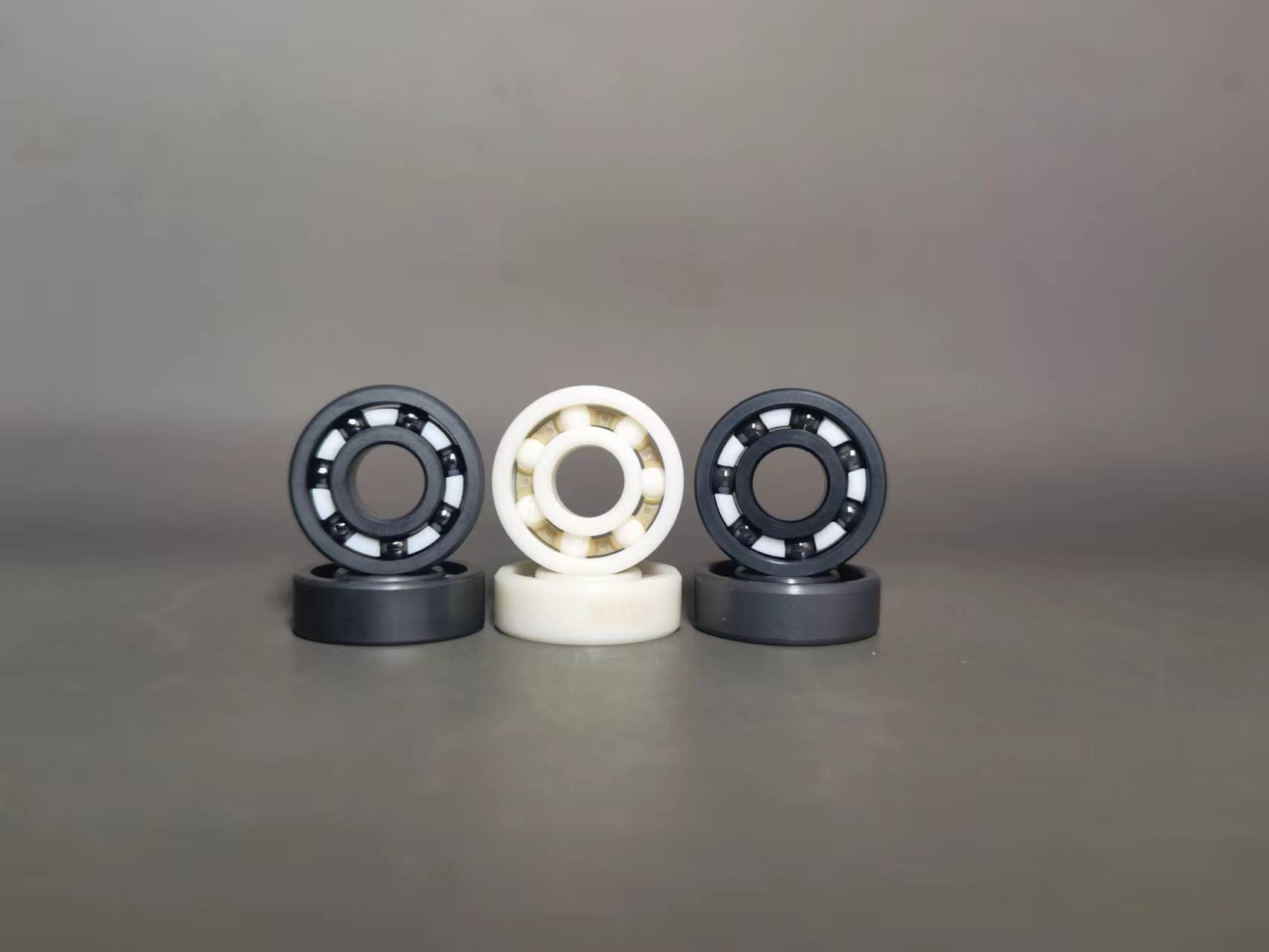

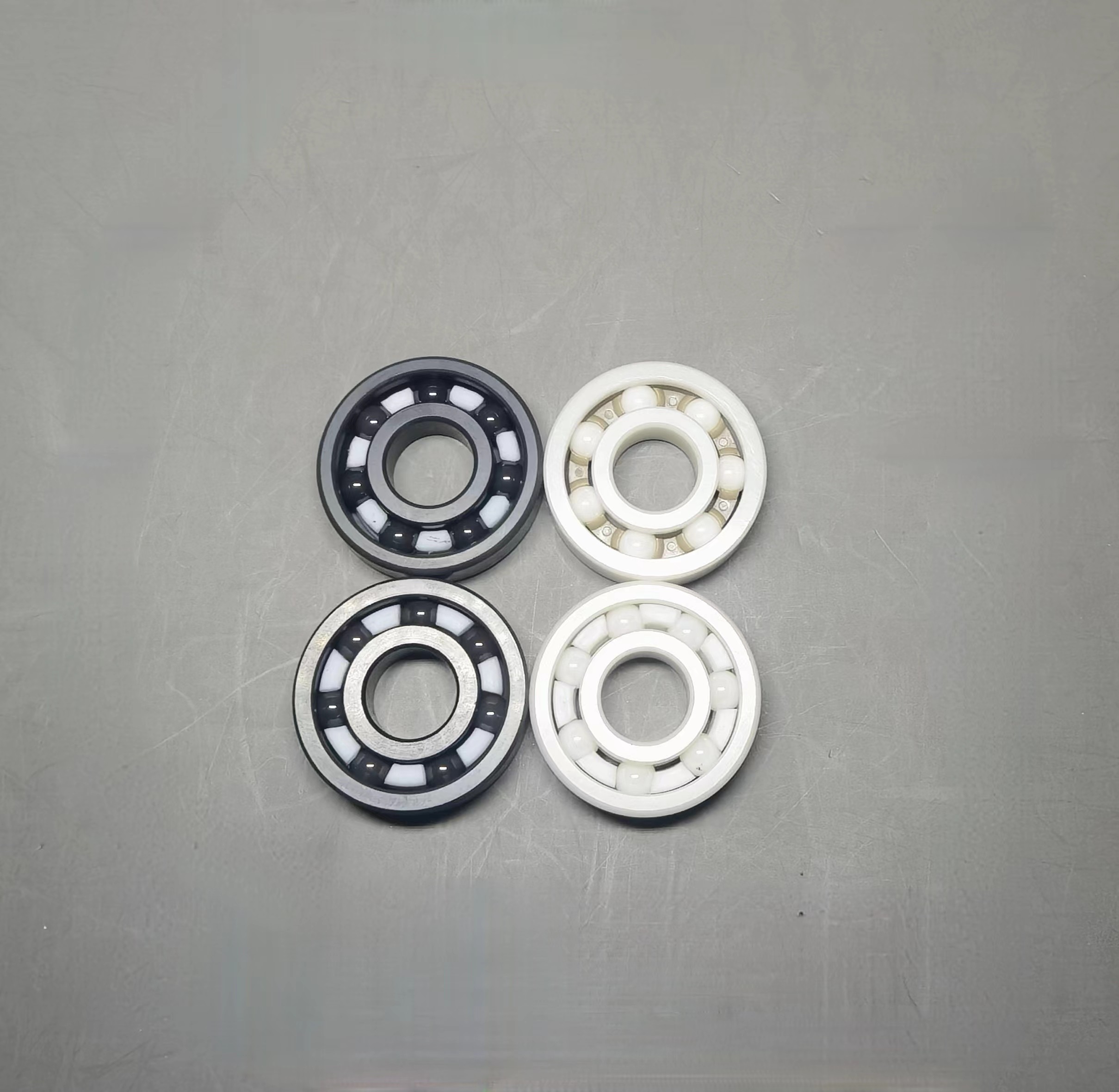

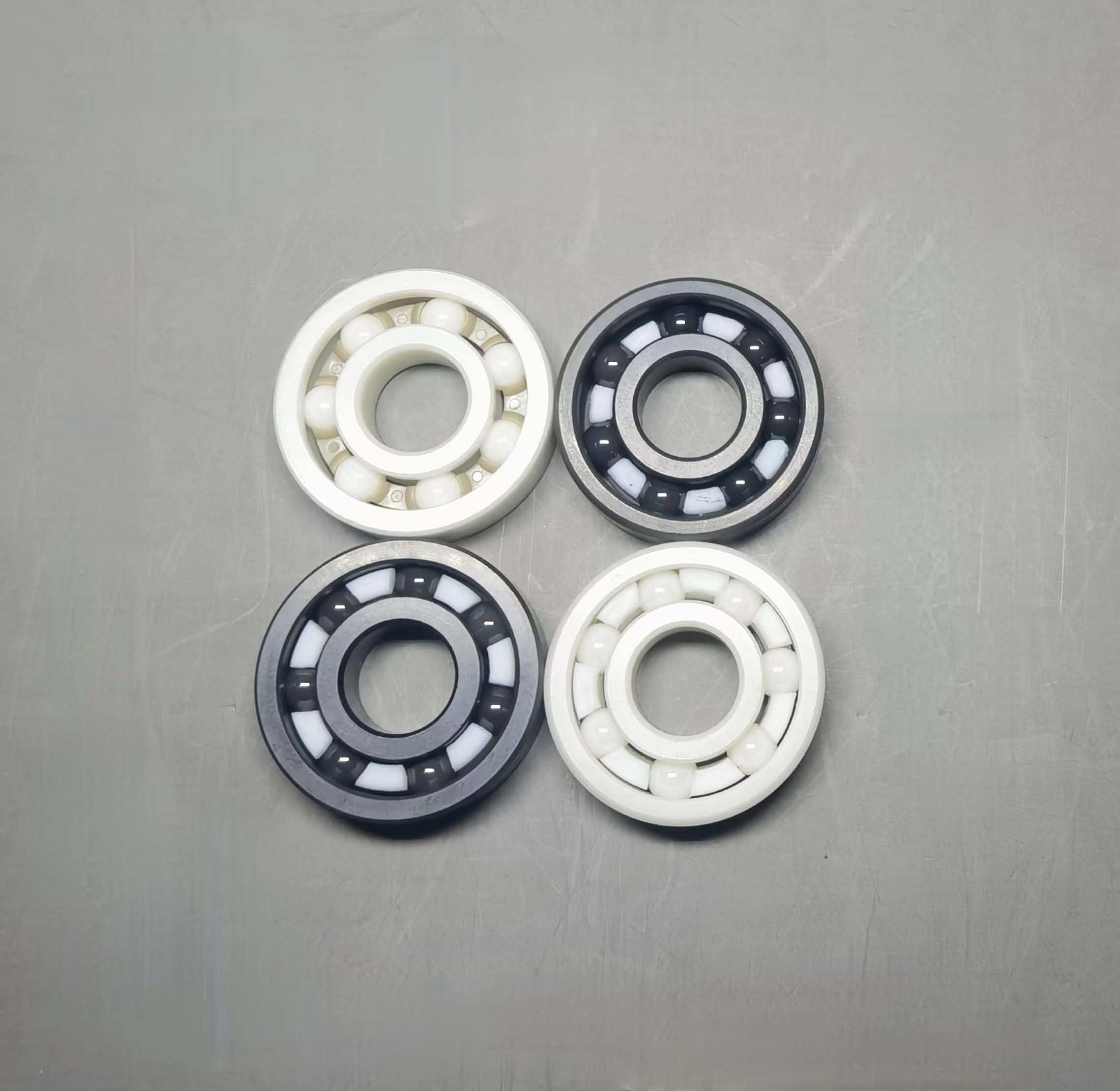

6000 All Ceramic Ball Bearings In Material Of ZrO2 or Si3N4 or SSiC
Description of All Ceramic Ball Bearing:
1. HIP-ZrO2 races and balls are made by highly purified, sub-micron powder material and are processed by HIP (Hot Isostatic Pressure) sintering technology, their properties are highly improved than common zirconia material.
2. HIP-Si3N4 races and balls are made of highly purified, submicron silicon nitride powder and are processed HIP (Hot Isostatic Pressure) sintering technology too. so their properties are highly improved after HIP process.
3. SSiC races and balls are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.
4. Cage and seals: The material of cage can be chosen among PEEK, and Nylon, the material of seals can be chosen among PEEK, , Rubbers and stainless steel. PEEK and material has similar corrosion resistance to ceramic materials, and has a good resistance to many kinds of acid and alkali corrosion.
Material properties data sheet of our ceramic material:
| Material Properties | Units | SSiC | HIP-Si3N4 | GPS-Si3N4 | HIP-ZrO2 |
| Density | g/cm3 | 3.15-3.18 | 3.27-3.29 | 3.22-3.27 | 6.05-6.09 |
| Porosity | % | 0 | 0 | 0 | 0 |
| Fledural Strength | MPa | 550 | 830 | 689 | 900 |
| Elastic Modulus | GPa | 410 | 310 | 310 | 200 |
| Hardness | HV5 | 2800 | 1580 | 1450 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 4.6 | 6.1 | 5.7 | 8-11 |
| Maximum Use Temperature | ℃ (℉) |
1650 (3000) |
1000 (1830) |
1000 (1830) |
380 (716) |
Why Chose Us ?
1.Excellent and high quality control,high speed,low noise,long life
2.Prompt delivery
3.Competitive price
4.Small order accepted
5.Customize,Customers' drawing or samples accepted
6.OEM service
7.Professional:19 years manufacture bearing
