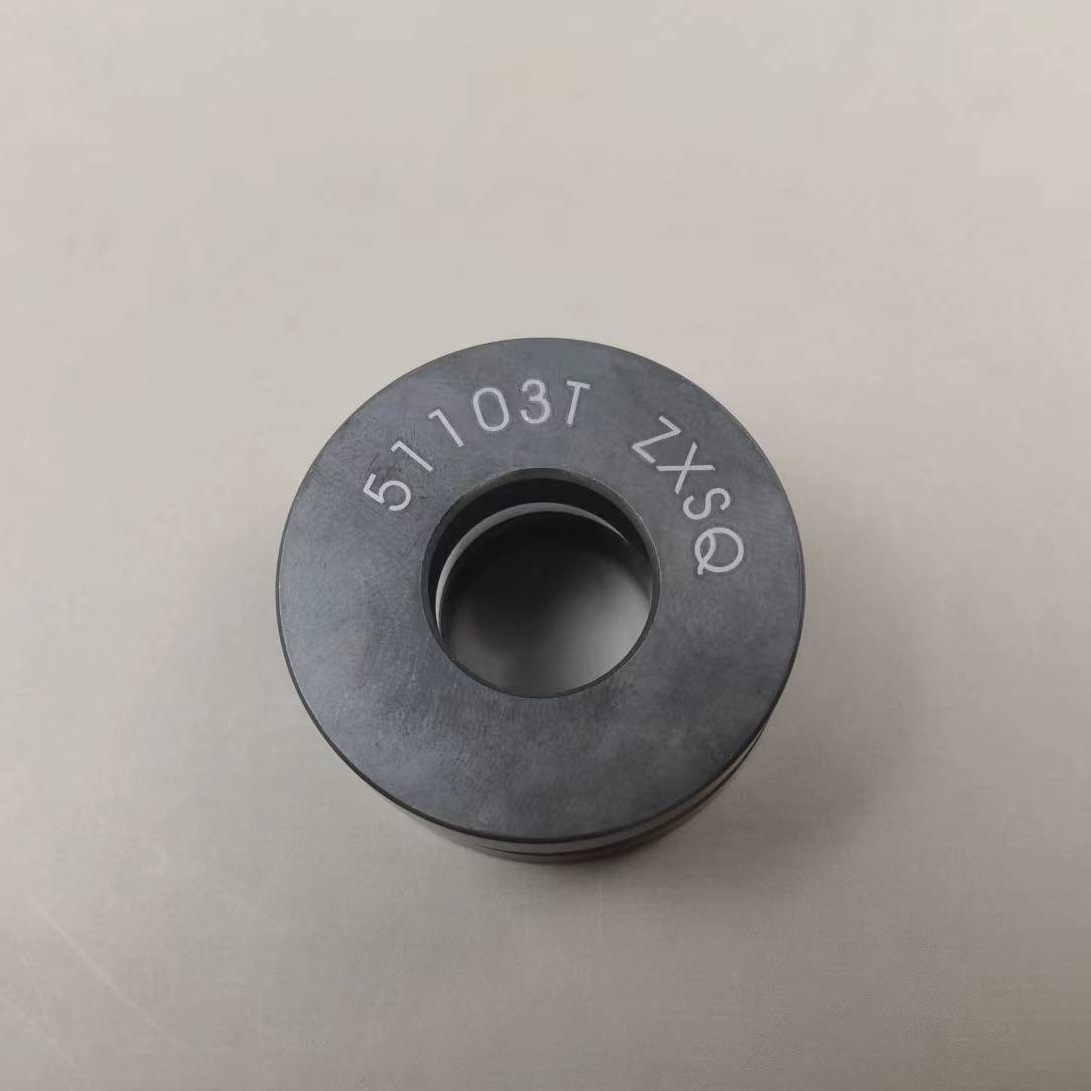

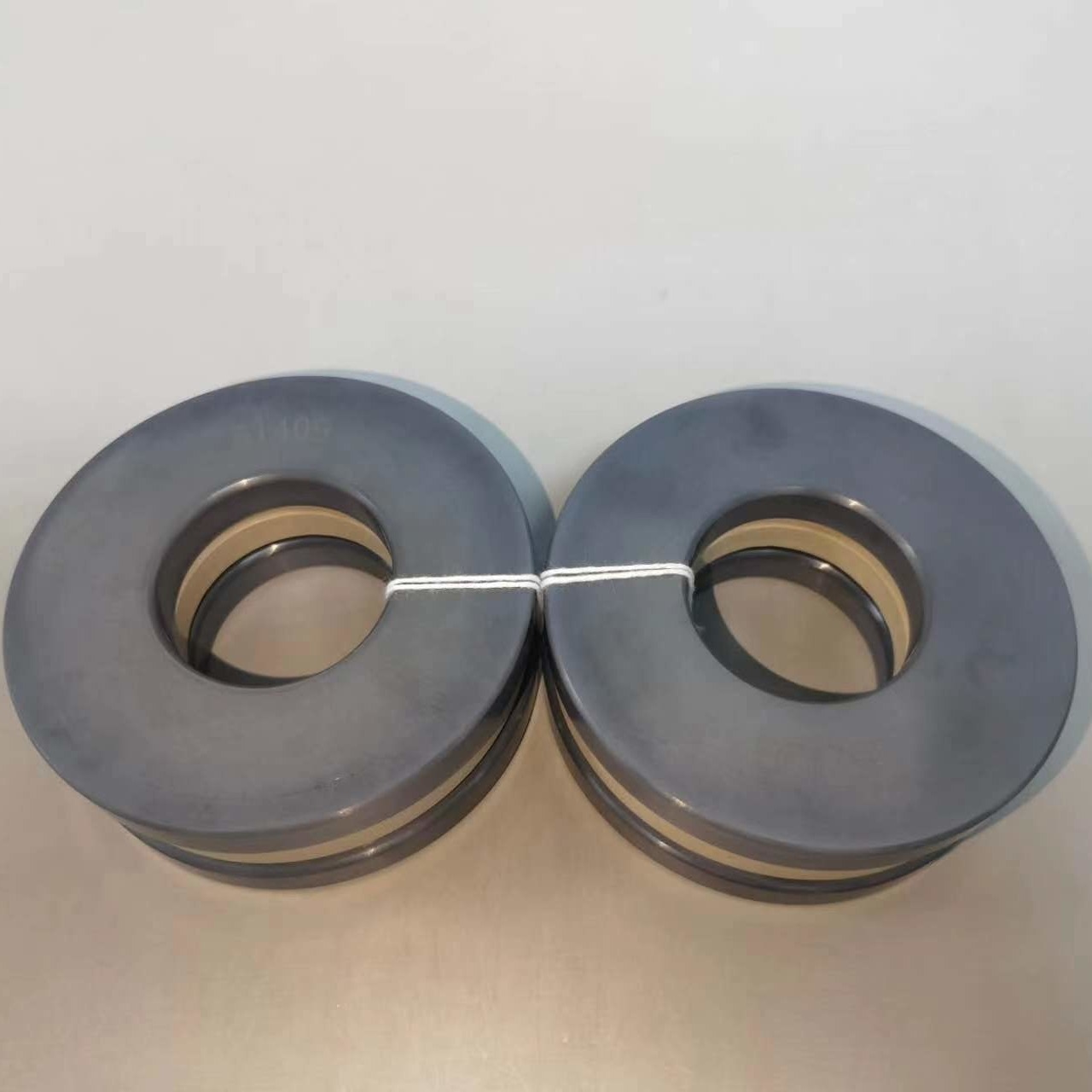

SSiC Silicon Carbide Ball Bearings Thrust Ball Bearing 51100 51200 Series
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 51100 or 51200 series |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+cartom box |
| Delivery Time | 30 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SSiC Ceramic Thrust Bearings | Category | Ceramic Single Direction Thrust Ball Bearing |
|---|---|---|---|
| Races And Balls | SSiC (Silicon Carbide) | Model | 51100 Or 51200 Series |
| Application | Machinery | Pacage | Foam+cartom Box |
| Highlight | CSQ Silicon Carbide Ball Bearings 51200,CSQ 51200 thrust bearing,CSQ thrust ball bearing 51100 |
||
Product Description
SSiC Ceramic Thrust Bearings Of 51100/51200 Series
Description of SSiC Ceramic Thrust Bearing:
1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering method, so the free silicon and free carbon in the products are close to the theoretical values.SSiC all ceramic bearings are preferred structure for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc., and are the most widely used ceramic bearings.
2. The material of cage can be chosen among Peek, and brass. Peek and material both have excellent corrosion resistance and high temp resistance, can work for a long time in many kinds of acid and alkali enviroments.
Performance advantages of SSiC Ceramic Thrust Bearing:
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
