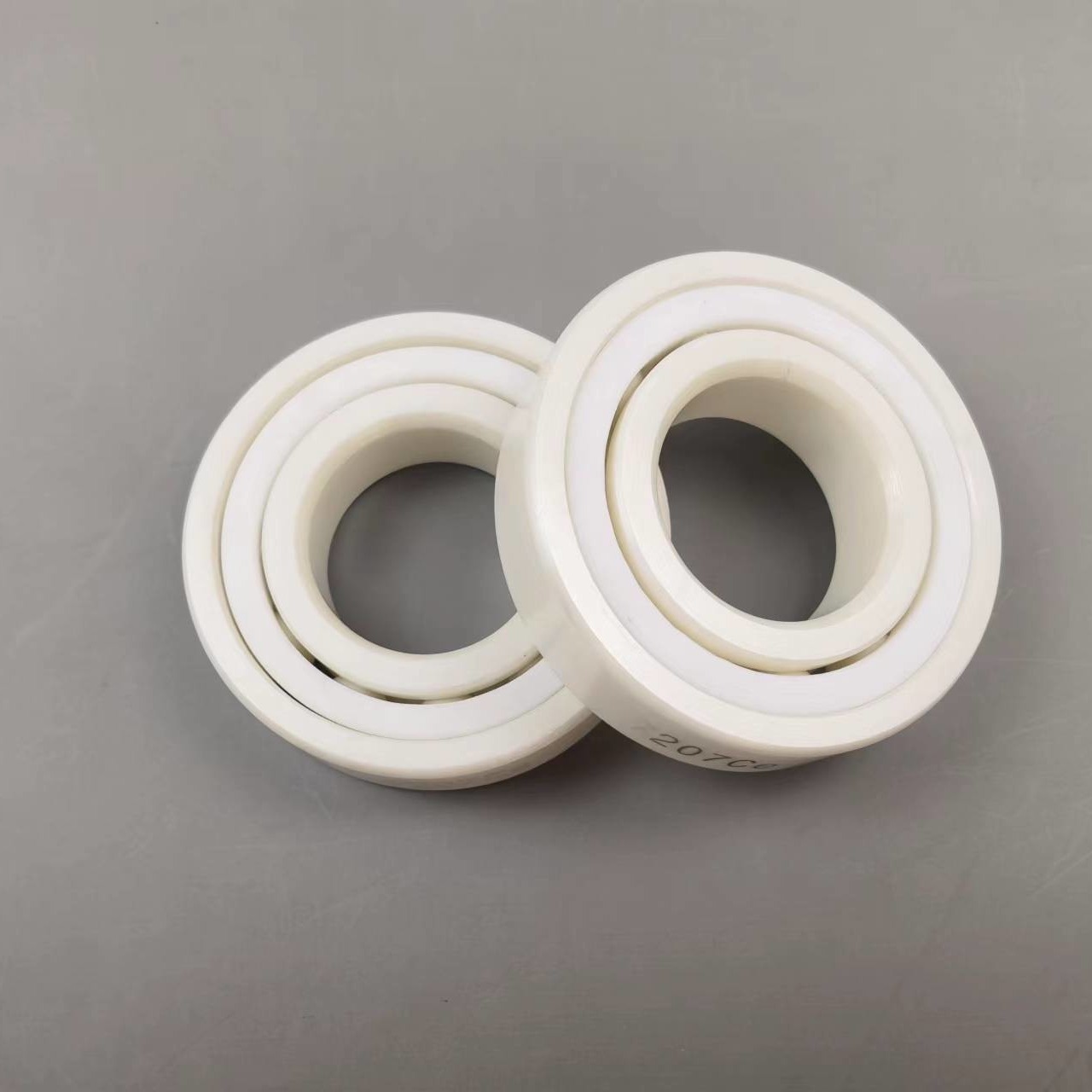

Angular Contact Ceramic Ball Bearings Double Row 5200 5201 5202 5203
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 5200 series |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ZrO2/Si3N4/SSiC Double-Row Angular Contact Ball Bearings | Model | 5200 Series: 5200CE-5216CE |
|---|---|---|---|
| Race And Ball | ZrO2/Si3N4/SSiC | Cage Material | Peek//PFA Or Other Material You Inquired |
| Precision | P6/ABEC3 To P4/ABEC7 | Pacage | Plastik Box+carton Box |
| Highlight | Angular Contact Ceramic Ball Bearings,Ceramic Ball Bearings Double Row,5202 ceramic bearing |
||
Product Description
ZrO2/Si3N4/SSiC Double-Row Angular Contact Ball Bearings of 5200 series
Description of Ceramic Double-row Angular Contact Ball Bearings:
Because of the outstanding properties of ceramic materials, ceramic bearings have many kinds of performance advantages, such like anti strong acid, strong alkali,salt and other corrosive media erosion, high temperature resistance, wear resistance, light structure, high speed limit, low noise, electricity insulation, the dimension keep stable under high temperature, smaller startup torque, keep working under bad lubricant condition, having longer using lifespan.
| Material Properties | Units | SSiC | HIP-Si3N4 | GPS-Si3N4 | HIP-ZrO2 |
| Density | g/cm3 | 3.15-3.18 | 3.27-3.29 | 3.22-3.27 | 6.05-6.09 |
| Porosity | % | 0 | 0 | 0 | 0 |
| Fledural Strength | MPa | 550 | 830 | 689 | 900 |
| Elastic Modulus | GPa | 410 | 310 | 310 | 200 |
| Hardness | HV5 | 2800 | 1580 | 1450 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 4.6 | 6.1 | 5.7 | 8-11 |
| Maximum Use Temperature | ℃ (℉) |
1650 (3000) |
1000 (1830) |
1000 (1830) |
380 (716) |
Reference data of Ceramic Double-row Angular Contact Ball Bearings:
| Bearings model | Form size d (mm) |
Form size D (mm) |
Form size B (mm) |
Load Cr (N) |
Load Cor (N) |
Max.Speed Grease (rpm) |
Max. Speed Oil (rpm) |
| 5200CE | 10 | 30 | 14.3 | 5840 | 3400 | 18000 | 24000 |
| 5201CE | 12 | 32 | 15.9 | 8560 | 5057 | 16000 | 22000 |
| 5202CE | 15 | 35 | 15.9 | 9520 | 6120 | 14000 | 19000 |
| 5203CE | 17 | 40 | 17.5 | 12000 | 7862 | 12000 | 17000 |
| 5204CE | 20 | 47 | 20.6 | 16000 | 10795 | 10000 | 14000 |
| 5205CE | 25 | 52 | 20.6 | 17440 | 12835 | 9500 | 13000 |
| 5206CE | 30 | 62 | 23.8 | 24400 | 18445 | 8000 | 11000 |
| 5207CE | 35 | 72 | 27 | 32000 | 25075 | 7000 | 9500 |
| 5208CE | 40 | 80 | 30.2 | 36400 | 28900 | 6000 | 8000 |
| 5209CE | 45 | 85 | 30.2 | 40800 | 33150 | 5500 | 7500 |
| 5210CE | 50 | 90 | 30.2 | 43600 | 37825 | 5000 | 6700 |
| 5211CE | 55 | 100 | 33.3 | 54000 | 48025 | 4500 | 6300 |
| 5212CE | 60 | 110 | 36.5 | 60800 | 52700 | 4300 | 5600 |
| 5213CE | 65 | 120 | 38.1 | 71200 | 65450 | 3900 | 5300 |
| 5214CE | 70 | 125 | 39.7 | 77200 | 71825 | 3800 | 5000 |
| 5215CE | 75 | 130 | 41.3 | 76800 | 72675 | 3400 | 4700 |
| 5216CE | 80 | 140 | 44.4 | 83200 | 79900 | 3500 | 4600 |
