Silicon Nitride Ceramic Ball Bearings Miniature Deep Groove 627 626

  • Silicon Nitride Ceramic Ball Bearings Miniature Deep Groove 627 626
  • Silicon Nitride Ceramic Ball Bearings Miniature Deep Groove 627 626
Place of Origin China
Brand Name CSQ
Model Number 630 series: 634-639
Minimum Order Quantity 60 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Si3N4/ZrO2/SSiC Miniature Deep Groove Balls Bearings Model 630 Series: 634-639
Race And Balls In Material Of Si3N4 Or ZrO2 Or SSiC Precision P6/ABEC3 To P4/ABEC7
Pacage Plastik Box+carton Box MOQ 50 Pieces
Highlight

silicon nitride ceramic bearings

,

626 ceramic bearings

,

627 ceramic bearings
Leave a Message
Product Description



Si3N4/ZrO2/SSiC Miniature Deep Groove Balls Bearings Of 630 Series Model



Why choose us:



At present, our company has abilities to produce fast all models of ceramic miniature ceramic bearings in material of  silicon nitride, zirconium oxide or silicon carbide. Ceramic Bearing are anti strong acid, strong alkali,salt and other corrosive media erosion, high temperature resistance, wear resistance, light structure, high speed limit, low noise, electricity insulation, the dimension keep stable under high temperature, smaller startup torque, keep working under bad lubricant condition, having longer using lifespan, and common metal incomparable advantages. Our company has our own material recipe and abundant production experiences, welcome your inquiry.



Material properties of our ceramic material:



All th data is based on our own experiments.



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)



Reference data of 630 series Miniature Ceramic Deep Groove Balls Bearings:



Bearings model Form size
d (mm)		 Form size
D (mm)		 Form size
B (mm)		 Load
Cr (N)		 Load
Cor (N)		 Max.Speed
Grease (rpm)		 Max. Speed
Oil (rpm)
634CE 4 16 5 1179 523 36000 43000
635CE 5 19 6 2056 896 32000 40000
636CE 6 22 7 2930 1423 30000 36000
637CE 7 26 9 4015 1983 28000 34000
638CE 8 28 9 4015 1983 28000 34000
639CE 9 30 10 4100 2080 24000 30000

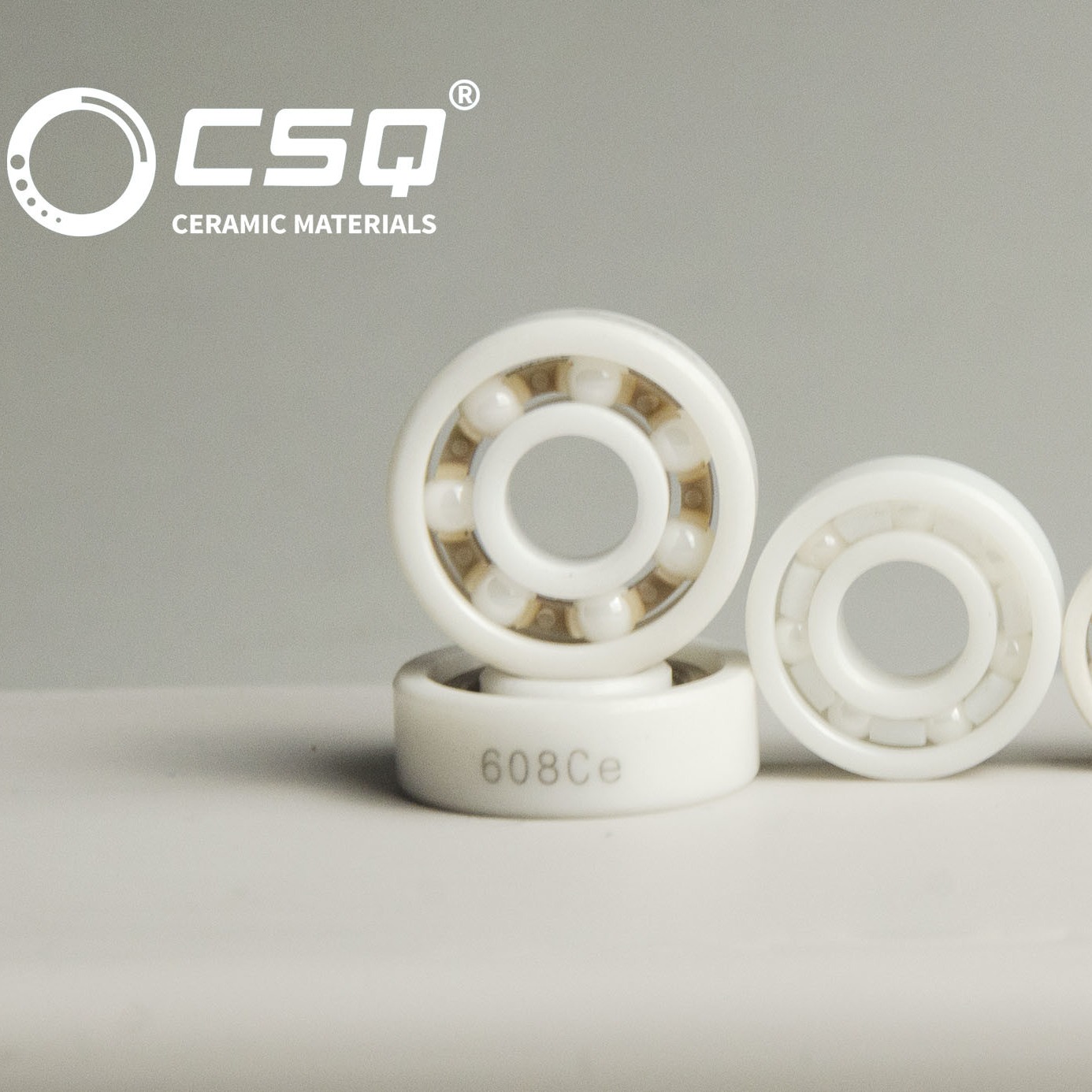

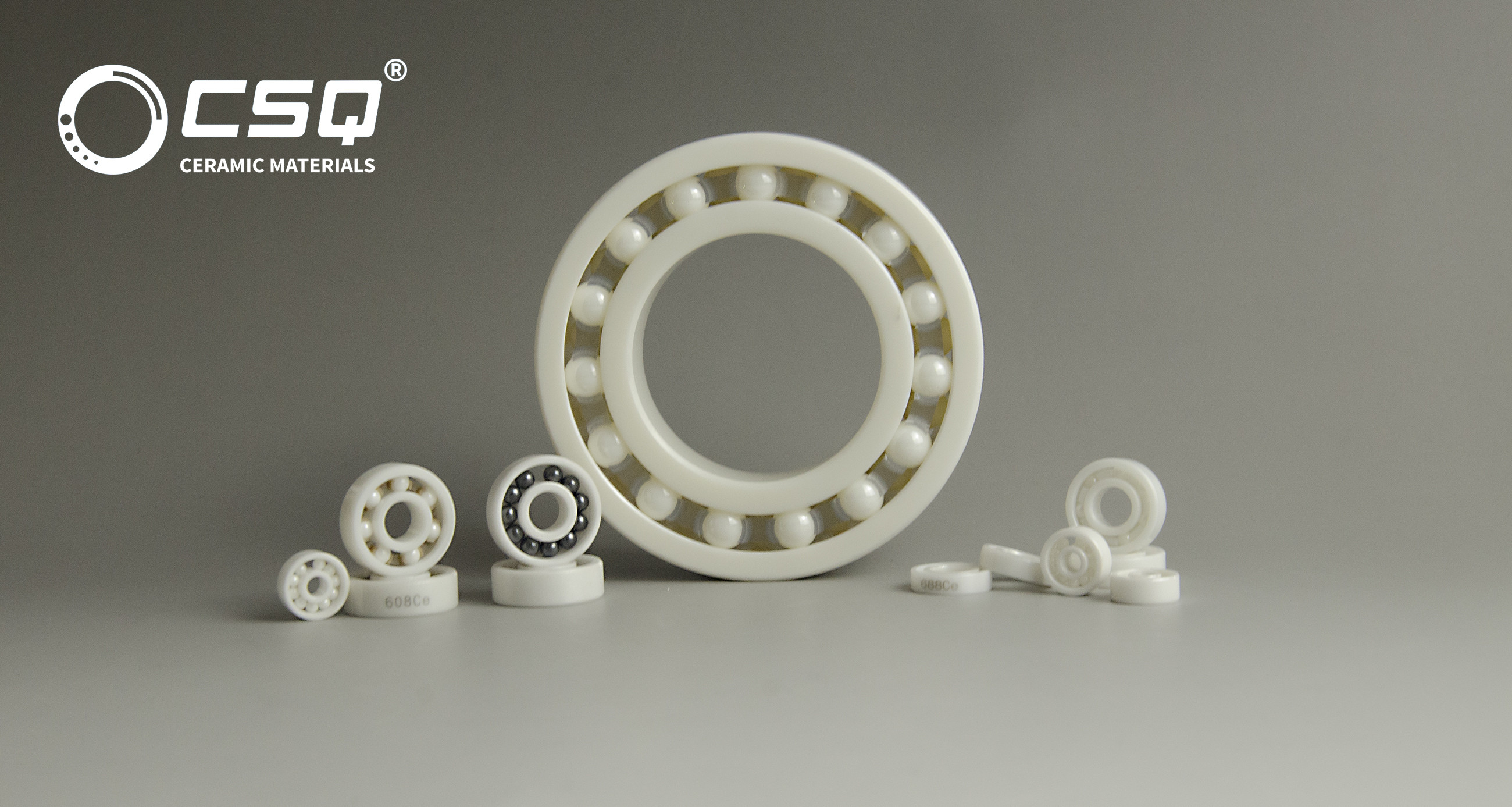

Products picture of 630 series Miniature Ceramic Deep Groove Balls Bearings:



Silicon Nitride Ceramic Ball Bearings Miniature Deep Groove 627 626 0



Silicon Nitride Ceramic Ball Bearings Miniature Deep Groove 627 626 1
