Silicon Nitride Mini Small Ceramic Bearings Deep Groove 624 625 626 627 628 629

  • Silicon Nitride Mini Small Ceramic Bearings Deep Groove 624 625 626 627 628 629
  • Silicon Nitride Mini Small Ceramic Bearings Deep Groove 624 625 626 627 628 629
Place of Origin China
Brand Name CSQ
Model Number 620 series
Minimum Order Quantity 60 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Miniature Deep Groove Balls Bearings Model 620 Series
Race Material Zirconia Or Silicon Nitride Or Silicon Carbide Ball Material ZrO2/Si3N4/SSiC
Precision P6/ABEC3 To P4/ABEC7 Clearance C0/C3 Or Customized
Pacage Plastik Box+carton Box MOQ 50 Pieces
Highlight

silicon nitride ceramic ball bearings

,

624 ceramic bearing

,

626 ceramic bearings
Leave a Message
Product Description



ZrO2/Si3N4/SSiC Miniature Deep Groove Balls Bearings Of 620 Series



Material properties of ceramic material:



Ceramic Bearing are anti strong acid, strong alkali,salt and other corrosive media erosion, high temperature resistance, wear resistance, light structure, high speed limit, low noise, electricity insulation, the dimension keep stable under high temperature, smaller startup torque, keep working under bad lubricant condition, having longer using lifespan, and common metal incomparable advantages.



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)



Reference data of 620 series Miniature Ceramic Deep Groove Balls Bearings:



Bearings model Form size
d (mm)		 Form size
D (mm)		 Form size
B (mm)		 Load
Cr (N)		 Load
Cor (N)		 Max.Speed
Grease (rpm)		 Max. Speed
Oil (rpm)
624CE 4 13 5 1145 488 40000 48000
625CE 5 16 5 1522 675 36000 43000
626CE 6 19 6 2056 896 32000 40000
627CE 7 22 7 2893 1379 30000 36000
628CE 8 24 8 2930 1423 28000 34000
629CE 9 26 8 4026 1983 28000 34000

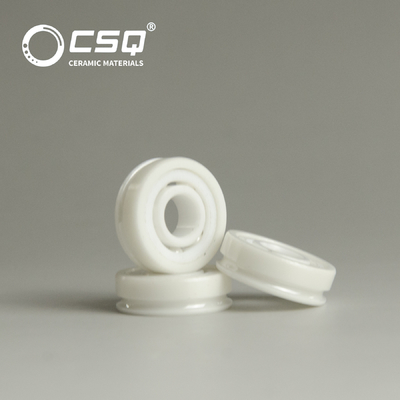

Silicon Nitride Mini Small Ceramic Bearings Deep Groove 624 625 626 627 628 629 0

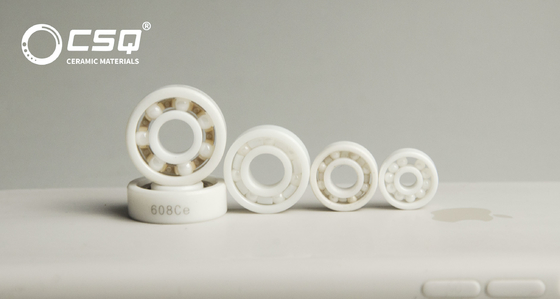

Silicon Nitride Mini Small Ceramic Bearings Deep Groove 624 625 626 627 628 629 1
