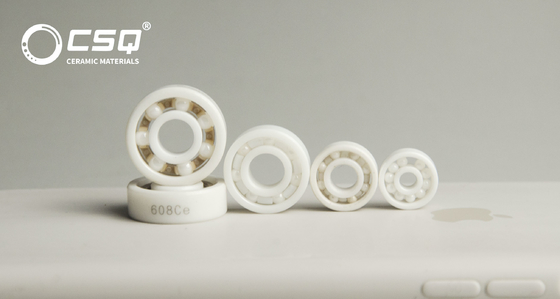

606 607 608 609 Miniature Ceramic Bearings Hybrid Deep Groove 600 Series

  • 606 607 608 609 Miniature Ceramic Bearings Hybrid Deep Groove 600 Series
  • 606 607 608 609 Miniature Ceramic Bearings Hybrid Deep Groove 600 Series
  • 606 607 608 609 Miniature Ceramic Bearings Hybrid Deep Groove 600 Series
Place of Origin China
Brand Name CSQ
Model Number 600 series (604-609)
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Miniature Deep Groove Balls Bearings Model 600 Series (604-609)
Race And Balls In Material Of Si3N4/SSiC/ZrO2 Precision P6/ABEC3 To P4/ABEC7
Clearance C0/C3 Or Customized Pacage Plastik Box+carton Box
Highlight

mini ceramic bearings

,

606 ceramic bearing

,

608 ceramic bearings
Leave a Message
Product Description



Ceramic Miniature Deep Groove Balls Bearings Of 600 Series Models



Why choose us:


Now we are mostly speciallizing in the automatic production of 608 ceramic bearings. The material of races and rollers can be chosen among Si3N4 (silicon nitride), SSiC (silicon carbide) or ZrO2 (zirconia) and fitted with cage in material of PEEK, or PFA and seals in material of PEEK, and Rubber. Besides the above mass production model 608 our company can produce other models of miniature ceramic deep groove ball bearings too.



Material properties of ceramic material:


Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)



Reference data of 600 series Miniature Ceramic Deep Groove Balls Bearings:



Bearings model Form size
d (mm)		 Form size
D (mm)		 Form size
B (mm)		 Load
Cr (N)		 Load
Cor (N)		 Max.Speed
Grease (rpm)		 Max. Speed
Oil (rpm)
604CE 4 12 4 842 350 48000 56000
605CE 5 14 5 1170 507 40000 50000
606CE 6 17 6 1991 846 38000 45000
607CE 7 19 6 2056 896 36000 43000
608CE 8 22 7 2898 1379 34000 40000
609CE 9 24 7 2953 1444 32000 38000

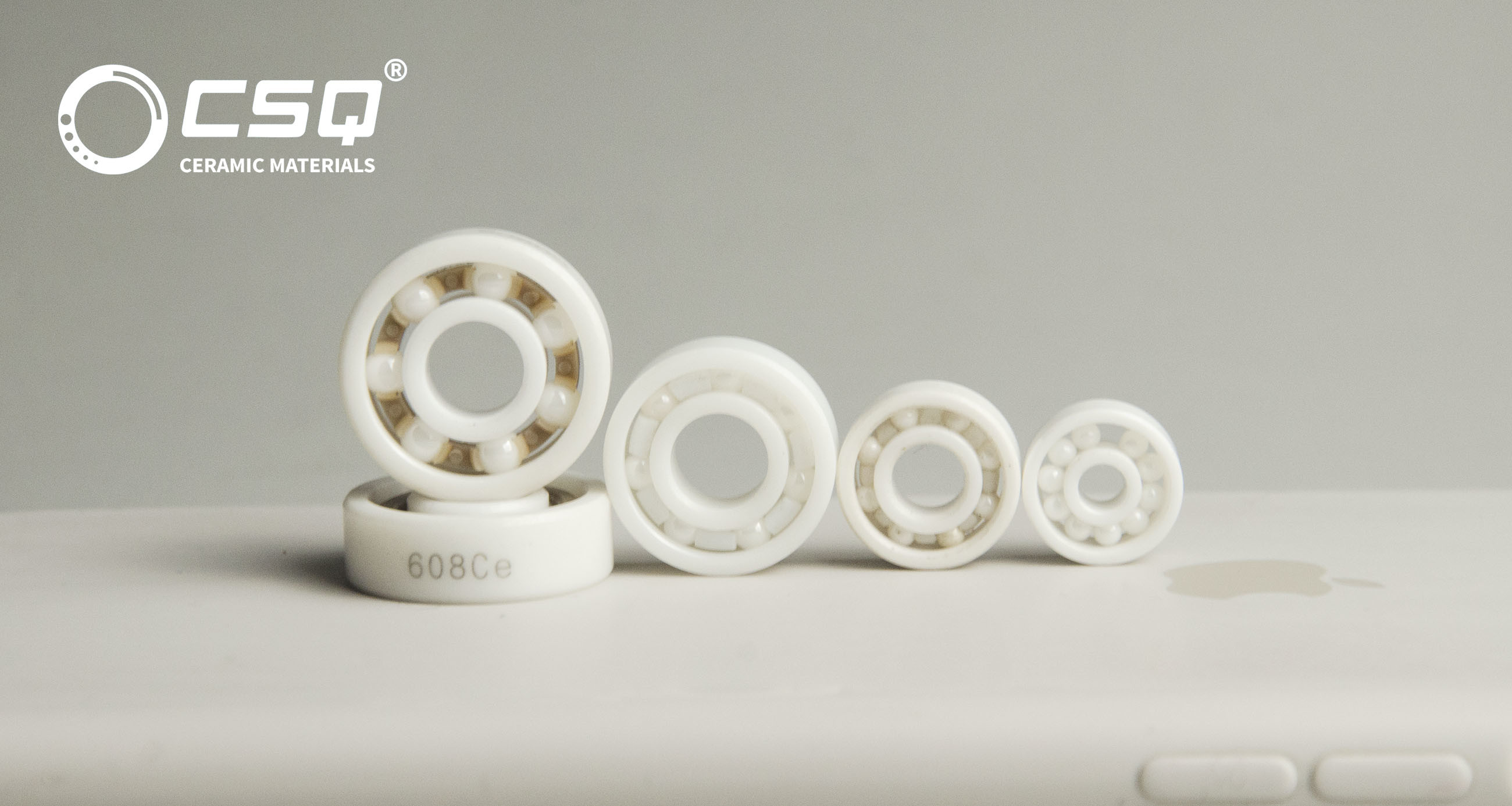

606 607 608 609 Miniature Ceramic Bearings Hybrid Deep Groove 600 Series 0

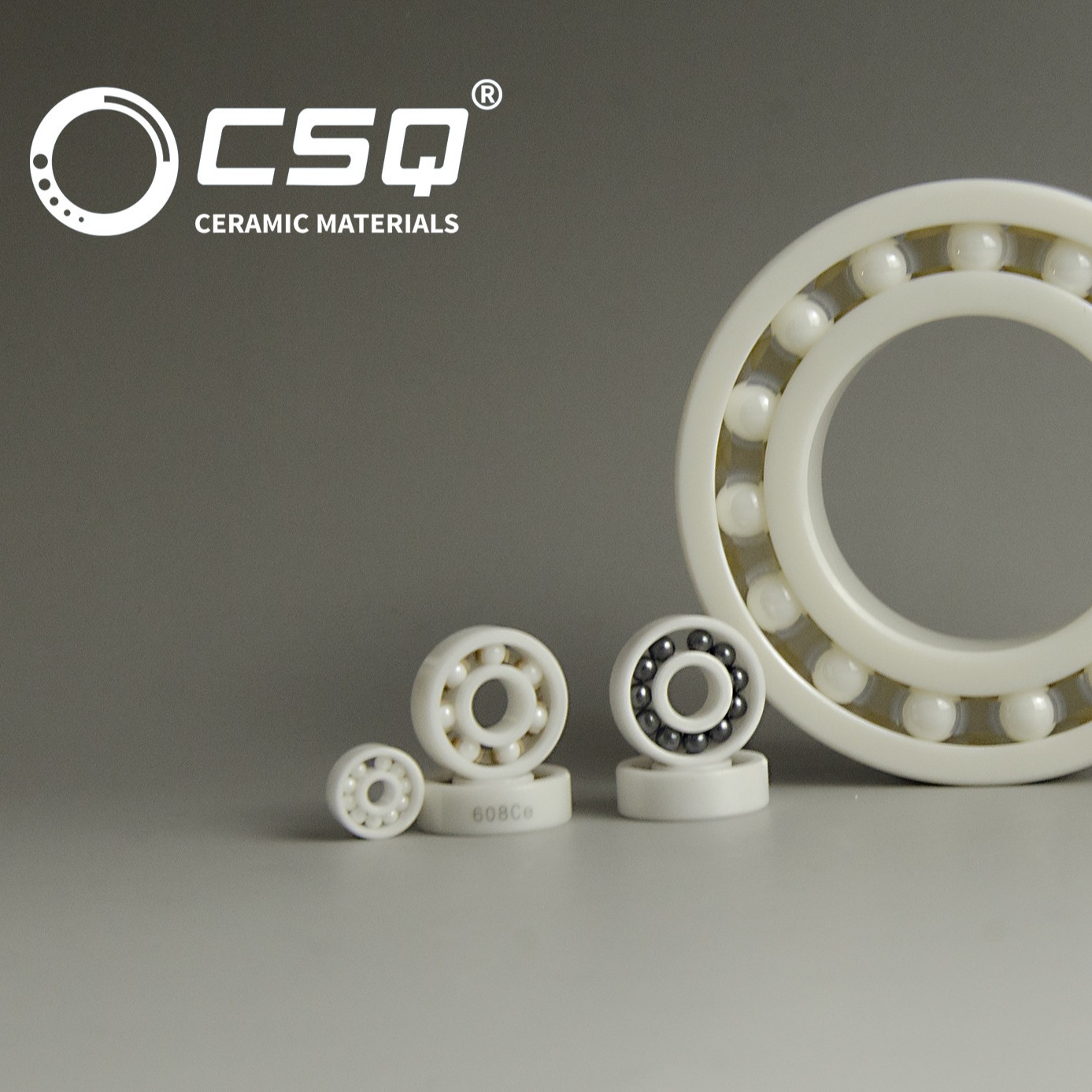

606 607 608 609 Miniature Ceramic Bearings Hybrid Deep Groove 600 Series 1
