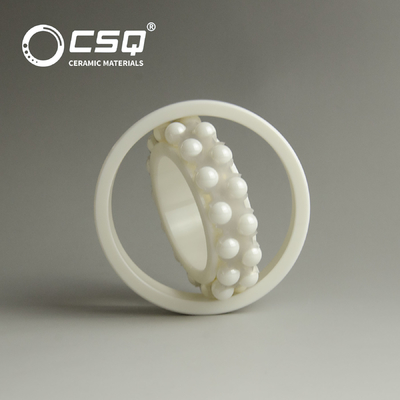

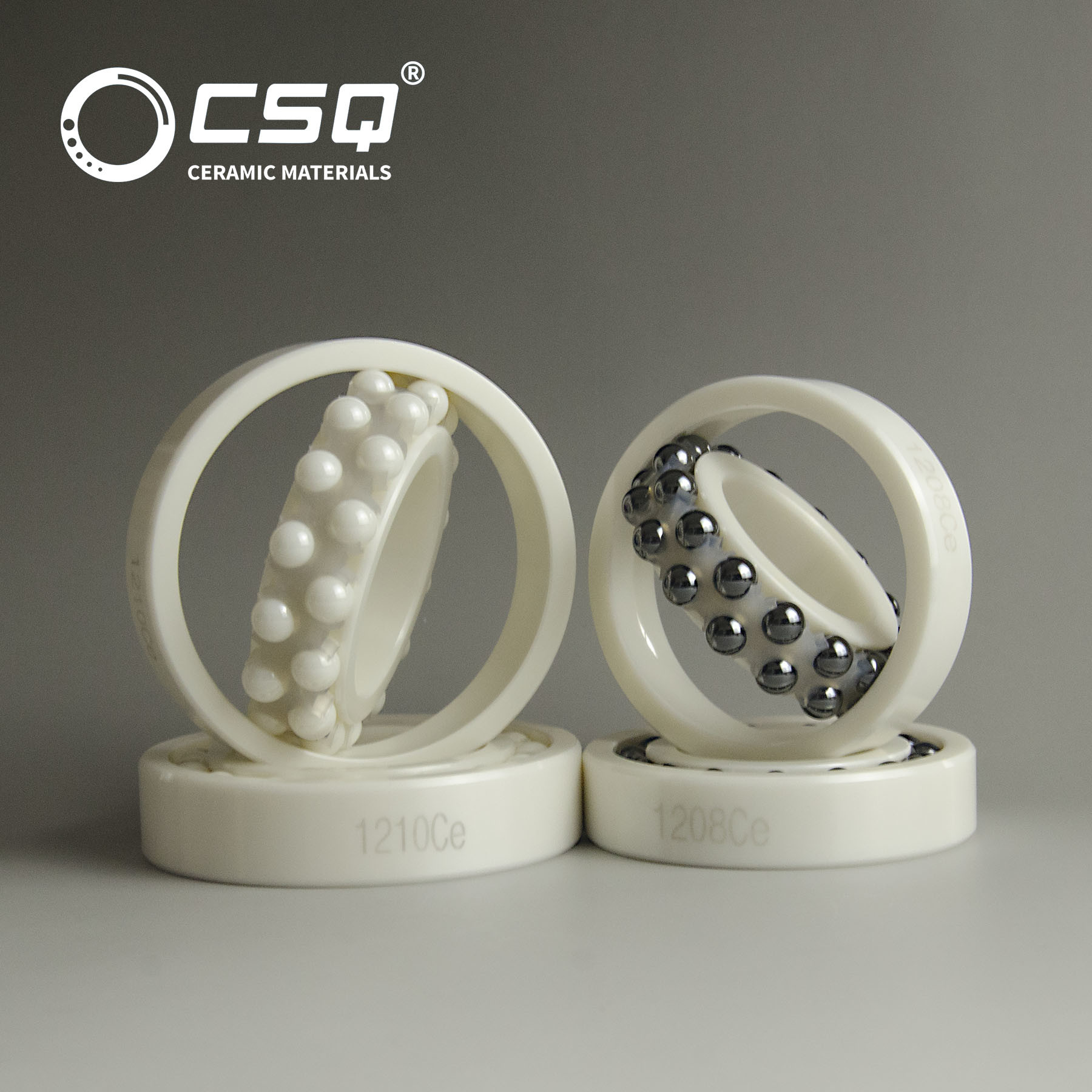

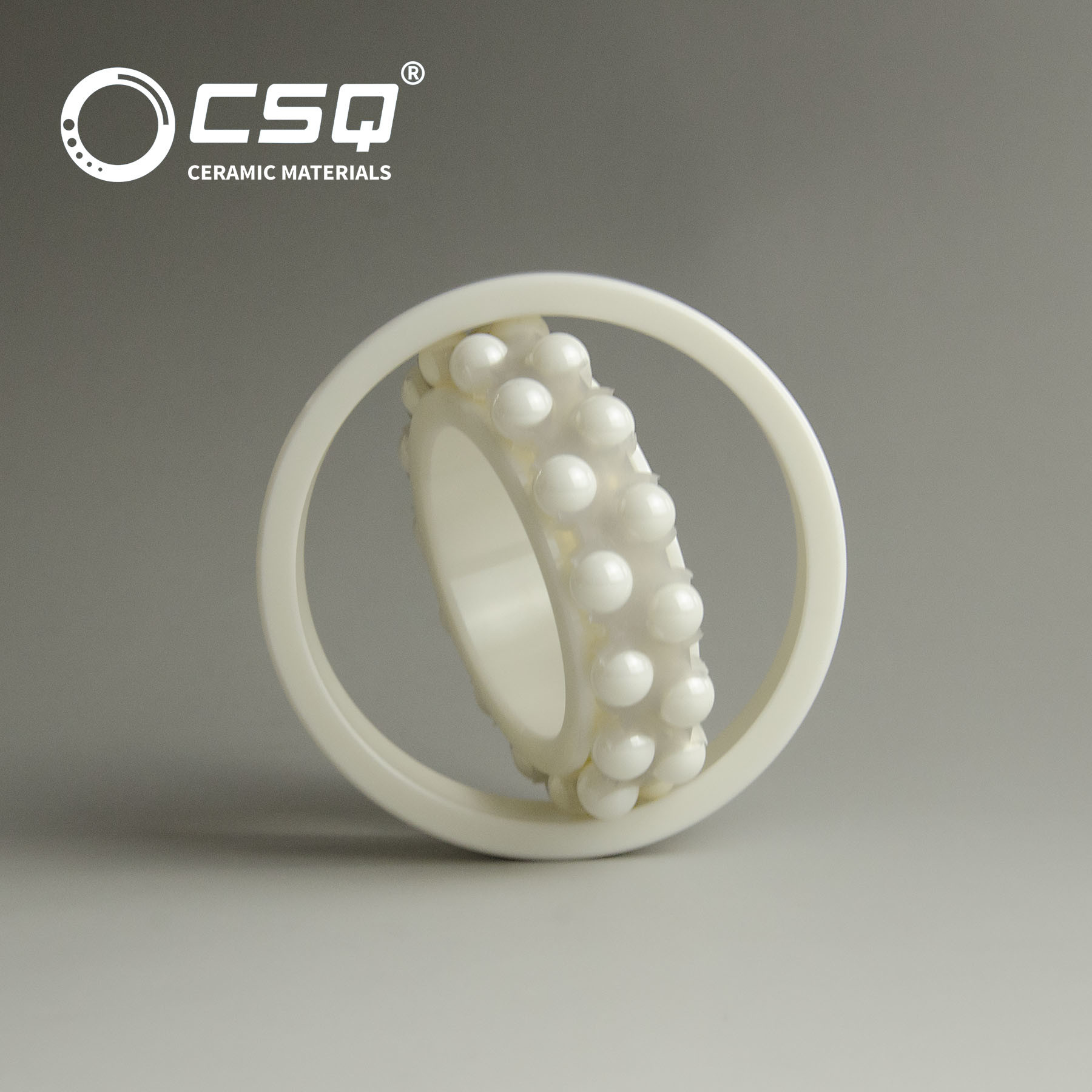

Double Row Zirconia Ceramic Bearing Self Aligning Cylindrical Bore

  • Double Row Zirconia Ceramic Bearing Self Aligning Cylindrical Bore
  • Double Row Zirconia Ceramic Bearing Self Aligning Cylindrical Bore
Place of Origin China
Brand Name CSQ
Model Number 1200/1300 series
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconia Double-Row Self-Aligning Ball Bearings With Cylindrical Bore Model 1200/1300 Series
Race And Ball Material ZrO2 (Zirconium Oxide) Cage Material Peek//PFA
Precision P6/ABEC3 To P4/ABEC7 Pacage Foam+cartom Box
Highlight

Double Row Zirconia Ceramic Bearing

,

Zirconia Ceramic Bearing Cylindrical

,

Cylindrical Ceramic bearing
Leave a Message
Product Description



Zirconia Double-Row Self-Aligning Ball Bearings With Cylindrical Bore



Description of ZrO2 material:


Our zirconia material are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved, to which is the ordinary zirconia bearings incomparable.



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5


























Reference data of Ceramic Double-row Self-aligning Balls Bearings:



Bearings model

Form size
d (mm)

Form size
D (mm)

Form size
B (mm)

Load
Cr (N)

Load
Cor (N)

Max.Speed
Grease (rpm)

Max. Speed
Oil (rpm)
1200CE 10 30 9 4950 1190 27300 31200
1300CE 10 35 11 6530 1620 23400 27300
1201CE 12 32 10 5040 1270 23400 28600
1301CE 12 37 12 8510 2160 20800 23400
1202CE 15 35 11 6710 1750 20800 24700
1302CE 15 42 13 8600 2300 16900 20800
1203CE 17 40 12 7110 2010 18200 22100
1303CE 17 47 14 11250 3200 15600 18200
1204CE 20 47 14 8910 2610 16900 19500
1304CE 20 52 15 11160 3350 14300 16900
1205CE 25 52 15 10890 3300 14300 16900
1305CE 25 62 17 16200 5000 11830 14300
1206CE 30 62 16 14040 4650 11960 14300
1306CE 30 72 19 19170 6300 10010 11830
1207CE 35 72 17 14220 5100 10400 12220
1307CE 35 80 21 22590 7850 8840 10400
1208CE 40 80 18 17370 6550 9230 10920
1308CE 40 90 23 26640 9700 7800 9100
1209CE 45 85 19 19710 7350 8320 9750
1309CE 45 100 25 34200 12700 7020 8190
1210CE 50 90 20 20430 8100 7540 8840
1310CE 50 110 27 39150 14100 6370 7540
1211CE 55 100 21 24120 10000 6890 8060
1311CE 55 120 29 46350 17900 5850 6760
1212CE 60 110 22 27000 11500 6370 7540
1312CE 60 130 31 51300 20800 5330 6240
1213CE 65 120 23 27900 12500 5850 6890
1313CE 65 140 33 55800 22900 4940 5850
1214CE 70 125 24 31050 13800 8460 6370
1314CE 70 150 35 67050 27700 4550 5460
1215CE 75 130 25 35100 15700 5070 5980
