Insert Zirconia Ceramic Bearing Adapting Thread UC200

  • Insert Zirconia Ceramic Bearing Adapting Thread UC200
  • Insert Zirconia Ceramic Bearing Adapting Thread UC200
Place of Origin China
Brand Name CSQ
Model Number UC200 series
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconia Insert Bearings With Adapting Thread Model UC200 Series
Race And Ball Material ZrO2 (Zirconia) Cage Material Peek//PFA
MOQ 50 Pieces Pacage Foam+cartom Box
Highlight

Insert Zirconia Ceramic Bearing UC200

,

Zirconia Ceramic Bearings UC200

,

UC200 bearings CSQ
Leave a Message
Product Description



Zirconia Insert Bearings With Adapting Thread Of Customized Model



Material properties of ZrO2 (HIP sintered)



Zirconia bearing is a kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























Reference data of Ceramic Insert Bearings with adapting thread



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
UC201CE 12 29 47 12.7 18.3 4.5 M6×0.75
UC202CE 15 29 47 12.7 18.3 4.5 M6×0.75
UC203CE 17 29 47 12.7 18.3 4.5 M6×0.75
UC204CE 20 29 47 12.7 18.3 4.5 M6×0.75
UC205CE 25 34 52 14.3 19.7 5 M6×0.75
UC206CE 30 40.5 62 15.9 22. 5 M6×0.75
UC207CE 35 48 72 17.5 25.4 6 M8×1.0
UC208CE 40 53 80 19 30.2 8 M8×1.0
UC209CE 45 57.3 85 19 30.2 8 M8×1.0
UC210CE 50 63 90 19 32.6 9 M10×1.25
UC211CE 55 70 100 22.2 33.4 9 M10×1.25
UC212CE 60 77 110 25.4 39.7 10 M10×1.25
UC213CE 65 82.1 120 25.4 39.7 10 M10×1.25
UC214CE 70 87 125 30.2 44.4 12 M12×1.5
UC215CE 75 91.5 130 33.3 44.5 14 M12×1.5

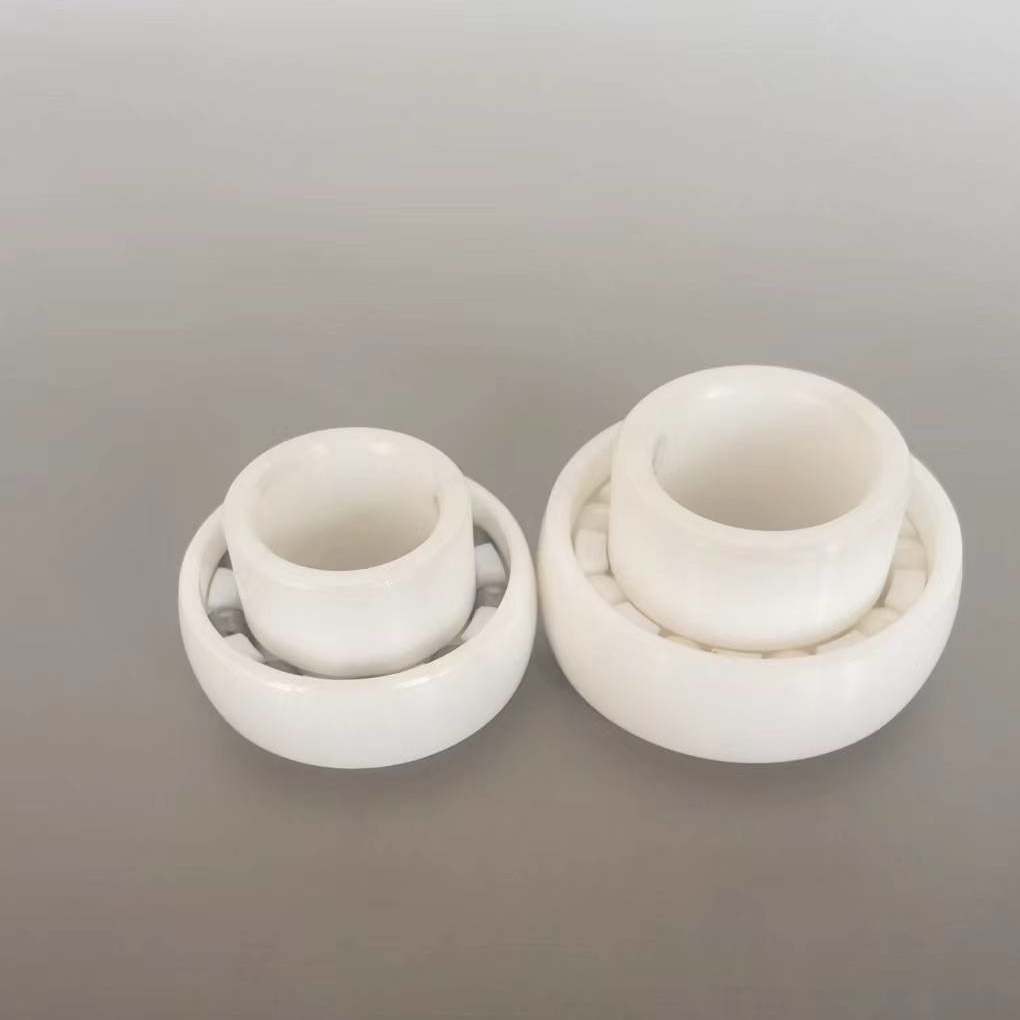

Insert Zirconia Ceramic Bearing Adapting Thread UC200 0

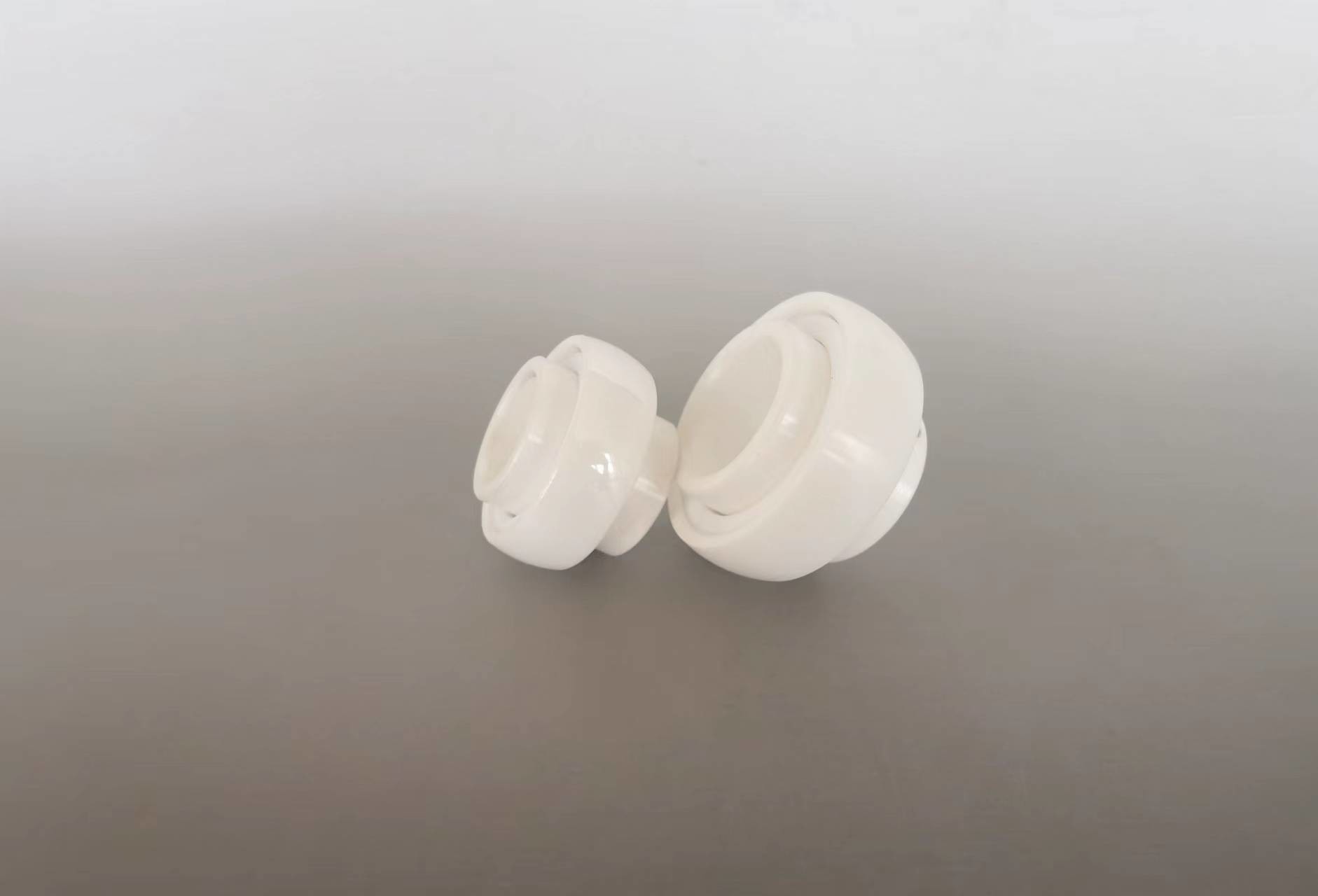

Insert Zirconia Ceramic Bearing Adapting Thread UC200 1
