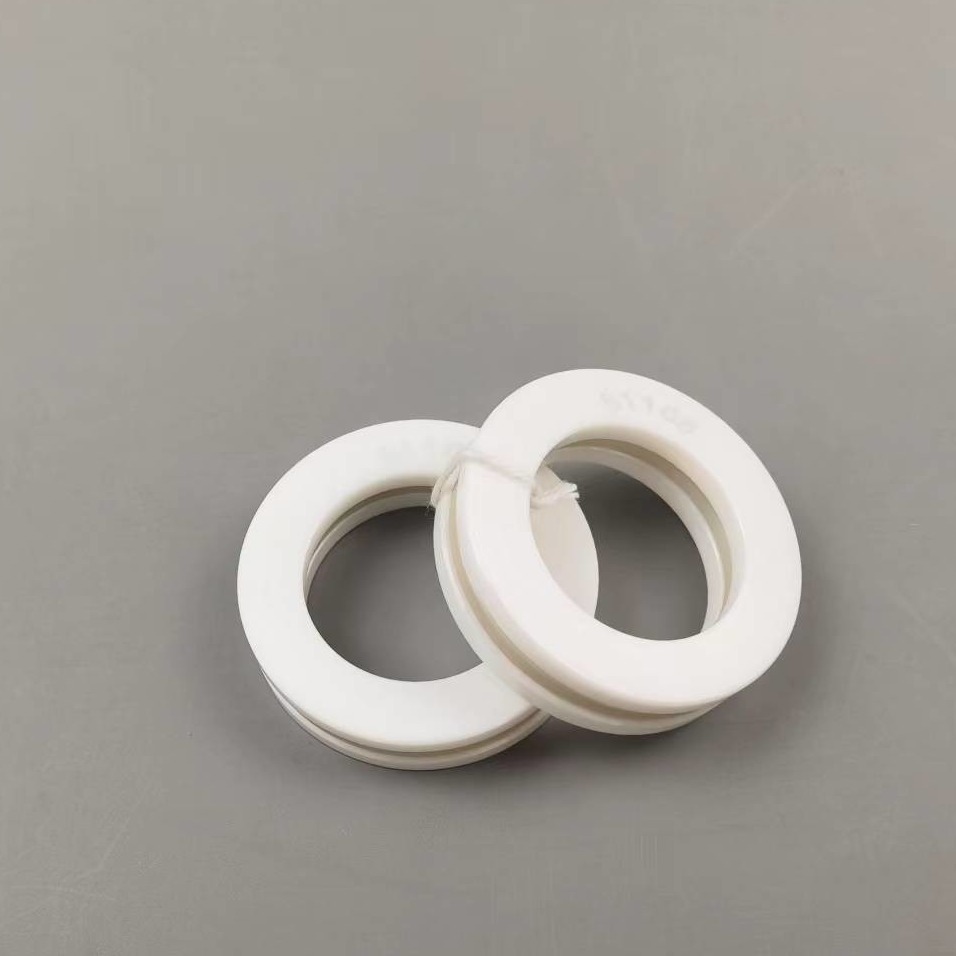

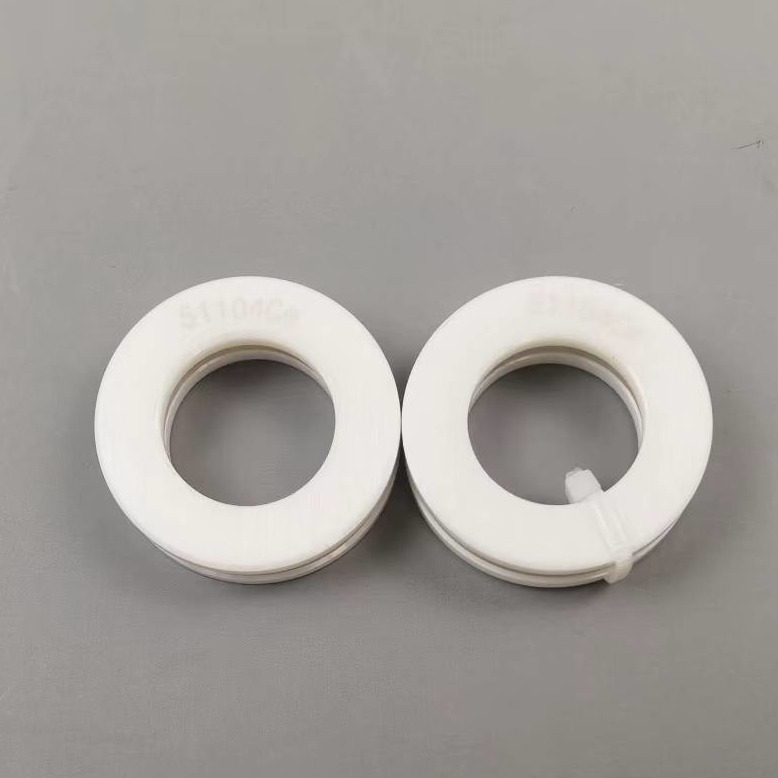

Thrust Zirconia Ceramic Bearing 51104 P6 ABEC3 Precision
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 51104 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ZirconiaThrust Bearing 51104 | Material | Zirconia Races/Balls+Peek Cage |
|---|---|---|---|
| Size | Ø20×Ø35×110mm | MOQ | 50 Pieces |
| Pacage | Foam+cartom Box | Delivery Time | 30-40 Work Days |
| Highlight | Thrust Zirconia Ceramic Bearing,Zirconia Ceramic Bearing 51104,51104 thrust bearings |
||
Product Description
Zirconia Thrust Bearing 51104 With P6/ABEC3 Precision
Description of Ceramic Thrust Bearing 51104:
1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. Zirconia material has high density (6.05-6.09g/cm3)and linear expansion coefficient close to that of metal steel, high hardness(1300HV5), good wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance(max. working temperature is 380℃).

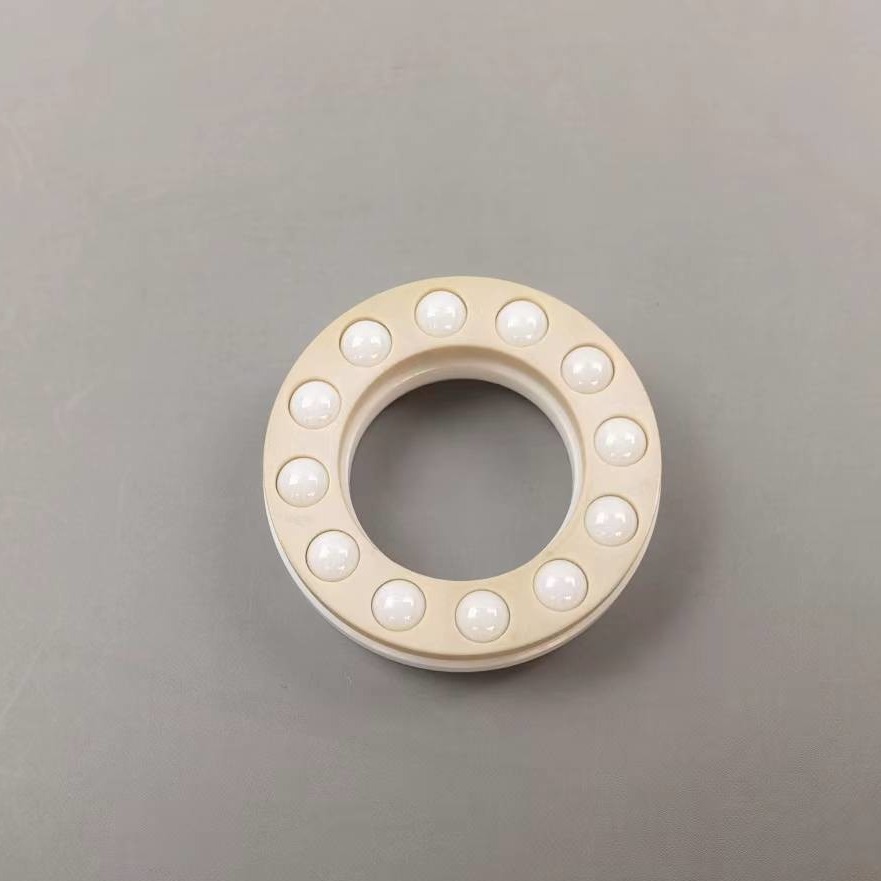

2. PEEK cage: PEEK cage has high strength, light body, and similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.
Performance advantages of Ceramic Thrust Bearing 51104 (Zirconia+PEEK):
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 51104CE | 11440 | 20995 | 5300 | 8000 |
