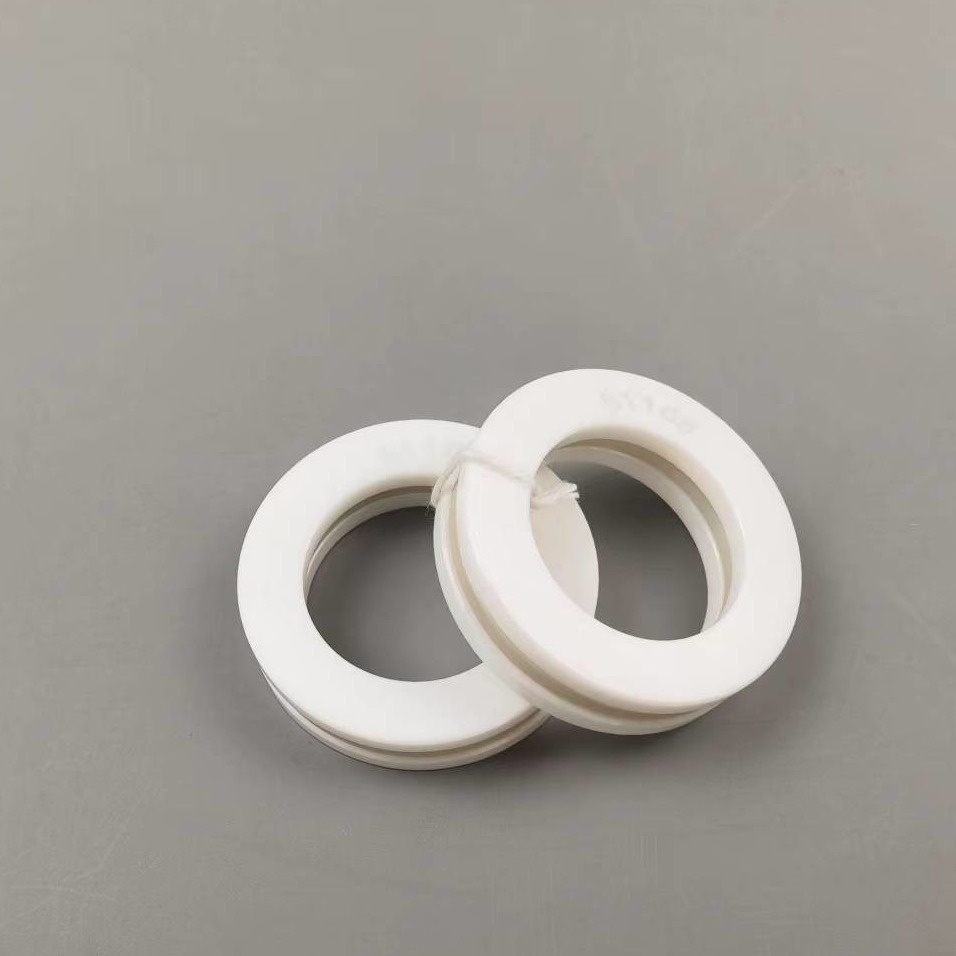

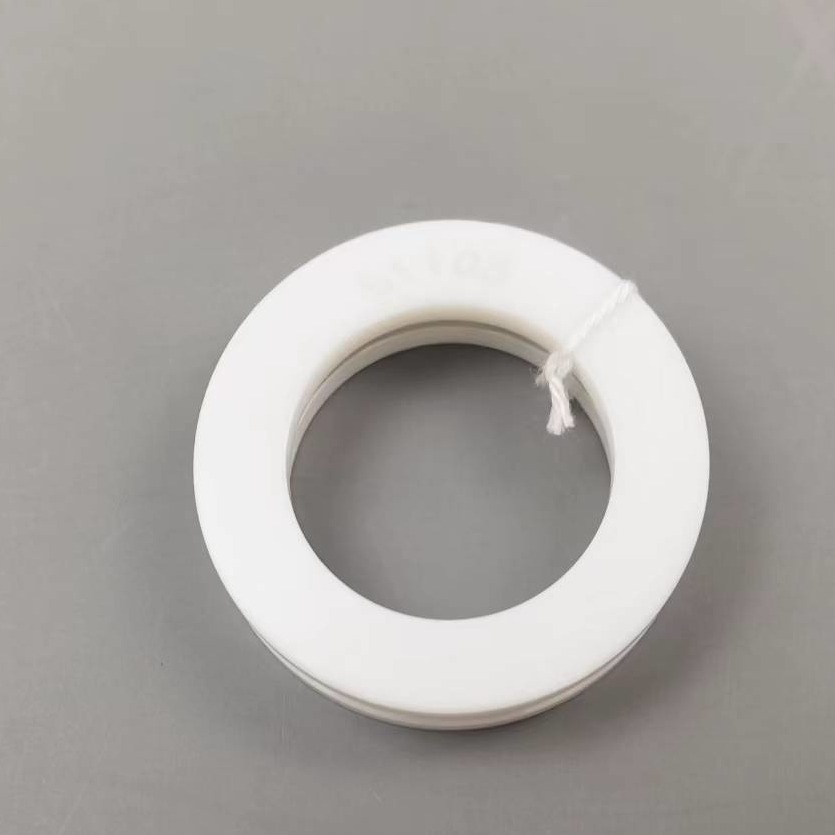

51102 51105 51106 Ceramic Thrust Bearing 30x47x11mm

  • 51102 51105 51106 Ceramic Thrust Bearing 30x47x11mm
  • 51102 51105 51106 Ceramic Thrust Bearing 30x47x11mm
Place of Origin China
Brand Name CSQ
Model Number 51106
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik bag+foam+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconia Thrust Bearing 51106 Structure Ceramic Single Direction Thrust Ball Bearings
Material Zirconia Races/Balls+Peek Cage Precision P6/ABEC3
Form Size Ø30×Ø47×11mm MOQ 50 Pieces
Delivery Time 30-40 Work Days Pacage Foam+cartom Box
Highlight

51106 thrust bearing

,

51105 thrust bearing

,

51104 thrust bearing
Leave a Message
Product Description



Zirconia Thrust Bearing 51106 With P6/ABEC3 Precision



Description:



1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology so their properties are highly improved, such like wear resistance and density and the porosity is highly declined after hot isostatic pressure sintering procession.



2. PEEK cage: PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics, is a nice material choice as ceramic bearings' cage.



Performance advantages:



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51106CE 16320 35700 4300 6500



51102 51105 51106 Ceramic Thrust Bearing 30x47x11mm 0
