Si3N4 Zirconia ceramic bearings suppliers Non Standard 608
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | Non-standard 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 10 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 10 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Special Zirconia Ceramic Bearing 608 | Model | Non-standard 608 |
|---|---|---|---|
| Material | Special Zirconia Races+Si3N4 Balls+Peek Cage | Precision | P6/ABEC3 |
| Ball | HIP-Si3N4 Balls Of 3.969 Mm | Color | Black Races |
| MOQ | 50 Pieces | Pacage | Plastik Box+carton Box |
| Highlight | Si3N4 Zirconia ceramic bearings,Zirconia ceramic bearings 608,608 ceramic bearings |
||
Product Description

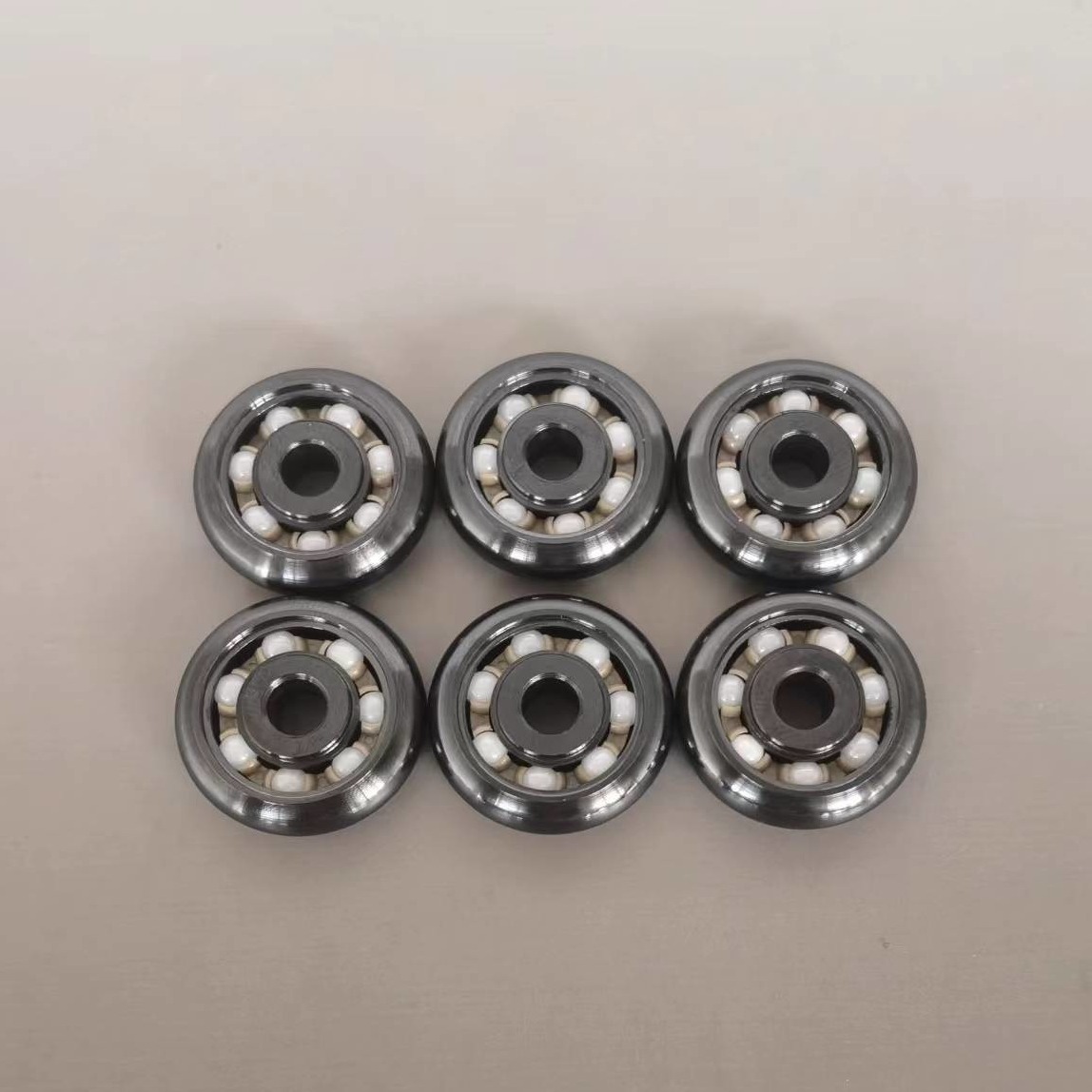

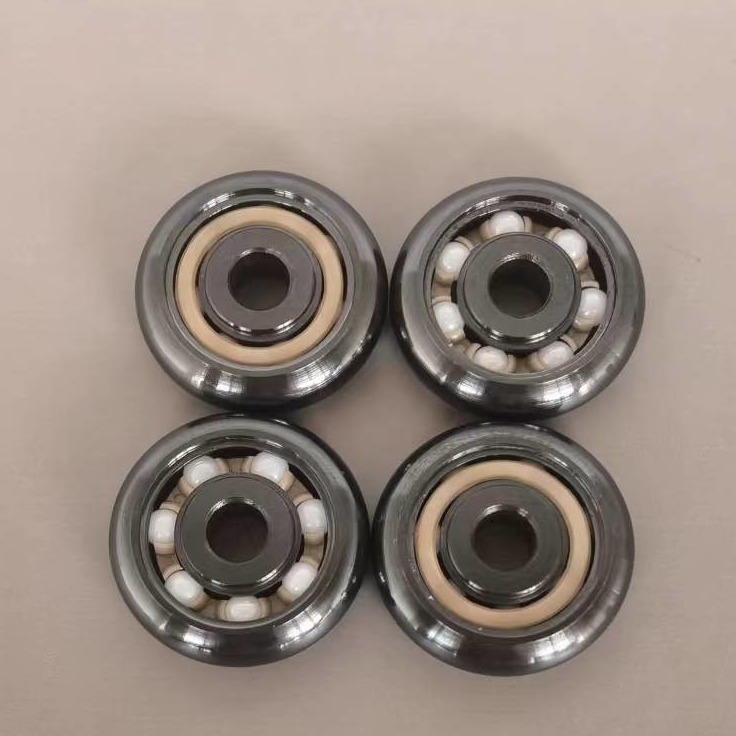

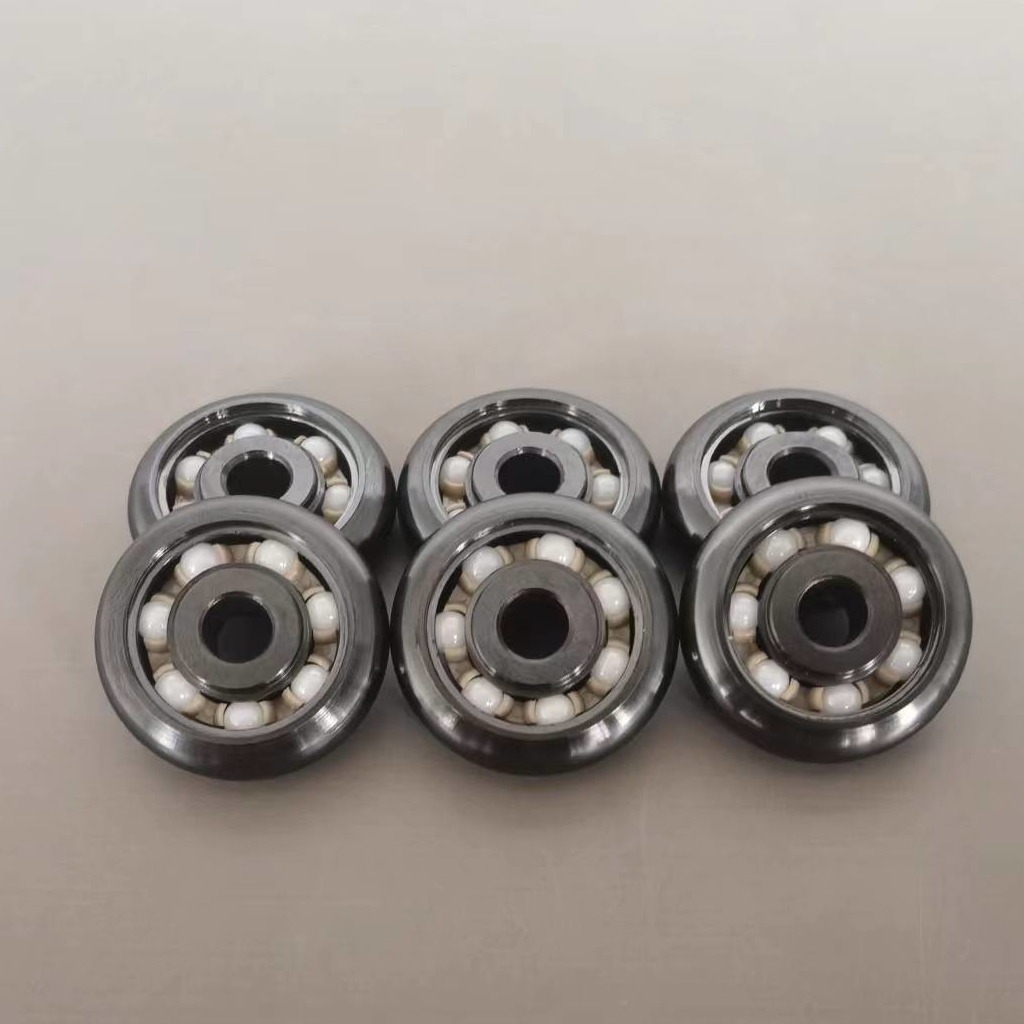

Special Zirconia Ceramic Bearings Of Non-Standard 608
Description :
1. Special ZrO2 Races: Special powder recipe, this kind of zirconia races possesses black color and higher wear resistance.
2. HIP-Si3N4 Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. So the porosity is highly declined and the wear resistance, crushing value and fatigue contact life of after HIP sintered sinlicon nitride have been greatly improved.
3. PEEK cage: Has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.
Performance advantages:
| ►Key properties of zirconia |
| ♦High hardness : 1300 HV5 |
| ♦ High density: 6.09 g/cm3 |
| ♦ Max Temperature up to 380℃ |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 and good wear resistance |
| ♦ Low thermal conductivity |
| ♦ Better bearing capacity |
| ♦ Good electric insulation and wear resistance |
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
