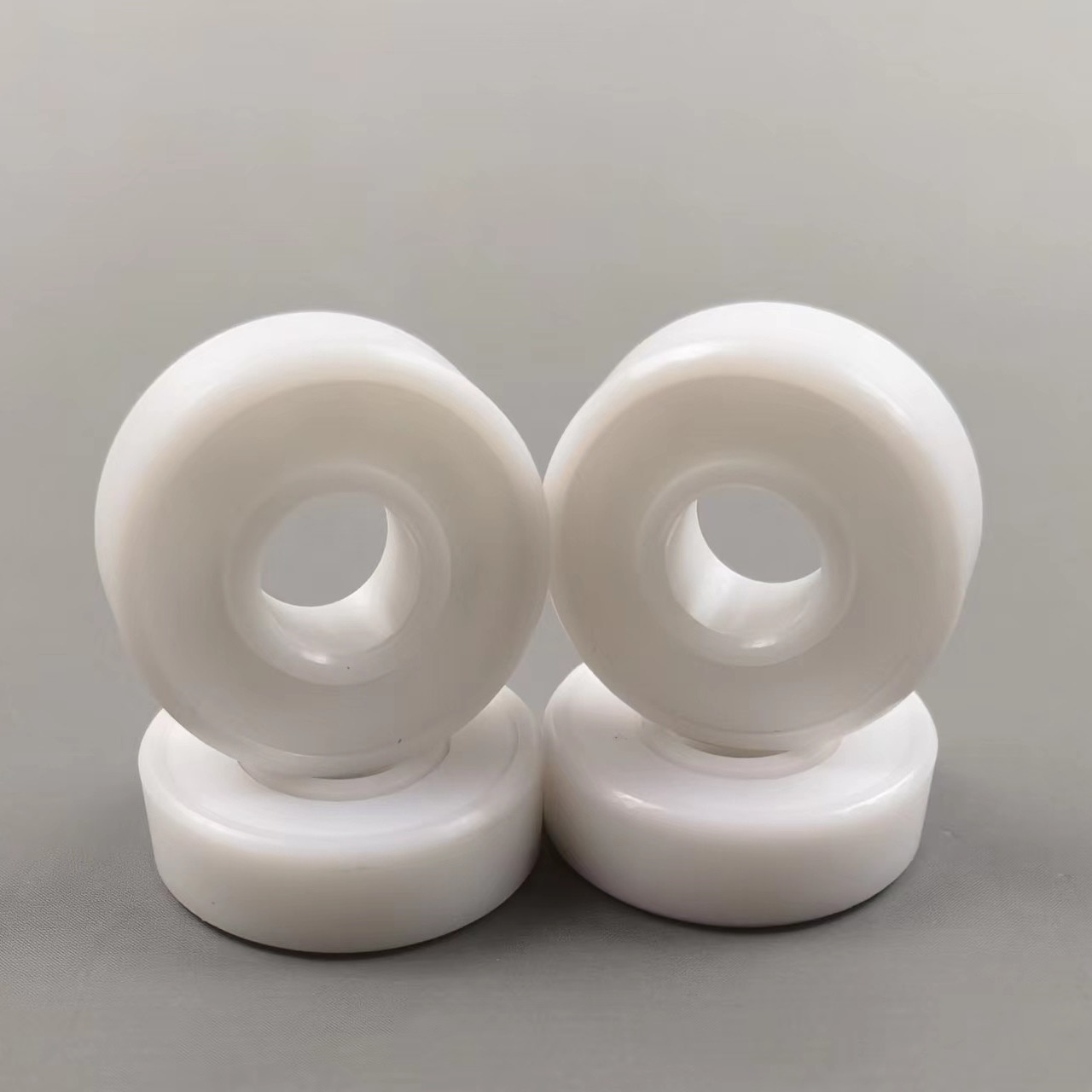

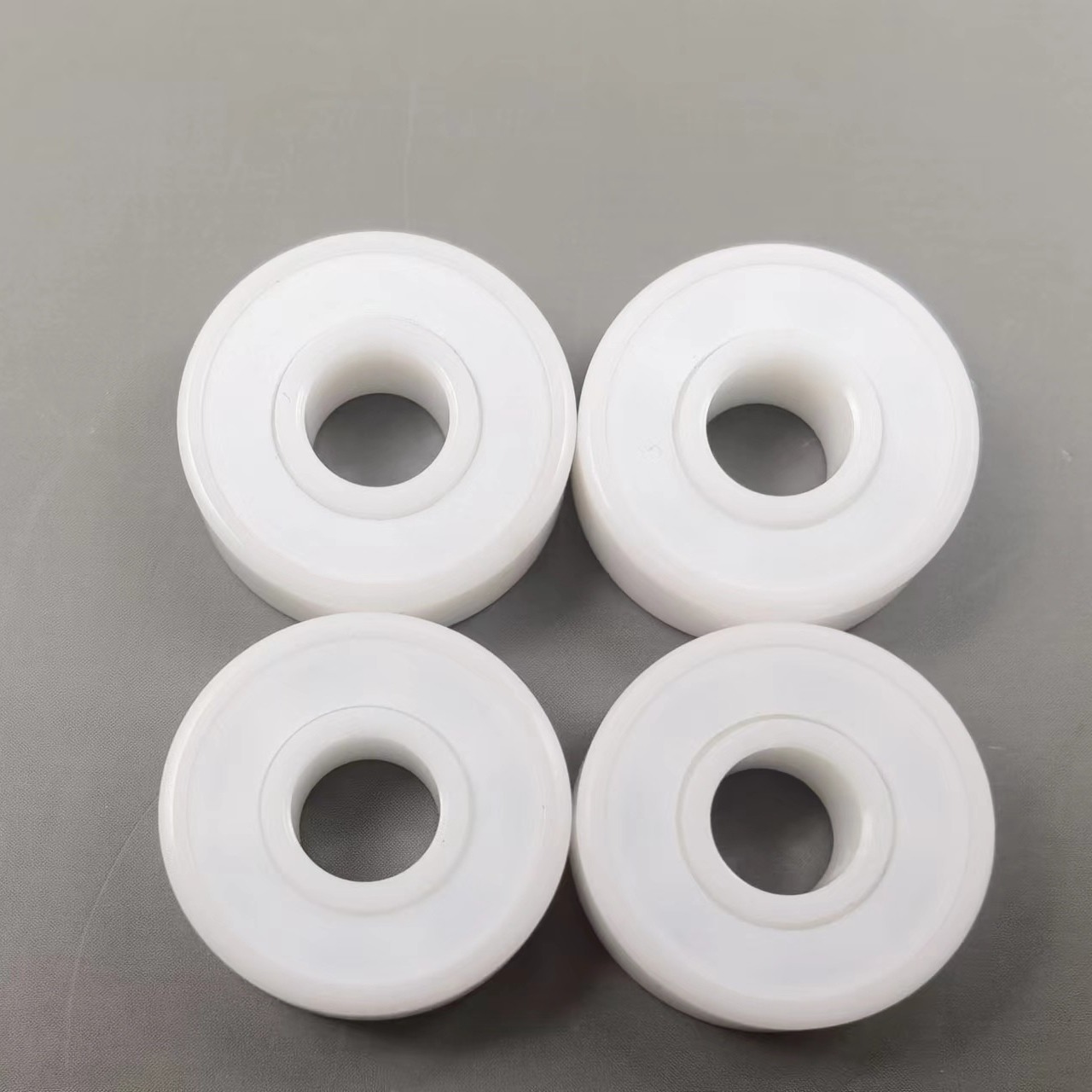

608 Zirconia Ceramic Bearing Lifespan Long 8x22x7mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608-2TS |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 5 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 5 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ZrO2 Ceramic Bearing 608-2TS | Size | 608: 8×22×7mm |
|---|---|---|---|
| Material | ZrO2 Races And Balls+Peek Cage+ Seals | Precision | P6/ABEC3 To P4/ABEC7 |
| Ball | ZrO2 Balls Of 3.969mm | Pacage | Plastik Box+carton Box |
| Highlight | 608 Zirconia Ceramic Bearing,Zirconia Ceramic Bearing 8x22x7mm,608 Bearing |
||
Product Description
ZrO2 Ceramic Bearing 608-2TS With High Precision
Description of 608-2TS:
1. ZrO2 Races and Balls:Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are sintered by HIP (Hot isostatic pressure) technology and ground by our automatic machine.
2. Peek cage: PEEK has more significant advantages compared with other special engineering plastics. Positive high temperature 260 degrees, excellent mechanical properties, good self-lubrication, chemical corrosion resistance, flame retardant, peel resistance, wear resistance, resistance to strong nitric acid, concentrated sulfuric acid and so on.
3. seals: has excellent chemical stability, corrosion resistance (is one of the best corrosion resistance materials in the world today. The seals in this material can resistant to many corrosion operating situation.
Properties of zirconia material:
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
