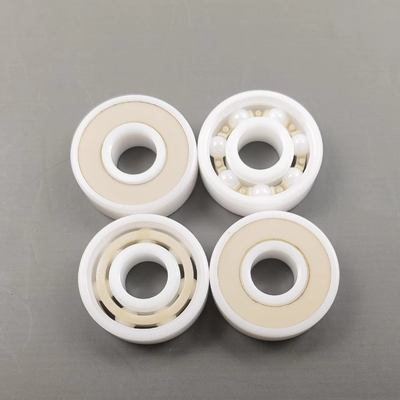

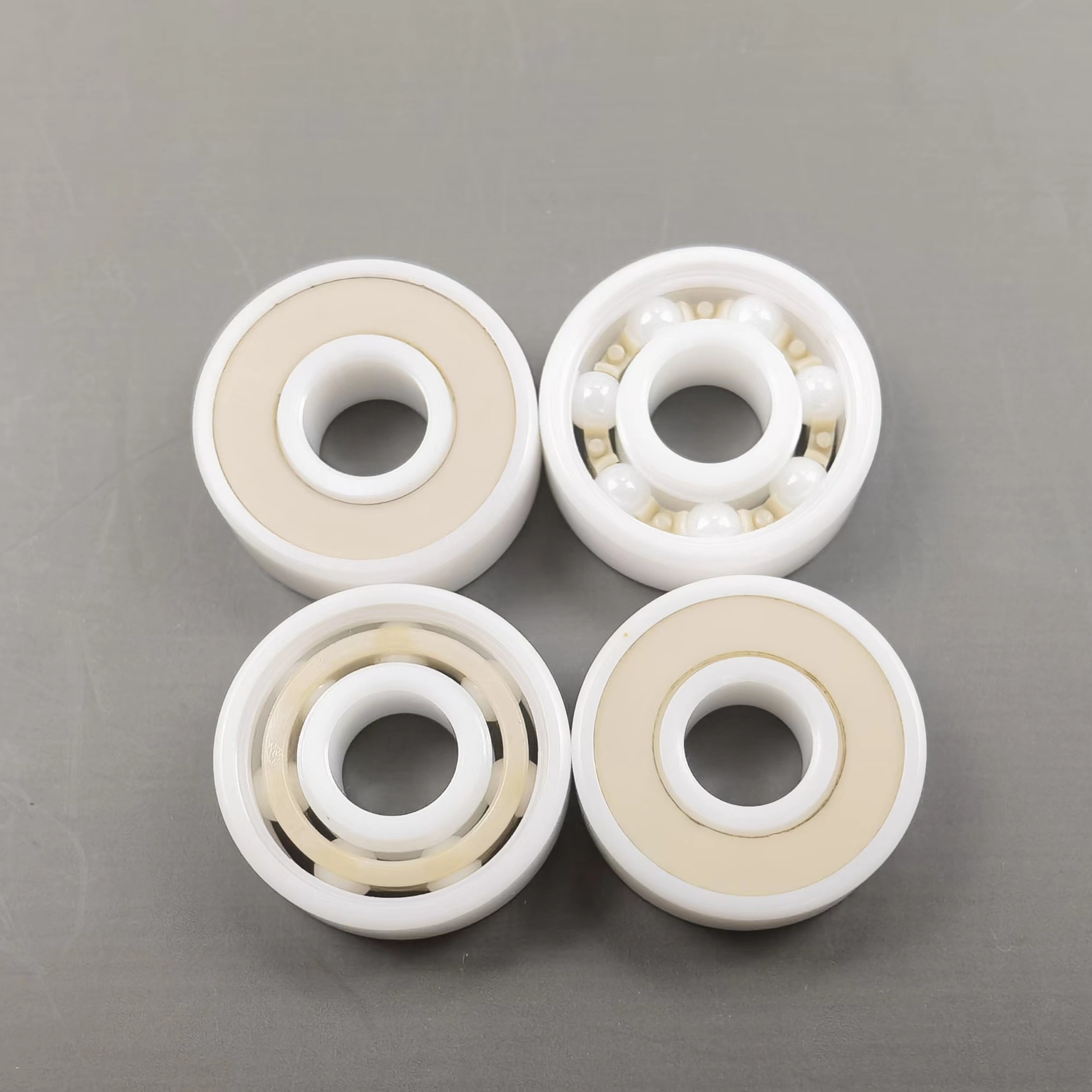

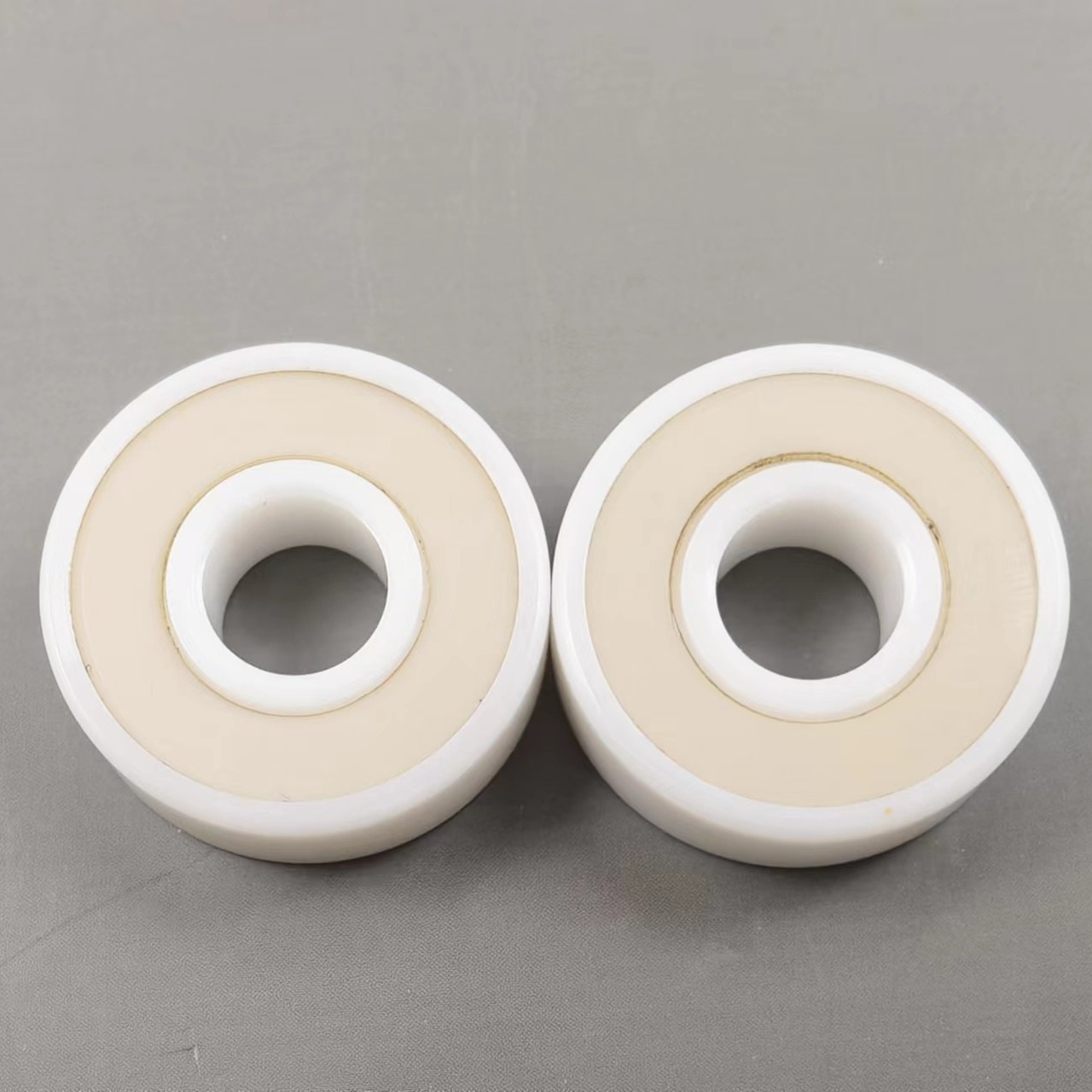

High Temp Zirconia Ceramic Bearing 608-2PS 3.969mm

  • High Temp Zirconia Ceramic Bearing 608-2PS 3.969mm
  • High Temp Zirconia Ceramic Bearing 608-2PS 3.969mm
Place of Origin China
Brand Name CSQ
Model Number 608
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 5 work days
Payment Terms T/T
Supply Ability 50 pcs in 5 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name All Zirconia Ceramic Bearing 608-2PS Material Zirconia Races/balls+Peek Cage And Seals
Precision P6/ABEC3 To P4/ABEC7 Size 8×22×7 Mm With 3.969 Mm ZrO2 Balls
MOQ 50 Pieces Pacage Plastik Box+carton Box
Highlight

Zirconia Ceramic Bearing 3.969mm

,

Zirconia Ceramic Bearing 608

,

ceramic 608 bearings
Leave a Message
Product Description



All Zirconia Ceramic Bearing 608-2PS With High Precision



Description of All Zirconia Ceramic Bearing 608-2PS:



1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their properties are greatly improved.



2. PEEK cage and seals: Our cages and seals are adopted British Victrex PEEK material, which has high strength, light body. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to corrosion, self-lubricating properties, a high degree of wear resistance and other characteristics.



Performance advantages of All Zirconia Ceramic Bearing 608-2PS:



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























High Temp Zirconia Ceramic Bearing 608-2PS 3.969mm 0



High Temp Zirconia Ceramic Bearing 608-2PS 3.969mm 1
