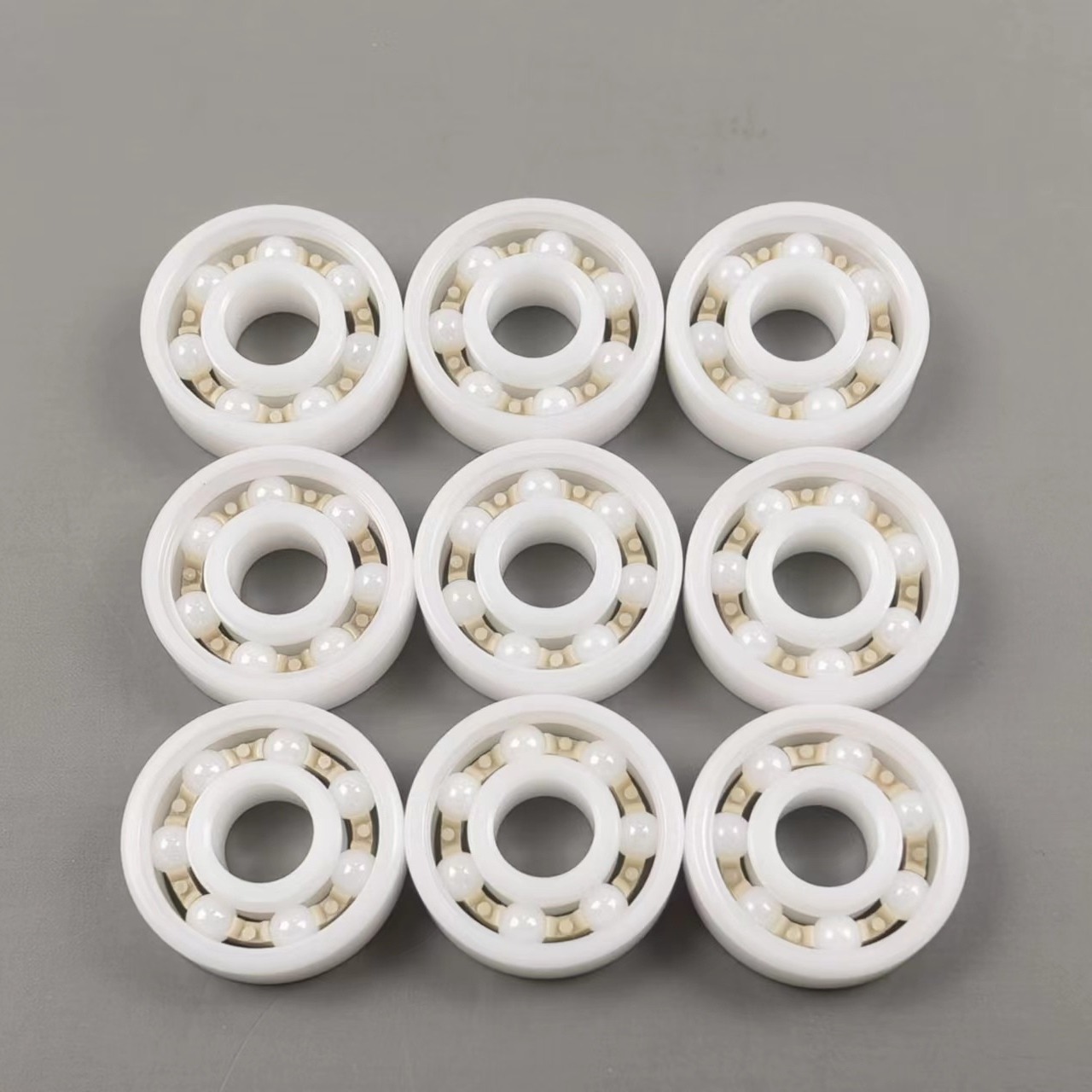

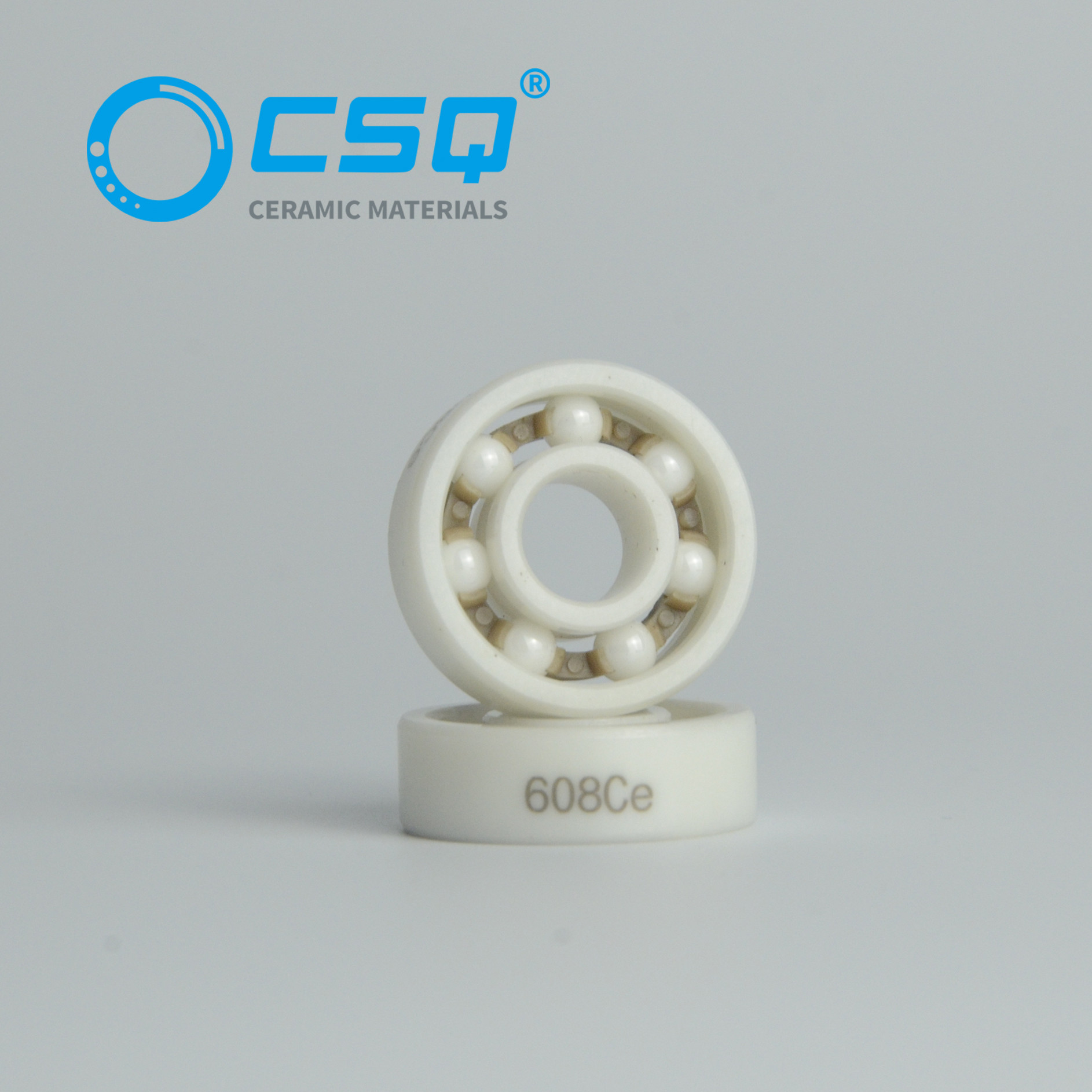

608 Ceramic Zirconia Oxide Ball Bearing 8x22x7mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 5 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 5 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Zirconia Ceramic Bearing 608 | Category | Miniature Ceramic Ball Bearing Of ZrO2 |
|---|---|---|---|
| Structure | Deep Grove Bearing | Precision | P6/ABEC3 |
| Material | Zirconia Races/Balls+Peek Cage | Ball Size | 3.969mm |
| Form Size | 8×22×7mm | Pacage | Plastik Box+carton Box |
| Highlight | ceramic zirconia ball bearing,608 ceramic,zirconia oxide ball bearing 8x22x7mm |
||
Product Description
Zirconia Ceramic Bearing 608 With High Precision (P6/ABEC3) :
Description of 608 Zirconia Bearings:
1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their properties are greatly improved.
2. PEEK cage: The crown structure cage in material of PEEK has high strength, light body. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.
Performance advantages of 608 All Zirconia Bearings (Zirconia+PEEK):
A kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
Why choose us:
Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. has a production line for automatic grinding and assembly of 608 ceramic bearings, and designs an annual output of 3 million sets of 608 ceramic bearings. We are specializing in the automatic production of 608 all ceramic bearings.
