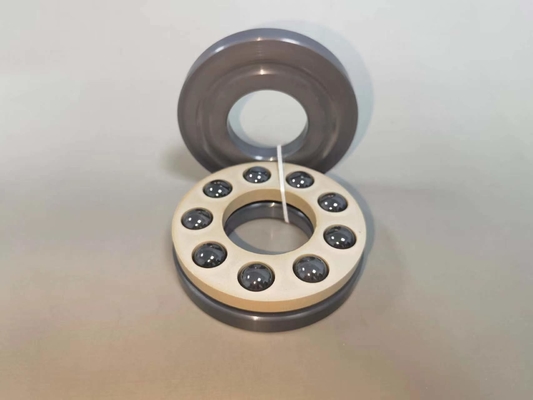

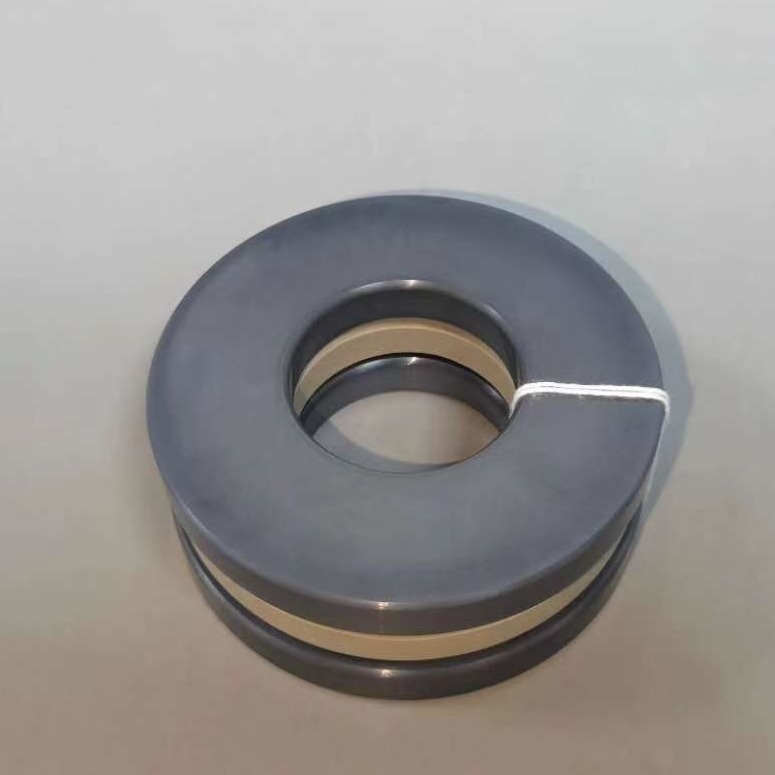

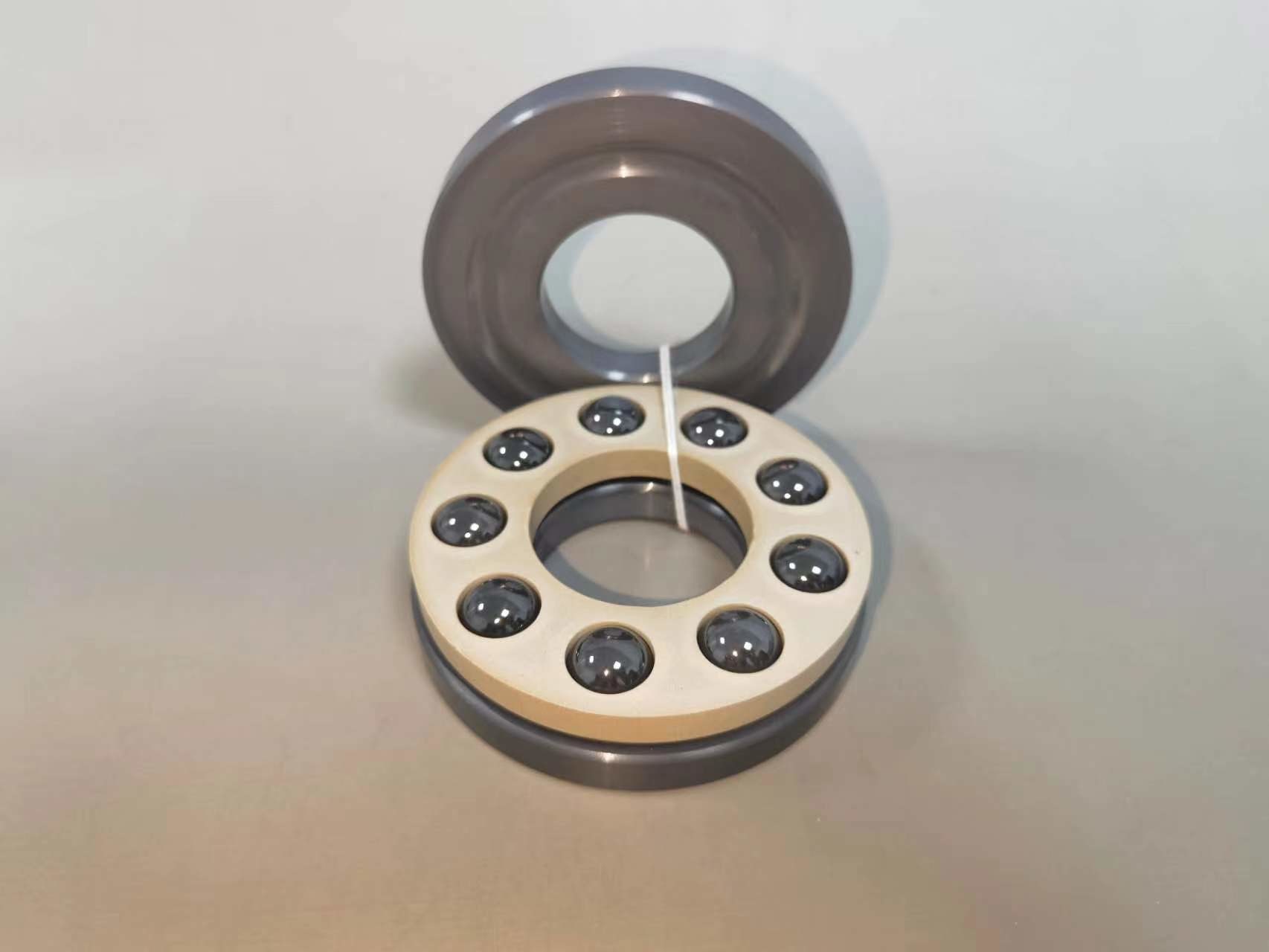

High Toughness Silicon Nitride Ball Bearings Thrust 51409

  • High Toughness Silicon Nitride Ball Bearings Thrust 51409
  • High Toughness Silicon Nitride Ball Bearings Thrust 51409
Place of Origin China
Brand Name CSQ
Model Number 51409
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 40-60 work days
Payment Terms T/T
Supply Ability 20 pcs in 40-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Silicon Nitride Ball Thrust Bearings 51409 Category Ceramic Thrust Bearing With Si3N4 Balls
Material Si3N4 Races/Balls+Peek Cage Form Size Ø45× Ø100× 39mm
MOQ 20 Pieces Pacage Foam+cartom Box
Highlight

High Toughness Silicon Nitride Ball Bearings 51409

,

Silicon Nitride Ball Bearing 51409

,

thrust bearings 51409
Leave a Message
Product Description



Silicon Nitride Ball Thrust Bearings 51409 With High Precision



Description of Si3N4 Ball Thrust Bearings 51409:



1. Si3N4 races balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. PEEK cage: PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. And with our design and injection technology, the PEEK cage has good structure and light body.



Material properties of silicon nitride:



Material Properties Units HIP-Si3N4 GPS-Si3N4
Density g/cm3 3.27-3.29 3.22-3.27
Porosity % 0 0
Fledural Strength MPa 830 689
Elastic Modulus GPa 310 310
Hardness HV5 1580 1450
Fracture Toughness KIC MPa.m1/2 6.1 5.7
Maximum Use Temperature ℃
(℉)		 1000
(1830)		 1000
(1830)
