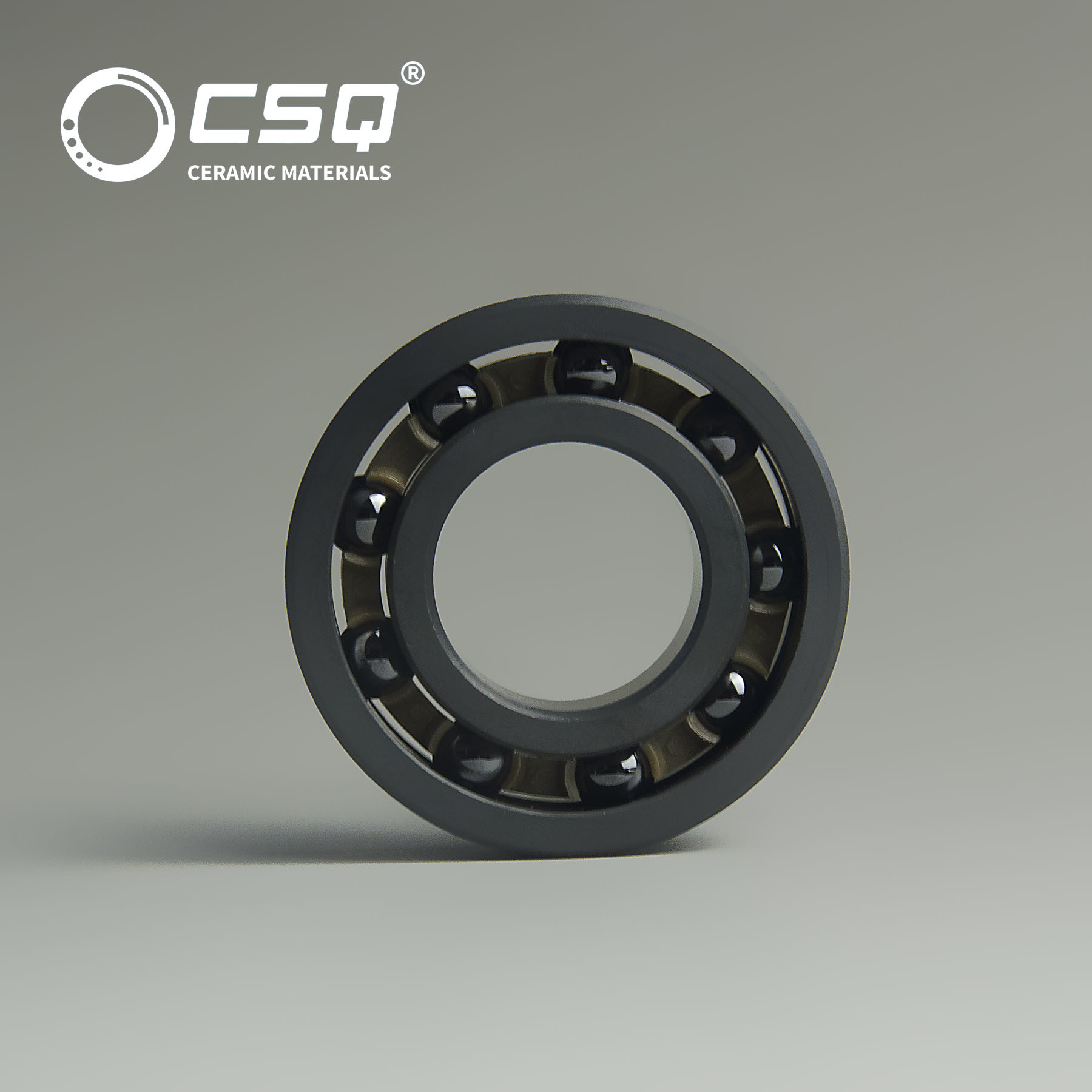

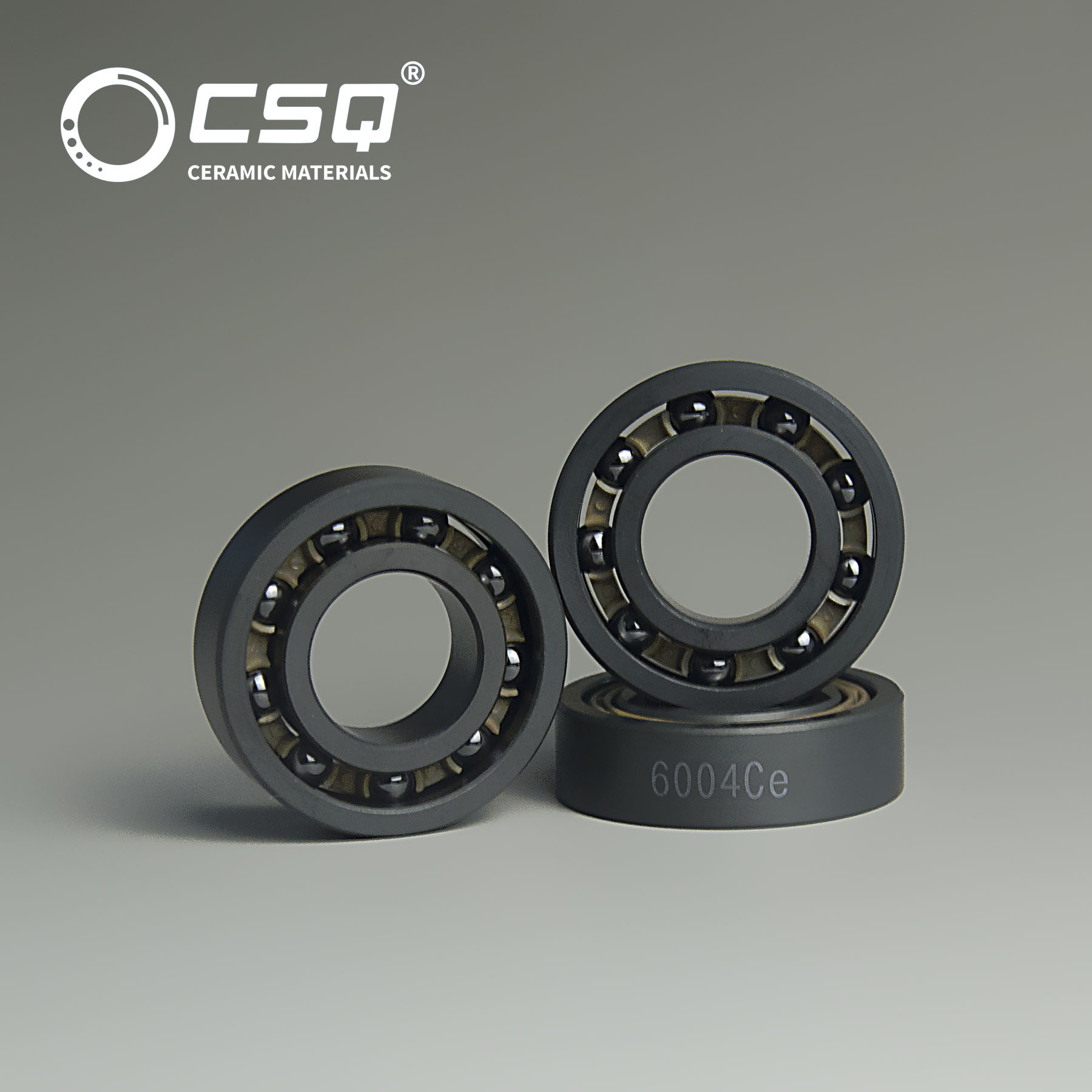

6002 6003 6005 6004 Silicon Carbide Ball Bearings 20x42x12mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6004 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+carton box |
| Delivery Time | 30 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6004 Ceramic Bearing | Category | Silicon Carbide Ceramic Bearing |
|---|---|---|---|
| Material | Silicon Carbide Races And Balls + PEEK Cage | Designation | 6004: Ø20× Ø42×12mm |
| Seal Structure | Open | Use | Petroleum, Chemical Industry |
| MOQ | 50 Pieces | ||
| Highlight | 6004 Silicon Carbide Ball Bearings,Silicon Carbide Ball Bearings 20x42x12mm,Silicon Carbide Bearings |
||
Product Description
6004 Ceramic Bearing Of SSiC Races And Balls+PEEK Cage With High Precision
Description of 6004 SSiC Ceramic Bearing:
1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material, can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.
2. PEEK cage: We adopted British Victrex PEEK material, PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.
Performance advantages of 6004 SSiC Ceramic Bearing:
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
