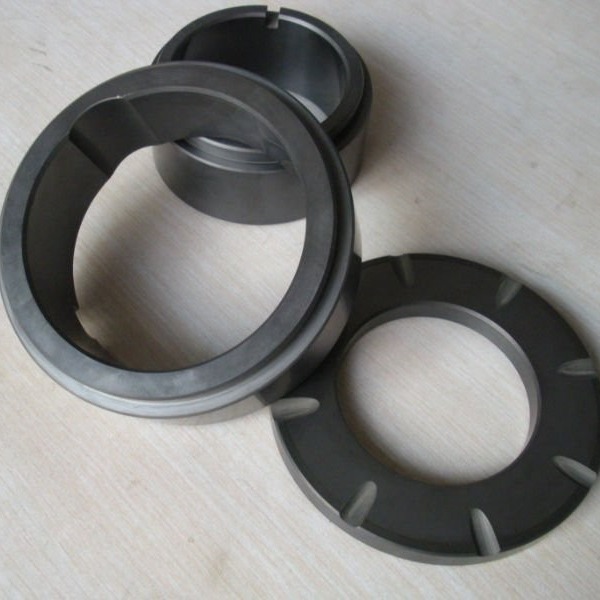

Carbon Silicon Carbide Mechanical Seal Shaft Rings For Rotating Machinery

  • Carbon Silicon Carbide Mechanical Seal Shaft Rings For Rotating Machinery
  • Carbon Silicon Carbide Mechanical Seal Shaft Rings For Rotating Machinery
Place of Origin China
Brand Name CSQ
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 35-45 work days
Payment Terms T/T
Supply Ability 20 pcs in 35-45 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Silicon Carbide Mechanical Seals Category Advanced Structural Ceramic
Material SSiC (Pressureless Sintered Silicon Carbide) Size Customized, According To The Drawings
Use Rotating Machinery Pacage Foam+cartom Box
Highlight

silicon carbide shaft seal

,

carbon silicon carbide mechanical seal

,

silicon carbide seal rings
Leave a Message
Product Description



Silicon Carbide Mechanical Seals For Rotating Machinery



Description of Customized SSiC Mechanical Seals:



Mechanical seal is a kind of shaft sealing device rotating the michanery, it is formed by at least a pair of end face perpendicular to the rotation axis, and under the force of fluid pressure and compensation institution elastic force (stone force) and with the cooperation of the auxiliary seal, the faces keep seat and the relativ sliding, to prevent the fluid leakage.



The rotating ring and static ring is generally formed by the group of pure SSiC rings, or one SSiC and the othe is SSiC+C material.



Rotating and static ring: a pair of pure SSiC rings, applicable for strong corrosive medium.



Rotating and static ring: a SSiC ring, and a SiC+C, applicable for the medium easy to vaporized.



Performance advantages of SSiC (Pressureless sintered silicon carbide):



♦ High strength
♦ Low density:3.15-3.18 g/cm3
♦ Max Temperature up to 1650℃
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

























Why choose us:



Our pressureless sintered silicon carbide products has high density and high hardness, we can volume produce many kinds of and many shapes of complicated mechanical seals in material of SSiC.



Carbon Silicon Carbide Mechanical Seal Shaft Rings For Rotating Machinery 0
