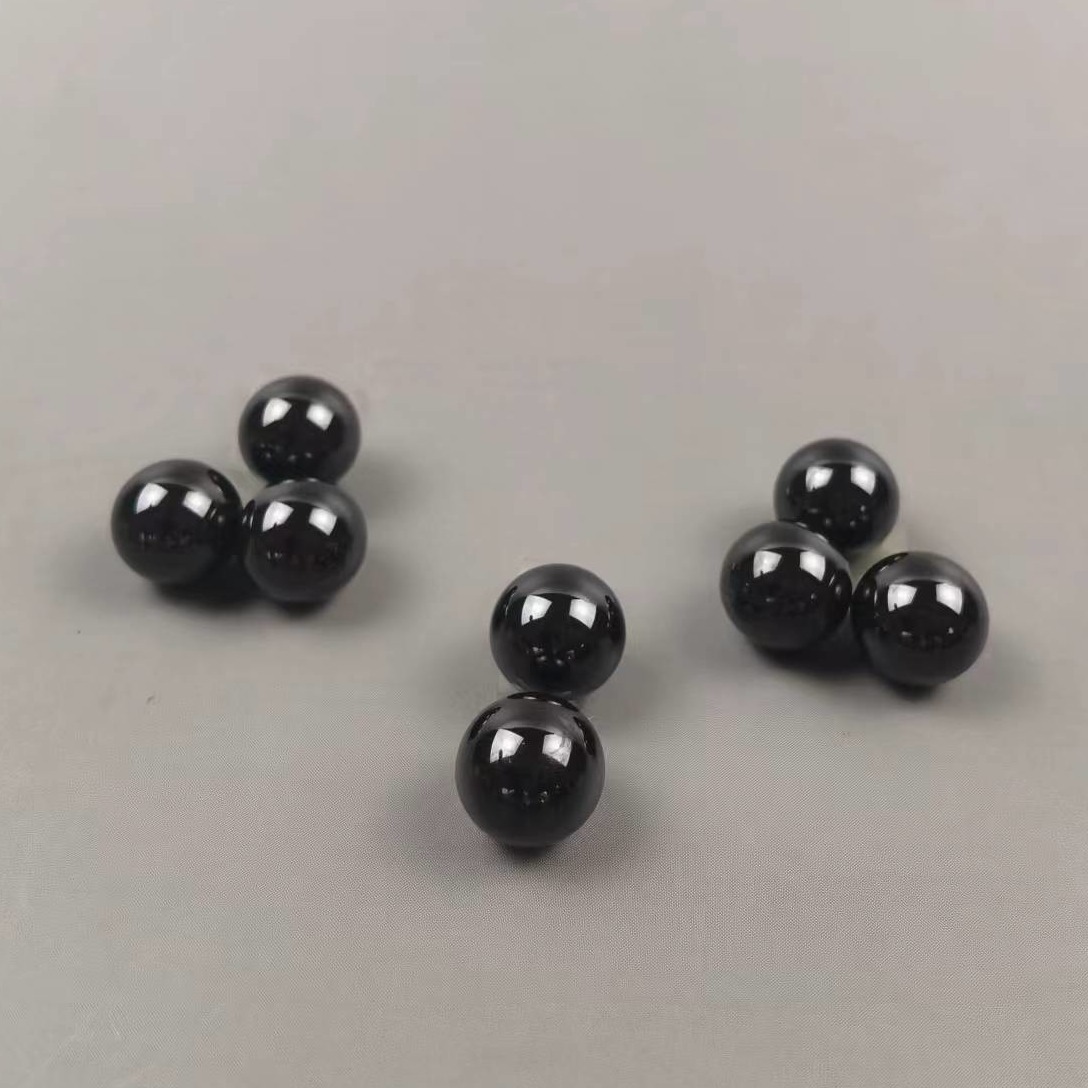

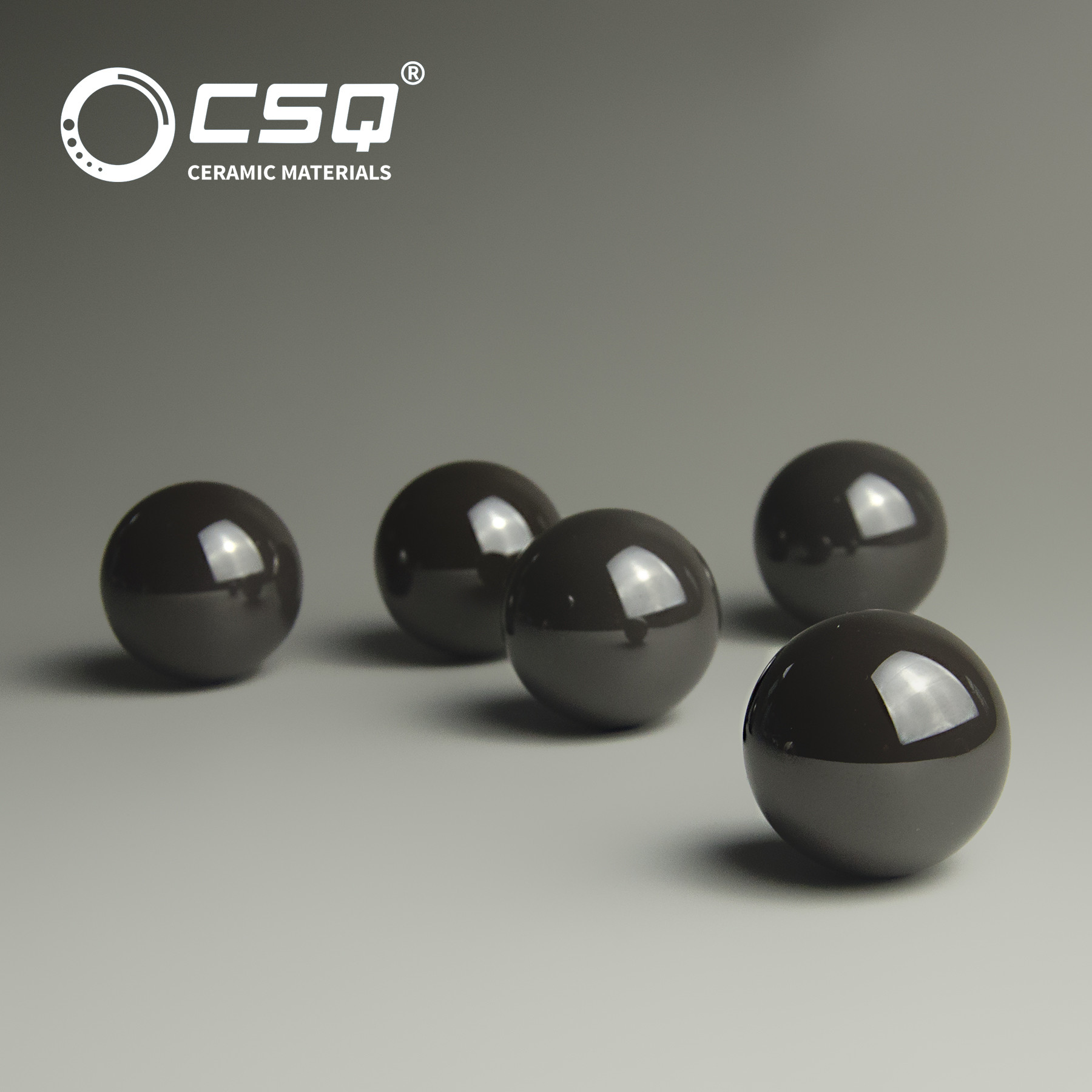

Bearing Silica Nitride Balls 11.113mm G5 High Precision Ceramic Balls
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | Non |
| Minimum Order Quantity | 10000 pieces |
| Price | Negotiable |
| Packaging Details | Sealed packing in plastic bags+foam+carton box |
| Delivery Time | 20-30 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 pieces in 20-30 work days |
Product Details
| Name | Ø11.113mm HIP-Si3N4 Bearing Ball | Material | HIP-Si3N4 (Hot Isostatic Pressure Sintered Silicon Nitride) |
|---|---|---|---|
| Grade | G5 | Size | Ø11.113mm |
| Technology | Hot Isostatic Presssure Sintering Technology | Use | Bearing Ball |
| Pacage | Plastik Box+carton Box | MOQ | 10000 Pieces |
| Highlight | Bearing silica nitride balls,silica nitride balls 11.113mm,11.113mm high precision ceramic balls |
||
Product Description
HIP-Si3N4 Bearing Ball With G5 Grade For Ceramic Ball Bearing Of Ø11.113 mm
Our silicon nitride ceramic bearing balls are made of highly purified, submicron powder with an alpha phase of more than 92%, and are sintered by HIP (Hot Isostatic Pressure) technology. Our company has more than two production lines specializing in the production of high-precision silicon nitride balls of routine size for ceramic bearings. With our recipe and technology advantages, our hot isostatic pressure sintered silicon nitride ceramic bearings can improve the bearings proerties. And because of the good properties of silicon nitride, bearings fitted with our ceramic balls can have less quality and higher speed.
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
