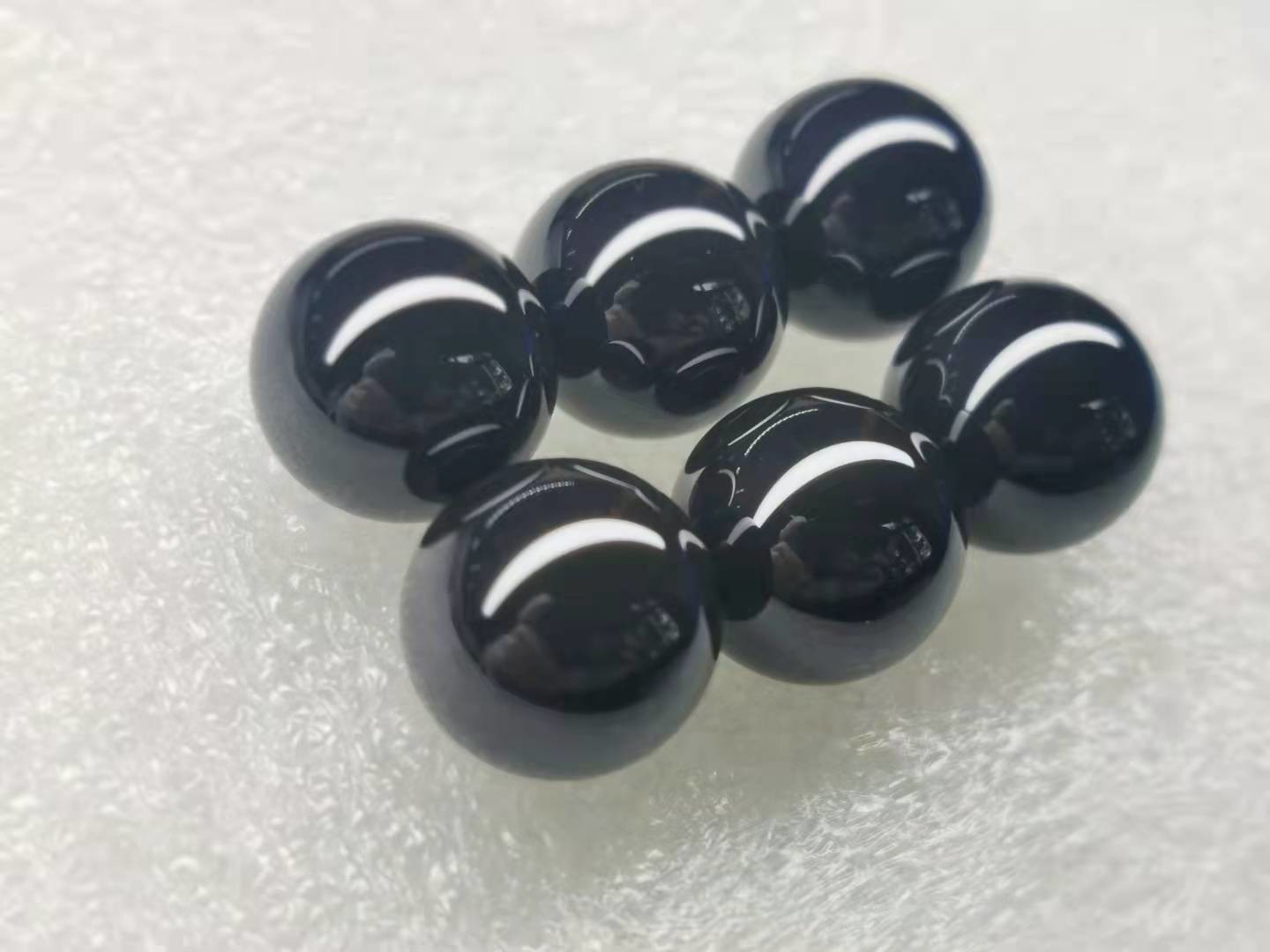

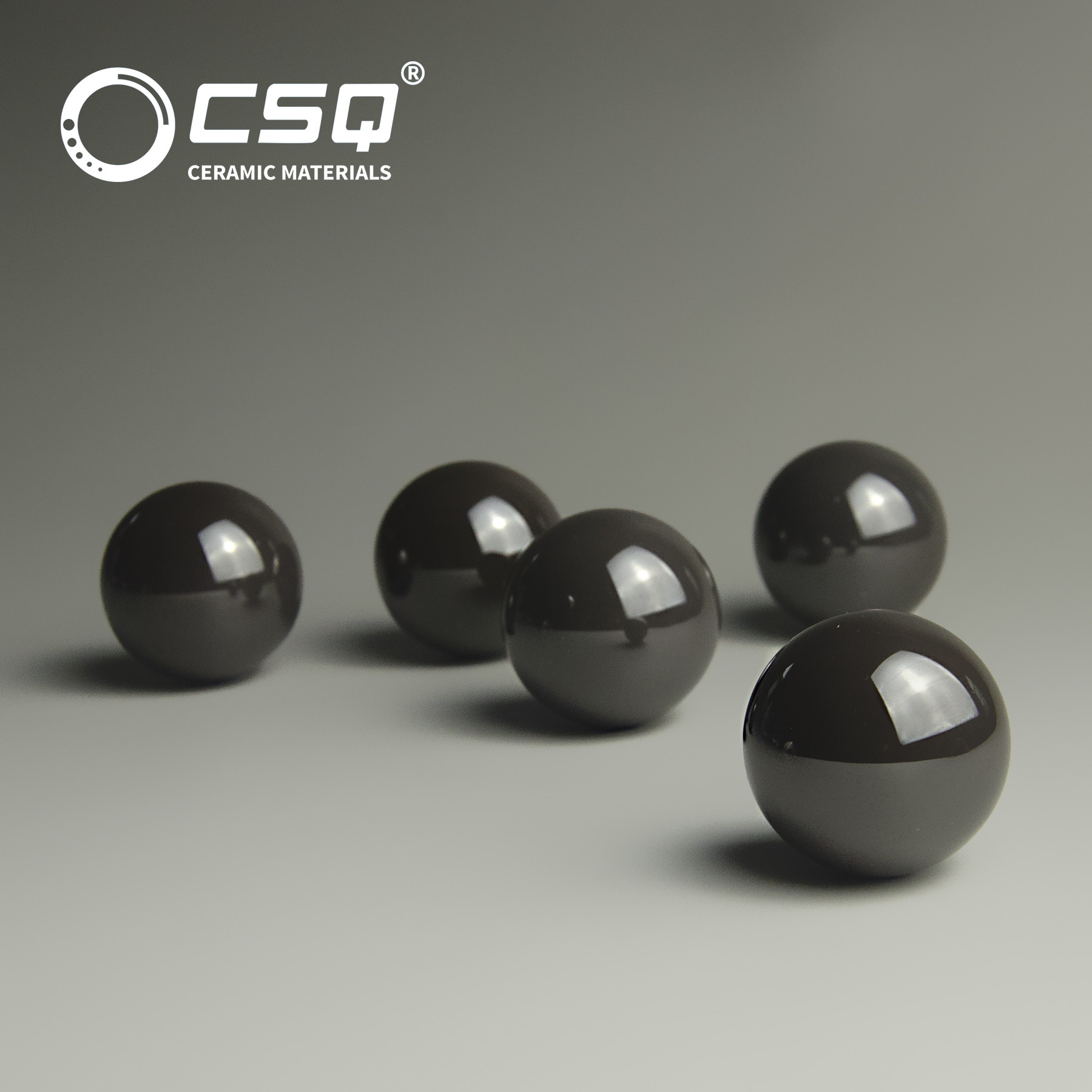

HIP Silicon Nitride Ball 11.906mm 1580 HV5 Hardness Ceramic Media Balls

  • HIP Silicon Nitride Ball 11.906mm 1580 HV5 Hardness Ceramic Media Balls
  • HIP Silicon Nitride Ball 11.906mm 1580 HV5 Hardness Ceramic Media Balls
Place of Origin China
Brand Name CSQ
Model Number Non
Minimum Order Quantity 10000 pieces
Price Negotiable
Packaging Details Sealed packing in plastic bags+foam+carton box
Delivery Time 20-30 work days
Payment Terms T/T
Supply Ability 10000 pieces in 20-30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ø11.906 Mm Silicon Nitride Ceramic Bearing Ball Material HIP-Si3N4 (Hot Isostatic Pressure Sintered Silicon Nitride)
Grade G5/G10 Size Ø11.906mm
Color Black Or Brownish Red Use ZrO2/Si3N4 Ceramic Bearing Ball
MOQ 10000 Pieces Pacage Sealed Packing In Plastic Bags+foam+carton Box
Highlight

HIP Silicon Nitride Balls 1580 HV5

,

Silicon Nitride Balls 11.906mm

,

580 HV5 Hardness Ceramic Media Ball
Leave a Message
Product Description



Ø11.906 mm Silicon Nitride Ceramic Bearing Ball With G5/G10 Precision Grade



Our silicon nitride ceramic bearing balls are made of highly purified, submicron powder with an alpha phase of more than 92%, and are sintered by HIP (Hot Isostatic Pressure) technology. Because of our advantages in material recipe and sintering and manufacturing technology, our HIP-Si3N4 ceramic bearing balls can reach G5 precision grade. Besides, our company had established massive and automatic production line for ceramic balls, our design annual output is 150,000,000 pieces ceramic rolling balls. Welcome your inquiry.



► Key properties of hot isostatic sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation



HIP Silicon Nitride Ball 11.906mm 1580 HV5 Hardness Ceramic Media Balls 0
