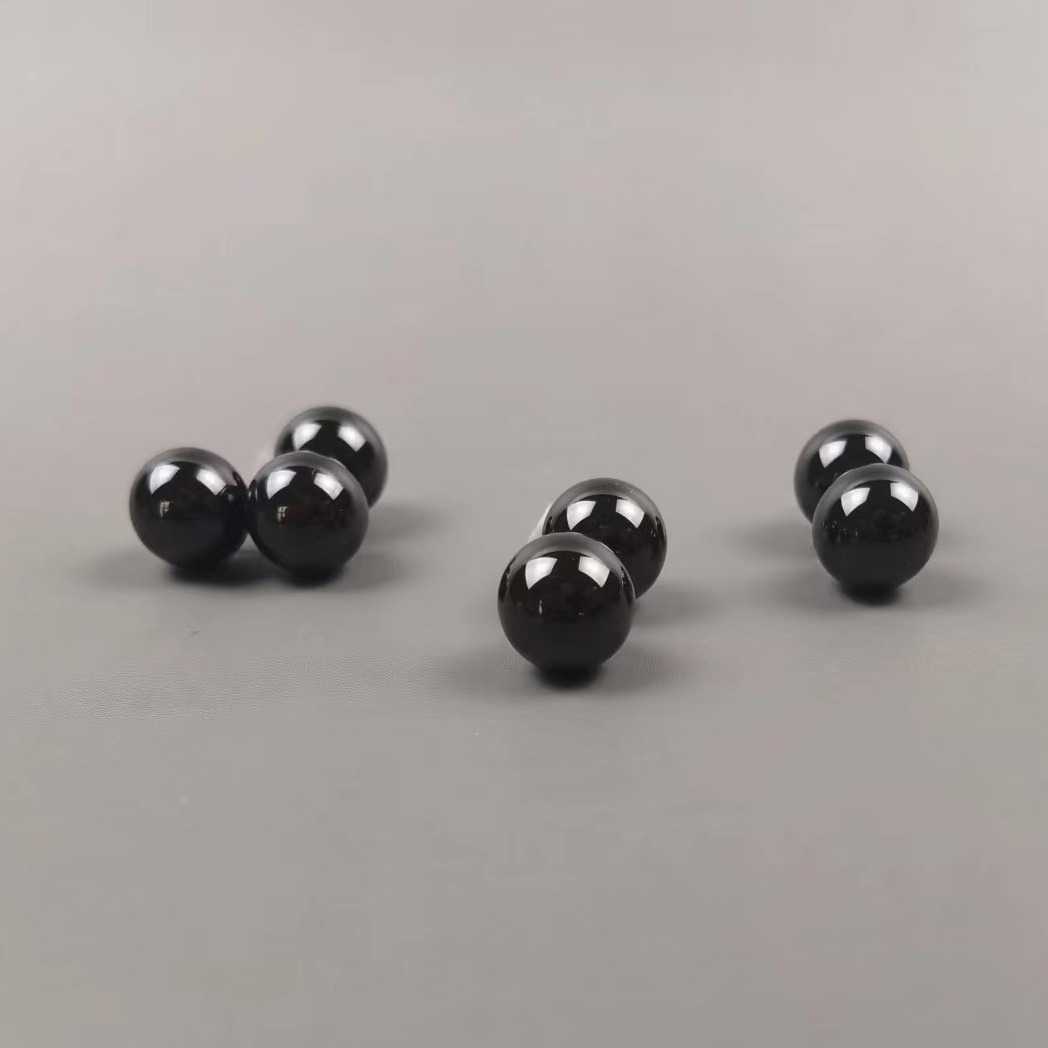

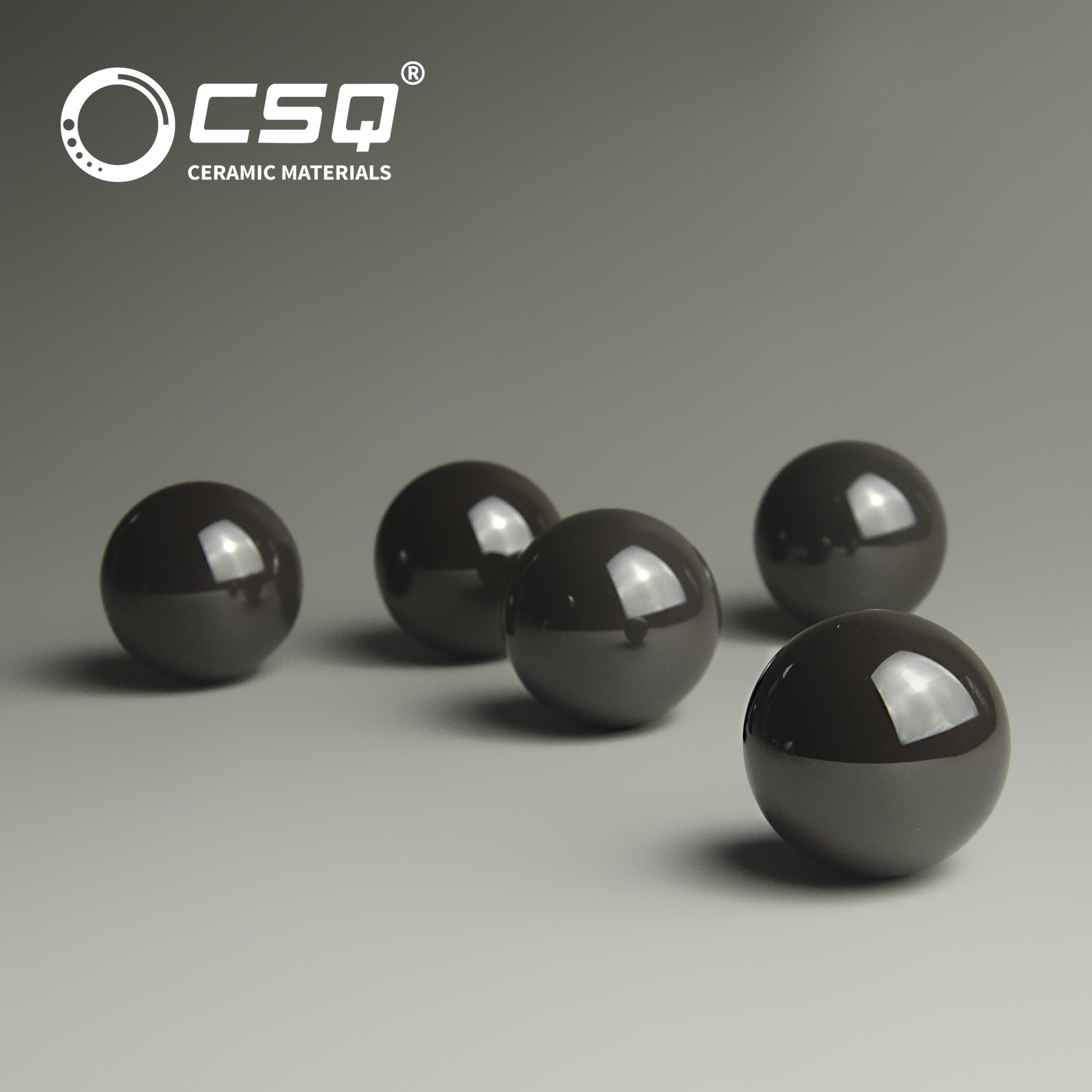

7.938mm Silicon Nitride Ball HIP Si3N4 830MPa

  • 7.938mm Silicon Nitride Ball HIP Si3N4 830MPa
  • 7.938mm Silicon Nitride Ball HIP Si3N4 830MPa
  • 7.938mm Silicon Nitride Ball HIP Si3N4 830MPa
Place of Origin China
Brand Name CSQ
Model Number Non
Minimum Order Quantity 10000 pieces
Price Negotiable

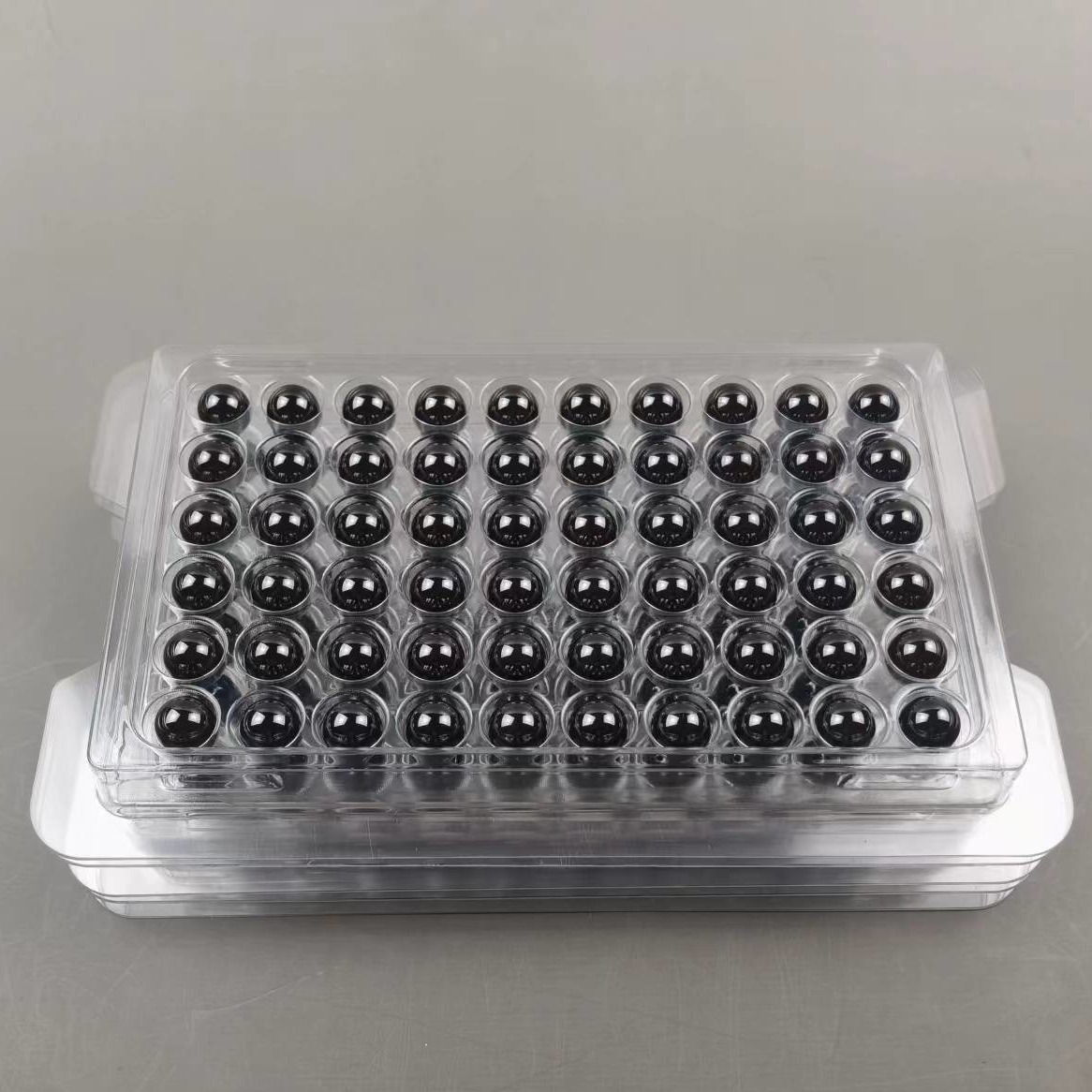

Packaging Details Plastik box+carton box
Delivery Time 20-30 work days
Payment Terms T/T
Supply Ability 10000 pieces in 20-30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ø7.938mm HIP-Si3N4 Ball Material Hot Isostatic Pressure Sintered Silicon Nitride
Grade G5 Size Ø7.938mm
Technology Hot Isostatic Pressure Sintering Technology Use Bearing Ball
Suitable Model 6004/6005 Etc. Pacage Plastik Box+carton Box
Highlight

7.938mm Silicon Nitride Ball 830MPa

,

Silicon Nitride Balls 830MPa

,

Si3N4 Ball 830MPa
Leave a Message
Product Description



Ø7.938mm HIP-Si3N4 Ball With G5 Grade For Ceramic Ball Bearing



Description of Ø7.938mm HIP-Si3N4 Ball:



They are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and are sintered by HIP (Hot Isostatic Pressure) technology. So there are less pore in the blanks, which is key point to grind G5 Grade Ø7.938mm silicon nitride balls . Our company has more than two production lines specializing in the production of high-precision silicon nitride balls in many sizes. Silicon nitride material has a small volume density, light weight structure, resistance to dry friction, low coefficient of linear expansion, self-lubrication, high fatigue life and excellent resistance to corrosion and high temperature is the preferred ball material for ultra-high speed and high precision ceramic bearings.



Ceramin material engineering properties



Mechanical Properties HIP-Si3N4
Density 3.27-3.29 g/cm3
Porosity 0%
Fledural Strength 830 MPa
Elastic Modulus 310 GPa
Poisson's Ratio 0.27
Hardness 1580 HV5
Fracture Toughness KIC 6.1 MPa.m1/2
Max. Use Temperature 1000 ℃
Thermal conductivity 30 W/m° K
