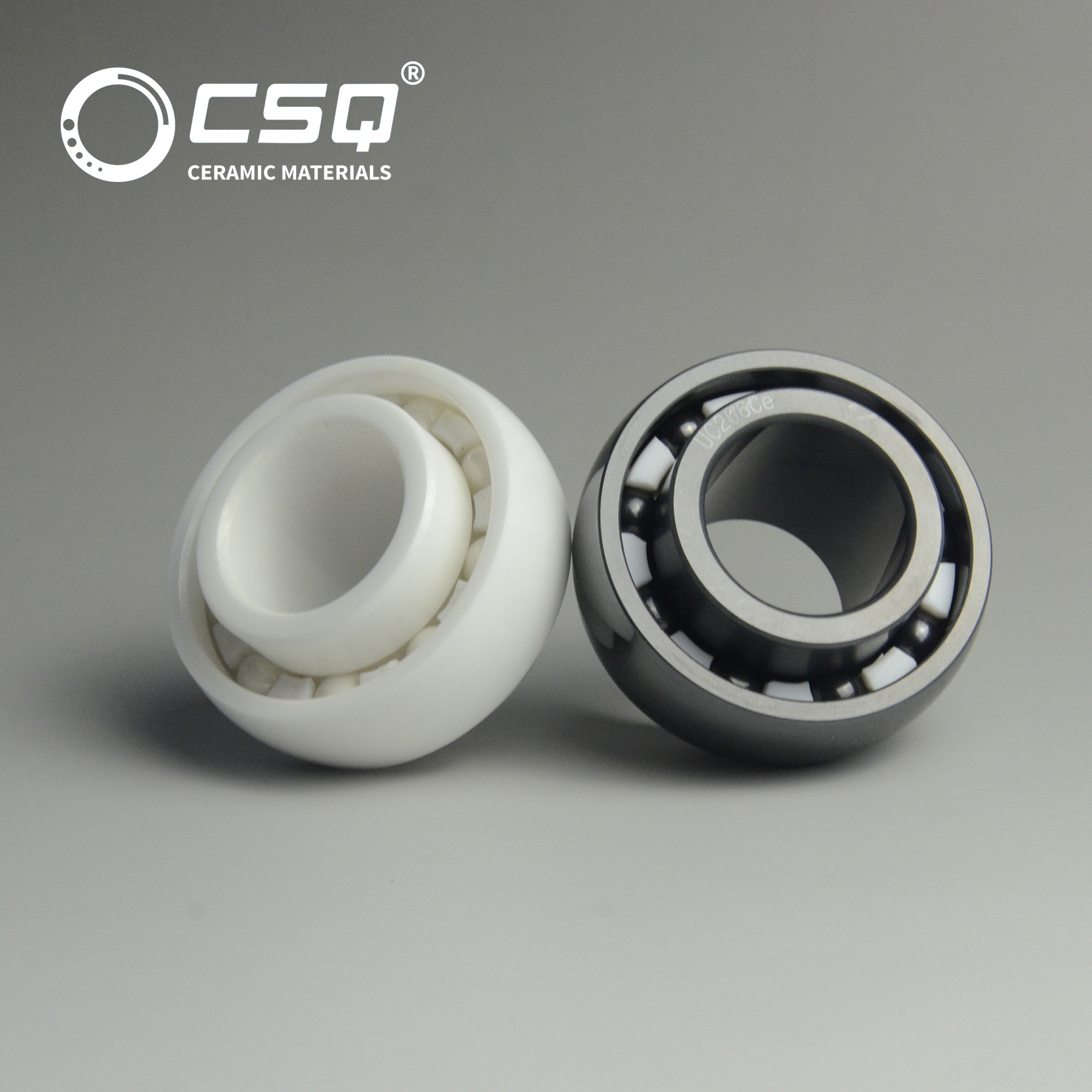

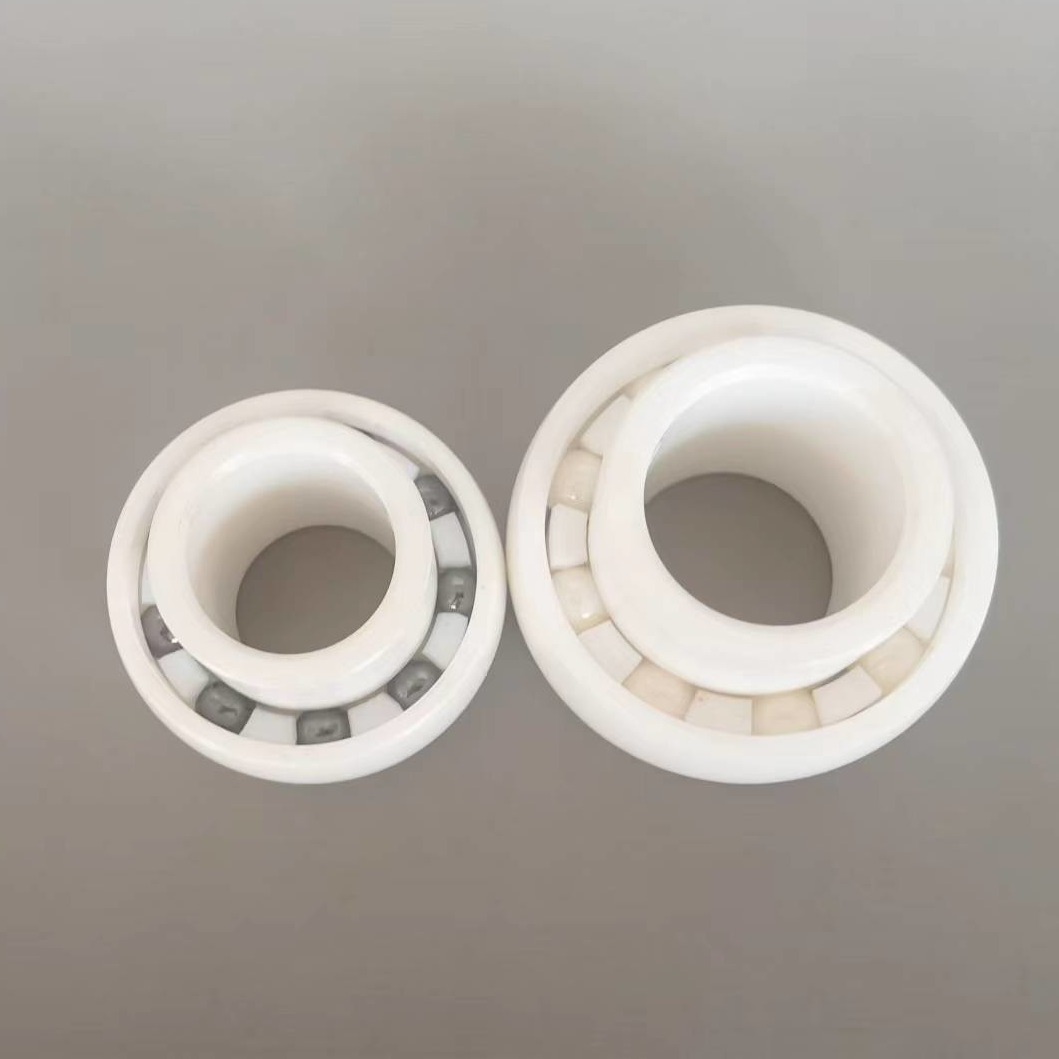

UC203 UC202 uc201 SSiC zro2 ball bearing Ceramic Insert Bearings Adapting Thread

  • UC203 UC202 uc201 SSiC zro2 ball bearing Ceramic Insert Bearings Adapting Thread
  • UC203 UC202 uc201 SSiC zro2 ball bearing Ceramic Insert Bearings Adapting Thread
Place of Origin China
Brand Name CSQ
Model Number UC200 series
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Insert Bearings With Adapting Thread Model UC200 Series
Race Material Silicon Carbide Or Zirconia Ball Material Silicon Carbide Or Zirconia
Cage Material Peek//PFA MOQ 50 Pieces
Pacage Foam+cartom Box Delivery Time Negotiable
Highlight

uc201 bearing

,

zro2 bearings

,

uc201 Ceramic Insert Bearings
Leave a Message
Product Description



Ceramic Insert Bearings With Adapting Thread In Material Of SSiC or ZrO2



Description of Ceramic Insert Bearings with adapting thread:


Our company can produce ceramic insert bearings with adapting thread in material of silicon carbide or zirconia. As a professional Chinese ceramic bearing manufacturer, we can customize ceramic insert bearings of different material, precision and model according to your need.



Material Properties Units SSiC HIP-ZrO2
Density g/cm3 3.15-3.18 6.05-6.09
Porosity % 0 0
Fledural Strength MPa 550 900
Elastic Modulus GPa 410 200
Hardness HV5 2800 1300
Fracture Toughness KIC MPa.m1/2 4.6 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

380
(716)


Reference data of Ceramic Insert Bearings with adapting thread



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
UC201CE 12 29 47 12.7 18.3 4.5 M6×0.75
UC202CE 15 29 47 12.7 18.3 4.5 M6×0.75
UC203CE 17 29 47 12.7 18.3 4.5 M6×0.75
UC204CE 20 29 47 12.7 18.3 4.5 M6×0.75
UC205CE 25 34 52 14.3 19.7 5 M6×0.75
UC206CE 30 40.5 62 15.9 22. 5 M6×0.75
UC207CE 35 48 72 17.5 25.4 6 M8×1.0
UC208CE 40 53 80 19 30.2 8 M8×1.0
UC209CE 45 57.3 85 19 30.2 8 M8×1.0
UC210CE 50 63 90 19 32.6 9 M10×1.25
UC211CE 55 70 100 22.2 33.4 9 M10×1.25
UC212CE 60 77 110 25.4 39.7 10 M10×1.25
UC213CE 65 82.1 120 25.4 39.7 10 M10×1.25
UC214CE 70 87 125 30.2 44.4 12 M12×1.5
UC215CE 75 91.5 130 33.3 44.5 14 M12×1.5
