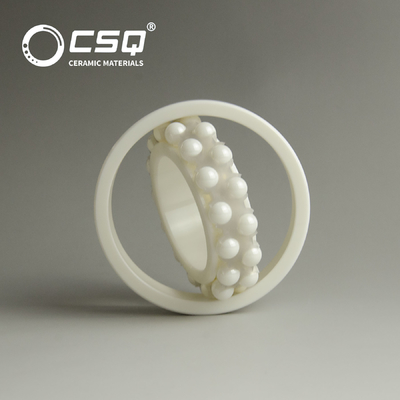

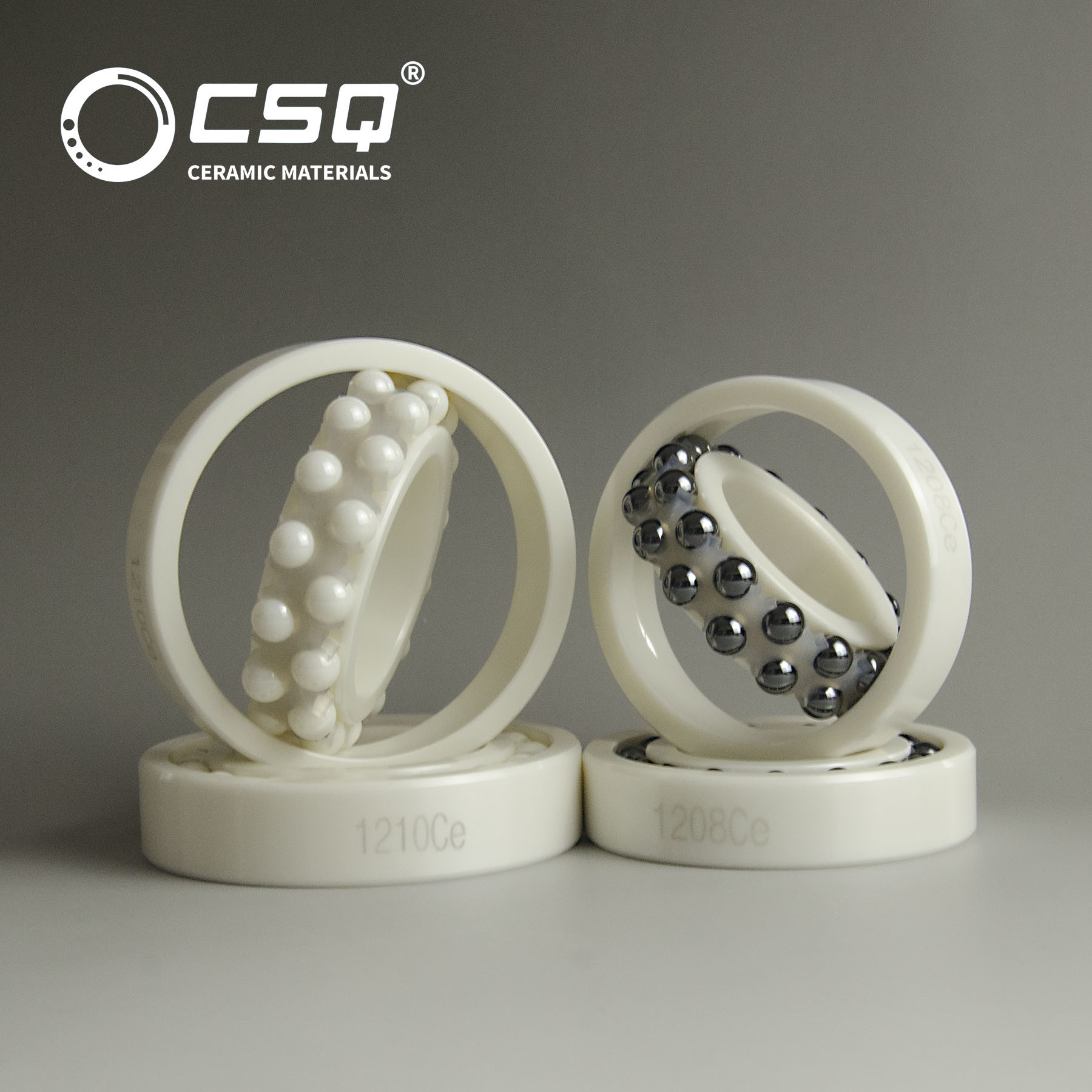

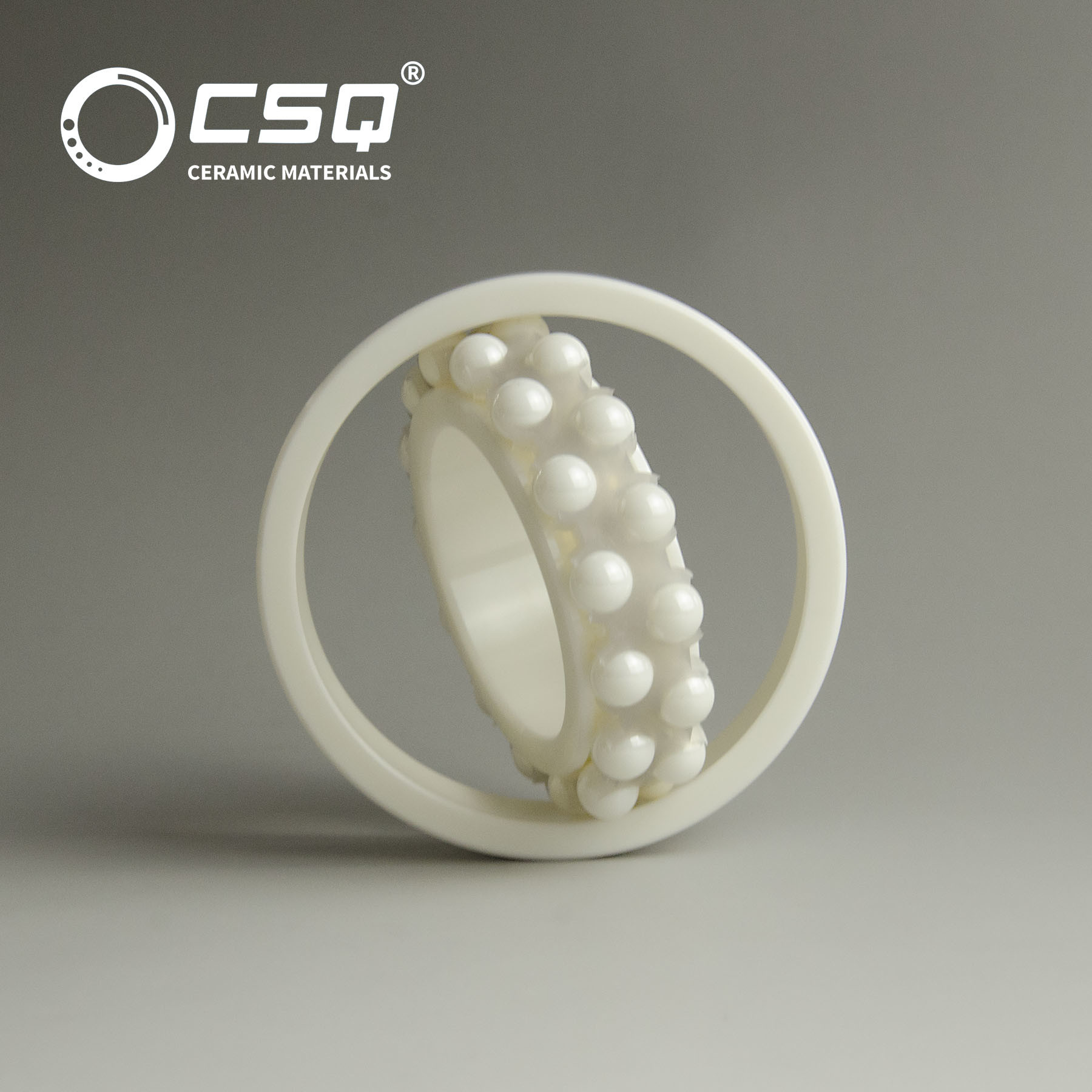

Ceramic Zirconium Oxide Bearings 1210 50x90x20mm

  • Ceramic Zirconium Oxide Bearings 1210 50x90x20mm
  • Ceramic Zirconium Oxide Bearings 1210 50x90x20mm
Place of Origin China
Brand Name CSQ
Model Number 1210
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Bearing 1210CE Category Ceramic Double-row Self-aligning Bearing
Material Zirconia Races And Balls +PFA Cage Precision P6/ABEC3
Form Size 50×90×20mm Ball Size 12.7 Mm
Use Chemical/antimagnetic Condition Pacage Foam+cartom Box
Highlight

zirconium oxide bearings 1210 CSQ

,

bearing zirconium oxide ceramic 1210

,

Zirconium Oxide Bearings 50x90x20mm 1210
Leave a Message
Product Description



Ceramic Bearing 1210CE of ZrO2 Races and Balls+PFA Cage OF P6/ABEC3 Precision



Description of Ceramic Bearing 1210CE:



1. Zirconia races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. PFA cage: PFA is a reformed material of , its melting cohesiveness is enhanced and the viscosity of the solution is decreased, while the properties are unchanged compared with that of PTFE. The resin can be directly processed by ordinary thermoplastic molding.



Performance advantages of Ceramic Bearing 1210CE:



Combined the outstanding properties of zirconia, the ceramic bearing 1210CE has good resistance to many kinds of corrosion, like strong acid and alkali corrosion,high temperature resistance(max work temp: 380℃), high fledural strength (900 MPa) and high elastic modulus (200 GPa),  high hardness (1300 HV5) and excellent electric insulation.



Main application of Ceramic Bearing 1210CE:



Because of the outstanding porperties, the zieconia are suitable for chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.



Ceramic Bearings Dimension Reference Sheet
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
1210CE 20430 8100 7540 8840
