Si3n4 Zirconia Ceramic Balls Grinding Media Rollers G5 G40 Grade

  • Si3n4 Zirconia Ceramic Balls Grinding Media Rollers G5 G40 Grade
  • Si3n4 Zirconia Ceramic Balls Grinding Media Rollers G5 G40 Grade
  • Si3n4 Zirconia Ceramic Balls Grinding Media Rollers G5 G40 Grade
  • Si3n4 Zirconia Ceramic Balls Grinding Media Rollers G5 G40 Grade
Place of Origin China
Brand Name CSQ
Minimum Order Quantity 10000 pieces
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 20 work days
Payment Terms T/T
Supply Ability 10000 pieces in 20 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zirconia Ceramic Balls/Rollers Material Hot Isostatic Pressure Sintered Zirconia
Grade G5-G40 Size Ø1.588-Ø60mm
Technology Hot Isostatic Pressure Sintering Technology Use Ceramic Rolling Bearing
Pacage Foam+cartom Box MOQ 10000 Pieces
Highlight

si3n4 ceramic balls

,

Zirconia Ceramic Ball G40

,

Zirconia Ceramic Ball G5
Leave a Message
Product Description

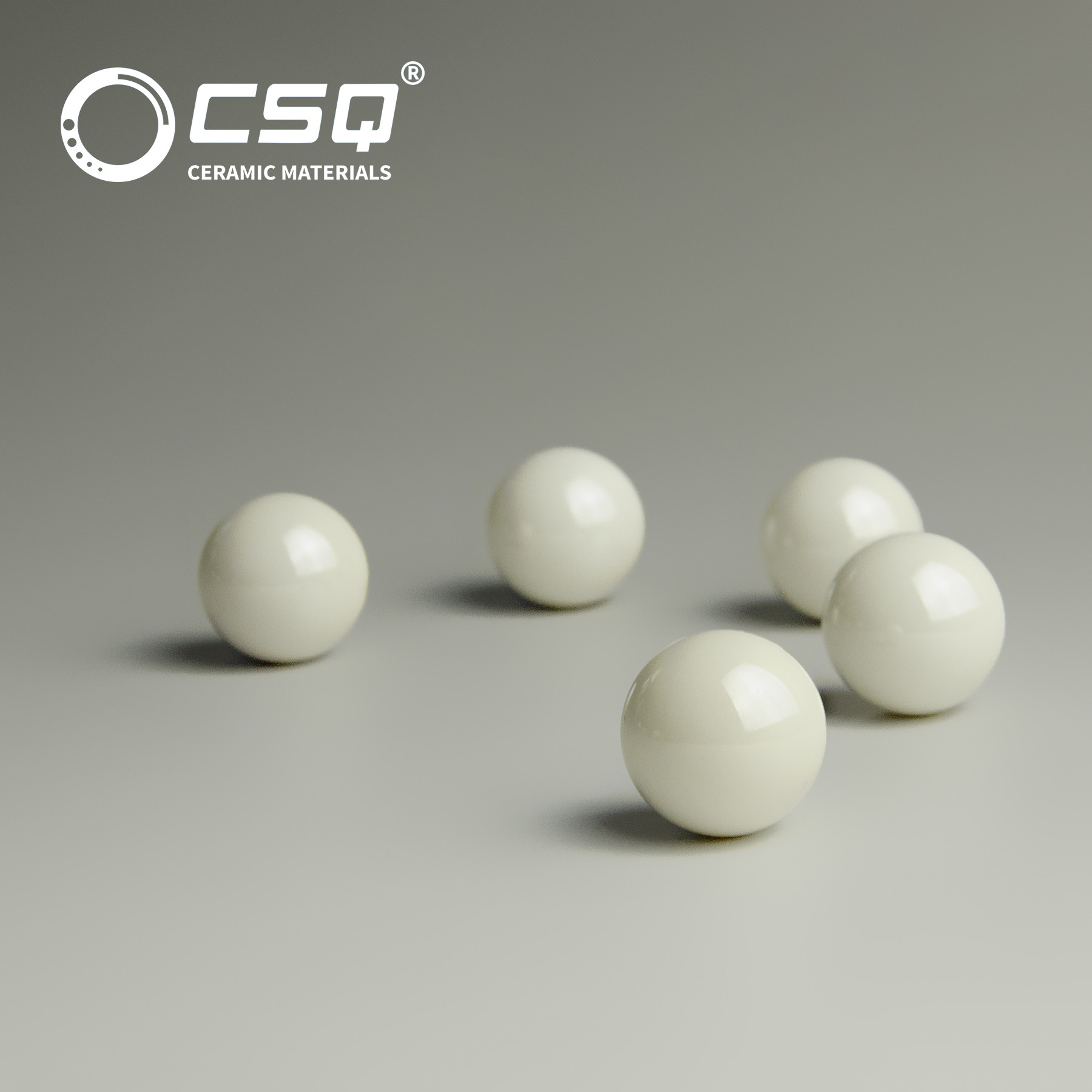

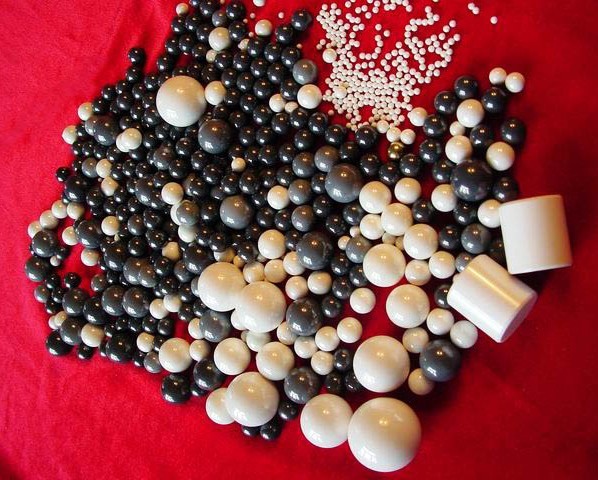

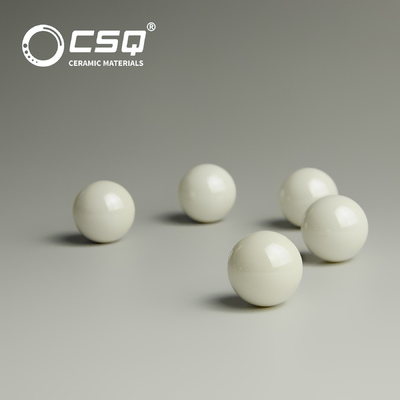

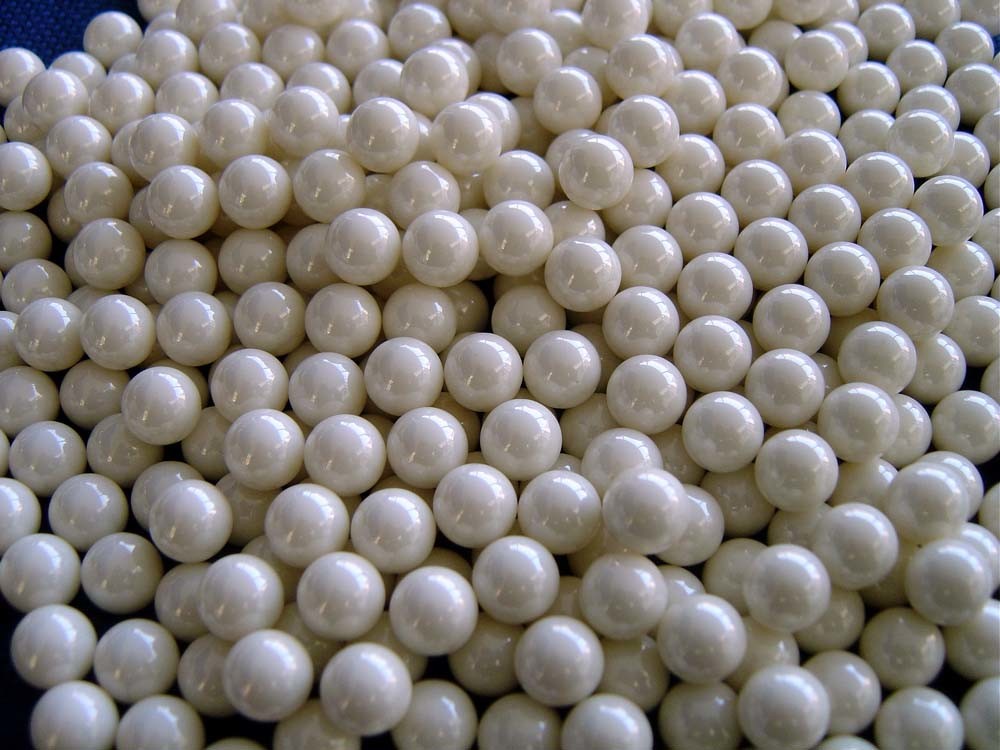

Zirconia Ceramic Beaing Balls/Rollers Of Customized Size With High Precision



Description of Zirconia Ceramic Balls/Rollers:



Our zirconia ceramic balls/rollers are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. At present, our company has two production lines specializing in the production of high-precision ceramic balls, and can produce customized zirconia balls or rollers, which are used as ceramic bearing balls., whose accuracy level shall reach to G3, G5 and G10 or quality is equivalent to ASTM F2094 F2094M-08 grade I and II materials. Our producible size range of ceramic balls and ceramic ball valves is from 1.588mm to 60mm.



Ceramin material engineering properties



Mechanical Properties HIP-ZrO2
Density 6.05-6.09 g/cm3
Porosity 0%
Fledural Strength 900 MPa
Elastic Modulus 200 GPa
Hardness 1300 HV5
Fracture Toughness KIC 8-11 MPa.m1/2
Max. Use Temperature 380 ℃
Coefficient of Thermal Expansion 10.3 10-6/℃



Si3n4 Zirconia Ceramic Balls Grinding Media Rollers G5 G40 Grade 0
