3.969mm Zirconia Ceramic Ball Hip ZrO2 high precision
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Minimum Order Quantity | 10000 pieces |
| Price | Negotiable |
| Packaging Details | Sealed packing in plastic bags+foam+carton box |
| Delivery Time | 20 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 pieces in 20 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Ø3.969mm Hip-ZrO2 Ceramic Ball | Material | Hot Isostatik Pressure Sintered Zirconia |
|---|---|---|---|
| Grade | G5/G10 | Size | Ø3.969mm |
| Technology | Hot Isostatic Pressure Sintering Technology | Use | Ceramic Bearing Ball |
| Suitable Model | 608/609/627/628/636/6810/6902/6903 Etc. | Pacage | Sealed Packing In Plastic Bags+foam+carton Box |
| Highlight | 3.969mm Zirconia Ceramic Ball,Zirconia Ceramic Ball high precision,ceramic zro2 |
||
Product Description

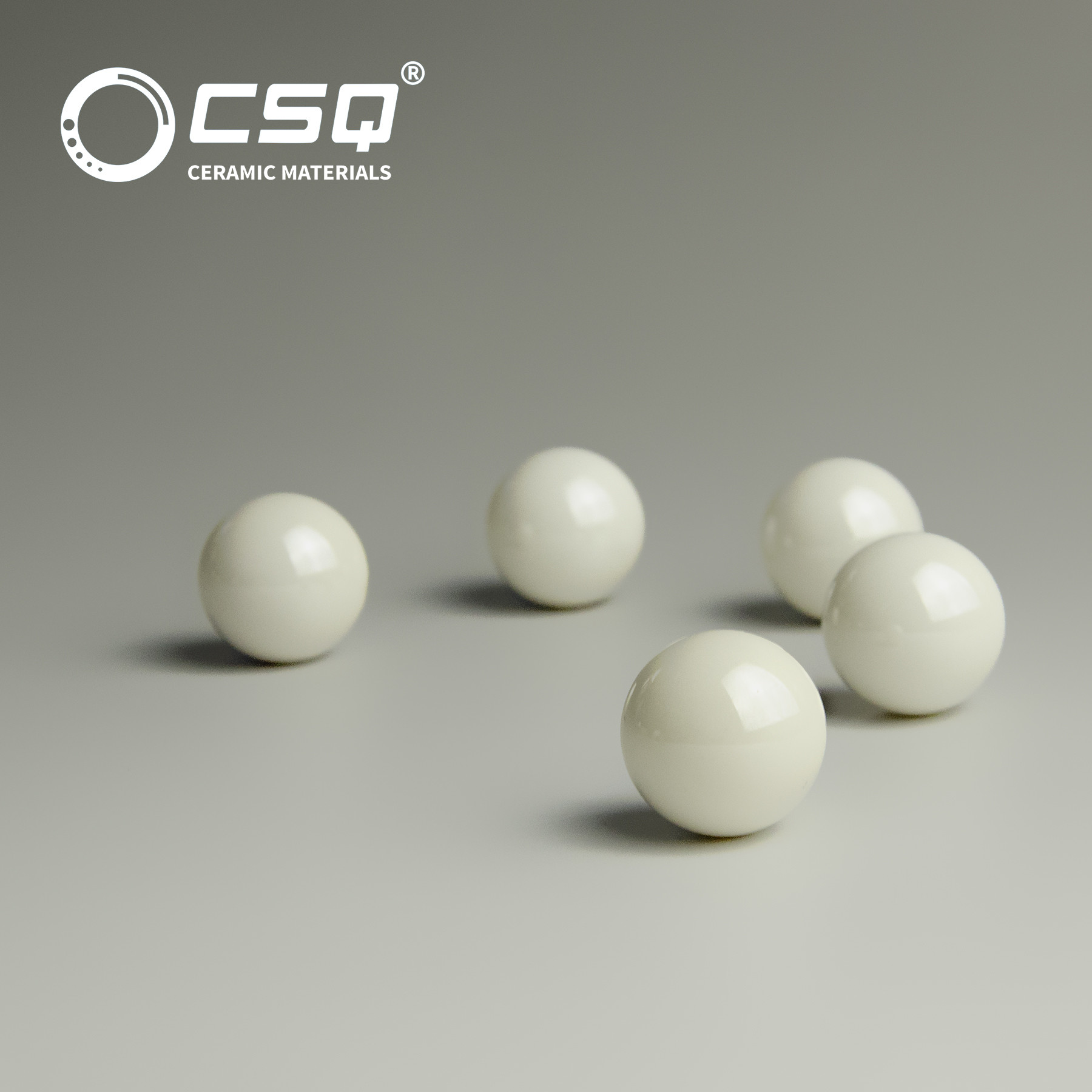

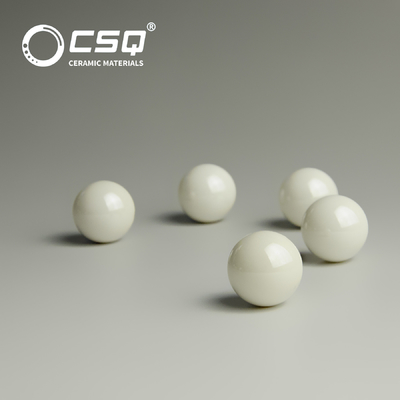

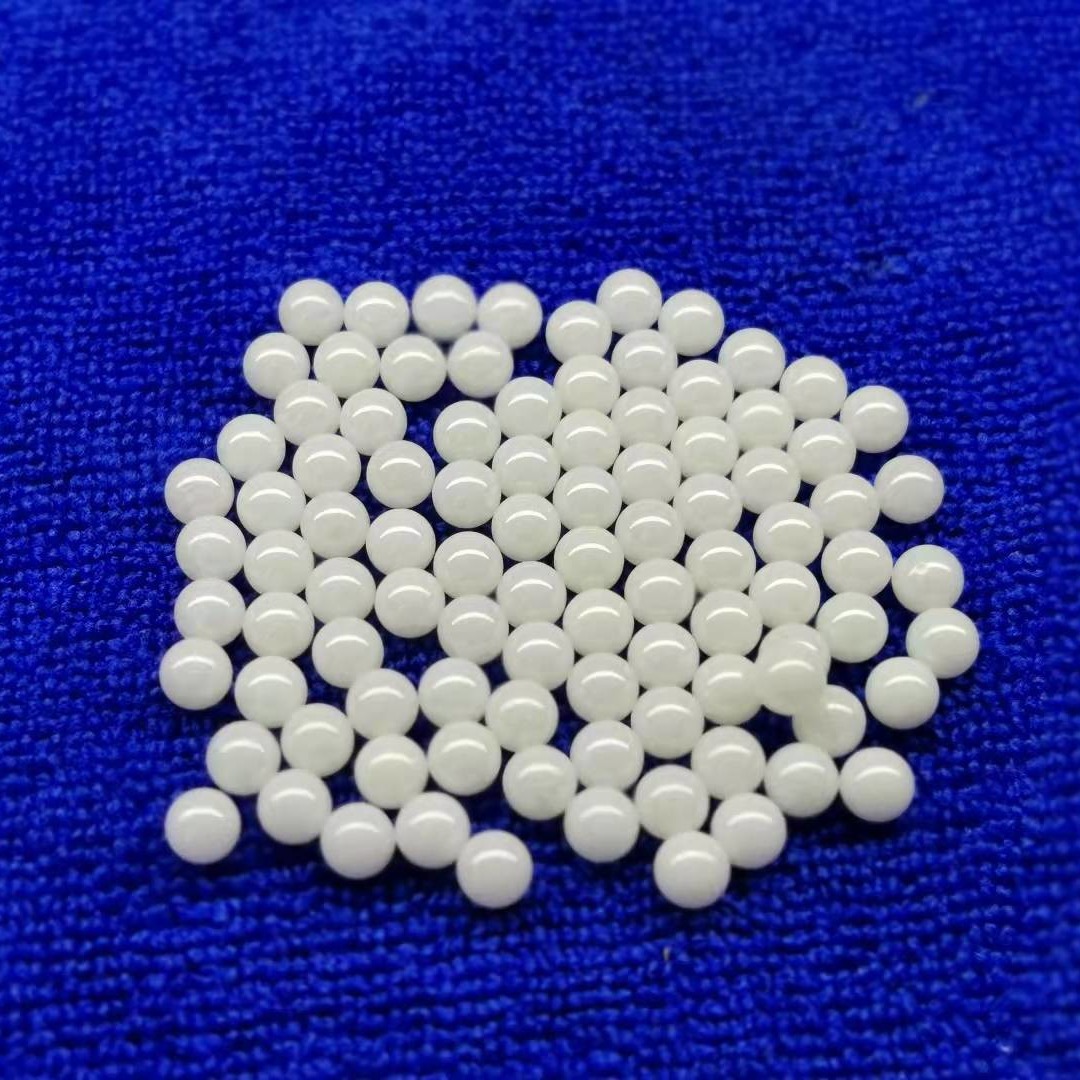

Ø3.969mm Hip-ZrO2 Ceramic Ball With G5-G10 Grade For Ceramic Bearings
Description of Ø3.969mm Hip-ZrO2 Ceramic Ball:
Are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved. At present, our company has two production lines specializing in the production of high-precision ceramic balls, and our design annual output of Ø3.969mm Hip-ZrO2 Ceramic Ball can reach millions of pieces, which are suitable material for ceramic bearings with high precision.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
