Zr02 Zirconium Oxide Balls 4.763mm G5-G10 Grade
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Minimum Order Quantity | 10000 pieces |
| Price | Negotiable |
| Packaging Details | Sealed packing in plastic bags+foam+carton box |
| Delivery Time | 20 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 pieces in 20 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ZrO2 Ceramic Ball Of Ø4.763mm | Material | Hot Isostatic Pressure Sintered Zirconia |
|---|---|---|---|
| Grade | G5/G10 | Size | Ø4.763mm |
| Technology | Hot Isostatic Pressure Sintering Technology | Use | Ceramic Bearing Ball |
| Suitable Model | 629/637/638/639/6000/6001/6002/6003/6904/6905/6906 Etc. | Pacage | Sealed Packing In Plastic Bags+foam+carton Box |
| Highlight | zr02 zirconium oxide balls,zirconium oxide balls 4.763m,zr02 ceramic |
||
Product Description

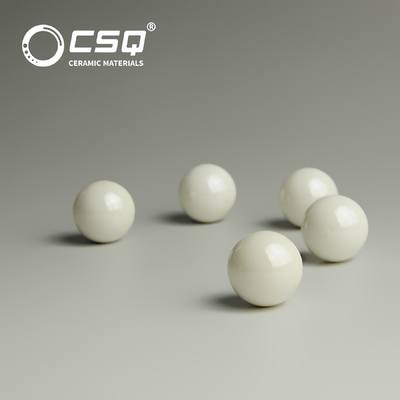

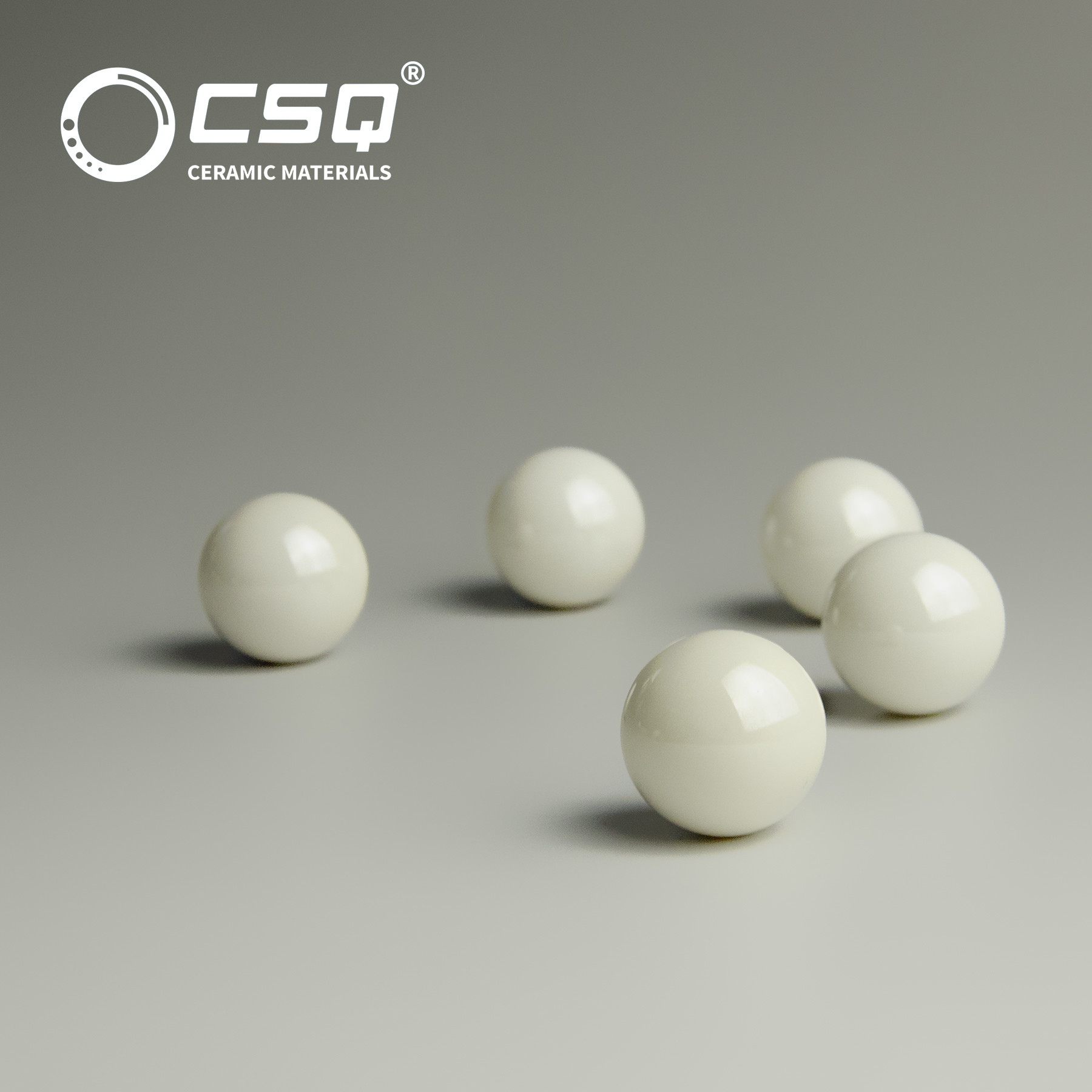

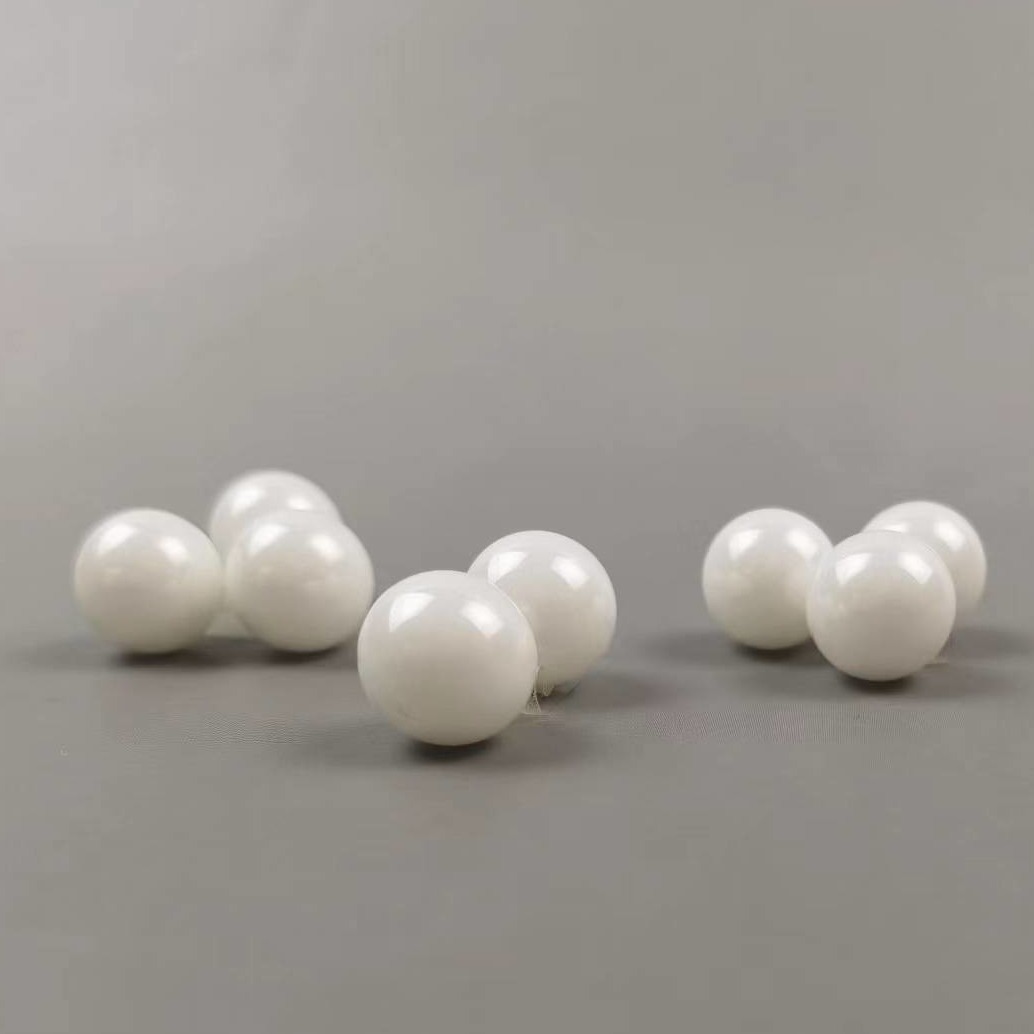

ZrO2 Ceramic Ball of Ø4.763mm With G5-G10 Grade For Ceramic Bearings
Description of ZrO2 Ceramic Ball of Ø4.763mm:
Our zirconia ceramic balls are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved. At present, our company has two production lines specializing in the production of high-precision ceramic balls Because of the good properties of zirconia, ceramic balls in material of zirconia fitted in bearings can improve the bearings operating performance.
| ►Key properties of zirconia |
| ♦High hardness : 1300 HV5 |
| ♦ High density: 6.09 g/cm3 |
| ♦ Max Temperature up to 380℃ |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 and good wear resistance |
| ♦ Low thermal conductivity |
| ♦ Better bearing capacity |
| ♦ Good electric insulation |
