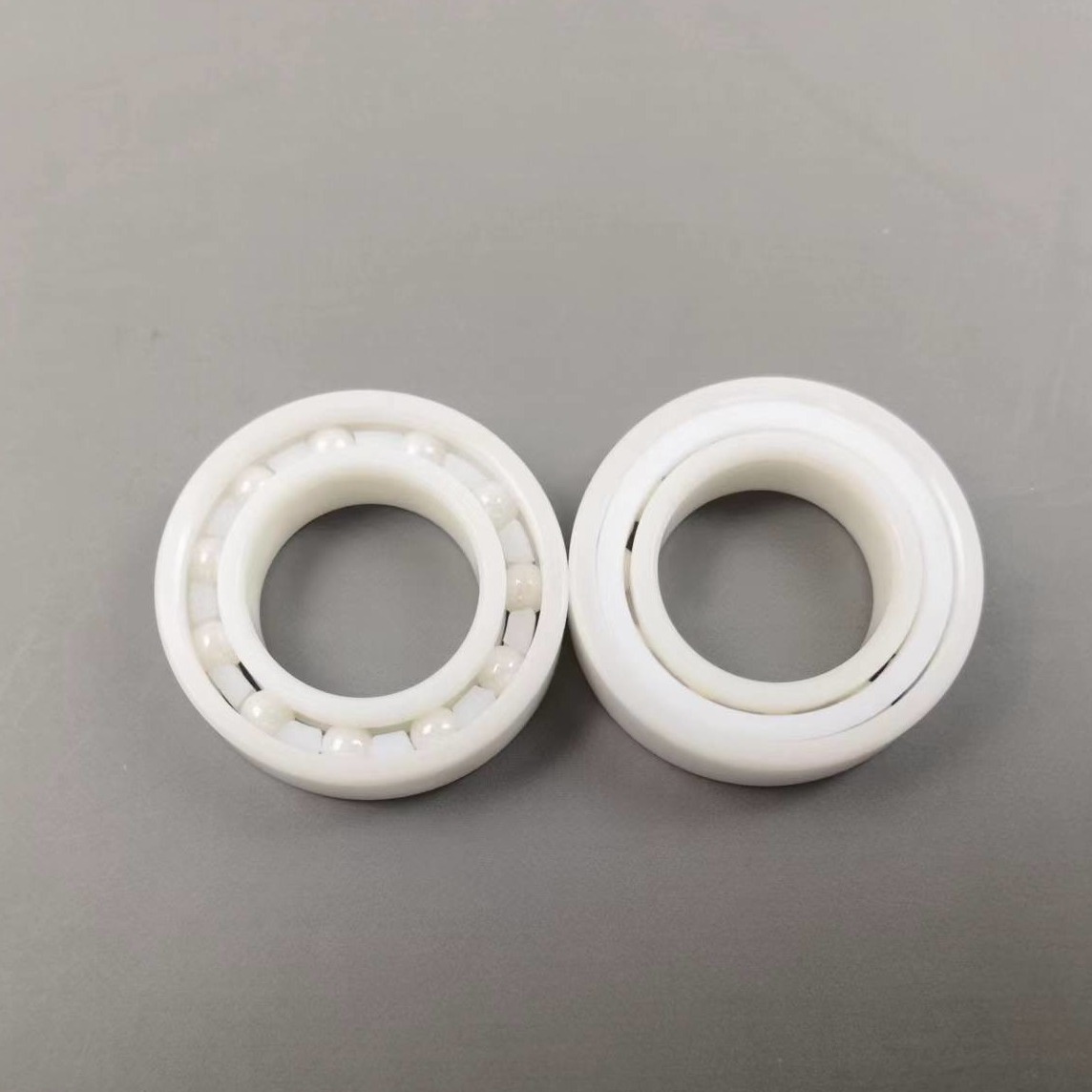

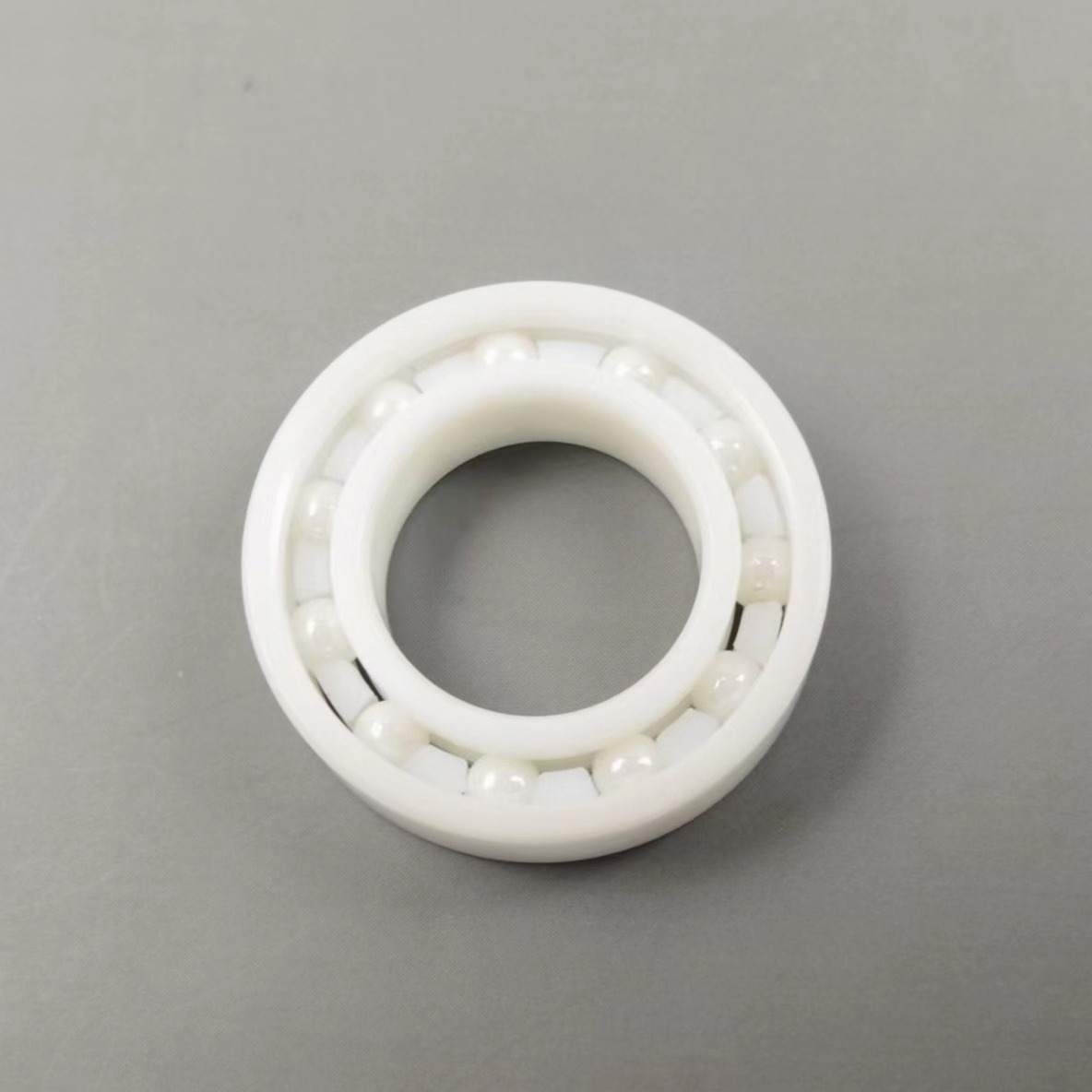

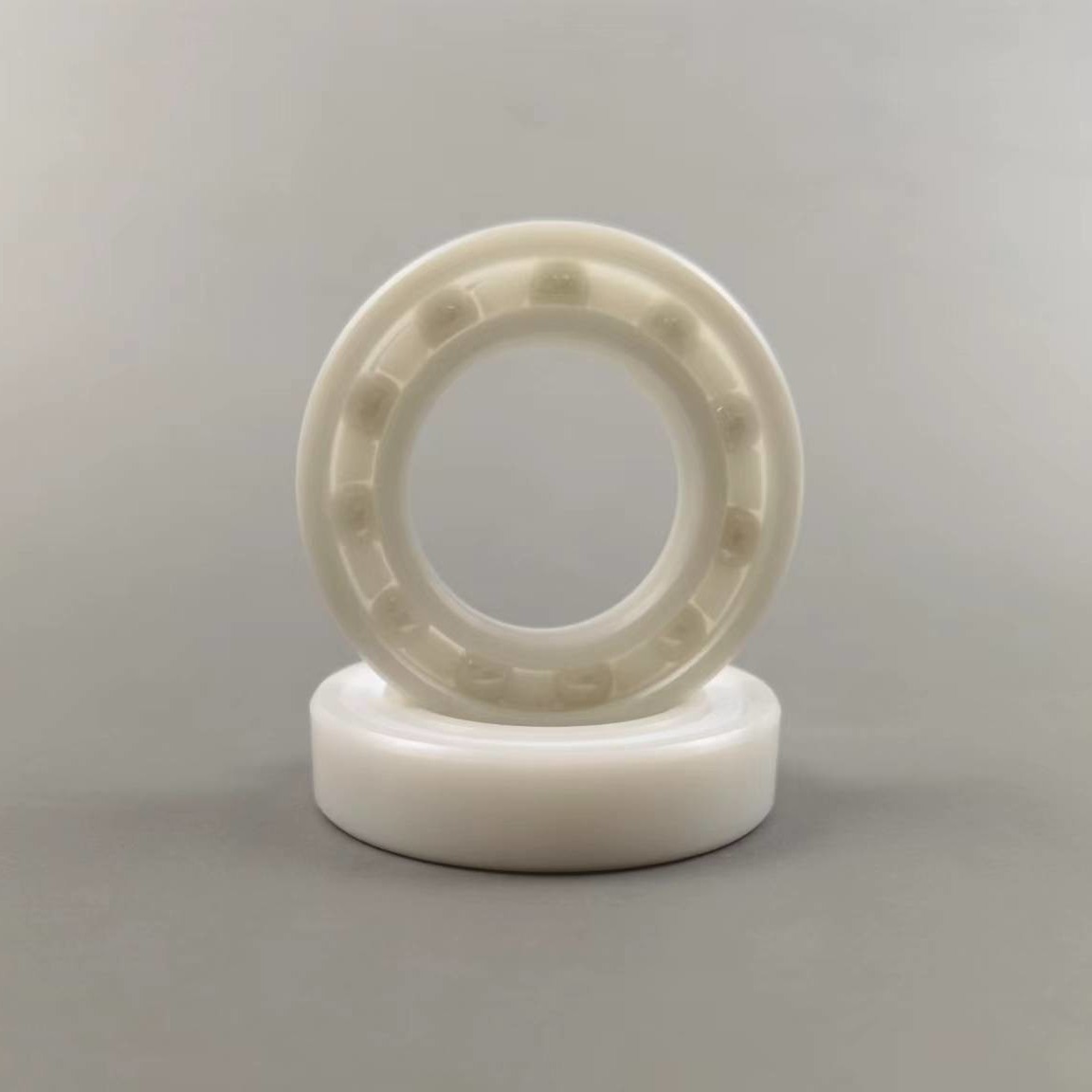

6903-2rs 6900 6904 6905 Zirconia Ceramic Bearing 17x30x7mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6903(61903CE) |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6903 All-ZrO2 Ceramic Bearing | Material | ZrO2 Races And Balls + PTFE Cage |
|---|---|---|---|
| Form Size | Ø17×Ø30×7mm | Ball Size | Zirconia Ball Of Ø3.969mm |
| Precision | P6/ABEC3 | Pacage | Plastik Bag+foam+carton Box |
| MOQ | 50 Pieces | Delivery Time | 30-40 Work Days |
| Highlight | 6903-2rs ceramic bearing,6905 ceramic bearing,6900 ceramic bearing |
||
Product Description
6903 All-ZrO2 Ceramic Bearing Fitted With Cage Of P6/ABEC3 Precision
Description of 6903 All-ZrO2 Ceramic Bearing:
1. ZrO2 races and balls: Races are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material and are precessed by GPS or HIP sintering technology.
2. cage: has excellent chemical stability, can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent,can work in +250℃ to -180℃ temperature for a long time.
Performance advantages of 6903 All-ZrO2 Ceramic Bearing:
Zirconia bearings have high hareness (1300 HV5) high density (6.09 g/cm3) low thermal conductivity, high fracture toughness KIC:8-11 MPa-m1/2,good electric insulation and excellent chemical stability, resistance to acid and alkali corrosion, its max working temperature can reach 380 ℃.
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 61903CE | 3450 | 2550 | 24000 | 31900 |
