Technical And Advanced Structural Ceramics Rotor For Pump CSQ

  • Technical And Advanced Structural Ceramics Rotor For Pump CSQ
  • Technical And Advanced Structural Ceramics Rotor For Pump CSQ
Place of Origin China
Brand Name CSQ
Model Number Customized
Minimum Order Quantity 5 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 40-60 work days
Payment Terms T/T
Supply Ability 5 pcs in 40-60 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Rotor Category Advanced Structural Ceramic
Material Silicon Carbide Or Zirconia Size Customized, According To The Drawings
Use Rotor Pump Pacage Foam+cartom Box
Highlight

technical and advanced structural ceramics CSQ

,

structural ceramic blocks CSQ

,

ceramics Rotor For Pumps CSQ
Leave a Message
Product Description

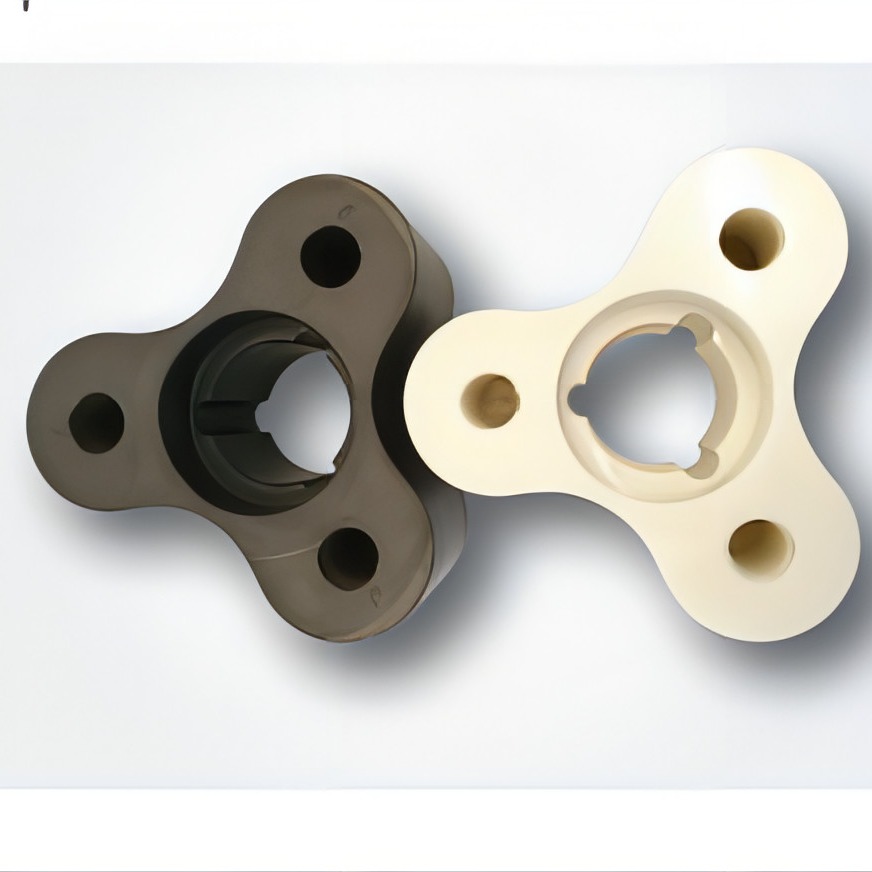

Ceramic Rotor For Rotor Pump In Material Of Silicon Carbide Or Zirconia



Description of ceramic rotor:

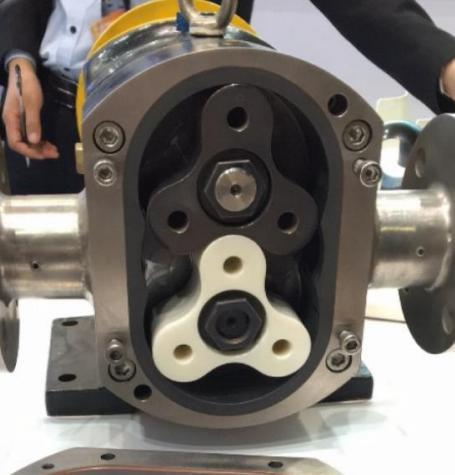

We can manufacture SSiC or ZrO2 ceramic rotor  which are used in rotor pump. Rotor pump can be applied to transmit a variety of complex fluid media. Because of the good resistance properties of silicon carbide and zirconium oxide, the rotor pump fitted with our ceramic rotor can work better in corrosive condition and higer temperature.



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
























►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

























Technical And Advanced Structural Ceramics Rotor For Pump CSQ 0
