Silicon Carbide Zirconia Ceramic Shaft For Pool Pump Impeller Rod

  • Silicon Carbide Zirconia Ceramic Shaft For Pool Pump Impeller Rod
  • Silicon Carbide Zirconia Ceramic Shaft For Pool Pump Impeller Rod
Place of Origin China
Brand Name CSQ
Model Number Customized
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 20-30 work days
Payment Terms T/T, T/T
Supply Ability 50 pcs in 20-30 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Shaft Category Advanced Structural Ceramic
Material Silicon Carbide Or Zirconia Precision Customized, According To The Drawings
Size Customized Pacage Foam+cartom Box
Highlight

zirconium shaft

,

silicon carbide shaft

,

ceramic impeller shaft
Leave a Message
Product Description



Customized Ceramic Shaft Of Silicon Carbide/Zirconia With High Precision



Description of ceramic shaft:



1. Silicon carbide shaft: Our silicon carbide is highly purified, sub-micron silicon carbide material after air pressure sintered, has high hardness Hv2800, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance. Because of the properties of SSiC, this material are usually used in the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc.



2. Zirconium oxide shaft: Our zirconia material has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1300, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction,



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
























►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

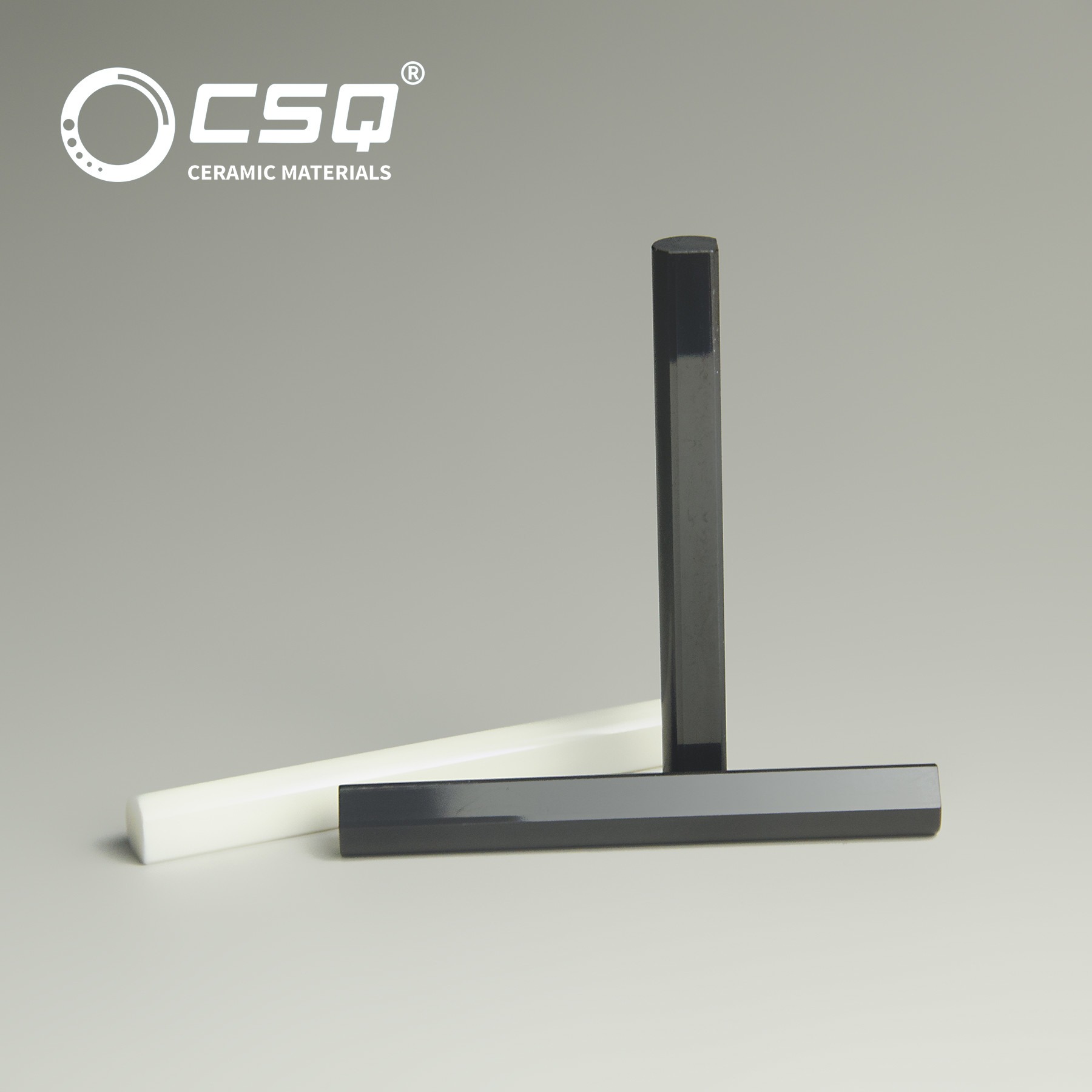

Silicon Carbide Zirconia Ceramic Shaft For Pool Pump Impeller Rod 0

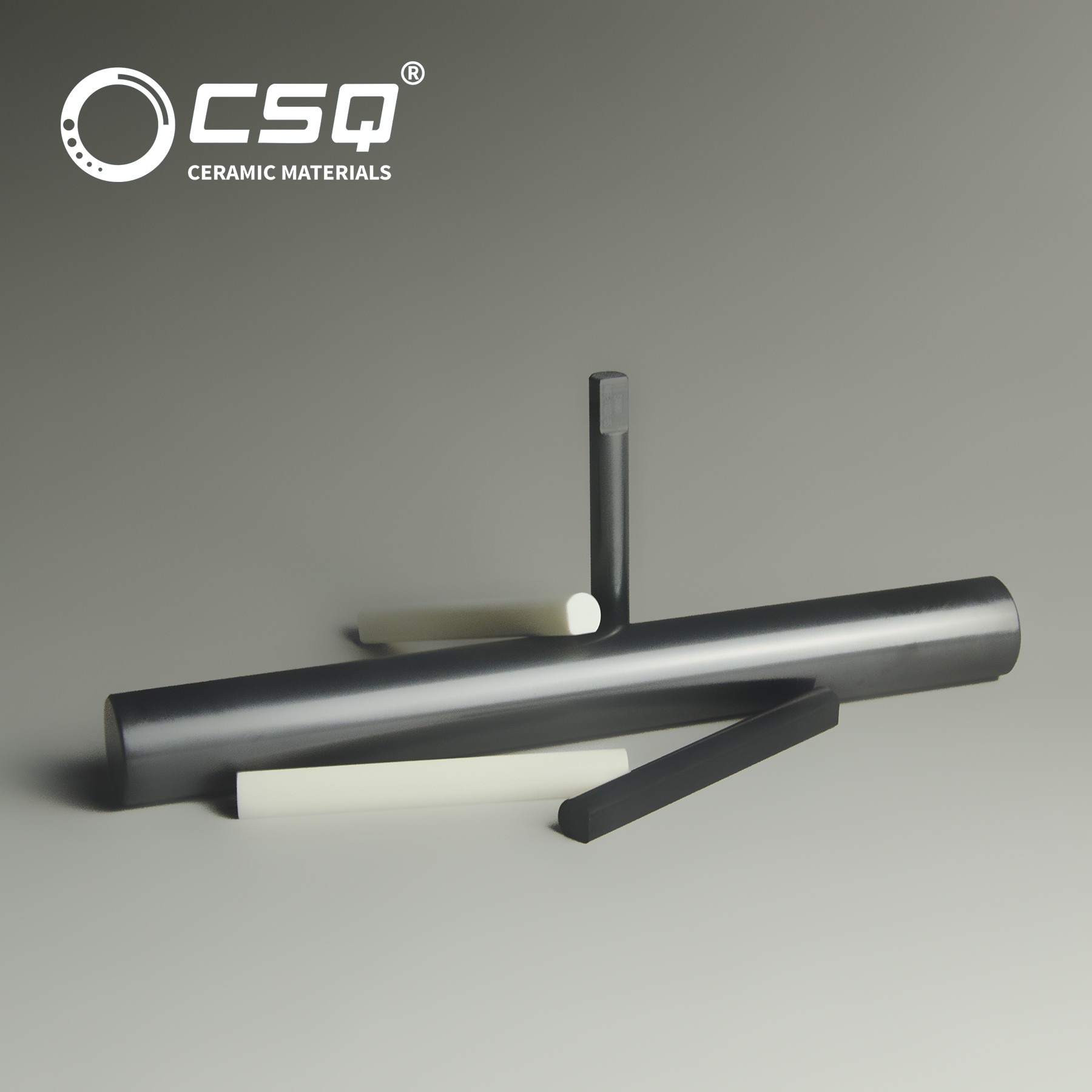

Silicon Carbide Zirconia Ceramic Shaft For Pool Pump Impeller Rod 1
