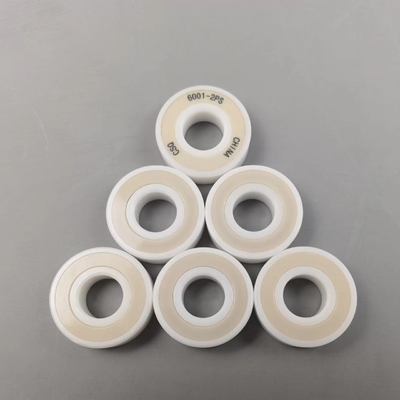

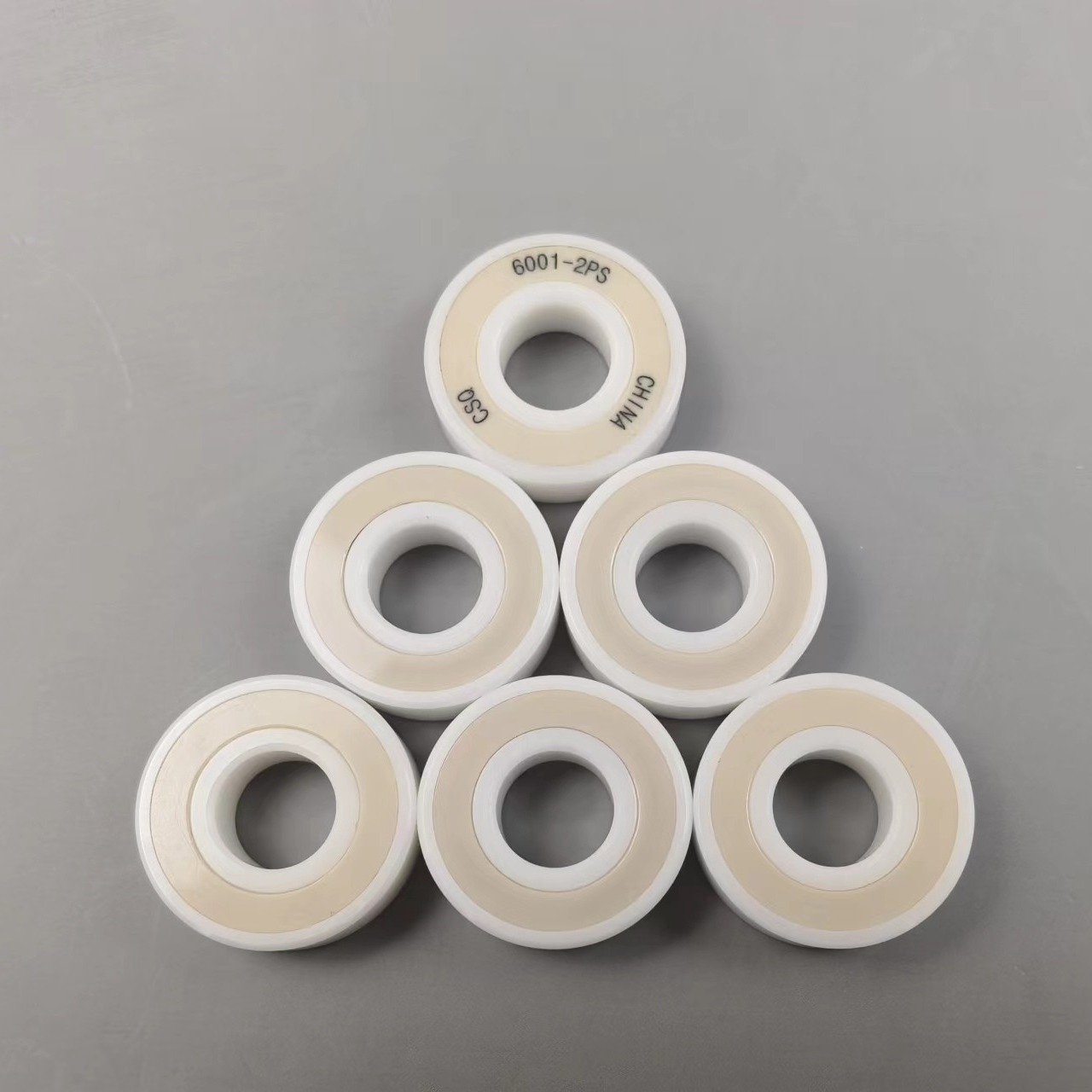

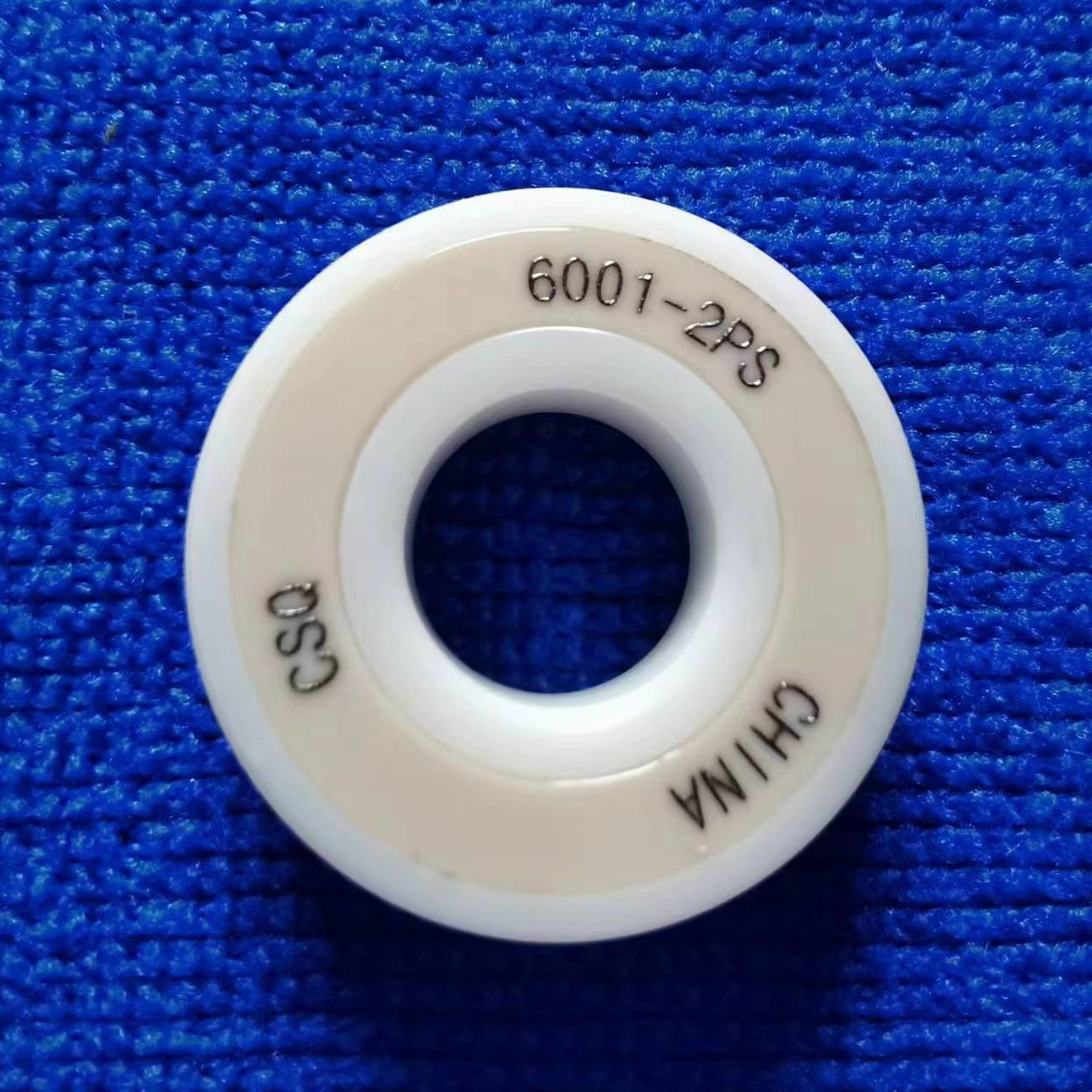

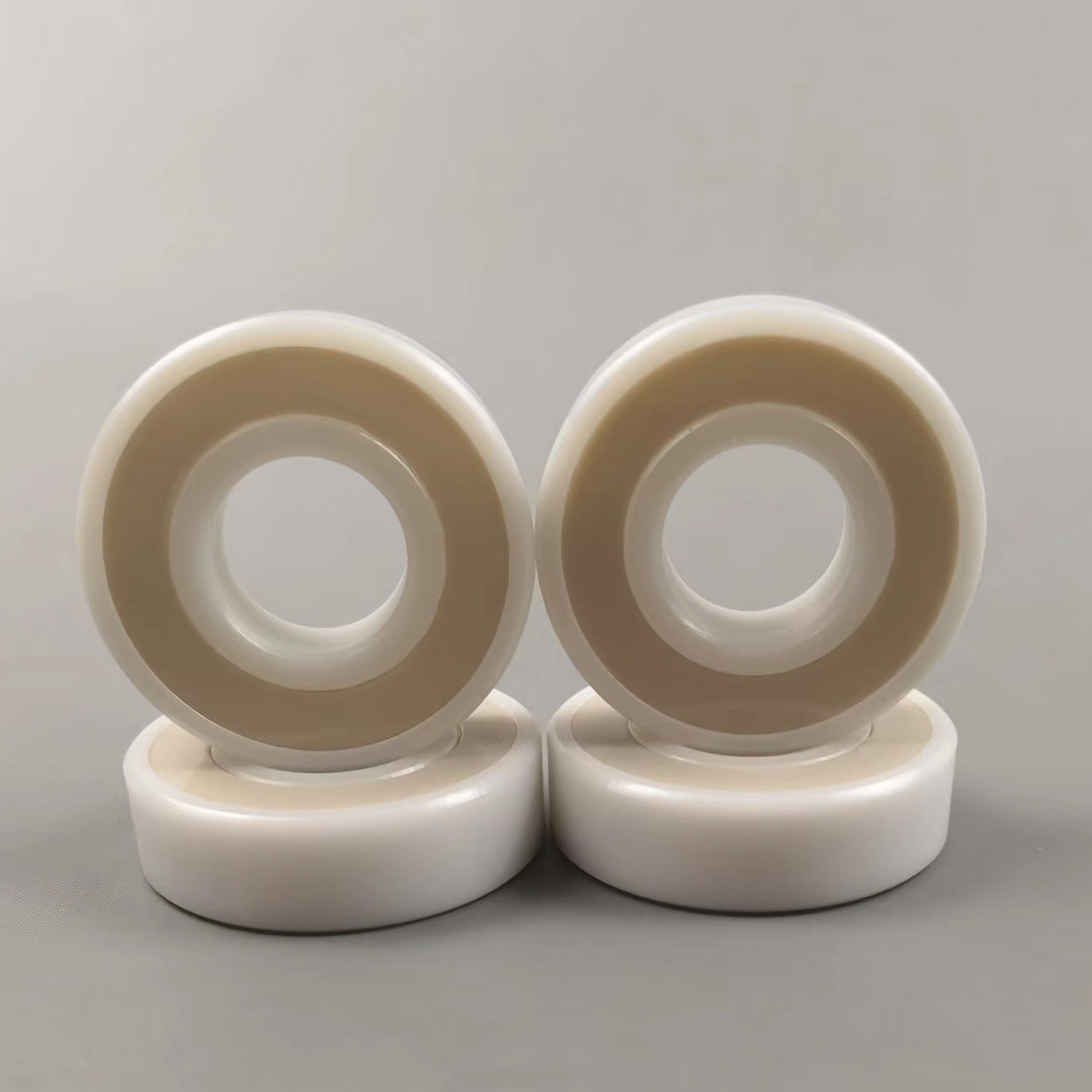

6001rs Ceramic Bearing Deep Groove HIP Zirconia 12mmx28mmx8mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6001 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 30 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6001 Ceramic Bearing | Structure | Deep Groove Bearing |
|---|---|---|---|
| Material | HIP-Zirconia Races/Balls+Peek Cage+Peek Seals | Precision | P6/ABEC3 To P4/ABEC7 |
| Clearance | C3 Or Customized | Use | Magnetic Resonance Imaging Instrument (MRI) |
| Ball Size | 4.7625mm | Inner Diameter | 12mm |
| Outer Diameter | 28mm | High | 8mm |
| Sealing Material | Two Peek Seals | Pacage | Plastik Box+carton Box |
| Highlight | CSQ 6001rs Ceramic Bearing Deep Groove,CSQ 6001rs Ceramic Bearing 12mmx28mmx8mm,CSQ 6001rs ball bearing |
||
Product Description
6001-2PS Ceramic Bearing of HIP-Zirconia Races/Balls+PEEK Cage And Seals with High Precision
Specification and Performance advantages of 6001 All Ceramic Bearings:
1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved, to which is the ordinary zirconia bearings incomparable.
2. PEEK cage and seals: The crown structure cages and seals are adopted British Victrex PEEK material and injection molded at high temperature, so have high strength, light body, and will be fitted to the bearings using our unique design of press-fit double-sided construction. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.
Main application of 6001 All Ceramic Bearings:
Because of the advantages of zirconia material, the 6001 HIP-ZrO2 (Hot isostatic pressure sintered zirconia) ceramic bearings with PEEK cage and seals can be used in magnetic resonance imaging instruments and other medical equipment.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
